EVBUM2294/D
PYTHON Image Sensor
Evaluation Kits
Description
ON Semiconductor PYTHON Image Sensor Evaluation Kits enable
customers to easily and quickly evaluate the performance of the
PYTHON CMOS Image Sensors without the need to develop a full
camera design. When combined with ON Semiconductor Sensor
Studio II software, this hardware allows full control of the image
sensor’s register settings and enables video recording, still image
capture, and image analysis. With this level of programmability,
CMOS sensor functionality such as global shutter, very fast frame rate,
high NIR sensitivity, and multiple regions of interest can be rapidly
evaluated.
Features
www.onsemi.com
EVAL BOARD USER’S MANUAL
•
Full Access to Image Sensor Register Settings
•
Supports HDR Operation and ROI Readout
•
USB Interface for Sensor Control, Image Capture,
•
•
•
•
and Firmware Downloads
Socketed Sensor* for Easy Sensor Replacement
Integrated Tripod Mount (1/4−20 thread)
Additional Headboards (sold separately) Allow Evaluation of
Multiple PYTHON Products
Lens Mount Kit (sold separately) Provides Support for C and F
Mount Lenses, Includes IR Cut Filter for Color Imaging Evaluation
Image Capture Board with Integral Tripod Mount
Headboard (Sensor installed & Lens Mount affixed)
USB 3.0 Cable (2 meter length)
Quick Start Guide
Kit Includes
•
•
•
•

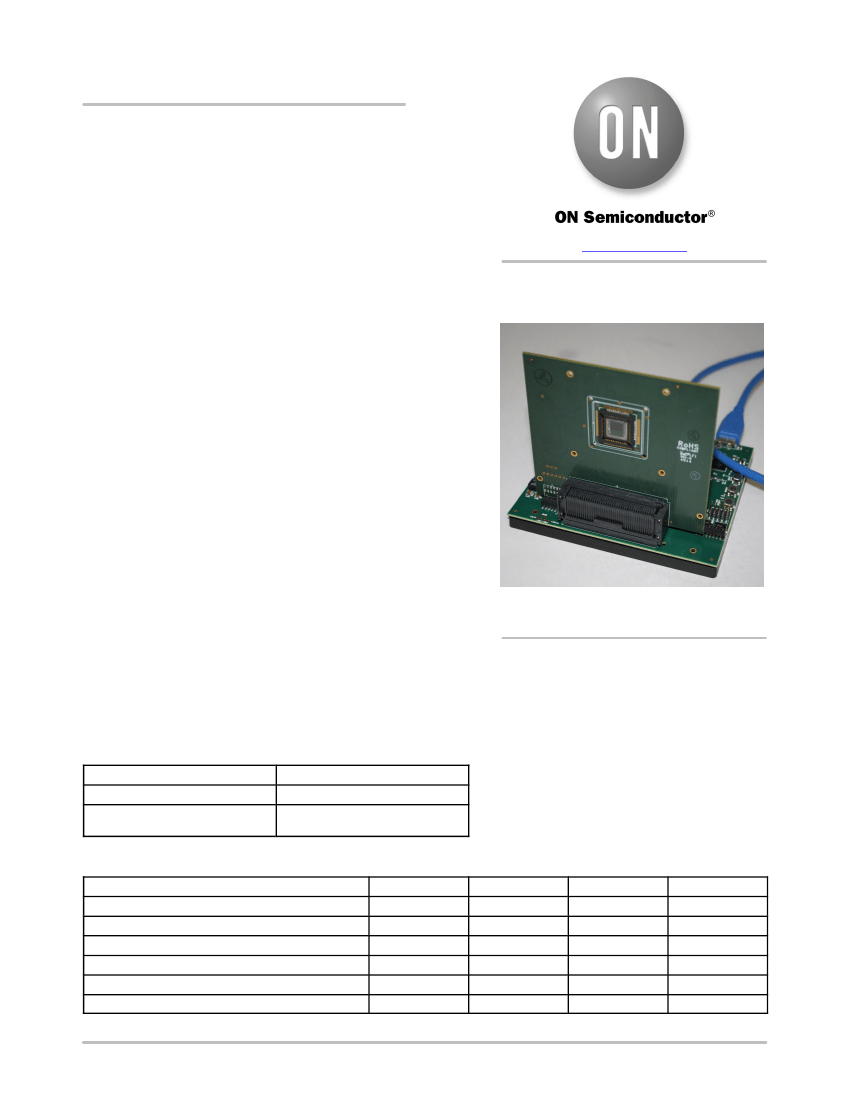

Figure 1. PYTHON Image Sensor
Evaluation Board
*Not applicable to PYTHON 480 kit
GENERAL SPECIFICATIONS
Parameter
Hardware Interfaces
Typical Data Rate (USB 3.0)
Typical Value
USB 3.0, USB 2.0
Up to 300 Mb/sec
(Varies with USB Adapter used)
KIT SPECIFIC SPECIFICATIONS
Evaluation Kit
LVDS Lanes
Max Frame Rate, Full Resolution (fps)
Display Frame Rate, Full Resolution, USB 3.0 (fps)
On Board Buffer Capacity, Full Resolution (Frames)
Included Lens Mount
Compatible with Optional Lens Mount Kit
PYTHON 480
1
120
62
256
C mount
No
PYTHON 1300
4
168
26
64
C mount
Yes
PYTHON 5000
8
82
6.8
32
C mount
Yes
PYTHON 25k
32
35
1.6
8
F mount
Yes
©
Semiconductor Components Industries, LLC, 2015
June, 2018
−
Rev. 5
1
Publication Order Number:
EVBUM2294/D
EVBUM2294/D
ORDERING INFORMATION
Part Number
NOIP1SN0480A−STI−A−GEVK
NOIP1SE0480A−STI−A−GEVK
NOIP1SN1300A−QDI−A−GEVK
NOIP1SN5000A−QDI−A−GEVK
NOIP1SN025KA−GDI−A−GEVK
Description
PYTHON 480 (SVGA) Monochrome Image Sensor
Evaluation Kit (Image Sensor Included)
PYTHON 480 (SVGA) Color Image Sensor Evaluation
Kit (Image Sensor Included)
PYTHON 1300 (1.3 MP) Monochrome Image Sensor
Evaluation Kit (Image Sensor Included)
PYTHON 5000 (5.3 MP) Monochrome Image Sensor
Evaluation Kit (Image Sensor Included)
PYTHON 25K (26.2 MP) Monochrome Image Sensor
Evaluation Kit (Image Sensor Included)
N/A
N/A
PYTHON 300, PYTHON 500
PYTHON 2000 LCC
PYTHON 10K, PYTHON 12K,
PYTHON 16K
Compatible Devices
(Sold Separately)
OPTIONAL HARDWARE ORDERING INFORMATION
Part Number
NOIP1SN0480A−STI−HEAD−BD−A−
GEVK
NOIP1SE0480A−STI−HEAD−BD−A−
GEVK
NOIP−48PIN−HEAD−BD−A−GEVB
NOIP−84PIN−HEAD−BD−A−GEVK
NOIP−355PIN−HEAD−BD−A−GEVB
LENS−MOUNT−KIT−D−GEVK
Description
PYTHON 480 Monochrome Headboard
(Image Sensor Included)
PYTHON 480 Color Headboard
(Image Sensor Included)
48−Pin Headboard Only (Image Sensor Not Included)
84−Pin Headboard Only (Image Sensor Not Included)
355−Pin Headboard Only (Image Sensor Not Included)
Lens Mount Kit to Support C and F Mount Lenses
(Includes IR Cut-Filter)
N/A
N/A
PYTHON 300, PYTHON 500,
PYTHON 1300
PYTHON 2000 LCC,
PYTHON 5000 LCC
PYTHON 10K, PYTHON 12K,
PYTHON 16K, PYTHON 25K
All PYTHON evaluation kits and
headboards other than
PYTHON 480
Compatible Devices
(Sold Separately)
REQUIRED HARDWARE AND SOFTWARE
Host Computer
•
2 GHz processor, 8 GB RAM, USB 2.0 / 3.0 interface,
Windows 7 Operating System (64 bit)
•
Sensor Studio II software. Available for
download
at
www.onsemi.com.
For Maximum Speed
Other (User Supplied)
•
+12 VDC, 2 Amp, power supply with 2.1 mm center
positive DC jack
•
Camera lens
•
IR cut filter (required for evaluating color image
sensors)
•
Table-top tripod (optional)
•
Native USB 3.0 chipset
