KF86X-ED-15P-BRJ-30 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> KF86X-ED-15P-BRJ-30

Preview

KF86X-ED-15P-BRJ-30: DescriptionCONNECTOR, D SUBMINIATURE CONNECTOR; CategoryThe connector; File Size878KB，1 Pages; ManufacturerKycon

Download Datasheet Parametric Compare View All

KF86X-ED-15P-BRJ-30 Overview

CONNECTOR, D SUBMINIATURE CONNECTOR

KF86X-ED-15P-BRJ-30 Parametric

Parameter Name	Attribute value
Maker	Kycon
Reach Compliance Code	unknown
Is Samacsys	N
Connector type	D SUBMINIATURE CONNECTOR
Manufacturer's serial number	KF86X
Base Number Matches	1

Preview

Download Datasheet

View All

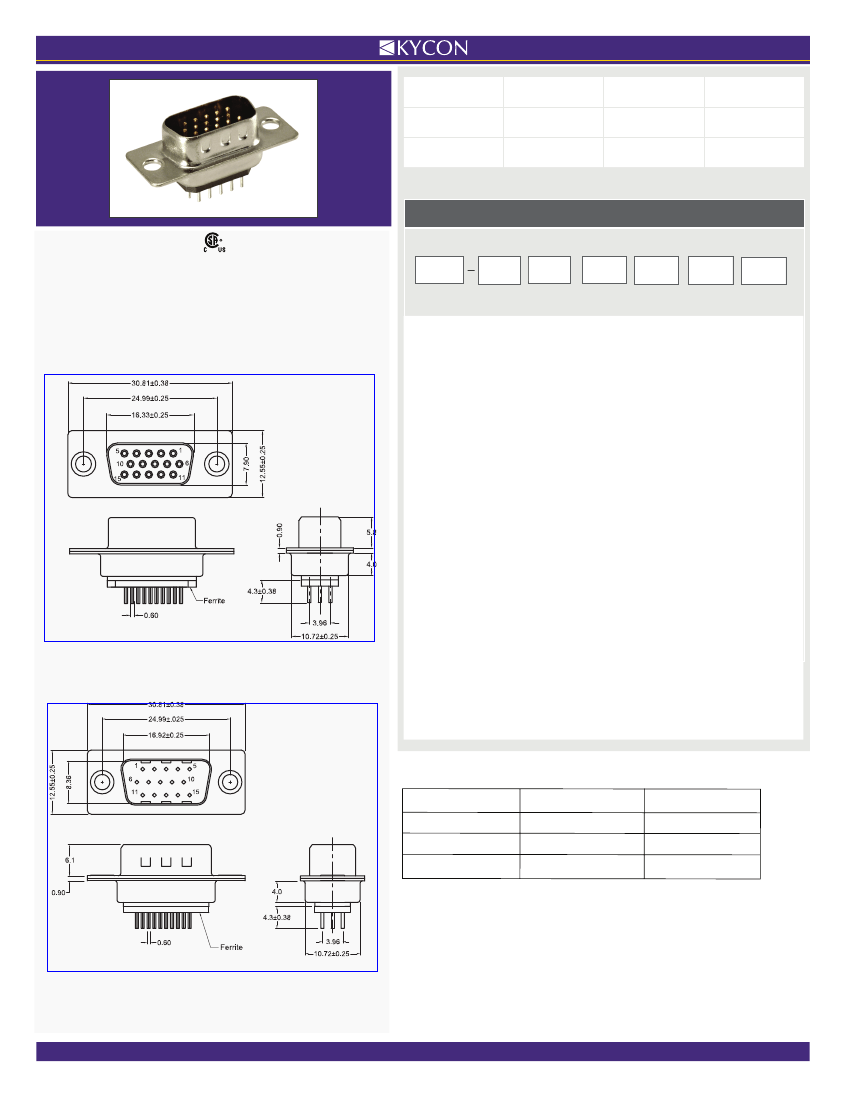

2D Drawing

Solder Profile

Certificate of Origin

IGES

CofC RoHS Compliant

Check Stock

STEP

CofC REACH Compliant

Request a Sample

3D PDF

UL Plastic File

Send Us An Email

Generated Part Number

KF86X-ED-15P

Part Number Builder

LR78160

D-SUBMINIATURE CONNECTORS:

KF86X

Series

KF86X Series

Dimensions

Dimensions in mm

KF86X

Series

E

Shell

Type

D

Type

15

Contact

Option

P

Contact

Type

Mounting

Option

Plating

Option

Vertical PCB Mount

High Density with Ferrite

Series

KF86X

-

D-Subminiature

Vertical

Connector

Contact Shell Size

E

- 15 Contacts

Contact Construction, Pin Type

D

- Precision Formed

Contact Type

P

- Pin Contact (Plug)

S

- Socket Contact (Receptacle)

Mounting Option

Blank

- Through Hole

BR

- With #4-40 Tin Plated 7.00mm Long Boardlocks

BRJ

- With #4-40 Tin Plated 7.00mm Long Boardlocks

and #4-40 Jackscrews

K

- With #4-40 Bushings

KJ

- With #4-40 Bushings and #4-40 Jackscrews

KF86X-ED-15P Dimensions

Dimensions in mm

Plating Option

Blank

- Gold Flash

30

- 30µ” Gold

Contact Kycon for Other Options

Ferrite Specifications

Test Frequency

30 Mhz

50 Mhz

100 Mhz

Outer Row

10-14 Ohms

12-18 Ohms

15-20 Ohms

Inner Row

13-17 Ohms

15-19 Ohms

19-24 Ohms

Phone: +1.408.494.0330

l

Fax: +1.408.494.0325

l

WWW.KYCON.COM

l

2013

KF86X-ED-15P-BRJ-30 Related Products

	KF86X-ED-15P-BRJ-30	KF86X-ED-15P-K-30	KF86X-ED-15P-KJ-30	KF86X-ED-15S-BR-30	KF86X-ED-15S-BRJ-30	KF86X-ED-15S-K-30	KF86X-ED-15S-KJ-30	KF86X-ED-15P-BR-30
Description	CONNECTOR, D SUBMINIATURE CONNECTOR	CONNECTOR, D SUBMINIATURE CONNECTOR	CONNECTOR, D SUBMINIATURE CONNECTOR	CONNECTOR, D SUBMINIATURE CONNECTOR	CONNECTOR, D SUBMINIATURE CONNECTOR	CONNECTOR, D SUBMINIATURE CONNECTOR	CONNECTOR, D SUBMINIATURE CONNECTOR	CONNECTOR, D SUBMINIATURE CONNECTOR
Maker	Kycon	Kycon	Kycon	Kycon	Kycon	Kycon	Kycon	Kycon
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Manufacturer's serial number	KF86X	KF86X	KF86X	KF86X	KF86X	KF86X	KF86X	KF86X
Is Samacsys	N	N	N	N	N	N	N	-
Base Number Matches	1	1	1	1	1	1	1	-
