NM7010B Datasheet
(Ver. 1.3)
+
©2007 WIZnet Co., Inc. All Rights Reserved.
For more information, visit our website at
http://www.wiznet.co.kr
0/19
© Copyright 2007 WIZnet Co., Inc. All rights reserved.
TOP
Document History Information
Revision
Ver. 1.0
Ver. 1.1
Ver.1.2
Ver.1.3
Data
OCTOBER , 2006
June 29, 2007
July 24, 2007
January 9, 2008
Description
Release with NM7010B
+
Launching
Add SPI signal Pin description(A14-A11)
PHY Chip Change (RTL8201CP -> IP101A)
For more information, refer to NM7010B+
schematic.
Add power consumption in Feature
2/19
NM7010B
+
Datasheet
NM7010B
+
Datasheet
© Copyright 2007 WIZnet Co., Inc. All rights reserved.
TOP
WIZnet’s Online Technical Support
If you have something to ask about WIZnet Products, Write down your question on
Q&A Board in WIZnet website (www.wiznet.co.kr). WIZnet Engineer will give an
answer as soon as possible.
3/19
NM7010B
+
Datasheet
NM7010B
+
Datasheet
© Copyright 2007 WIZnet Co., Inc. All rights reserved.
TOP
Table of Contents
1.
Introduction .................................................................................5
1.1.
Features
..................................................................................5
1.2.
Block Diagram
...........................................................................5
Pin Assignments & descriptions ....................................................... 6
2.1.
Pin Assignments
.........................................................................6
2.2.
Power & Ground
.........................................................................7
2.3.
MCU Interfaces
..........................................................................8
2.4.
Network status & LEDs
............................................................... 10
2.5.
Miscellaneous Signals
................................................................ 10
Timing Diagrams......................................................................... 11
3.1.
Reset Timing ......................................................................... 11
3.2.
Register/Memory READ Timing
..................................................... 12
3.3.
Register/Memory WRITE Timing
.................................................... 13
3.4.
SPI Timing
.............................................................................. 14
Dimensions ................................................................................ 15
Connector Specification ............................................................... 16
Schematic .................................................................................. 17
Partlists ..................................................................................... 19
NM7010B
+
Datasheet
NM7010B
+
Datasheet
2.
3.
4.
5.
6.
7.
4/19
© Copyright 2007 WIZnet Co., Inc. All rights reserved.
TOP
1. Introduction
NM7010B
+
is the network module that includes W3150A
+
(TCP/IP hardwired chip), Ethernet PHY
(IP101A), MAG-JACK (RJ45 with X’FMR) with other glue logics. It can be used as a component and no
effort is required to interface W3150A
+
and PHY chip. The NM7010B
+
is an ideal option for users who
want to develop their Internet enabling systems rapidly.
NM7010B
+
consists of W3150A
+
, Ethernet PHY and MAG-JACK.
TCP/IP, MAC protocol layer: W3150A
+
Physical layer: Ethernet PHY
Connector: MAG-JACK
NM7010B
+
Datasheet
NM7010B
+
Datasheet
1.1. Features
Supports 10/100 Base TX
Supports half/full duplex operation
Supports auto-negotiation and auto crossover detection
IEEE 802.3/802.3u Complaints
Operates 3.3V with 5V I/O signal tolerance
Supports network status indicator LEDs
Includes Hardware Internet protocols: TCP, IP Ver.4, UDP, ICMP, ARP, PPPoE, IGMP
Includes Hardware Ethernet protocols: DLC, MAC
Supports 4 independent connections simultaneously
Supports MCU bus Interface and SPI Interface
Supports Direct/Indirect mode bus access
Supports Socket API for easy application programming
Interfaces with Two 2.0mm pitch 2 * 14 header pin
Maximum Power Consumption is 160mA at 3.3V

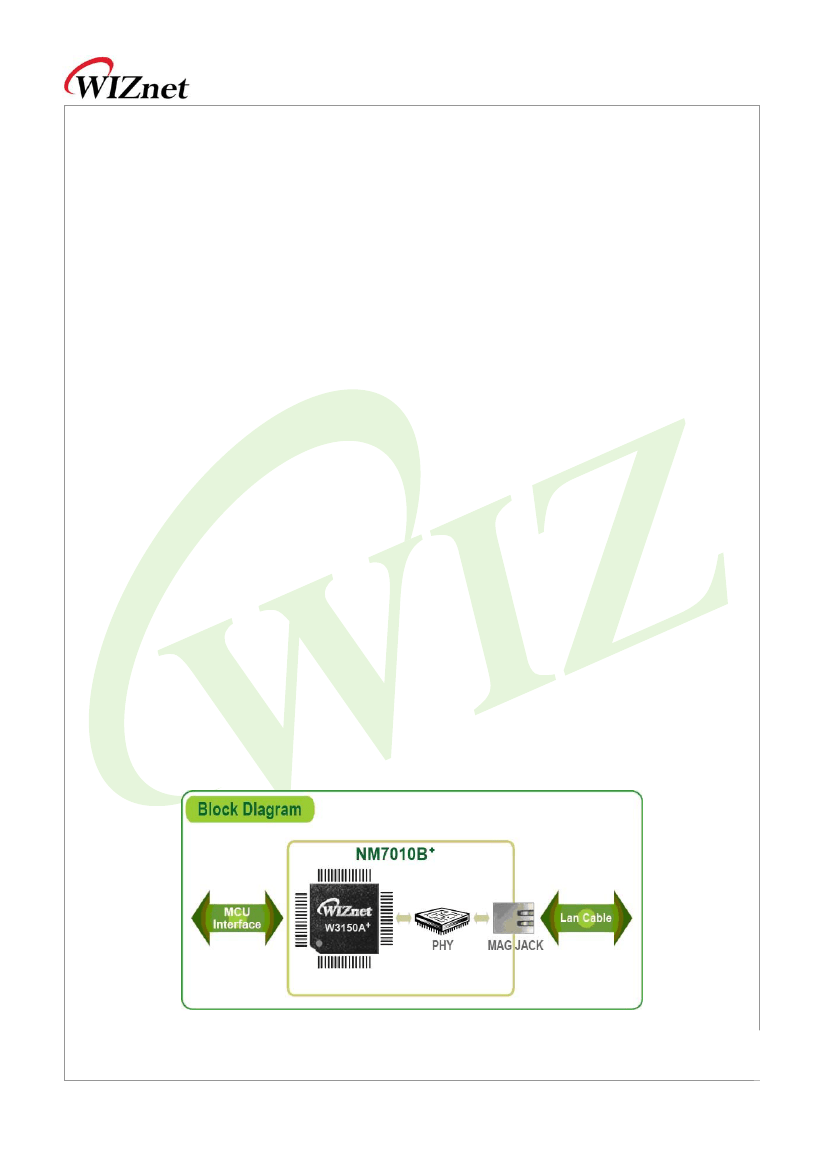

1.2. Block Diagram
