BSP120-TAPE-7: DescriptionTRANSISTOR 0.25 A, 200 V, 12 ohm, N-CHANNEL, Si, POWER, MOSFET, FET General Purpose Power; CategoryThe transistor; File Size75KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BSP120-TAPE-7 Overview

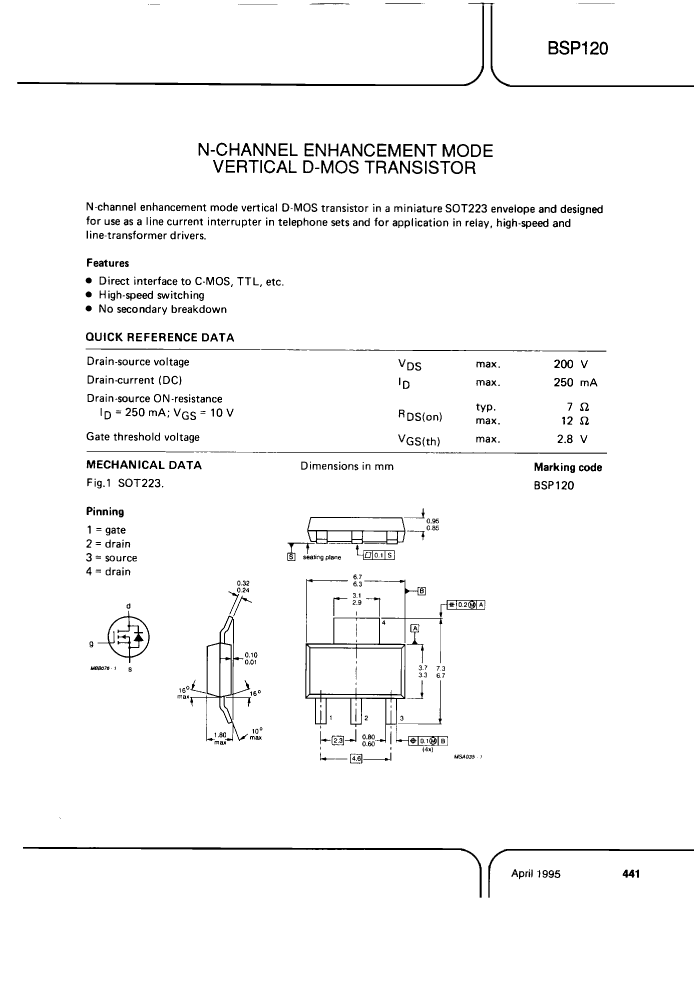

TRANSISTOR 0.25 A, 200 V, 12 ohm, N-CHANNEL, Si, POWER, MOSFET, FET General Purpose Power

Parameter Name	Attribute value
Maker	NXP
package instruction	SMALL OUTLINE, R-PDSO-G4
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE

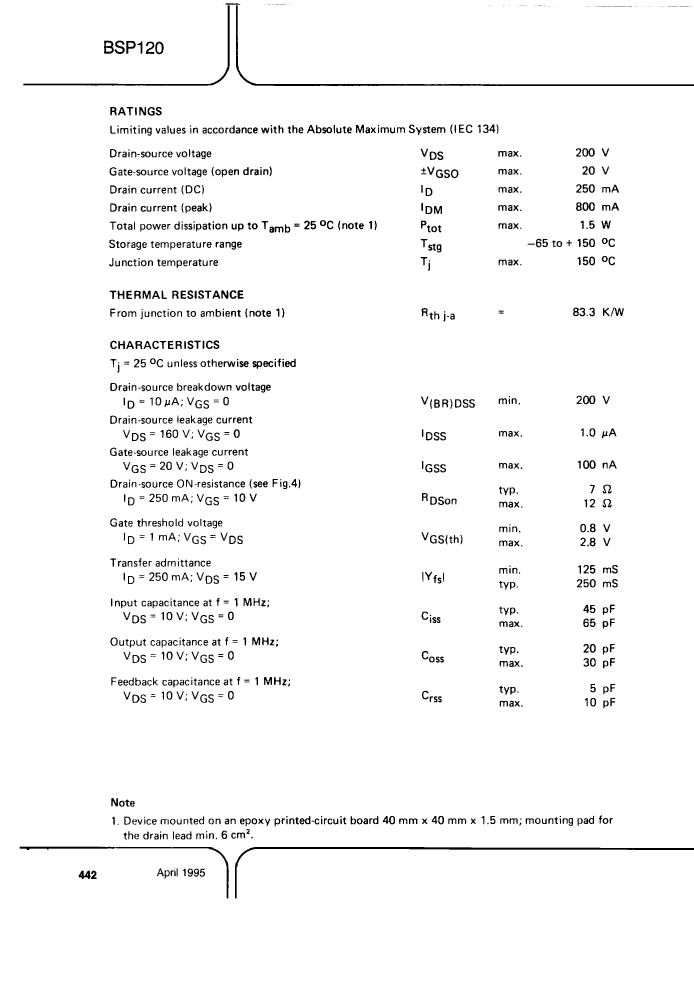

Minimum drain-source breakdown voltage	200 V
Maximum drain current (ID)	0.25 A
Maximum drain-source on-resistance	12 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	10 pF
JESD-30 code	R-PDSO-G4
Number of components	1
Number of terminals	4
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	N-CHANNEL
Maximum pulsed drain current (IDM)	0.8 A
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON

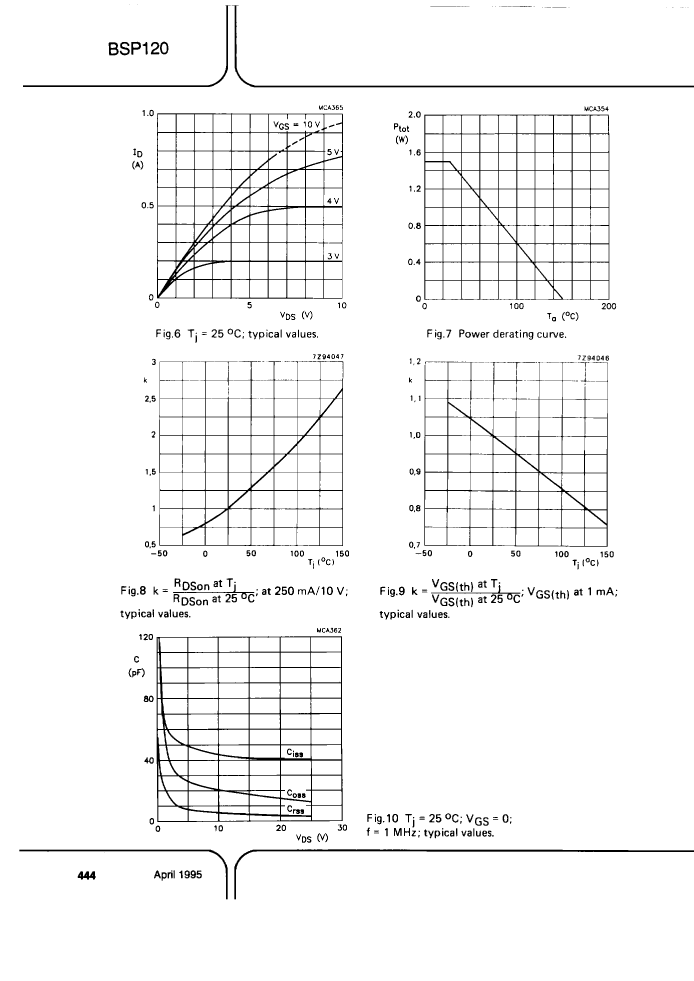

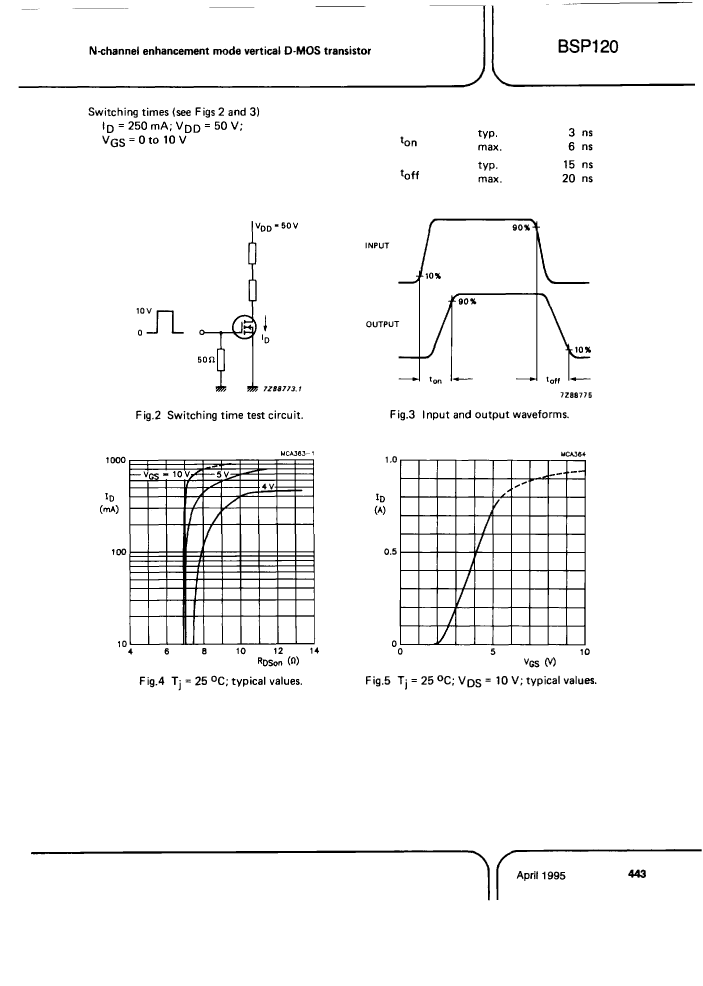

Maximum off time (toff)	20 ns
Maximum opening time (tons)	6 ns
Base Number Matches	1

	BSP120-TAPE-7	BSP120-TAPE-13
Description	TRANSISTOR 0.25 A, 200 V, 12 ohm, N-CHANNEL, Si, POWER, MOSFET, FET General Purpose Power	TRANSISTOR 0.25 A, 200 V, 12 ohm, N-CHANNEL, Si, POWER, MOSFET, FET General Purpose Power
Maker	NXP	NXP
package instruction	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Shell connection	DRAIN	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	200 V	200 V
Maximum drain current (ID)	0.25 A	0.25 A
Maximum drain-source on-resistance	12 Ω	12 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	10 pF	10 pF
JESD-30 code	R-PDSO-G4	R-PDSO-G4
Number of components	1	1
Number of terminals	4	4
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	N-CHANNEL	N-CHANNEL
Maximum pulsed drain current (IDM)	0.8 A	0.8 A
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Maximum off time (toff)	20 ns	20 ns
Maximum opening time (tons)	6 ns	6 ns
