KV3201 – KV3902
TM
®
VARACTOR DIODES
LOW COST UHF Hyperabrupt Junction
RoHS Compliant
DESCRIPTION
These families of hyperabrupt junction RF varactor diodes feature
computer controlled grown junction epitaxy which provides extraordinary
consistency and the highest Q available in a 30 Volt hyperabrupt
varactor. These series give the designer a full capacitance range of 9 to
27.5 pF at 3V of bias. They allow octave tuning of LC tanks through 500
MHz. With a reduced 1.5 to 1 frequency ratio, straight-line-frequency
tuning over a 3 to 8 volt tuning range is possible. Ultrahigh Q and
excellent large signal handling capabilities, along with a 2 to 1
capacitance ratio can be obtained by tuning from 9 to 20 volts of reverse
bias. Linear, wide deviation tuning of VCXO/TCXO’S and frequency
modulators also results when these diodes are tuned over a 3 to 8 volt
bias range.
Closely matched sets of all HF-VHF diodes are available along with “A”
suffix versions having ±5% capacitance tolerance at 3 or 4 volts of
reverse bias depending on series selected.
KEY FEATURES
Low Inductance
Wide Capacity Swing
High Q
Superior Reproducibility

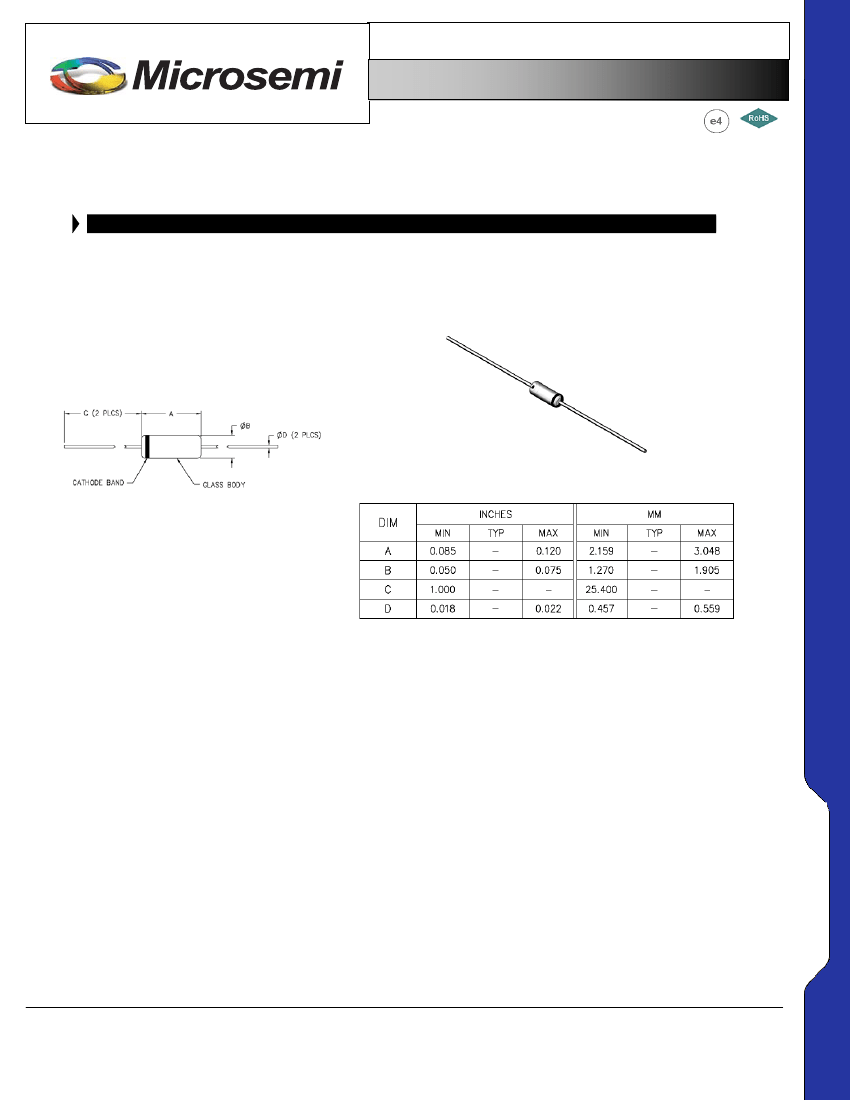

Hermetic Glass (DO-34) Package
www.MICROSEMI.com
APPLICATIONS/BENEFITS
APPLICATIONS
These families of hyperabrupt varactors are ideal for wide bandwidth
VCOs. They also provide excellent performance in frequency
modulators, voltage variable filters, analog phase shifters, TCXOs
and VCXOs.
Values cover the entire VHV /
UHF spectrum;
Highest Q / lowest VCO phase
noise
Tough MIL-Spec SiO
2
passivation
ABSOLUTE MAXIMUM RATINGS AT 25º C
(UNLESS OTHERWISE SPECIFIED)
Rating
Maximum Working Voltage
Forward Current
Power Dissipation
Maximum Junction Temp.
Storage Temperature
Operating Temperature
Symbol
V
R
I
F
Pd
T
j
T
STG
T
OP
Value
30
200
Unit
V
mAdc
TA= 25 ºC
400 mW
Derate above 25 ºC 4.0 mW ºC
KV3201-KV3902
KV3201-KV3902
+150
-65 to +150
-55 to +150
ºC
ºC
ºC
IMPORTANT:
For the most current data, consult our website:
www.MICROSEMI.com
Specifications are subject to change. Consult factory for the latest information
.
These devices are ESD sensitive and must be handled using ESD precautions.
Unless otherwise specified, these products
are supplied with Gold terminations suitable
for RoHS compliant assembly.
1
Copyright
©
2007
Rev: 2012-08-28
Microsemi
Microwave Products
Page 1
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
KV3201 – KV3902
TM
®
VARACTOR DIODES
LOW COST UHF Hyperabrupt Junction
RoHS Compliant
UHF – HYPERABRUPT VARACTORS
ELECTRICAL PARAMETERS @ 25°C (unless otherwise specified)
C
T
(pF)
MODEL
NUMBER
ƒ = 1 MHz
www.MICROSEMI.com
T
R
ƒ = 1 MHz
Min / Typ / Max
V
R
= 3V
V
R
= 25V
Min / Typ /
Max
C (3V) / C
(25V)
V
BR
I
R
= 10
uAdc
V
30
30
30
Quality
Factor
1
Min/Typ
Q @ 3V
ƒ= 50MHz
300 / 415
200 / 280
115 / 160
I
R
V
R
= @80% of
Vb
Typ/Max
(nA)
50
50
50
Cathode
Stripe
KV3201
KV3901
KV3902
9 / 11 / 13
26 / 29 / 32
2.0 / 2.1 / 2.3 4.5 / 5.2 / 5.8
4.5 / 5.1 / 6.0 5.0 / 5.7 / 6.5
White
Yellow
Green
22.5 / 25 / 27.5 2.9 / 3.2 / 3.5 6.8 / 7.8 / 8.9
1.
Q is determined at V
R
= 4V, ƒ=50 MHz by
Q
=
1 /( 2
π
fRsCj
)

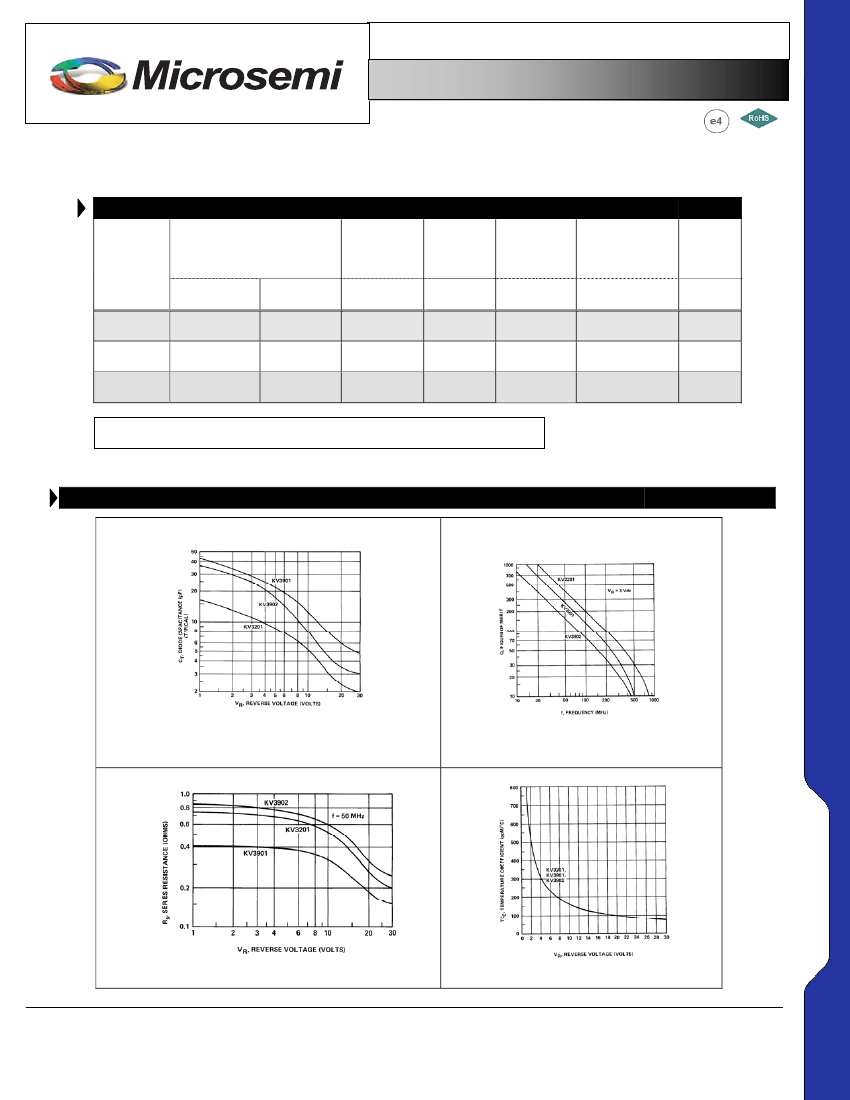

GRAPHS
ELECTRICALS &
GRAPHS
Copyright
©
2007
Rev: 2012-08-28
Microsemi
Microwave Products
Page 2
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
