Fully Managed Ethernet Switch
10/100, Gigabit Uplink, SNMP, Modbus/TCP
Models SEC510-2SFP-T, SE512-4SFP-T, SE520-4SFP-T
www.advantech-bb.com
Features & Benefits
• 8-port 10/100 Mbps + 2-port Gigabit Combo (RJ45 or SFP) Uplink
• 8-port or 16-port 10/100Mbps + 4-port Gigabit SFP Uplink
• Full suite of Layer 2 functionality and advanced diagnostic tools
• Energy Efficient Ethernet (EEE), IEEE 802.3az for low energy consumption
• Jumbo Frame support, up to 9,216 bytes
• IXM™ function enables the cross management for fast deployment
• X-Ring™ function offers self-healing recovery time less than 20 ms
• Redundant Power Inputs (8.4 - 57.6 VDC)
• Wide Temperature Range -40 to 75°C
• EMS Level 3 Radiated/Conducted noise protection
• Designed for UL508 (Industrial Control Panel), NEMA TS2 (Traffic Control),
EN50121-4 (Rail Signal Control)

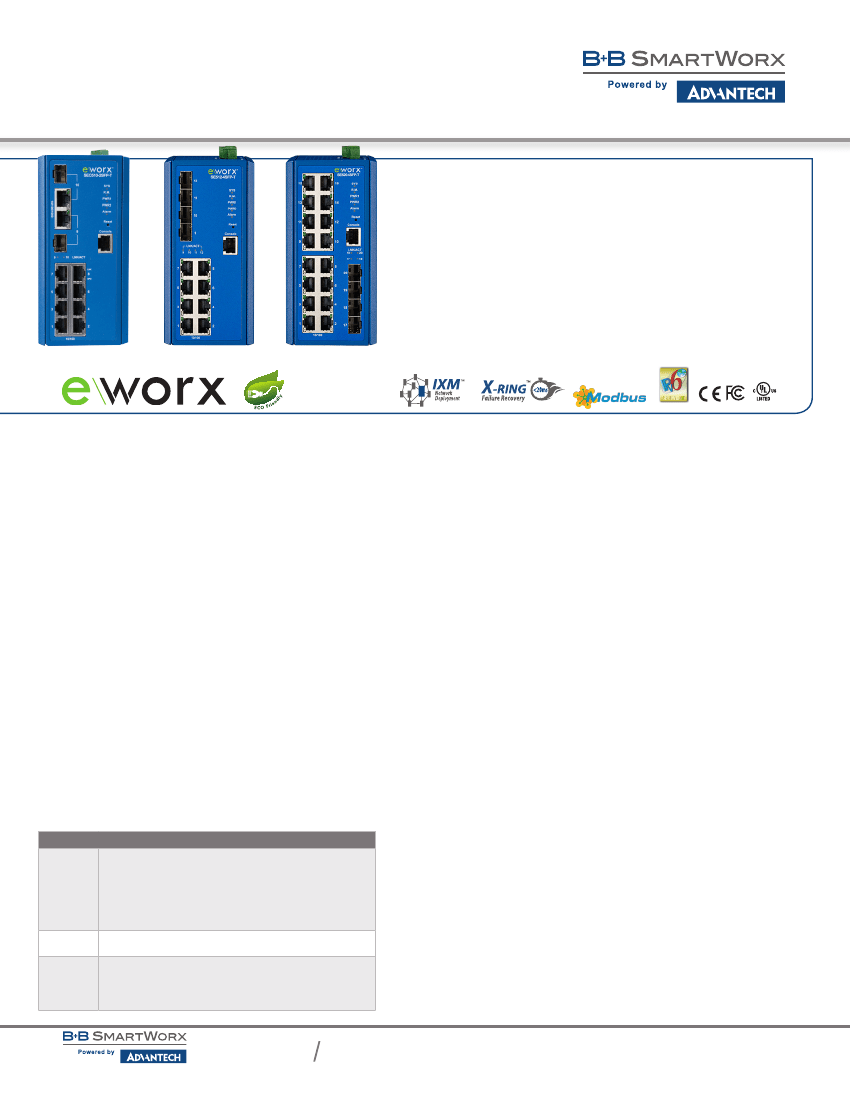

SEC510-2SFP-T
SE512-4SFP-T
SE520-4SFP-T
Introduction
The SE500 series is a fully managed Ethernet switch with industrial,
ruggedized features designed to work in harsh environment applications.
This switch offers all the features expected in a managed switch such as
VLAN, IGMP Snooping, Network Redundancy, Link Aggregation, SNMP
V1,V2c,V3, Web and Telnet support. Comprehensive network security
features such as SSH, HTTPS/SSL, TLS, TTLS, PEAP and Radius are
also offered.
Embedded into each switch is the industry leading eWorx IXM™ cross
management technology. IXM allows the installer to auto synchronize
firmware updates and push configuration setting to either individual
or groups of switches. IXM provides maintenance and provisioning
functionality to both the SE500 and SE300 family switches without the
need of extra software or trained personal. IXM™ speeds up switch
deployment and ensures network stability.
The eWorx SE500 series switches feature a powerful suite of diagnostic,
monitoring and network performance capabilities: Cable diagnostics, IPv4/
IPv6 ping, fiber SFP monitoring (DDMI), port utilization, traffic statistics,
QoS and rate limiting - all available from the Web GUI. These advanced
features offer quick and easy troubleshooting.
L2 Managed Features
Specifications
INTERFACE
8 x RJ45 + 2 x (RJ45/SFP) combo ports (Model SEC510-2SFP-T)
8 x RJ45 + 4 x SFP ports (Model SE512-2SFP-T)
16 x RJ45 + 2 x SFP ports (Model SE520-2SFP-T)
1 x RS-232 Console port (RJ45 connector)
1 x Reset bottom
6-pin removable screw terminal (power & relay)
Auto Sensing, 10/100BaseTX, 10/100/1000BaseTX, Duplex and
MDIX
PWR1, PWR2, SYS, Alarm and R.M.
10/100 T(X): Link/Activity, Speed
Gigabit Copper: Link/Activity, Speed
SFP: Link/Activity
Connectors
Ethernet
LED
Indicators
IEEE802.3az
– Energy-Efficient Ethernet (EEE) is a set of enhancements to the
twisted-pair and backplane Ethernet computer networking standards that allows for
less power consumption during periods of low data activity.
IXM™
– Offers auto synchronization function of both firmware and configuration settings
to make middle/large-scale deployment of multiple switches fast and easy. A built- in
Web GUI feature, no need for extra software to be installed on a computer.
X-Ring™
– Sub-20ms self-healing/ring recovery technology. X-Ring supports different
topology options and allows different ring healing methods to coexist in one switch -
Couple Ring, Dual Homing and Multi-couple Ring - reduce redundant network cabling
and planning costs and ensure high reliability of your industrial network applications
Multiple Account Access
– allows the network manager to create user accounts
with differing permissions. User ID’s can be created with a wide variety of access -
from simple device monitoring to full maintenance, thus ensuring security and offering
flexibility for field deployment.
IPv6
– A future-proof feature, IPv6 (Internet Protocol version 6) is a set of specifications
from the Internet Engineering Task Force (IETF) that is an upgrade of IP version 4
(IPv4). The basics of IPv6 are similar to IPv4 - devices can use IPv6 as source and
destination addresses to pass packets over a network.
IGMP Snooping
– Internet Group Management Protocol allows the managed switch
to forward and filter multicast traffic intelligently, designed for the video streaming and
automation control network applications.
DDM
– Digital-diagnostic-monitoring (also known as "digital optical monitoring" or DOM)
provides critical information about the status of transmitted and received signals for
better fault isolation and error detection.
Cable Diagnostics
– This feature will enable you to verify the length of a cable right
from the switch to the other end. This is essential in diagnosing faults as a break in the
cable can be easily identified on a single wire within the cable, as well as shorts and
crossed-pairs.
Dual Image
– Considering possible failures during FW upgrades, such as power
failure or human error, dual image provides a backup image in case the system can’t
boot up through the primary image. The system automatically switches to the backup
image to reduce downtime.
Embedded Watchdog Timer
– This feature, embedded in our managed switches,
is used to detect and recover from switch malfunctions when the user cannot easily
access the field switch or would be unable to react to faults in a timely manner.
Ease of Use
– 10/100BaseTX or 10/100/1000 Mbps ports are auto sensing and auto
configuring. Each copper port is automatically negotiated for maximum speed and
performance by default, but can also be configured individually via the user interface.
A powerful inside processor allows wire speed capability on all.
All product specifications are subject to change without notice.
SE/SEC500 series 100 GB-SFP_0717ds
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
Fully Managed Ethernet Switch
10/100, Gigabit Uplink, SNMP, Modbus/TCP
Models SEC510-2SFP-T, SE512-4SFP-T, SE520-4SFP-T
Software Specifications
8K
4.1Mbit
5.6 Gbps (SEC510-2SFP-T
9.6 Gbps (SE512-4SFP-T)
11.2 Gbps (SE520-4SFP-T)
9,216 bytes
8
256
VID 1 to 4094
256
Web interface, Serial interface (Console), WebAccess NMS™,
Multiple user accounts, LLDP, SNMP v1/v2c/v3, Traps, SMTP,
RMON, SNTP, Standard MIB, Private MIB
HTTP/TFTP, Command line interface (CLI), IPv4/IPv6, TELNET,
DHCP server/ client, DHCP option 66/67/82, Flow control, Ingress/
Egress Rate limit, Jumbo frame
802.1x, IP Security (Trusted Host), DoS prevention, HTTPS/SSL,
SSH, PEAP, RADIUS, Multiple account setting, Storm control,
Port-IP Binding, SNMPv3 (Encryption)
X-Ring™ (Self-Recovery time < 20 ms), STP/RSTP/MSTP, LACP
(Link Aggregation Control Protocol)
Port statistics & utilization, LLDP/IGMP/MLD statics, Loop
detection, Power status
Multicast (IGMP Snooping/Querier), Unknown multicast filtering,
802.1Q VLAN, Port-based VLAN, GVRP, GARP, Q in Q, QoS (IEEE
802.1p) with 8 classes and TOS/DiffServ, Flow control
Modbus/TCP
Cable Diagnostic, IPv4/IPv6 Ping Test, Syslog, Port Mirror, DDM
(Digital-Diagnostic-Monitoring), Port Mirroring 1:1 and N:1
IXM™ Cross management platform for fast deployment,
Configuration backup manager, Import/ Export configuration files,
firmware upgrades.
Remote reboot/reset device, Dual Image, Embedded watchdog
timer, Multiple account setting (Admin/User)
SWITCH PROPERTIES
MAC Table Size
Packet Buffer Size
Switching Capacity
Jumbo Frame
Priority Queues
Max. Number of
Available VLANs
VLAN ID Range
IGMP Groups
SOFTWARE
Management
Configuration
Security
Redundancy
Monitoring
Filter
Industrial Protocol
Diagnostics
Enhanced
Provisioning
Miscellaneous
POWER
Hardware Specifications
12.1W @ 48VDC (System)
12 ~ 48 VDC (8.4~57.6 VDC) redundant dual inputs
1 Relay Output
Present
74 x 152 x 105 mm (2.91 x 5.98 x 4.13 inches)
IP30
Net: 1.3 kg. Gross: 1.8 kg
Metal Shell
DIN Rail, Wall
-40 to +75°C (-40 to +167°F)
-40 to +85°C (-40 to +185°F)
10 to 95% (non-condensing)
10 to 95% (non-condensing)
858,835 hours
UL508
NEMA TS2
EN50121-4
FCC Part 15 Subpart B Class A, EN 55011/55022, Class
A
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3)
EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3)
EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6
Power Consumption
Power Input
Fault Output
Overload Current
PHYSICAL
Dimensions (WxHxD)
Protection Class
Weight
Enclosure
Mounting
ENVIRONMENT
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
MTBF
CERTIFICATIONS
Safety
Traffic Control
Rail Signal Control
EMI
EMS
Shock
Freefall
Vibration
Reverse Polarity Protection Present
Product Ordering Information
MODEL #
SEC510-2SFP-T
SE512-4SFP-T
SE520-4SFP-T
DESCRIPTION
8-port 10/100 Mbps + 2 GbE Combo
Full Managed Ethernet Switch
8-port 10/100 Mbps + 4 GbE SFP
Full Managed Ethernet Switch
16-port 10/100 Mbps + 4 GbE SFP
Full Managed Ethernet Switch
OPERATING
TEMPERATURE
-40~75°C
-40~75°C
-40~75°C
RJ45
10/100
MBPS
8
8
16
GB
-
-
-
COMBO PORT,
100/1000 10/100/1000BASE-T(X) CONNECTOR
BASE-SFP OR 100/1000BASE-SFP
-
4
4
2
-
-
LC (SFP)
LC (SFP)
LC (SFP)
FIBER
Accessories - Power Supplies (sold separately)
MODEL #
MDR-20-24
MDR-40-24
SDR-120-24
SDR-240-24
DESCRIPTION
DIN Rail Power Supply, 24VDC, 20W, 1A
DIN Rail Power Supply, 24VDC, 40W, 1.7A
DIN Rail Power Supply, 24VDC, 120W, 5A
DIN Rail Power Supply, 24VDC, 240W, 10A
OPERATING
TEMPERATURE
-20~70°C
-20~70°C
-20~70°C
-20~70°C
Package Checklist
Ethernet Switch, RJ45 to DB9 console port cable, Protective caps for unused ports, Quick
Start Guide, DIN-Rail mount bracket (installed), wall mount bracket
Accessories - WebAccess, Networking Management Software
(NMS) (sold separately)
MODEL #
DESCRIPTION
Trial Version
For 6 months free trial, contact your local sales representative.
NMS-U050-ULE
Supports maximum 50 nodes
NMS-U300-ULE
Supports maximum 300 nodes
NMS-U01K-ULE
Supports maximum 1,000 nodes
NMS-U04K-ULE
Supports maximum 4,000 nodes
Warranty
Limited lifetime warranty for B+B SmartWorx designed and/or manufactured products.
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445

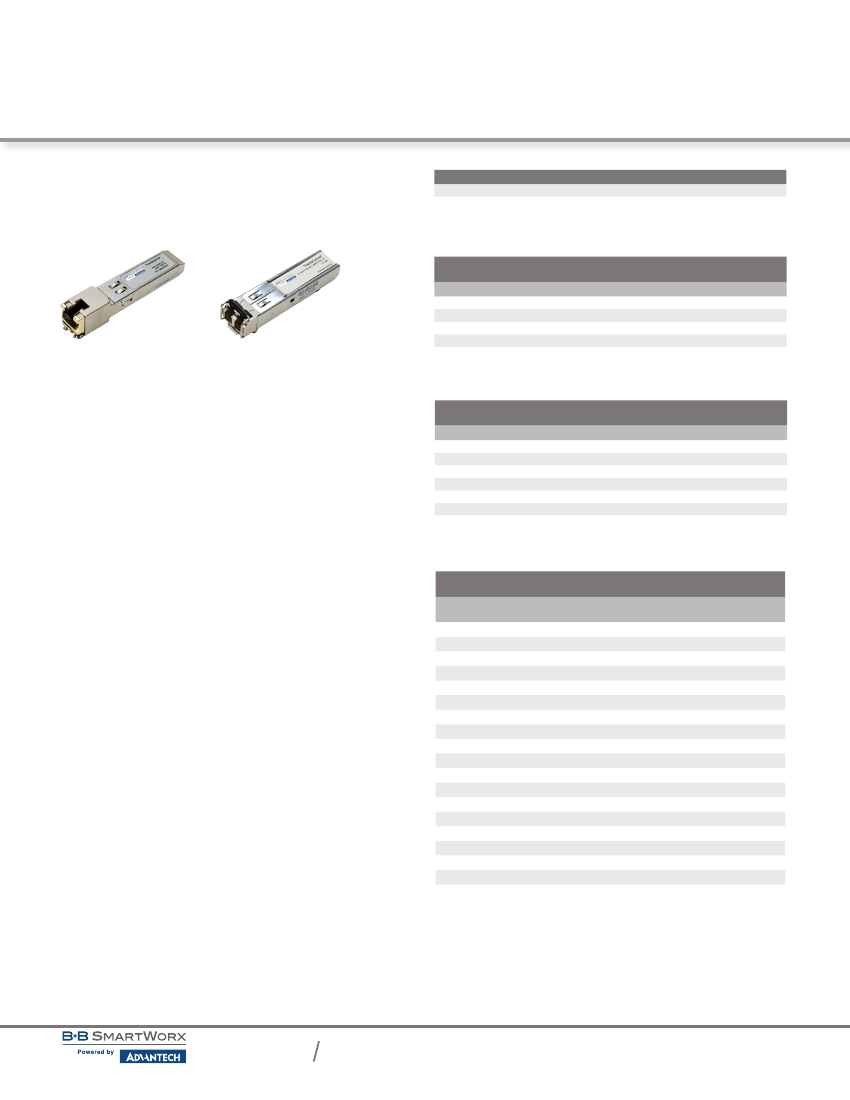

Small Form Pluggable (SFP) Modules
Copper SFP (10/100/1000 and 1000 Mbps)
Fiber SFP (155 Mbps, 1.25 Gbps)
•
•
•
•
•
Future-proof network equipment
Available in SM, MM fiber types
Maximize network hardware
Troubleshooting diagnostics
Plug-and-play operation
Copper SFP Models
MODEL NUMBER
808-39001
808-39010
PORT DESCRIPTION
10 - 1250, TX
1250, TX
CONNECTOR
RJ45
RJ45
DISTANCE
100 m
100 m
IE-SFP Modules: 100 to 155 Mbps, DDMI (OC-3)
MODEL NUMBER
W/ DDMI
808-38101
808-38102
808-38103
808-38104
808-38105
MM850
MM1300
SM1310
SM1310/PLUS
SM1550/LONG
LC
LC
LC
LC
LC
2 km
2 km
20 km
40 km
80 km
PORT DESCRIPTION
FIBER
DISTANCE
POWER
BUDGET
(db)
14.5
11
21
31
31
Copper
Fiber LC
SFPs are compact transceivers that function as modular connectors. Available
for copper (RJ-45) and all common fiber modes, wavelengths and data rates,
these modules allow network operators to connect different interface types to
the same network equipment via an SFP port. The cost of cable upgrades is
greatly reduced, preserving the networking equipment investment – all for the
price of a relatively inexpensive module.
More and more network equipment is being designed with SFP ports to
take advantage of the inherent flexibility and to eliminate the guesswork and
uncertainty of expensive equipment purchases. Remember to select an SFP
to match the speed of your designated port. All modules from B+B SmartWorx
carry a limited lifetime warranty.
IE-SFP Modules: 1.25 Gbps GB Ethernet, DDMI (OC-24)
MODEL NUMBER
W/ DDMI
808-38201
808-38206
808-38200
808-38203
808-38204
808-38205
808-38208
MM850
MM1300
SM1310
SM1310/PLUS
SM1550/LONG
SM1550/XLONG
SM1550/XXLONG
LC
LC
LC
LC
LC
LC
LC
220/550 m
2 km
20 km
30 km
40 km
70 km
120 km
PORT DESCRIPTION
FIBER
DISTANCE
POWER
BUDGET
(db)
7.5
10
14
17
18
21
30
Standard Diagnostics
•
•
•
•
•
SFP Type
Fiber Link Length
Wavelength
Bit Rate
Date Code
DDMI/Extended Diagnostics
•
•
•
•
•
Temperature
Voltage
Bias Current
TX Power
RX Power
IE-SFP Modules: CWDM (155 Mbps/1.25 Gbps), DDMI
MODEL NUMBER
155 Mbps
808-38141
808-38142
808-38143
808-38144
808-38145
808-38146
808-38147
808-38148
808-38149
808-38150
808-38151
808-38152
808-38153
808-38154
808-38155
808-38156
808-38157
808-38158
1.25 Gbps
808-38241
808-38242
808-38243
808-38244
808-38245
808-38246
808-38247
808-38248
808-38249
808-38250
808-38251
808-38252
808-38253
808-38254
808-38255
808-38256
808-38257
808-38258
CWDM-SM1270
CWDM-SM1290
CWDM-SM1310
CWDM-SM1330
CWDM-SM1350
CWDM-SM1370
CWDM-SM1390
CWDM-SM1410
CWDM-SM1430
CWDM-SM1450
CWDM-SM1470
CWDM-SM1490
CWDM-SM1510
CWDM-SM1530
CWDM-SM1550
CWDM-SM1570
CWDM-SM1590
CWDM-SM1610
LC
LC
LC
LC
LC
LC
LC
LC
LC
LC
LC
LC
LC
LC
LC
LC
LC
LC
DESCRIPTION
FIBER
DISTANCE
155
Mbps
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
1.25
Gbps
40 km
40 km
40 km
40 km
40 km
40 km
40 km
40 km
70 km
70 km
70 km
70 km
70 km
70 km
70 km
70 km
70 km
70 km
POWER
BUDGET (db)
155
Mbps
29
29
29
29
29
29
29
29
29
29
29
29
29
29
29
29
29
29
1.25
Gbps
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
Fiber SFP Modules
Robust Industrial Performance
Feature Friendly
•
Extended operating temperature range
•
Hot swappable
•
Available in a wide range of fiber types, wavelengths and transmission rates to meet
almost any networking need
•
Powerful troubleshooting Digital Diagnostics Monitoring Interface (DDMI)
•
•
•
•
•
•
•
•
MSA compliant: available in dual- or single-strand, SC or LC connector
Eye Safety meets Laser Class 1 Compliance with IEC 60825-1
Complies with Telecordia GR-468-CORE
RoHS compliant
Input Voltage: 3.3V
Operating Temperature: -40° to +85° C
Operating Temperature, CWDM: 0° to +70° C
Storage Temperature: -40° to +85° C
Extended Diagnostics
Standard Compliances
Voltage/Temperature
NOTES: Fiber SFP Form Factors & Distances
Fiber SFP (OC-3, OC-24) form factors have virtually identical dimensions and are not typically interchangeable; this
will depend on the device type.
For each fiber product listed in the tables, DISTANCE represents an approximate fiber distance based on industry-
standard fiber attenuation specifications. Actual distances will vary for each installation. For complete power budgets
and additional information on calculating specific distances, contact B+B SmartWorx Technical Support specialists
at (815) 433-5100 (USA).
Data Rates
155 Mbps
•
ITU-T G.957, G.958 and IEEE 802.3u
•
Applications: Fast Ethernet, OC-3/STM-1 and other optical links
1.25 Gbps
•
Compliant with specifications for IEEE 802.3z
•
Applications: Gigabit Ethernet and other optical links
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
56 [2.222]
56 [2.209]
56 [2.222]
15
[0.591]
15
[0.591]
10 [0.390]
Fully Managed Ethernet Switch
38
34
84 [3.287]
10/100, Gigabit Uplink, SNMP, Modbus/TCP
Models SEC510-2SFP-T, SE512-4SFP-T, SE520-4SFP-T
[1.481] [1.400]

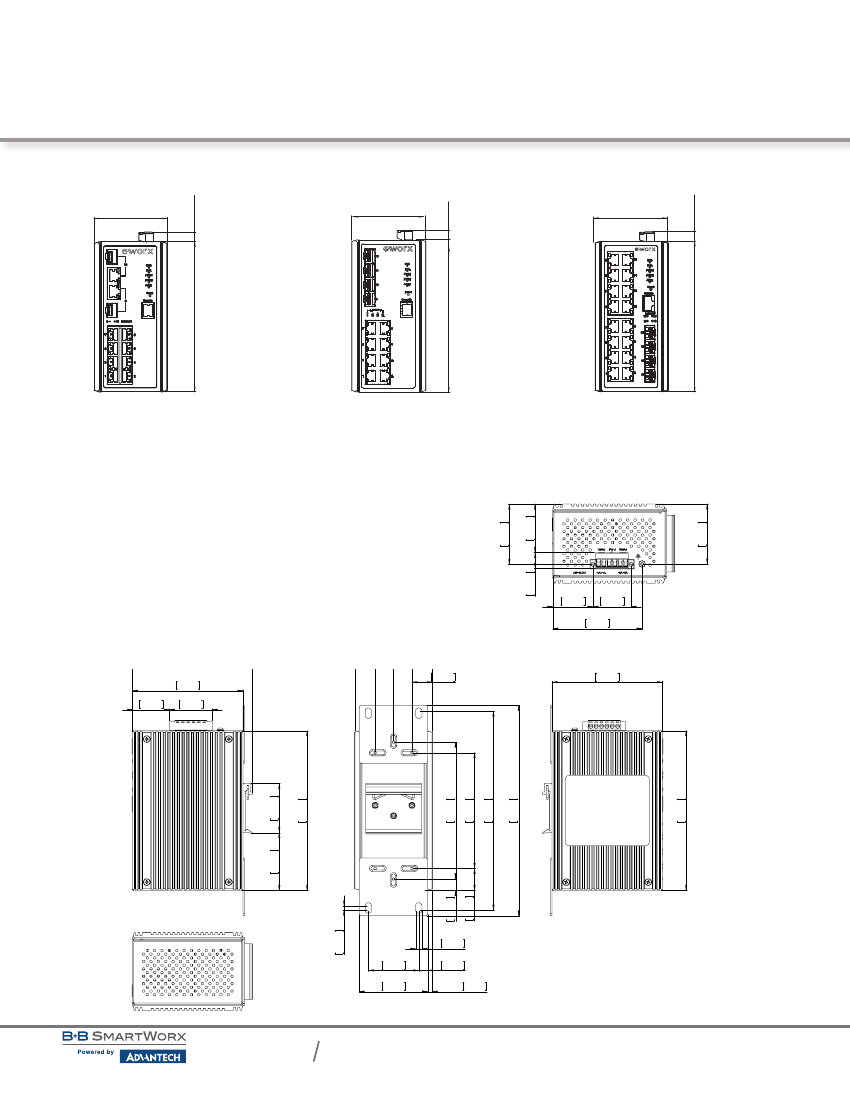

Mechanical Diagram
| Faceplate Detail by Model
114 [4.488]
Units = [inches] mm
45
[1.781]
45
[1.781]
38
36
[1.481] [1.400]
84 [3.287]
10 [0.390]
74 [2.913]
74 [2.913]
152 [5.984]
152 [5.984]
10 [0.390]
105 [4.134]
35
41
[1.381] [1.600]
74 [2.913]
37 [1.457]
35
20
[1.378]
[0.768]
74 [2.913]
114 [4.488]
105 [4.134]
35
41
105 [4.134]
[1.381] [1.600]
152 [5.984]
130 [5.118]
55
47
[2.165] [1.850]
152 [5.984]
11 [0.433]
Model SEC510-4SFP-T
faceplate detail
Model SE512-4SFP-T
6-M3xP0.5
faceplate detail
Model SE520-4SFP-T
faceplate detail
56
2.222
56
2.209
Units = [inches] mm
45
1.781
56
2.222
15
0.591
15
0.591
38
1.481
36
1.400
84
3.287
114
4.488
105
4.134
41
1.600
74
2.913
37
1.457
35
1.378
74
2.913
38
1.481
36
1.400
84
3.287
114
4.488
56
2.209
Mechanical Diagram
| Enclosure
DIN Rail & Panel Mount Options
45
1.781
21 [0.827]
110 [4.331]
162 [6.374]
74
2.913
37
1.457
35
1.378
20
0.768
10
0.390
10
0.390
35
1.381
35
1.381
105
105
4.134
4.134
41
1.600
130
5.118
110
152
4.331
5.984
189
7.446
152
5.984
47
1.850
152
5.984
47
1.850
152
5.984
200
7.874
55
2.165
11
0.433
21
0.827
55
2.165
152
5.984
4
0.157
6
0.236
48
1.890
65
2.559
9
0.335
5
0.177
4
0.157
48
1.890
65
2.559
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
152 [5.984]
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
B+B SmartWorx
:
SE520-4SFP-T SE512-4SFP-T SEC510-2SFP-T
京公网安备 11010802033920号
EEWORLD
