SMLD12EN1WT86 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> SMLD12EN1WT86

SMLD12EN1WT86: DescriptionStandard LED-SMD Grn 527nm; 140mcd 0603; 70mW; CategoryLED optoelectronic/LED photoelectric; File Size963KB，11 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SMLD12EN1WT86 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SMLD12EN1WT86	-	-	View	Buy Now

SMLD12EN1WT86 Overview

Standard LED-SMD Grn 527nm; 140mcd 0603; 70mW

SMLD12EN1WT86 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Factory Lead Time	10 weeks
color	GREEN
Configuration	SINGLE
Maximum forward current	0.02 A
Lens type	MILKY WHITE
Nominal luminous intensity	140.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	0.55 mm
method of packing	TR, 7 INCH
shape	RECTANGULAR
size	1.2 mm
surface mount	YES
Terminal pitch	1.65 mm
Base Number Matches	1

Preview

Download Datasheet

View All

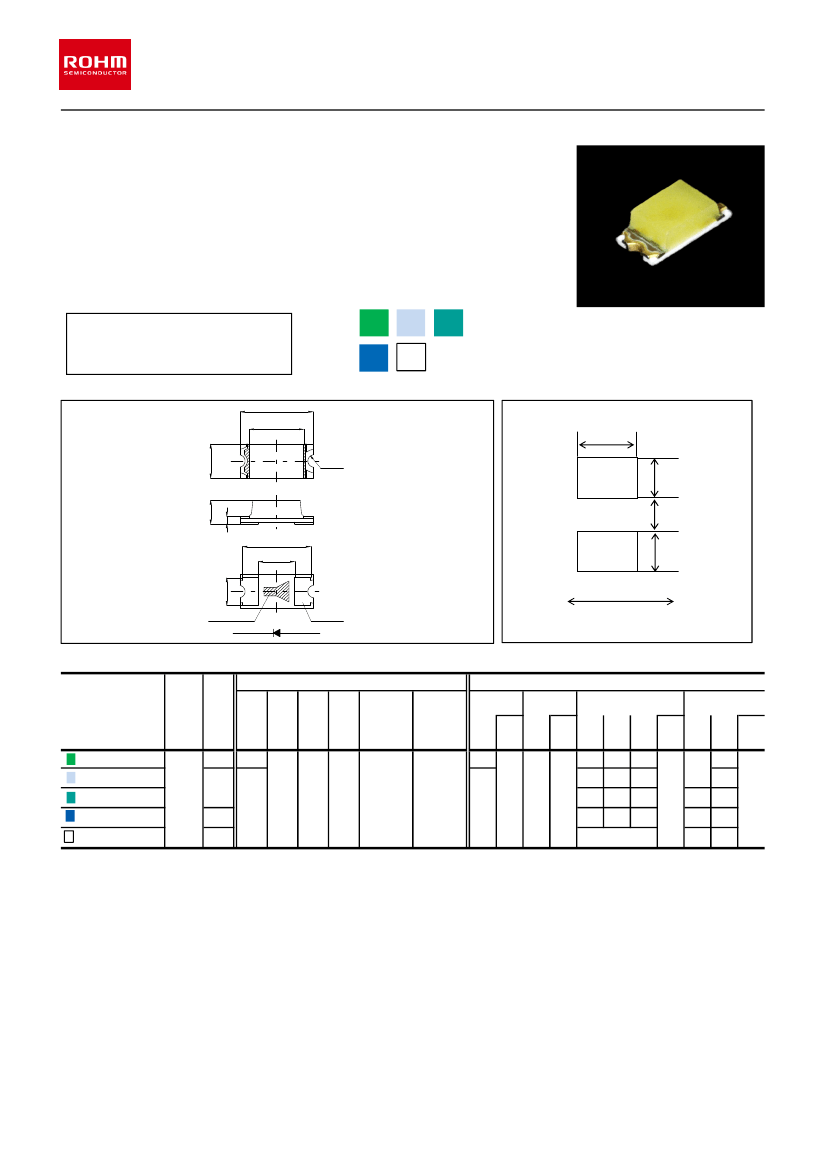

SMLD12x Series

■Features

• Long life exceeding 90% residual luminous rate even after 1,000hrs

(Ta=85℃,IF=20mA)

■Outline

Data Sheet

■Size

1608 (0603)

1.6×0.8mm (t=0.55mm)

■Dimensions

1.60

1.20

Color

Type

■Recommended Solder Pattern

0.8

0.80

(R0.15)

0.8

0.55

0.85

1.50

0.18

0.8

PCB Bonding Direction

0.80

Tolerance : ±0.1

(unit : mm)

Electrode

0.65

Cathode index

(

):Reference

(unit : mm)

■Speciﬁcations

Absolute Maximum Ratings (Ta=25ºC)

Part No.

Chip Structure

Electrical and Optical Characteristics (Ta=25ºC)

Forward Voltag V

Reverse Current I

Emitting

Power

Forward

Dissipation

Peak Forward

Reverse

Dominant Wavelength

/Chromaticity coordinate(x,y)

Min.*2

Typ.

Max.*2

Operating Temp.

Storage Temp.

Luminous Intensity I

Color

Current

Voltage

(mA) I

(mA)

(V)

Typ.

opr

(ºC)

stg

(ºC)

(V)

Max.

(V)

Min.

Typ.

(mW)

(mA) (μA)

(nm) (nm) (nm) (mA)

(mcd) (mcd)

(mA)

SMLD12EN1W

SMLD12E2N1W

SMLD12E3N1W

SMLD12BN1W

SMLD12WBN1W *3

InGaN

Green

Blue Green

3.0

520 527 535

500 505 512

140

120

Blue

White

100

-40 〜 +100 -40 〜 +100

2.9

490 496 502

470.0

(x,y)(0.295, 0.280)

*1 : 1/10,1kHz *2 : Measurement tolerance:±1nm、*3:Brightness for white color is noted with chromaticity coordinate(x,y).

＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿

www.rohm.co.jp

1/9

2018.8 - Rev.002

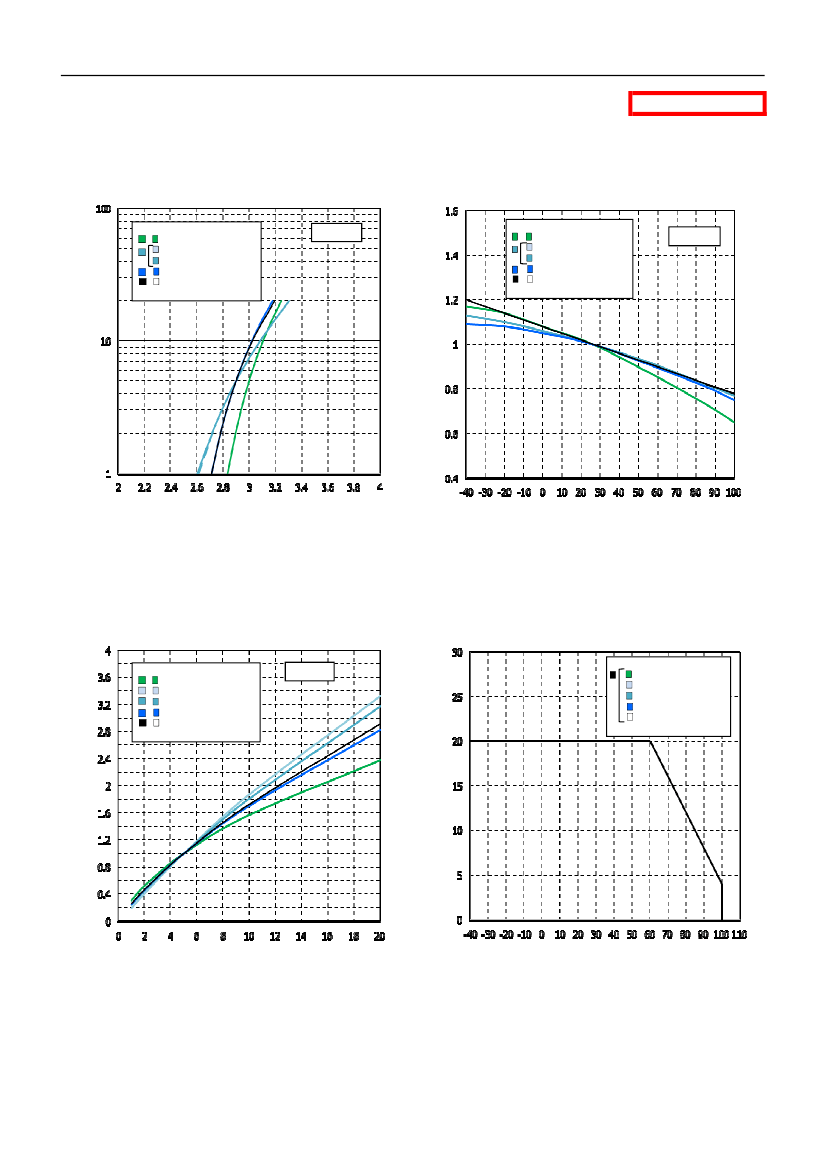

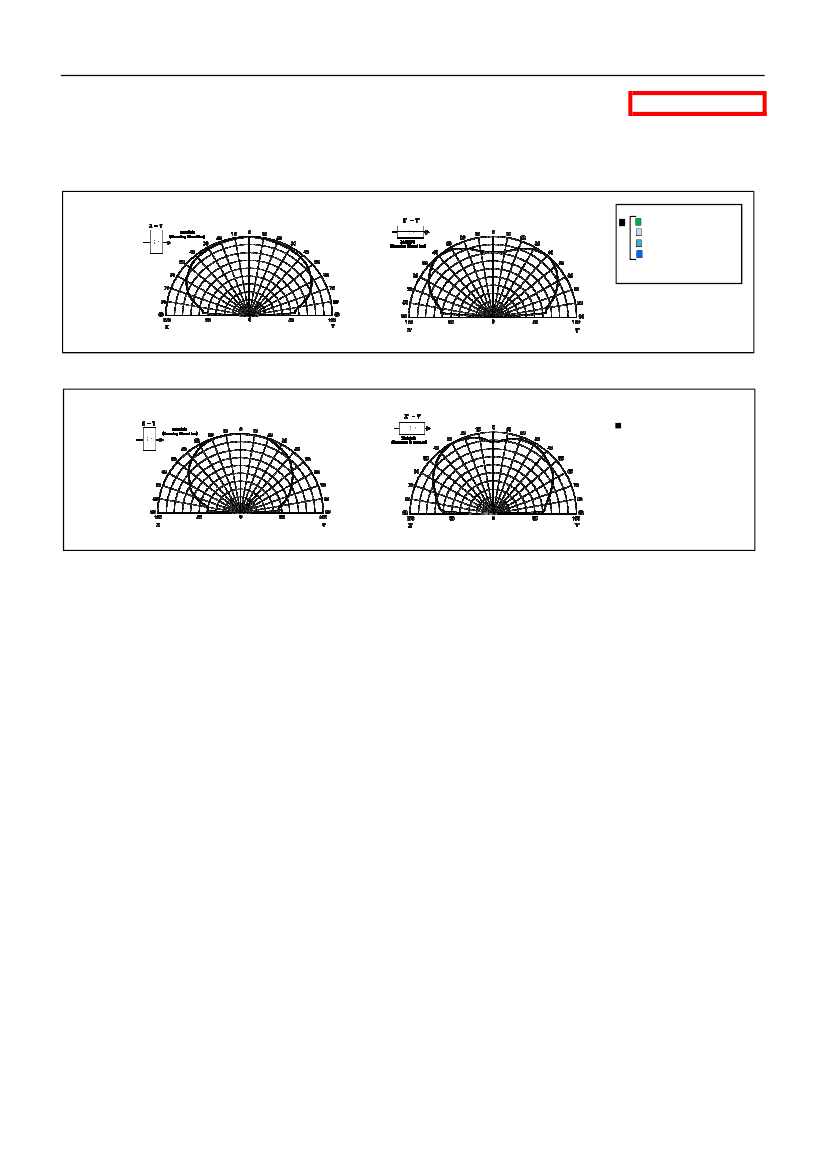

SMLD12EN1WT86 Related Products

	SMLD12EN1WT86	SMLD12BN1WT86	SMLD12E3N1WT86	SMLD12WBN1W1
Description	Standard LED-SMD Grn 527nm; 140mcd 0603; 70mW	Standard LED-SMD Blue 470nm; 40mcd 0603; 66mW	Standard LED-SMD Blue/Grn 496nm 0603; 85mcd	Standard LED-SMD White 120mcd 2.9V VR; 0603
Maximum operating temperature	100 °C	+ 100 C	+ 100 C	100 °C
Minimum operating temperature	-40 °C	- 40 C	- 40 C	-40 °C
