568103B00000G

Description
Heat sink Board Level Heatsink for TO-3, Horizontal Mounting, Black Anodized, 45.97x45.97x19.05mm
CategoryThermal management products    Heat resisting bracing
File Size199KB,2 Pages
ManufacturerAavid Thermalloy
Environmental Compliance
Download Datasheet Parametric Compare View All

568103B00000G Online Shopping

Suppliers Part Number Price MOQ In stock
568103B00000G - - View Buy Now

568103B00000G Overview

Heat sink Board Level Heatsink for TO-3, Horizontal Mounting, Black Anodized, 45.97x45.97x19.05mm

568103B00000G Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerAavid Thermalloy
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Factory Lead Time8 weeks
Main materialALUMINUM
colorBLACK
structureFIN
Surface layerANODIZED
high19.5 mm
length45.97 mm
Thermal resistance6.7 Ω
Heat Resistant Support Device TypeHEAT SINK
width45.97 mm
Base Number Matches1
DATASHEET

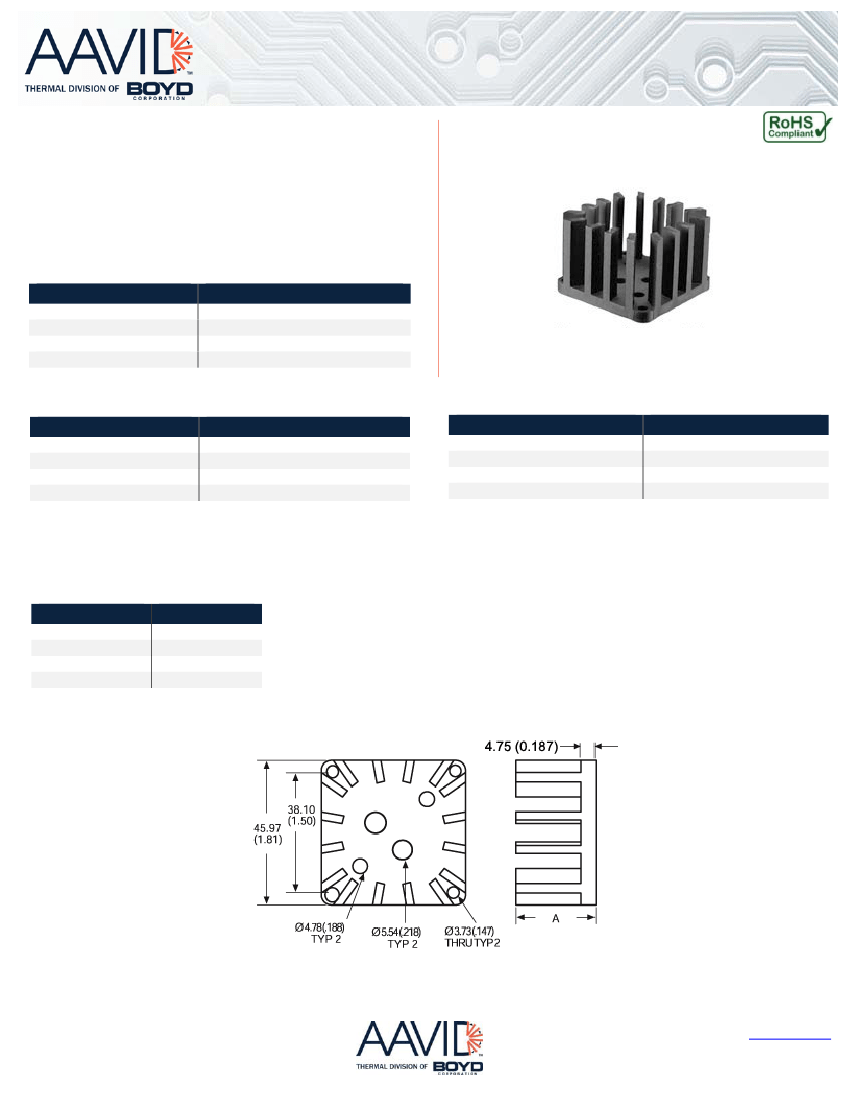

Board Level Cooling – Square Basket 5680


BOARD LEVEL COOLING – Square Basket 5680
Square Basket 5680 is a series of square basket board level heat sinks
designed to cool TO‐3, TO‐218, TO‐220, and TO‐220‐single gauge devices.
Representative image only.




ORDERING INFORMATION

Part Number
568000B00000G
568103B00000G
568203B00000G
568303B00000G
Device Type
TO‐218, TO‐220, TO‐220‐single gauge
TO‐3
TO‐3
TO‐3




Property
 Heat Sink Width (mm)
Heat Sink Length (mm)
Heat Sink Height (mm)
Heat Sink Mounting Direction
HEAT SINK DETAILS
Property
 Material
Finish
Device Attachment Options
Thermal Interface Material
Details
Aluminum
Black Anodize
Requires Mounting Kit
‐
Details
45.97
45.97
See “A” Dim below
Horizontal

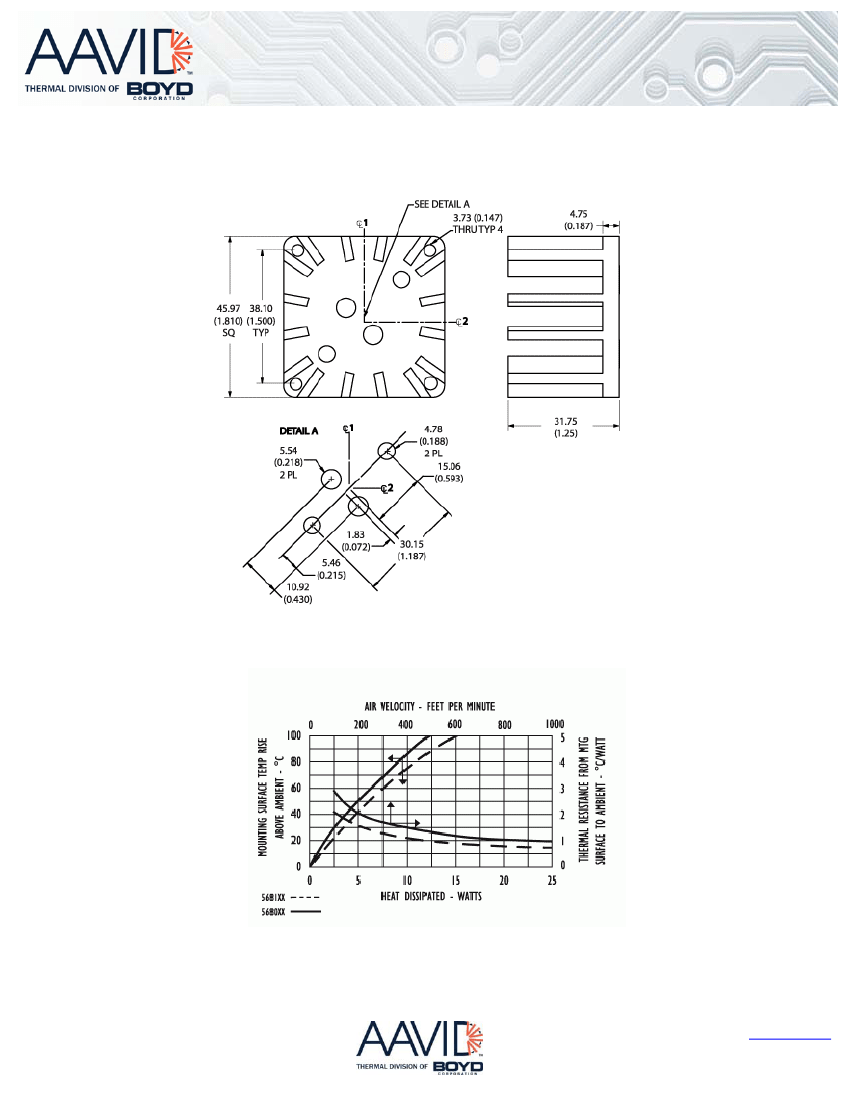

MECHANICAL & PERFORMANCE
Drawing dimensions are shown in mm, (in)






Part Numbers:

568103B00000G, 568203B00000G
Part Number
568000B00000G
568103B00000G
568203B00000G
568303B00000G

“A” Dim
12.70
19.50
25.40
31.75









USA: 1.855.322.2843
EUROPE: 39.051.764002
ASIA: 86.21.6115.2000 x8122










    Board Level Cooling
    www.aavid.com


568103B00000G Related Products

568103B00000G 568303B00000G 568203B00000G
Description Heat sink Board Level Heatsink for TO-3, Horizontal Mounting, Black Anodized, 45.97x45.97x19.05mm Heat Sinks BLACK ANODIZE TO-3 Heat sink Board Level Heatsink for TO-3, Horizontal Mounting, 45.97x45.97x25.4mm
Is it lead-free? Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to
Maker Aavid Thermalloy Aavid Thermalloy Aavid Thermalloy
package instruction ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code compliant compliant unknown
color BLACK BLACK BLACK
Surface layer ANODIZED ANODIZED ANODIZED
high 19.5 mm 31.75 mm 25.4 mm
length 45.97 mm 45.97 mm 45.97 mm
Thermal resistance 6.7 Ω 5.4 Ω 5.9 Ω
Heat Resistant Support Device Type HEAT SINK HEAT SINK HEAT SINK
width 45.97 mm 45.97 mm 45.97 mm
Base Number Matches 1 1 1
Factory Lead Time 8 weeks 8 weeks -
Main material ALUMINUM - ALUMINUM
structure FIN - FIN
