321127B00000G: DescriptionHeat sink 2-Piece Board Level Heatsink for TO-5, Horizontal/Vertical Mounting, Black Anodized, 150.88x150.88x12.45mm; CategoryThermal management products Heat resisting bracing; File Size222KB，3 Pages; ManufacturerAavid Thermalloy; Environmental Compliance

Download Datasheet Parametric View All

321127B00000G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	321127B00000G	-	-	View	Buy Now

321127B00000G Overview

Heat sink 2-Piece Board Level Heatsink for TO-5, Horizontal/Vertical Mounting, Black Anodized, 150.88x150.88x12.45mm

321127B00000G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Aavid Thermalloy
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	9 weeks
color	BLACK
fin direction	RADIAL
Surface layer	ANODIZED
high	12.45 mm
Thermal resistance	54 Ω
Heat Resistant Support Device Type	HEAT SINK
Base Number Matches	1

Preview

Download Datasheet

View All

DATASHEET

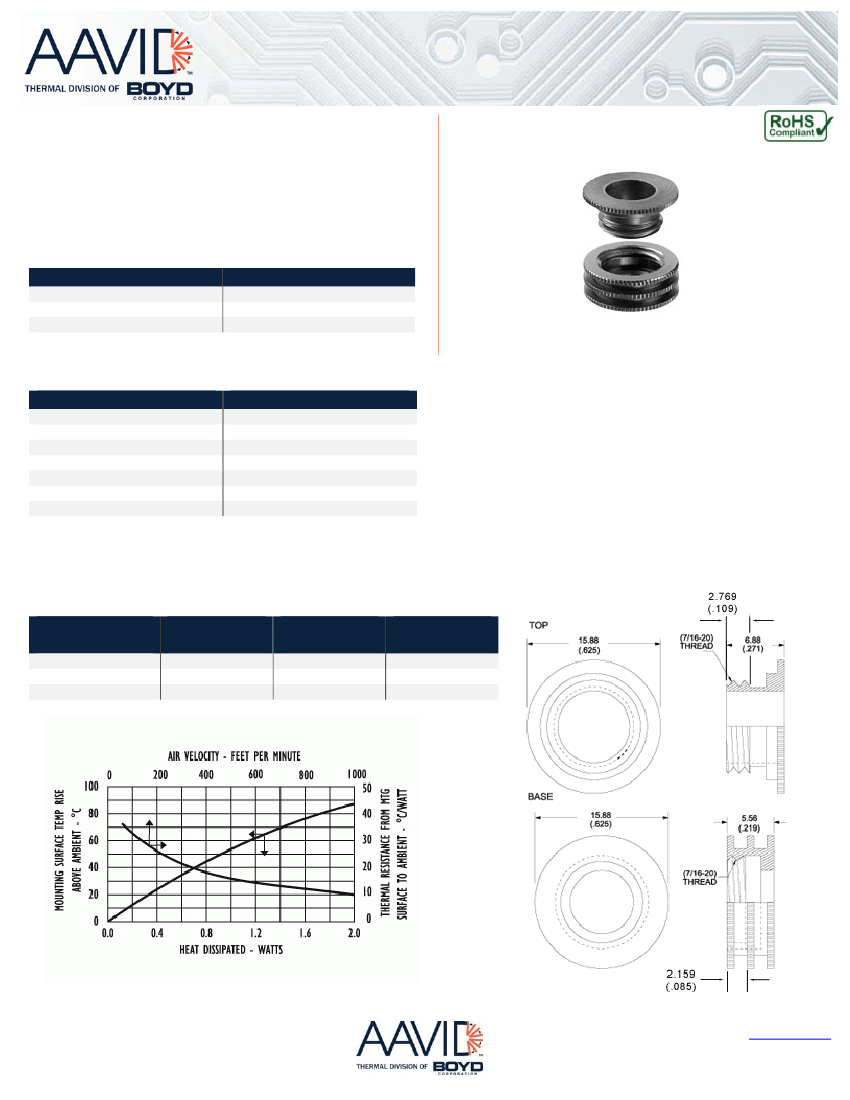

Board Level Cooling – Screw On 3210

BOARD LEVEL COOLING – Screw On 3210

Screw On 3210 is a series of two piece board level heat sinks designed to cool

TO‐5 and TO‐39 devices. Representative image only.

ORDERING INFORMATION

Part Number

321127B00000G

321527A00000G

321527B00000G

Device Type

TO‐5

TO‐5, TO‐39

HEAT SINK DETAILS

Property

Material

Finish: 321127B00000G

Finish: 321527B00000G

Finish: 321527A00000G

Device Attachment Options

Thermal Interface Material

Heat Sink Mounting Direction

Details

Aluminum

Black Anodize

Hard Black Anodize

Screw‐On

‐

Horizontal, Vertical

Part Number: 321127B00000G

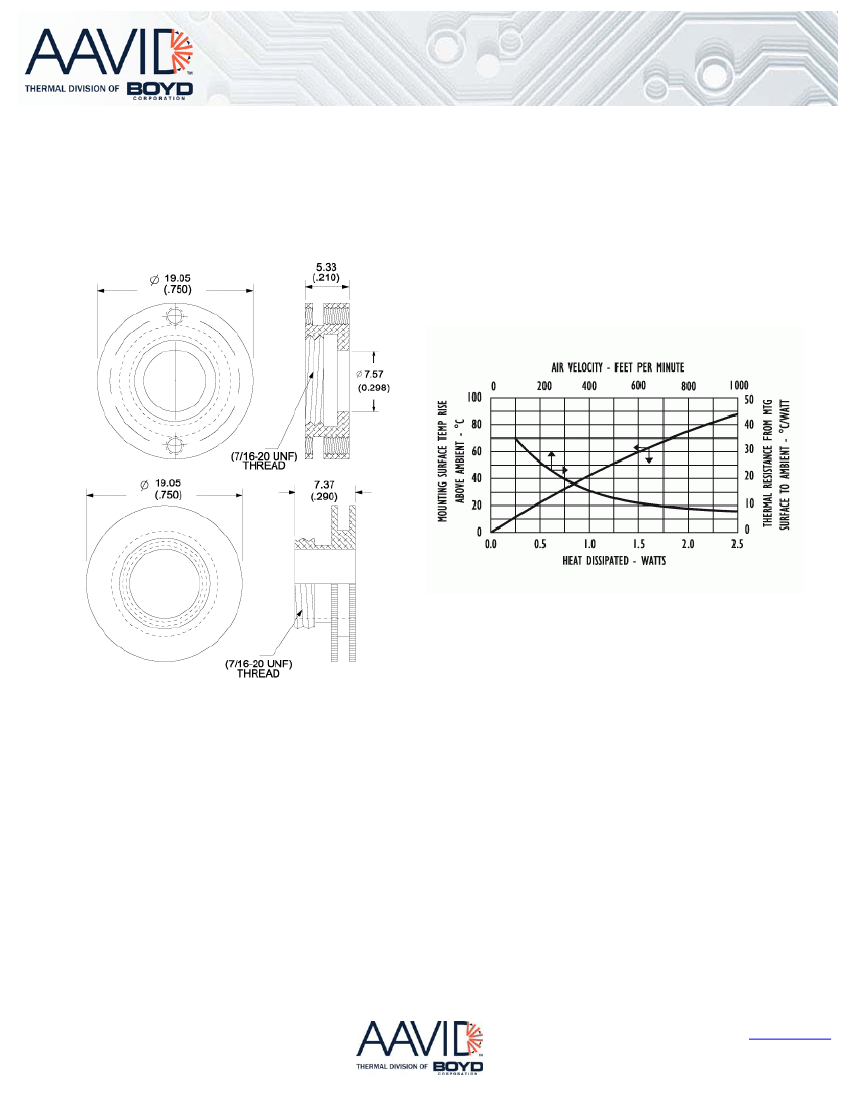

MECHANICAL & PERFORMANCE

Drawing dimensions are shown in mm, (in)

Part Number

321127B00000G

321527A00000G

321527B00000G

Heat Sink

Length

15.88

19.05

Heat Sink

Width

15.88

19.05

Heat Sink

Height

10.28

10.55

USA: 1.855.322.2843

EUROPE: 39.051.764002

ASIA: 86.21.6115.2000 x8122

Board Level Cooling

www.aavid.com
