CDLL754/TR Overview

Zener diode

CDLL754/TR Parametric

Parameter Name	Attribute value
Maker	Microsemi
Product Category	Zener diode
RoHS	N
Vz - Zener voltage	6.8 V
Installation style	SMD/SMT
Package/box	DO-213AA-2
Pd-power dissipation	0.5 W
voltage tolerance	10 %
Zener current	60 mA
Zz - Zener impedance	5 Ohms
Minimum operating temperature	- 65 C
Maximum operating temperature	+ 175 C
Configuration	Single
Test current	20 mA
Encapsulation	Reel
diameter	1.7 mm
length	3.7 mm
If - forward current	200 mA
Ir - 反向电流	2 uA
Factory packaging quantity	100
Vf - forward voltage	1.1 V

Preview

Download Datasheet

View All

• 1N746AUR-1 THRU 1N759AUR-1 AVAILABLE IN

JAN, JANTX

AND

JANTXV

PER MIL-PRF-19500/127

• 1N4370AUR-1 THRU 1N4372AUR-1 AVAILABLE IN

JAN, JANTX

AND

JANTXV

PER MIL-PRF-19500/127

• LEADLESS PACKAGE FOR SURFACE MOUNT

• METALLURGICALLY BONDED

1N746AUR-1 thru 1N759AUR-1

and

1N4370AUR-1 thru 1N4372AUR-1

and

CDLL746 thru CDLL759A

and

CDLL4370 thru CDLL4372A

MAXIMUM RATINGS

Operating Temperature: -65°C to +175°C

Storage Temperature: -65°C to +175°C

DC Power Dissipation: 500 mW @ TEC = +125°C

Power Derating: 10 mW / °C above TEC = +125°C

Forward Voltage @ 200mA: 1.1 volts maximum

ELECTRICAL CHARACTERISTICS @ 25°C

CDI

TYPE

NUMBER

(NOTE 1)

NOMINAL

ZENER

VOLTAGE

VZ @ 1ZT

(NOTE 2)

VOLTS

2.4

2.7

3.0

3.3

3.6

3.9

4.3

4.7

5.1

5.6

6.2

6.8

7.5

8.2

9.1

10.0

12.0

ZENER

TEST

CURRENT

1ZT

mA

20

MAXIMUM

ZENER

IMPEDANCE

(NOTE 3)

ZZT @ 1ZT

OHMS

30

29

28

24

23

22

19

17

11

7

5

6

8

10

17

30

IR @ VR

1ZM

mA

155

140

125

120

110

100

90

85

75

70

65

60

55

50

45

40

35

MAXIMUM

REVERSE CURRENT

MAXIMUM

ZENER

CURRENT

MILLIMETERS

INCHES

DIM MIN MAX MIN MAX

D

1.60

1.70 0.063 0.067

F

0.41

0.55 0.016 0.022

G

3.30

3.70 .130 .146

G1

2.54 REF.

.100 REF.

S

0.03 MIN.

.001 MIN.

µ

A

100

60

30

5

3

2

5

2

1

VOLTS

1.0

1.5

2.0

2.5

3.5

4.0

5.0

6.0

7.0

8.0

9.0

CDLL4370A

CDLL4371A

CDLL4372A

CDLL746A

CDLL747A

CDLL748A

CDLL749A

CDLL750A

CDLL751A

CDLL752A

CDLL753A

CDLL754A

CDLL755A

CDLL756A

CDLL757A

CDLL758A

CDLL759A

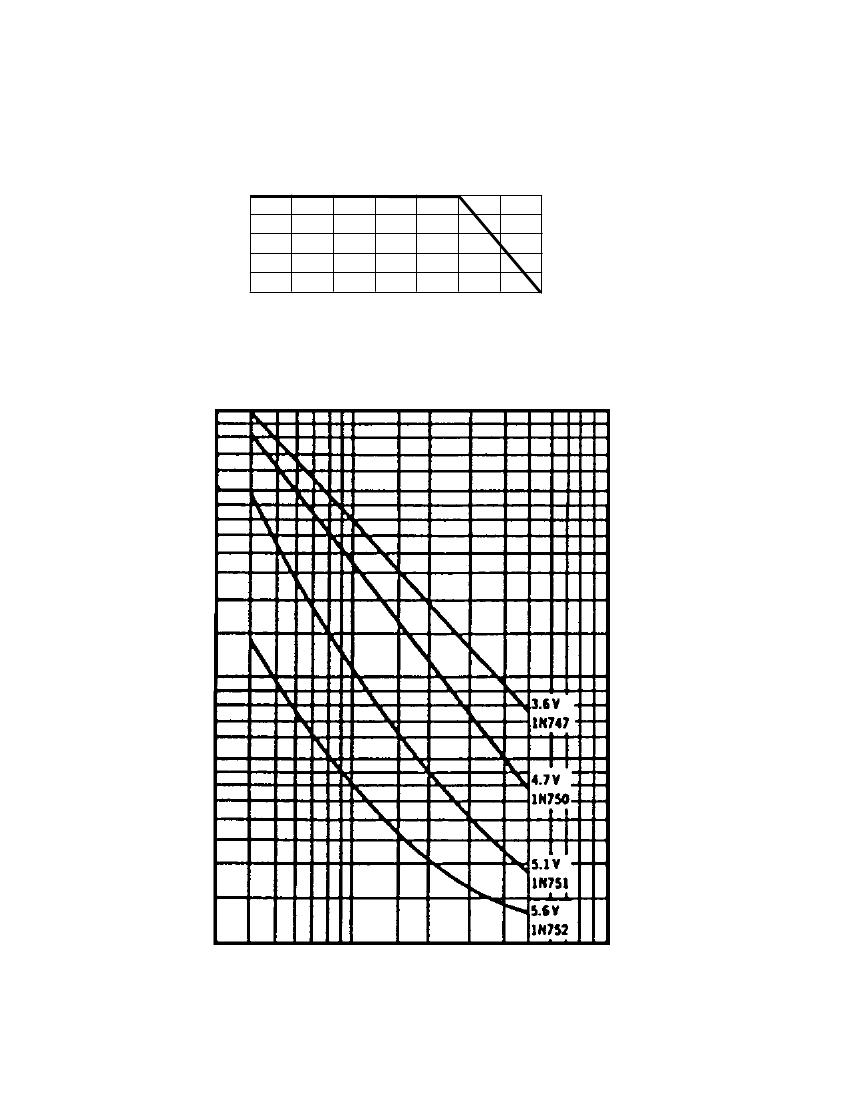

FIGURE 1

DESIGN DATA

CASE:

DO-213AA, Hermetically sealed

glass case. (MELF, SOD-80, LL34)

LEAD FINISH:

Tin / Lead

THERMAL RESISTANCE: (R

OJEC):

100

°

C/W maximum at L = 0 inch

THERMAL IMPEDANCE: (Z

OJX): 25

°

C/W maximum

POLARITY:

Diode to be operated with

the banded (cathode) end positive.

MOUNTING POSITION:

Any.

MOUNTING SURFACE SELECTION:

The Axial Coefficient of Expansion

(COE) Of this Device is Approximately

+6PPM/°C. The COE of the Mounting

Surface System Should Be Selected To

Provide A Suitable Match With This

Device.

NOTE 1

NOTE 2

NOTE 3

Zener voltage tolerance on "A" suffix is +5%. No Suffix denotes + 10% tolerance.

"C" suffix denotes + 2% tolerance and "D" suffix denotes + 1% tolerance.

Zener voltage is measured with the device junction in thermal equilibrium at an ambient

temperature of 25°C, +3°C.

Zener impedance is derived by superimposing on 1ZT A 60Hz rms a.c. current equal

to 10% of 1ZT.

6 LAKE STREET, LAWRENCE, MASSACHUSETTS 01841

PHONE (978) 620-2600

FAX (978) 689-0803

WEBSITE: http://www.microsemi.com
