TQP9309
®
High Efficiency 0.5W Small Cell Power Amplifier
General Description
The TQP9309 is a high-efficiency two-stage power
amplifier in a low-cost surface-mount package with on-chip
bias control and temperature compensation circuitry,
suitable for small cell base station applications.
TQP9309 provides 32 dB gain and >+28 dBm linear power
with pre-distortion correction over the 0.7-1.0 GHz
frequency range for Bands 5, 6, 8, 12, 13, 14, 17, 20, 26,
27, 28, and 29. With pre-distortion, the amplifier is able to
achieve -50dBc ACLR at 28 dBm output power using a 20
MHz LTE signal.
The TQP9309 integrates two high performance amplifier
stages onto a module to allow for a compact system design
and requires very few external components for operation.
The amplifier is bias adjustable allowing the amplifier’s
power consumption to be optimized. The TQP9309 is
available in a lead-free/RoHS-compliant 3.5x4.5mm
surface mount package and is pin-compatible to the 1.8-2.2
GHz TQP9321 and 2.5-2.7 GHz TQP9326.
3.5 x 4.5 mm Leadless SMT Package
Product Features
Frequency Range : 0.7-1.0 GHz
Covers multiple bands with one component
Fully integrated, 2-stage Power Amplifier
Internally matched 50 Ω input/output
-50dBc ACLR (corrected) @ +28 dBm Pavg
32 dB Gain
27% PAE @ +28 dBm Pavg
In-built Control Bias and Temp. Comp Circuit

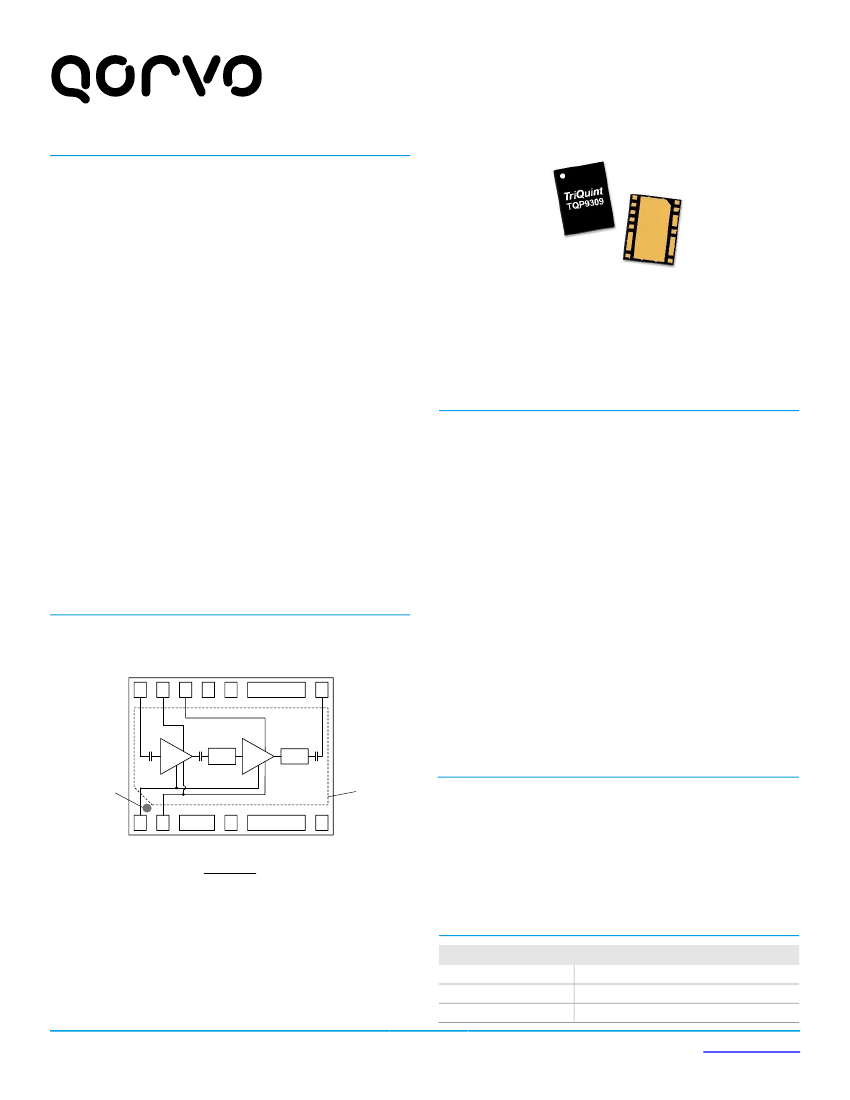

Functional Block Diagram
Single Supply Voltage : 5V
Lead-free / RoHS compliant
POE Capable
RFin V
PD1
V
PD2
N/C N/C
13
12
11
10
9
N/C
8
RFout
7
AMP1
Matching
Network
AMP2
Matching
Network
Applications
Exposed
Backside Pad
GND
Pin 1
Reference Mark
Package Topside
1
2
3
4
5
6
Small-Cell Basestations
Enterprise Femtocell
Bands 5, 6, 8, 12, 13, 14, 17, 20, 26, 27, 28, 29
V
BIAS
V
CC
N/C
N/C
N/C
N/C
Top View
Ordering Information
Part No.
TQP9309SR
TQP9309TR13
TQP9309EVB-01
Data Sheet April 13, 2017 | Subject to change without notice
Description
100 pieces on a 7” reel
2500 pieces on a 13” reel
Evaluation Board
www.qorvo.com
-
1 of 9
-
TQP9309
®
High Efficiency 0.5W Small Cell Power Amplifier
Recommended Operating Conditions
Rating
−40 to +150 °C
+6 V
+10 dBm
Absolute Maximum Ratings
Parameter
Storage Temperature
Supply Voltage (V
CC
)
RF Input Power, CW, 50 Ω, T=25 °C
Parameter
Device Voltage (V
DD
)
T
CASE
Tj for >10
6
hours MTTF
Min
−40
Typ
+5
+25
Max
+85
+190
Units
V
°C
°C
Exceeding any one or a combination of the Absolute Maximum Rating
conditions may cause permanent damage to the device. Extended
application of Absolute Maximum Rating conditions to the device may
reduce device reliability.
Electrical specifications are measured at specified test conditions.
Specifications are not guaranteed over all recommended operating
conditions.
Electrical Specifications
Test conditions unless otherwise noted:
V
CC
=+5V, Vpd = +5V, Temp= +25°C, Test Frequency : 900MHz
Parameter
Operational Frequency Range
Output Channel Power
Gain
Gain Temperature Coefficient
ACLR Uncorrected
ACLR Corrected
Power Added Efficiency
Noise Figure
Output P3dB
P3dB Temperature Coefficient
Supply Voltage
Quiescent Current, I
CQ
Operational Current, Icc
VSWR Survivability
Thermal Resistance, θ
jc
Conditions
Min
700
Typ
+28
31
32
-0.026
-37
-50
27
4
+35
-0.005
5
100
380
Max
960
Units
MHz
dBm
dB
dB
dB/°C
dBc
dBc
%
dB
dBm
dBm/°C
V
mA
mA
–
700 - 800MHz
800 - 960MHz
See note 1
See note 1
See note 1
28.6
29.6
33.3
+33.9
85
Pout = +26 dBm
Signal : WCDMA 1C, PAR = 8 dB
Module (junction to case)
127
7:1
28.3
°C/W
Notes:
1. Using LTE signal,
Logic Table
20MHz, IBW = 18.02 MHz, PAR 7.5dB, Pout = +28 dBm
2. Items in min/max columns in
bold
at guaranteed by production test at 900 MHz
3. Items in
Parameter
min/max columns that are not a bold font are guaranteed by design characterization.
High
Low
Enable
Active
Shutdown
Data Sheet April 13, 2017 | Subject to change without notice
-
2 of 9
-
www.qorvo.com
TQP9309
®
High Efficiency 0.5W Small Cell Power Amplifier

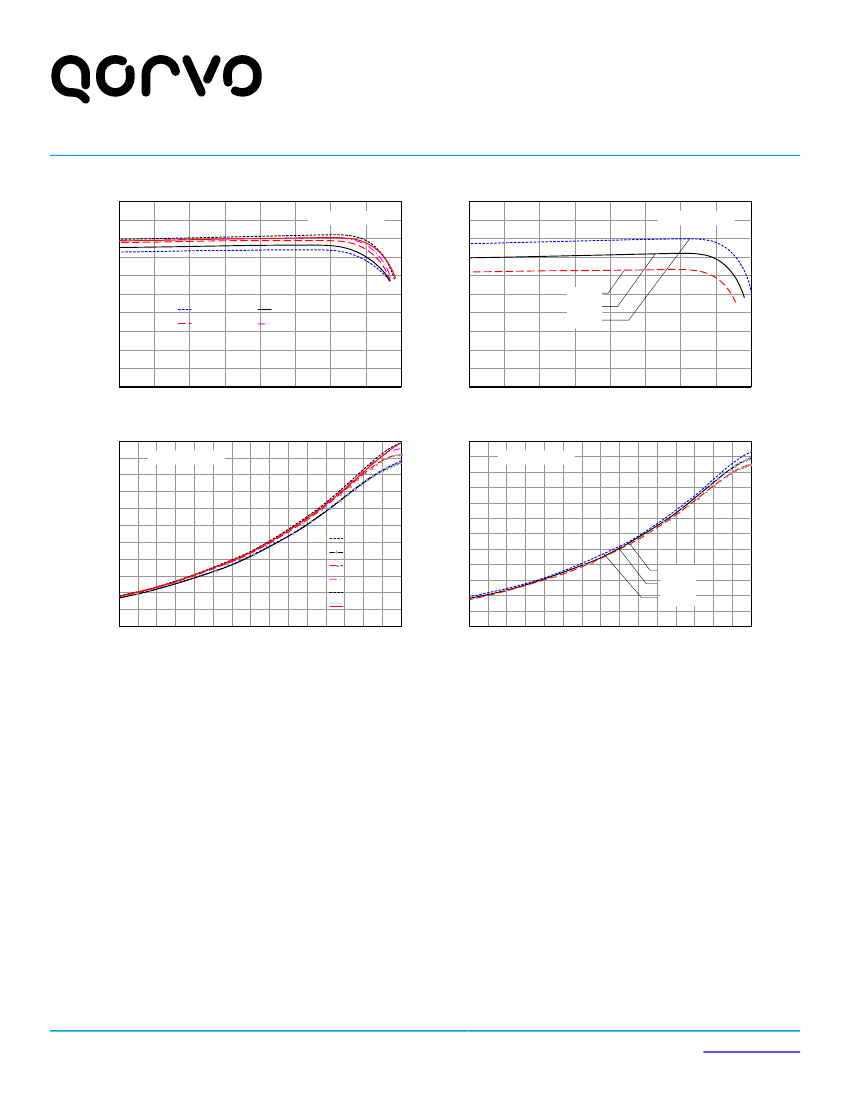

Performance Plots
Test conditions unless otherwise noted:
V
CC
=+5V, Vpd = +5V, Temp= +25°C
36
34
32
30
Gain vs. Output Power vs. Frequency
Temp.=+25°C
38
36
34
32
Gain vs. Output Power vs. Temperature
Temp.=+25°C
F = 900 MHz
Gain (dB)
28
Gain (dB)
30
26
24
22
20
18
16
20
22
24
26
28
30
32
34
36
720 MHz
820 MHz
770 MHz
850 MHz
28
26
24
22
20
18
20
22
24
+85°C
+25°C
−40°C
26
28
30
32
34
36
Pout (dBm)
55
50
45
40
Pout (dBm)
60
Efficiency vs. Output Power vs. Frequency
Temp.=+25°C
Efficiency vs. Output Power vs. Temperature
Temp.=+25°C
55
50
45
CW
Efficiency (%)
35
30
25
20
15
10
5
0
20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35
700 MHz
770 MHz
820 MHz
850 MHz
900 MHz
960 MHz
Efficiency (%)
40
35
F = 900 MHz CW
30
25
20
15
10
5
0
20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35
+85°C
+25°C
−40°C
Pout (dBm)
Pout (dBm)
Data Sheet April 13, 2017 | Subject to change without notice
-
3 of 9
-
www.qorvo.com
TQP9309
®
High Efficiency 0.5W Small Cell Power Amplifier

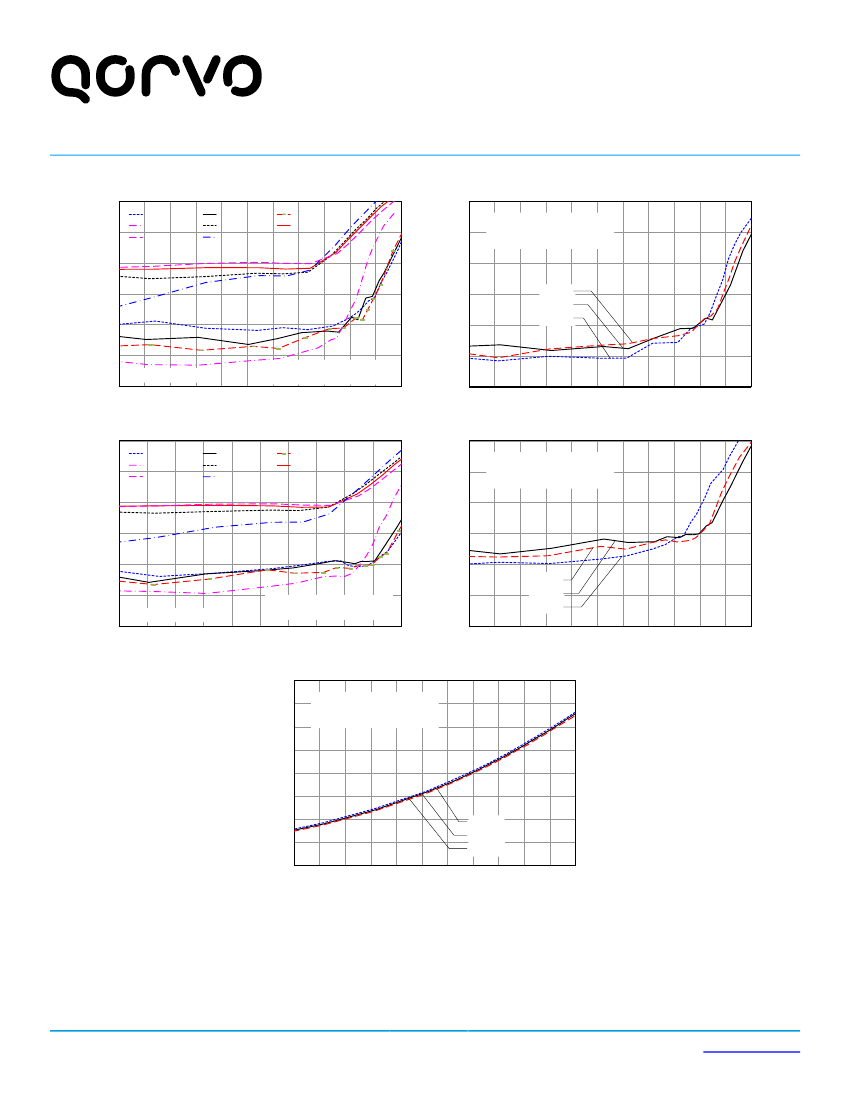

Performance Plots (continued)
Test conditions unless otherwise noted:
V
CC
=+5V, Vpd = +5V, Temp= +25°C
-35
-40
-45
ACPR vs. Output Power vs. Frequency
770MHz DPD
960MHz DPD
850MHz No DPD
820MHz DPD
770MHz No DPD
960MHz No DPD
850MHz DPD
820MHz No DPD
-35
-40
-45
ACPR vs. Output Power vs. Temperature
Signal : LTE 20MHz, PAR = 7.5dB
Channel BW UTRA, IBW = 3.84MHz
Vcc = 5V, Frequency : 850MHz
DPD Polynomial Order : 11
ACPR1(dBc)
ACPR1(dBc)
-50
-55
-60
Temp.=+25°C
-50
-55
-60
+85°C
+25°C
−40°C
-65
19
20
21
22
23
24
Signal : LTE 20MHz, PAR = 7.5dB
Channel BW UTRA, IBW = 3.84MHz
DPD Polynomial Order : 11
-65
30
25
26
27
28
29
19
20
21
22
23
24
25
26
27
28
29
30
Pout (dBm)
-30
-35
-40
Pout (dBm)
-35
-40
-45
ACPR vs. Output Power vs. Frequency
770MHz DPD
960MHz DPD
850MHz No DPD
820MHz DPD
770MHz No DPD
960MHz No DPD
850MHz DPD
820MHz No DPD
ACPR vs. Output Power vs. Temperature
Signal : LTE 20MHz, PAR = 7.5dB
Channel BW UTRA, IBW = 18MHz
Vcc = 5V, Frequency : 850MHz
DPD Polynomial Order : 11
ACPR1(dBc)
-45
-50
-55
Temp.=+25°C
ACPR1(dBc)
-50
-55
+85°C
Signal : LTE 20MHz, PAR = 7.5dB
Channel BW EUTRA, IBW = 18MHz
DPD Polynomial Order : 11
-60
-65
+25°C
−40°C
-60
19
20
21
22
23
24
25
26
27
28
29
19
20
21
22
23
24
25
26
27
28
29
30
Pout (dBm)
40
35
30
Pout (dBm)
Efficiency vs. Output Power vs. Temperature
Signal : LTE 20MHz, PAR = 7.5dB
Channel BW UTRA, IBW = 18MHz
Vcc = 5V, Frequency : 850MHz
DPD Polynomial Order : 11
Efficiency (%)
25
20
15
10
5
0
19
20
21
22
23
24
25
26
27
28
29
30
+85°C
+25°C
−40°C
Pout (dBm)
Data Sheet April 13, 2017 | Subject to change without notice
-
4 of 9
-
www.qorvo.com
TQP9309
®
High Efficiency 0.5W Small Cell Power Amplifier

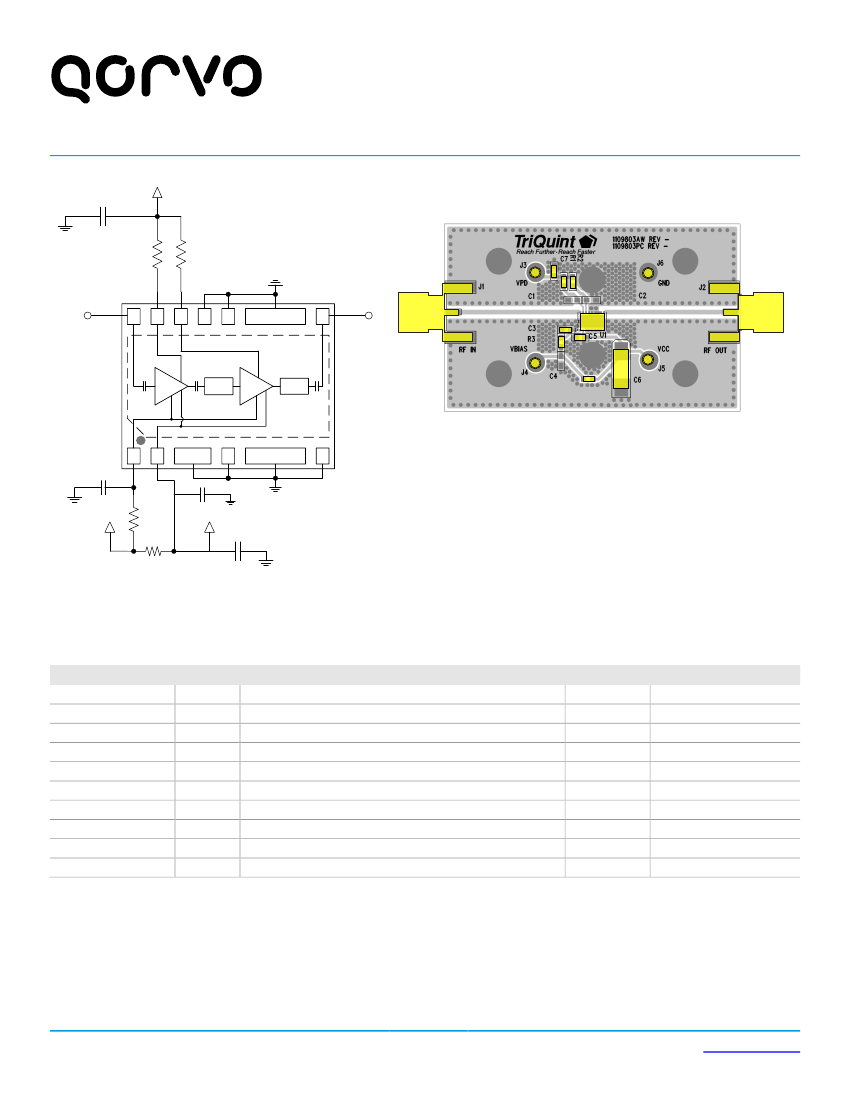

Application Circuit – TQP9309EVB-01
+5V
C7
0.1uF
R1
7.5K
R2
1.02K
J3
C7
J6
R1
R2
J1
13
RF
Input
12
11
10
9
8
7
J2
RF
Output
J1
U1
C3
R3
J2
C5
AMP1
Matching
Network
AMP2
Matching
Network
R4
1
2
3
4
5
6
C3
100 pF
J4
R3
100
C5
100 pF
J5
+5V
C6
R4
0
10 uF
Bill of Material – TQP9309EVB-01
Reference Des.
n/a
U1
R3, R4
R3
C7
C6
C3, C5
R2
R1
C1, C2, C4
Value
n/a
n/a
0Ω
100 Ω
0.1 uF
10 uF
100 pF
1.0 KΩ
7.5 KΩ
Description
Printed Circuit Board
High Efficiency 2-stage PA
Resistor, Chip, 0603, 5%
Resistor, Chip, 0603, 5%, 1/16W
Capacitor, Chip, 0603, 5%
Capacitor , Chip, 6032, 10%, Tantalum
Capacitor , Chip, 0603, NPO/COG, 5%
Resistor, Chip, 0603, 5%, 1/16W
Resistor, Chip, 0603, 5%, 1/16W
Do Not Place
Manuf.
TriQuint
various
various
various
various
various
various
various
C6
J4
J5
Part Number
1109803
TQP9309
Data Sheet April 13, 2017 | Subject to change without notice
-
5 of 9
-
www.qorvo.com
PCB Design
