ET19,35,F1N,0612,11,W2.25 Overview

Thermoelectric module ET19 35 F1N 0612 11W 2.25 6.0x12.2x1.65mm

ET19,35,F1N,0612,11,W2.25 Parametric

Parameter NameAttribute value
MakerLaird
Product CategoryThermoelectric module
typeSingle Stage
Qmax4.5 W
ΔTmax+ 67 C
Maximum current1.9 A
maximum voltage4 V
length12.2 mm
width6 mm
seriesET Series
Maximum operating temperature+ 80 C
Factory packaging quantity1

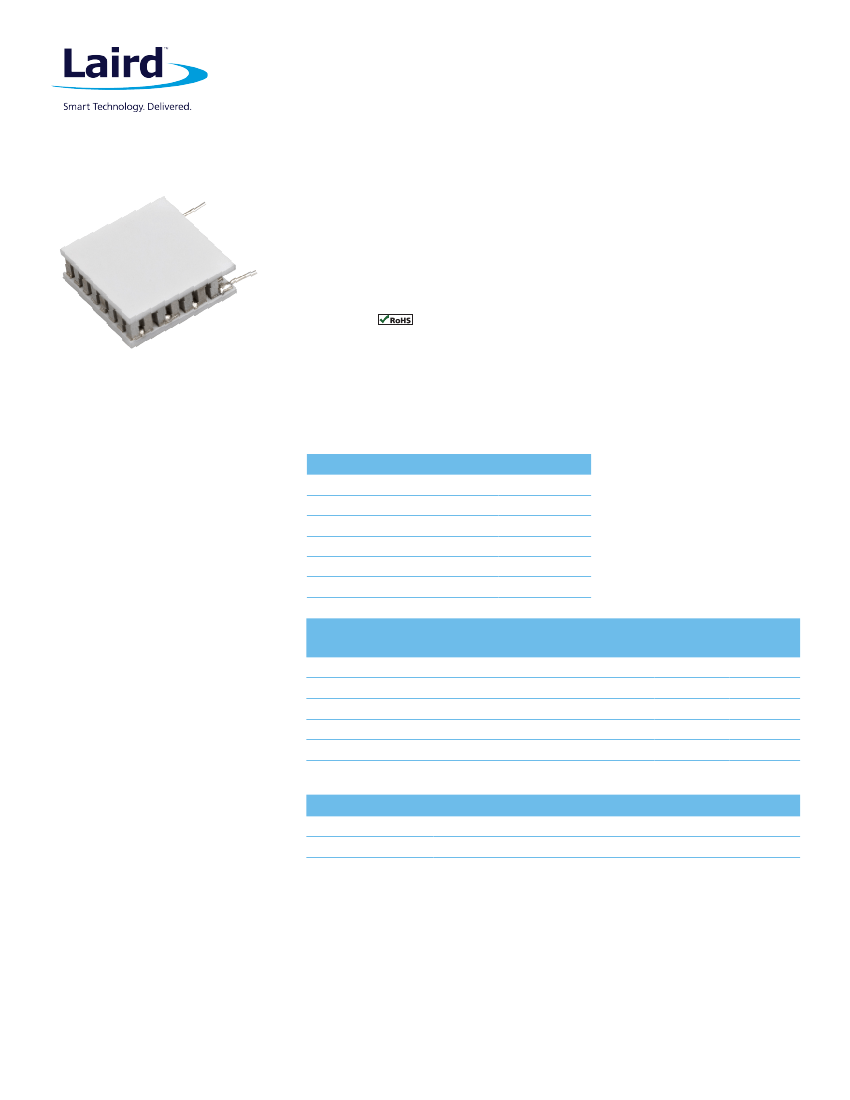

OptoTEC
TM
Series ET19,35,F1N,0612
Thermoelectric Module
The OptoTEC
TM
Series is a miniature thermoelectric module (TEM). This product series is primarily used
in applications to stabilize the temperature of sensitive optical components in telecom and photonics
industries.
This product line is available in multiple configurations and surface finishing options. Assembled with Bismuth
Telluride semiconductor material and thermally conductive Aluminum Oxide ceramics, the OptoTEC
TM
Series
is designed for lower current and lower heat-pumping applications. Custom designs are available to accom-
modate metallization, pretinning, ceramic patterns, and solder posts, however MOQ applies.
• Miniature geometric sizes
• Precise temperature control
• Reliable solid state operation
• No sound or vibration
• DC operation
• RoHS compliant
FEATURES
APPLICATIONS
• Laser diodes
• CCD cameras
• Infrared (IR) sensors
• Pump lasers
• Crystal oscillators
• Optical transceivers
PERFORMANCE SPECIFICATIONS
Hot side temperature (°C)
Qmax (watts)
Delta Tmax (°C)
Imax (amps)
Vmax (volts)
Module resistance (ohms)
25
4.5
67
1.9
4.0
1.92
50
5.0
77
1.9
4.5
2.17
SUFFIX
11
TB
00
22
GG

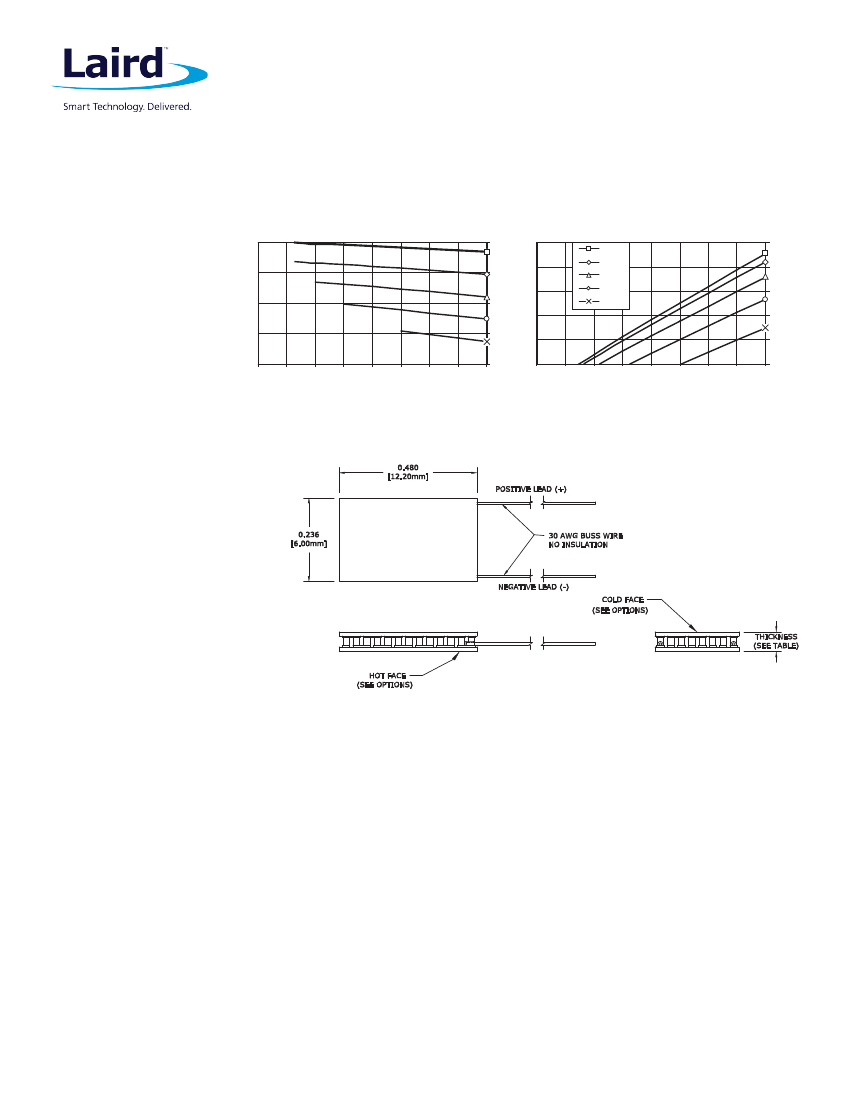

THICKNESS
(PRIOR TO TINNING)
0.065” +/- 0.002”
0.065” +/- 0.0005”
0.064” +/- 0.005”
0.064” +/- 0.005”
0.064” +/- 0.005”
FLATNESS &
PARALLELISM
0.002” / 0.002”
0.0005” / 0.0005”
NA / NA
NA / NA
NA / NA
HOT
FACE
Lapped
Lapped
Metallized
Pre-tinned
Au Plated
COLD
FACE
Lapped
Lapped
Metallized
Pre-tinned
Au Plated
LEAD
LENGTH
2.0”
2.0”
2.0”
2.0”
2.0”
SEALING OPTION
SUFFIX
RT
EP
SEALANT
RTV
Epoxy
COLOR
White
Black
TEMP RANGE
-60 to 204 °C
-55 to 150 °C
DESCRIPTION
Non-corrosive, silicone adhesive sealant
Low density syntactic foam epoxy encapsulant
Americas: +1 888.246.9050
Europe: +46.31.704.67.57
Asia: +86.755.2714.1166
clv.customerpos@lairdtech.com
www.lairdtech.com
