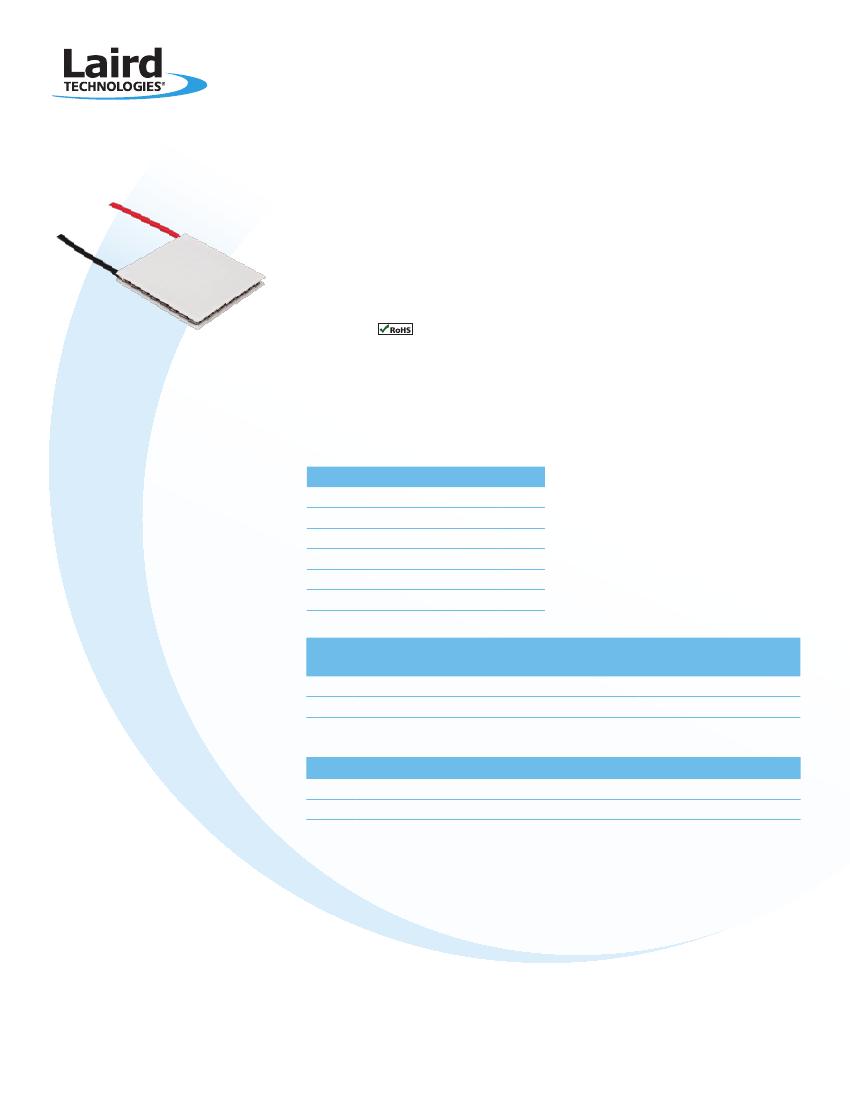

The ZT Series is a high performance thermoelectric module (TEM). The module is assembled with
premium Bismuth Telluride semiconductor material that achieves a higher temperature differential
than standard single stage TEMs.
This product line is available in multiple configurations and is ideal for applications that require to
reach cold temperatures. Assembled with top grade Bismuth Telluride semiconductor material and
thermally conductive Aluminum Oxide ceramics, the ZT Series is designed for higher current and
larger heat-pumping applications.
FeaTureS
• High temperature differential
• Precise temperature control
• Reliable solid state operation
• No sound or vibration
• DC operation
• RoHS compliant
applicaTionS
• Analytical instrumentation
• Clinical diagnostics
• Photonics laser systems
• Electronic enclosure cooling
• Food and beverage cooling
• Chillers (liquid cooling)
Performance SPecIfIcaTIonS
Hot side temperature (°C)
Qmax (watts)
Delta Tmax (°C)
Imax (amps)
Vmax (volts)
Module resistance (ohms)
25
77.0
72
8.5
15.4
1.58
SuffIx ThIckneSS
Ta
TB
0.150” +/- 0.001”
0.150” +/- 0.0005”
flaTneSS &
ParallelISm
0.001” / 0.001”
0.0005” / 0.0005”
hoT face cold face lead lengTh
lapped
lapped
lapped
lapped
8.0”
8.0”
Sealing opTion
SuffIx
rT
eP
SealanT
rTV
Epoxy
color
White
Black
TemP range
-60 to 204 °C
-55 to 150 °C
deScrIPTIon
Non-corrosive, silicone adhesive sealant
Low density syntactic foam epoxy encapsulant
global
solutions:
local
support
Americas: +1 888.246.9050
Europe: +46.31.704.67.57
Asia: +86.755.2714.1166
clv.customerpos@lairdtech.com
www.lairdtech.com
TM
ZT Series ZT8,12,F1,4040
Innovative
Technology
for a
Connected
World
Thermoelectric Module

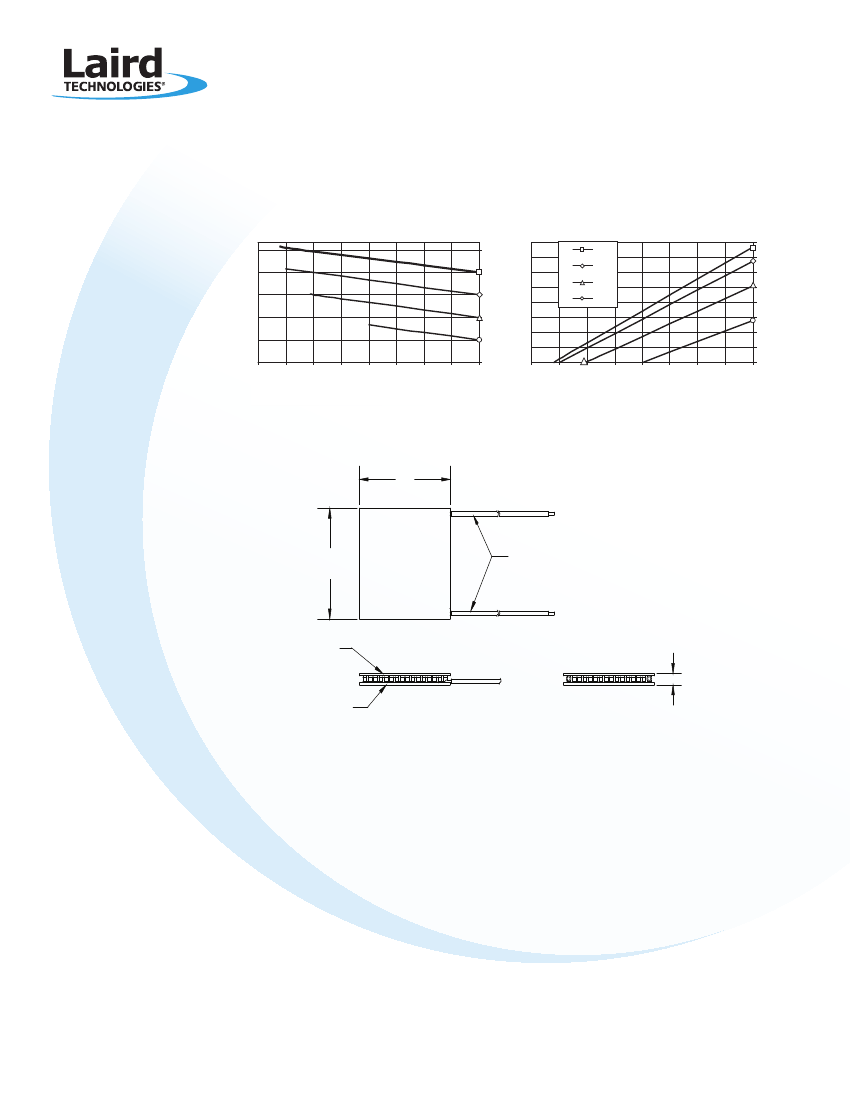

perFormance curveS
15.0
12.0
Voltage (V)
9.0
6.0
3.0
0.0
80
70
60
50
40
30
20
10
0
80
70
60
50
40
30
20
10
0
Delta T (C)
Delta T (C)
8.5
6.4
4.3
2.1
80.0
70.0
60.0
40.0
30.0
20.0
10.0
0.0
Qc (W)
50.0
mechanical Drawing
1.575
[40.0]
1.575
[40.0]
20 AWG STRANDED PVC
(SEE TABLE)
COLD FACE
(SEE OPTIONS)
THICKNESS
(SEE OPTIONS)
HOT FACE
(SEE OPTIONS)
Ceramic Material 96% Alumina Ceramics
Solder Construction: 138°C BiSn
operaTing TipS
• Max operating temperature: 80°C
• Do not exceed Imax or Vmax when
operating module
• Reference assembly guidelines for
recommended installation
THR-DS-ZT8,12,F1,4040 0909
Any information furnished by Laird Technologies, Inc. and its agents is believed to be accurate and reliable. All specifications are subject to change without notice. Responsibility for the use and application of Laird
Technologies materials rests with the end user, since Laird Technologies and its agents cannot be aware of all potential uses. Laird Technologies makes no warranties as to the fitness, merchantability or suitability
of any Laird Technologies materials or products for any specific or general uses. Laird Technologies shall not be liable for incidental or consequential damages of any kind. All Laird Technologies products are sold
Laird Technologies, the Laird Technologies Logo, and other marks are trade marks or registered trade marks of Laird Technologies, Inc. or an affiliate company thereof. Other product or service names may be the
property of third parties. Nothing herein provides a license under any Laird Technologies or any third party intellectual property rights.
