conga-B7AC/i-A-C3508 datasheet, PDF

Datasheet> All Categories > Embedded solution> To calculate> Modular computer - COM> conga-B7AC/i-A-C3508

conga-B7AC/i-A-C3508: Description模块化计算机 - COM COM Express Type 7 Basic module with Intel Atom C3508 processor with 4 Cores, 1.6GHz core frequency, 8MB Cache, Intel Cache Allocation Technology and 1866 MT/s dual channel DDR4 memory interface for up to 48GB SODIMM ECC memory. Features 4x2.; CategoryEmbedded solution To calculate Modular computer - COM; File Size757KB，4 Pages; Manufacturercongatec; Environmental Compliance

Download Datasheet Parametric Compare View All

conga-B7AC/i-A-C3508 Overview

模块化计算机 - COM COM Express Type 7 Basic module with Intel Atom C3508 processor with 4 Cores, 1.6GHz core frequency, 8MB Cache, Intel Cache Allocation Technology and 1866 MT/s dual channel DDR4 memory interface for up to 48GB SODIMM ECC memory. Features 4x2.

conga-B7AC/i-A-C3508 Parametric

Parameter Name	Attribute value
Maker	congatec
Product Category	Modular Computer - COM
Shipping restrictions	Mouser does not currently sell this product in your area.
physical dimension	COM Express Basic Type 7
Processor brand	Intel
Processor type	Intel Atom C3508
chipset	Integrated in SoC
frequency	1.5 GHz
storage	48 GB
Interface Type	Serial
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 85 C
size	95 mm x 125 mm
storage type	DDR4
series	conga-B7AC
cache memory	8 MB

Preview

Download Datasheet

View All

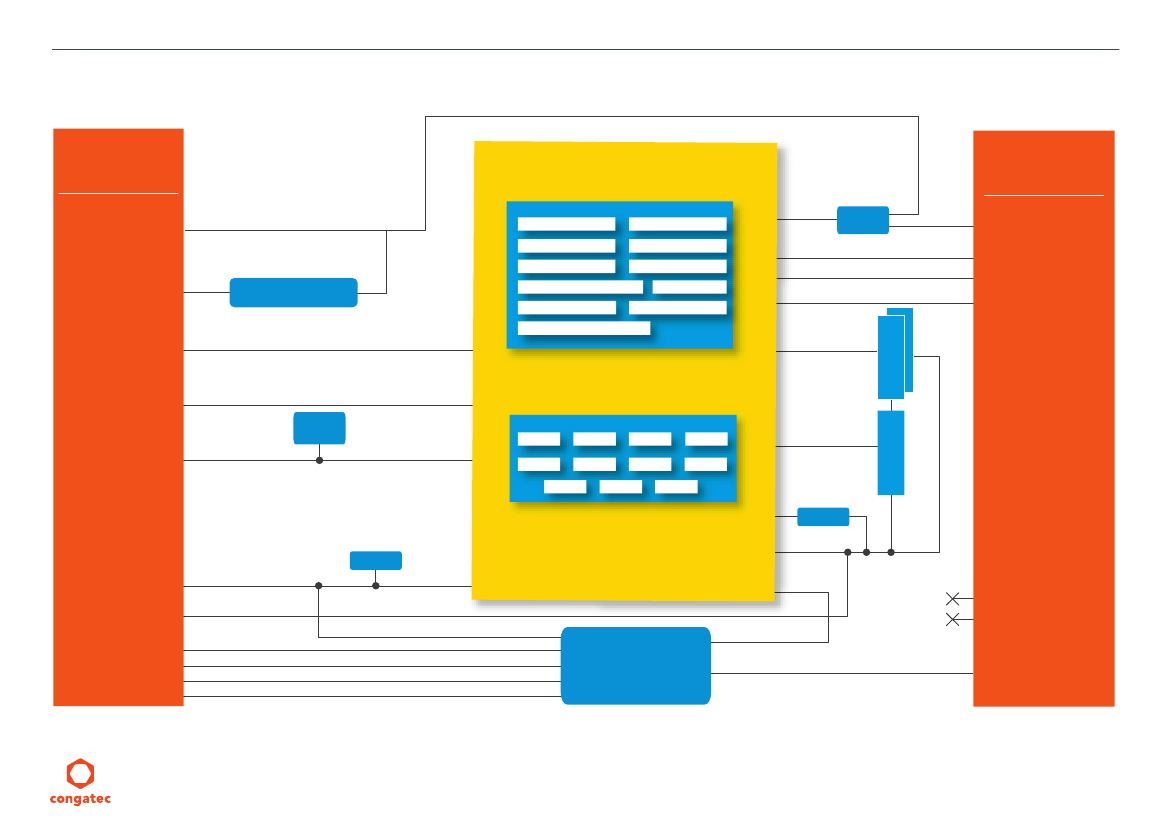

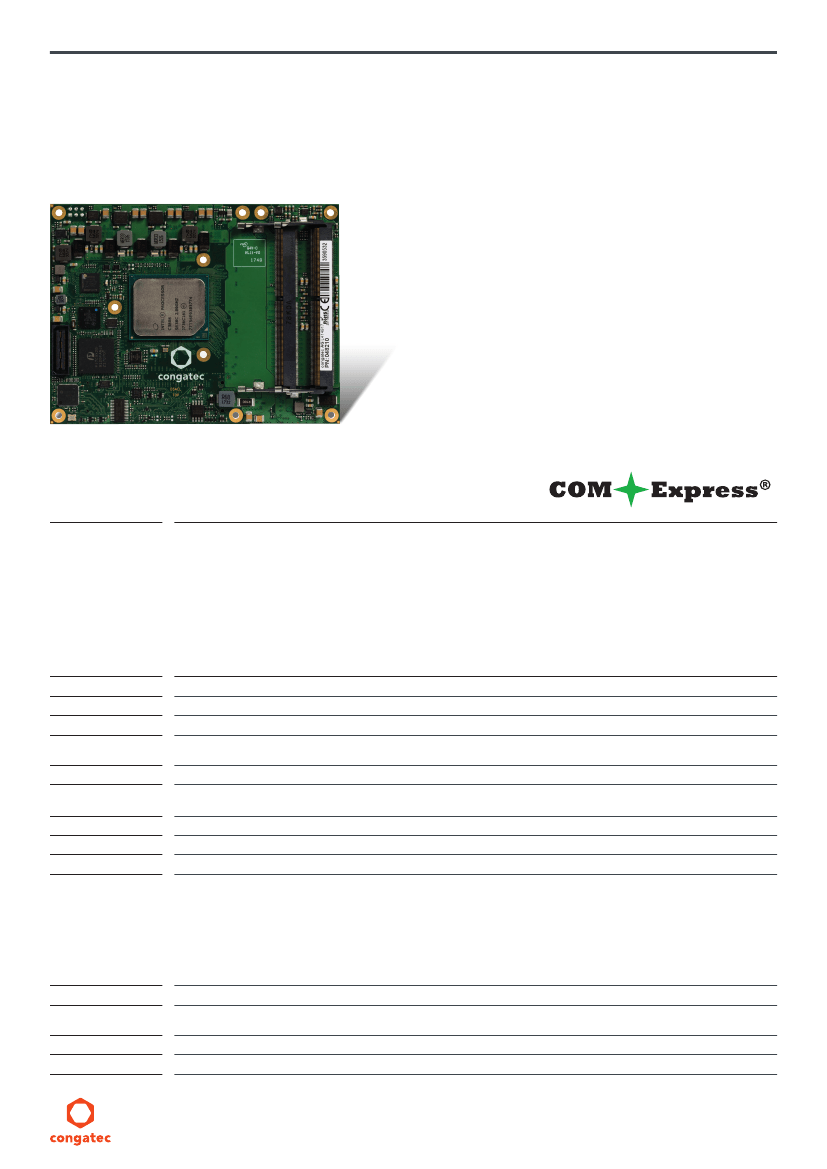

SERVER ON MODULE

conga-B7AC

COM Express Type 7

Up to Intel

Atom

C3958 with 16 Cores

and 16MB Cache

4x 10 Gigabit Ethernet KR Interface

20 PCI Express lanes

Industrial grade variants

Server Class Features

(RAS, QoS, Virtualization, Security, Managebility)

Formfactor

CPU

Formfactor COM Express

Basic | (95 x 125 mm) | Type 7 Connector Pinout

Commercial versions

Intel

Atom

C3958

Intel

Atom

C3858

Intel

Atom

C3758

Intel

Atom

C3558

Intel

Atom

C3538

Intel

Atom

C3308

Industrial versions

Intel

Atom

C3808

Intel

Atom

C3708

Intel

Atom

C3508

2.0 GHz

2.2 GHz

2.1 GHz

1.6 GHz

2.0 GHz

1.7 GHz

1.6 GHz

16 Cores

12 Cores

8 Cores

4 Cores

2 Cores

12 Cores

8 Cores

4 Cores

16MB cache

12MB cache

16MB cache

8MB cache

4 MB cache

12 MB cache

16 MB cache

8 MB cache

31W TDP

25W TDP

16W TDP

15W TDP

9.5W TDP

25W TDP

17W TDP

11.5W TDP

DRAM

Chipset

Ethernet

I/O Interfaces

Mass Storage

congatec Board Controller

Embedded BIOS Features

Security

Power Management

Operating Systems

up to 3 SO-DIMM sockets for DDR4 memory modules up to 16 GByte each (48 GByte total) with 2400 MT/s | ECC and non-ECC supported

Integrated in SoC

4x 10GbE with KR interface support

SMBus

eMMC 5.0 onboard flash up to 128 GByte (optional)

Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | I²C bus (fast mode, 400 kHz,

multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code redirection

OEM Customization | Flash Update | based on AMI Aptio UEFI

Trusted Platform Module (TPM) | Hash and RSA algorithms | key lengths up to 2048 bits | real random number generator

ACPI 5.0 with battery support

Windows 64 bit OS

Microsoft

Windows Server 2016

Microsoft

Windows Server 2012 R2

Microsoft

Windows Server 2012

Microsoft

Windows Server 2008 R2 SP1

Microsoft

Windows 10 Enterprise

Microsoft

Windows 8.1 64b

Open Source OS & Frameworks

RHEL 6.6 & 7.1

SuSE 11 SP4 & 12 SP1

Fedora 22

Ubuntu 14.10

CentOS 6.6 & 7.1

FreeBSD

Other

VMware

Hyper-V

Xen

ESXi

Power Consumption

Temperature

Humidity

Size

see user’s guide for full details | CMOS Battery Backup

Industrial:

Commercial :

Operating: -40 to +85°C

Operating: 0 to +60°C

Storage: -40 to +85°C

Operating: 10 - 90% r. H. non cond.

95 x 125 mm (3.74” x 4.92”)

Storage: 5 - 95% r. H. non cond.

www.congatec.com

conga-B7AC/i-A-C3508 Related Products

	conga-B7AC/i-A-C3508	conga-B7AC/A-C3858	conga-B7AC/A-C3758	conga-B7AC/A-C3558	conga-B7AC/A-C3538	conga-B7AC/i-A-C3808	conga-B7AC/i-A-C3708	conga-B7AC/A-C3958
Description	模块化计算机 - COM COM Express Type 7 Basic module with Intel Atom C3508 processor with 4 Cores, 1.6GHz core frequency, 8MB Cache, Intel Cache Allocation Technology and 1866 MT/s dual channel DDR4 memory interface for up to 48GB SODIMM ECC memory. Features 4x2.	Modular Computer - COM COM Express Type 7 Basic module with Intel Atom C3858 processor with 12 Cores, 2.0GHz core frequency, 12MB Cache, Intel Cache Allocation Technology and 2400 MT/s dual channel DDR4 memory interface for up to 48GB SODIMM ECC memory. Features 4x	Modular Computer - COM COM Express Type 7 Basic module with Intel Atom C3758 processor with 8 Cores, 2.2GHz core frequency, 16MB Cache, Intel Cache Allocation Technology and 2400 MT/s dual channel DDR4 memory interface for up to 48GB SODIMM ECC memory. Features 4x1	Modular Computer - COM COM Express Type 7 Basic module with Intel Atom C3558 processor with 4 Cores, 2.2GHz core frequency, 8MB Cache, Intel Cache Allocation Technology and 2133 MT/s dual channel DDR4 memory interface for up to 48GB SODIMM ECC memory. Features 2x10	Modular Computer - COM COM Express Type 7 Basic module with Intel Atom C3538 processor with 4 Cores, 2.1GHz core frequency, 8MB Cache, Intel Cache Allocation Technology and 2133 MT/s dual channel DDR4 memory interface for up to 48GB SODIMM ECC memory. Features 2x10	模块化计算机 - COM COM Express Type 7 Basic module with Intel Atom C3808 processor with 8 Cores, 2.0 GHz core frequency, 16MB Cache, Intel Cache Allocation Technology and 2133 MT/s dual channel DDR4 memory interface for up to 48GB SODIMM ECC memory. Features 4x	模块化计算机 - COM COM Express Type 7 Basic module with Intel Atom C3708 processor with 8 Cores, 1.7GHz core frequency, 16MB Cache, Intel Cache Allocation Technology and 2133 MT/s dual channel DDR4 memory interface for up to 48GB SODIMM ECC memory. Features 4x1	模块化计算机 - COM COM Express Type 7 Basic module with Intel Atom C3958 processor with 16 Cores, 2.0GHz core frequency, 16MB Cache, Intel Cache Allocation Technology and 2400 MT/s dual channel DDR4 memory interface for up to 48GB SODIMM ECC memory. Features 4x
Maker	congatec	congatec	congatec	congatec	congatec	congatec	congatec	congatec
Product Category	Modular Computer - COM	Modular Computer - COM	Modular Computer - COM	Modular Computer - COM	Modular Computer - COM	Modular Computer - COM	Modular Computer - COM	Modular Computer - COM
Shipping restrictions	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.
physical dimension	COM Express Basic Type 7	COM Express Basic Type 7	COM Express Basic Type 7	COM Express Basic Type 7	COM Express Basic Type 7	COM Express Basic Type 7	COM Express Basic Type 7	COM Express Basic Type 7
Processor brand	Intel	Intel	Intel	Intel	Intel	Intel	Intel	Intel
Processor type	Intel Atom C3508	Intel Atom C3858	Intel Atom C3758	Intel Atom C3558	Intel Atom C3538	Intel Atom C3808	Intel Atom C3708	Intel Atom C3958
chipset	Integrated in SoC	Integrated in SoC	Integrated in SoC	Integrated in SoC	Integrated in SoC	Integrated in SoC	Integrated in SoC	Integrated in SoC
frequency	1.5 GHz	2 GHz	2.2 GHz	2.2 GHz	2.1 GHz	2 GHz	1.7 GHz	2 GHz
storage	48 GB	48 GB	48 GB	48 GB	48 GB	48 GB	48 GB	48 GB
Interface Type	Serial	Serial	Serial	Serial	Serial	Serial	Serial	Serial
Minimum operating temperature	- 40 C	0 C	0 C	0 C	0 C	- 40 C	- 40 C	0 C
Maximum operating temperature	+ 85 C	+ 60 C	+ 60 C	+ 60 C	+ 60 C	+ 85 C	+ 85 C	+ 60 C
size	95 mm x 125 mm	95 mm x 125 mm	95 mm x 125 mm	95 mm x 125 mm	95 mm x 125 mm	95 mm x 125 mm	95 mm x 125 mm	95 mm x 125 mm
storage type	DDR4	DDR4	DDR4	DDR4	DDR4	DDR4	DDR4	DDR4
series	conga-B7AC	conga-B7AC	conga-B7AC	conga-B7AC	conga-B7AC	conga-B7AC	conga-B7AC	conga-B7AC
cache memory	8 MB	12 MB	16 MB	8 MB	8 MB	12 MB	16 MB	16 MB
