Designed for Rugged Excellence
IDS-322(+)
Industrial 2 secure serial port to Ethernet device
server with 2xRS-232/422/485 and
2x10/100Base-T(X)
Features
Operating Modes: Virtual Com, Serial Tunnel, TCP Server,
TCP Client, UDP
Support 2xRS-232/422/485 in DB9 connector
Redundant multiple host devices:
5 host devices: Virtual COM, TCP Server, TCP Client mode;
4 IP ranges: UDP
Security: SSL data encryption; secured management by
HTTPS and SSH: IP Access: IP White List
Event Warning by Syslog, Email and SNMP trap
Configurable by Web-based and Windows utility (DS-Tool)
Various Windows O.S. supported:
Windows NT/2000/ XP/ 2003/VISTA(32/64bit)/ Windows 7(32/64bit)
Ethernet switch mode enable Daisy Chain
1KV isolation for PoE PD port (802.3af)
Introduction
IDS-322 is an innovative secure 2 port RS-232/422/485 to 2 ports LAN secure device server with standard features of
device server, such like TCP/IP interface and versatile operation modes: Virtual Com, Serial Tunnel, TCP Server, TCP Client,
and UDP.
In addition, the Windows untility, DS-Tool, could configure multiple devices and set up the mappings of Virtual
Com. On the other hand, IDS-322 can simultaneously transfer data up to 5 redundant host PCs to aovid Ethernet
connection breakdown or any host PC fails.
security of critical data transmission.
IDS-322 supports RS-232/422/485 and provides dual redundant power inputs, 12~48 VDC, on terminal block to
guarantee a non-stop operation. Further, IDS-322 features PoE PD (Power Device) function, compliant with IEEE802.3af
standard, with 1kv isolation on the PoE port. With wide operating temperature, -40~70
o
C, and rugged IP-30 housing
design, IDS-322 series could operate in the harsh industrial environment. Therefore, IDS-322 is the best solution to the
high demand of secure serial to Ethernet critical data communication.
Further, IDS-322 features HTTPS, SSH, and SSL encryption to assure the
* All specifications are subject to change without notice.
Designed for Rugged Excellence

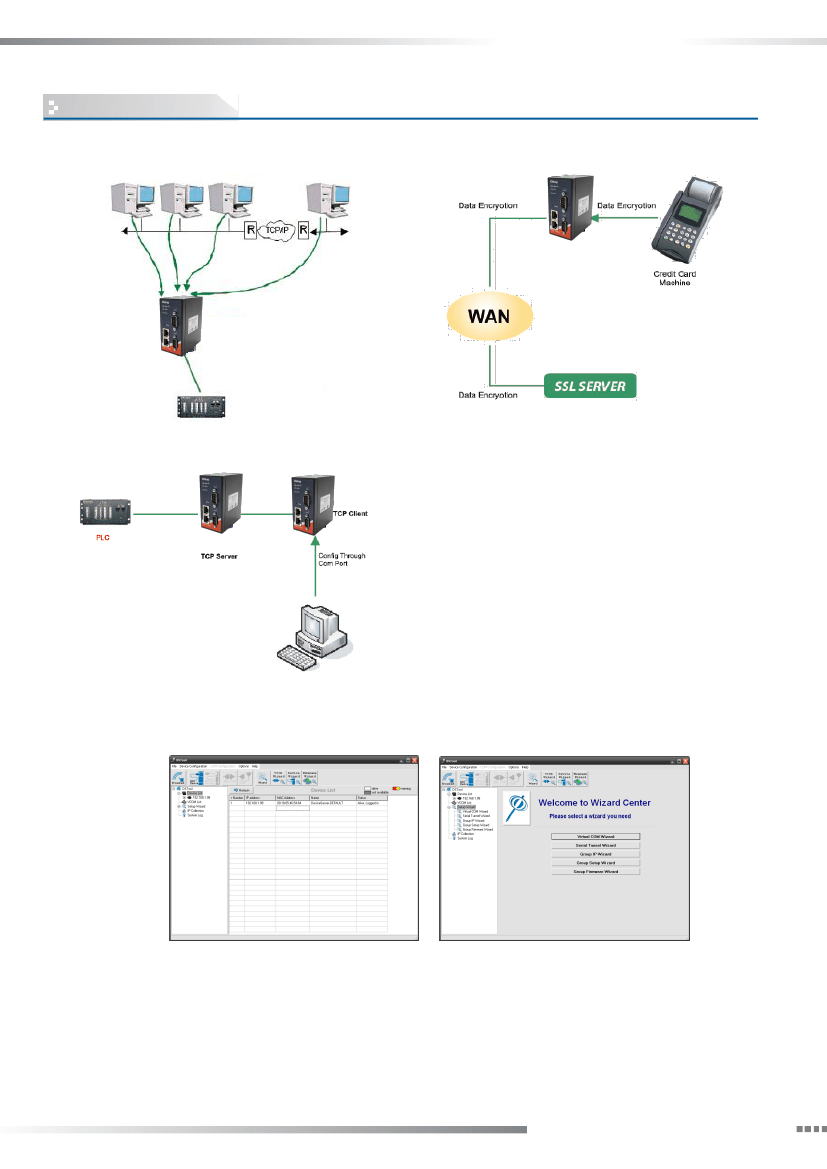

Practical Operation
In practical operation of serial device servers, Windows utility (DS-Tool) is supported.
to manage and monitor all of industrial device servers on the industrial network.
This utility is very helpful for you
IDS-322+
RS-232/422/485
IDS-322+
RS-232/422/485
Multiple Host PCs
IDS-322+
RS-232/422/485
SSL Data Encryption
IDS-322+
RS-232/422/485
TCP Client/Server Modes
DS-Tool (Windows Utility): Monitoring and Configuration
interface
* All specifications are subject to change without notice.
Designed for Rugged Excellence

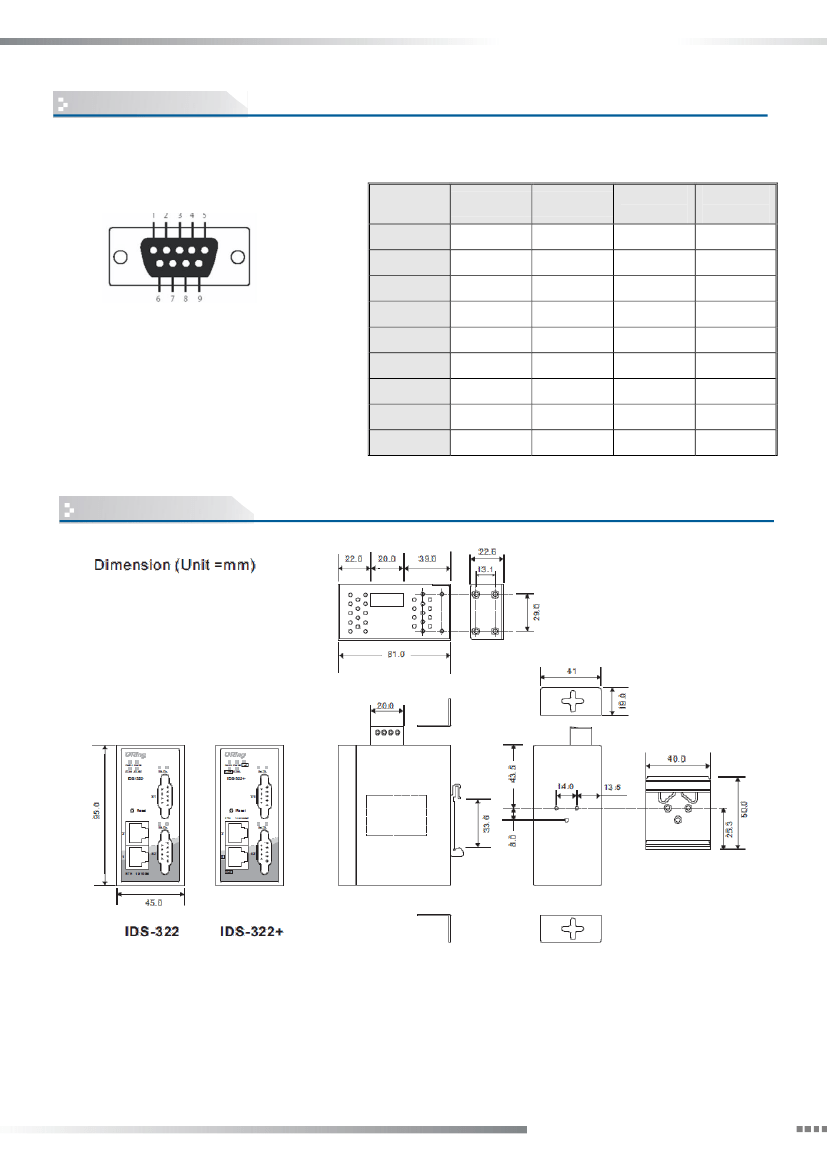

Pin Definition
Pin #
1
2
3
DB9 connector
4
5
6
7
8
9
RS-232
DCD
RXD
TXD
DTR
GND
DSR
RTS
CTS
RI
RS-422
TX-
TX+
RX+
RX-
GND
RS-485
( 4 wire )
TX-
TX+
RX+
RX-
GND
RS-485
( 2 wire )
DATA -
DATA +
Dimension
* All specifications are subject to change without notice.
Designed for Rugged Excellence
Specifications
ORing Device Server Model
Physical Ports
10/100 Base-T(X) Ports in RJ45
Auto MDI/MDIX
P.O.E.
2
P.O.E.Present at ETH1
Power Device (IEEE 802.3af):
IEEE 802.3af compliant input interface
Over load & short circuit protection
Isolation Voltage: 1000 VDC min.
Isolation Resistance : 10
8
ohms min
Serial Ports
Connector
Operation Mode
Serial Baud Rate
Data Bits
Parity
Stop Bits
RS-232
Flow Control
Network Protocol
Protocol
LED indicators
Power indicator
10/100TX RJ45 port indicator
Serial TX / RX LEDs:
Power
Redundant Input power
Power consumption (Typ.)
Overload current protection
Reverse polarity protection
Physical Characteristic
Enclosure
Dimension (W x D x H)
Weight (g)
Environmental
Storage Temperature
Operating Temperature
Operating Humidity
Regulatory approvals
EMI
EMS
Shock
Free Fall
Vibration
Safety
Warranty
FCC Part 15, CISPR (EN55022) class A
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS),
EN61000-4-8, EN61000-4-11
IEC60068-2-27
IEC60068-2-32
IEC60068-2-6
EN60950-1
5 years
-40 to 85
o
C (-40 to 185
o
F)
-40 to 70
o
C (-40 to 158
o
F)
5% to 95% Non-condensing
IP-30
45 (W) x 81 (D) x 95 (H) mm
316g
325g
Dual DC inputs. 12-48VDC on 6-pin terminal block
3.84W
Present
Present on terminal block
Dual DC inputs. 12-48VDC on 6-pin terminal block
IEEE 802.3af PoE PD (Eth 1)
3 x LEDs, PWR 1(2)(PoE) / Ready:
Green On: Power is on
Green for port Link/Act at 100Mbps.
Amber: Serial port is receiving data
Green: Serial port is transmitting data
ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c, HTTPS, SMTP
DB9 x 2
RS-232/422/485
110 bps to 460.8 Kbps
7, 8
odd, even, none, mark, space
1, 1.5, 2
TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
XON/XOFF, RTS/CTS, DTR/DSR
IDS-322
IDS-322+
* All specifications are subject to change without notice.
Designed for Rugged Excellence
Ordering Information
IDS-3
A B C
Code
Definition
Serial Port Type
Serial Port Number
Ethernet port Number
POE Identification
- 1: RS-232
Option
- 2: RS-422/485
- 3: RS-232/422/485
Model Name
Available
Model
IDS-322
Industrial 2-port secure serial to Ethernet device server with 2xRS-232/422/485 and
2x10/100Base-T(X)
Industrial 2-port secure serial to Ethernet device server with 2xRS-232/422/485 and
2x10/100Base-T(X), 1-port PoE P.D.
Description
- 2:
2 ports
- 2:
2 ports
-"+":
P.O.E. PD present at ETH1
IDS-322+
Packing List
O
IDS-322(+) x 1
Wall-Mount Kit x 1
CD x 1
Din-Rail Kit x 1
Quick Installation Guide x 1
Optional Accessories
O
DR-45 series : 45 Watts power supply
DR-120 series : 120 Watts power supply
DR-75 series : 75 Watts power supply
* All specifications are subject to change without notice.
