FS4500/FS6500 evaluation
boards
KTFRDMFS4500-FS6500EVMUG
Rev. 4.0 — 12 June 2017
User guide
1
FRDMFS4503CAEVM, FRDMFS6523CAEVM and FRDMFS6522LAEVM
evaluation boards
aaa-025541

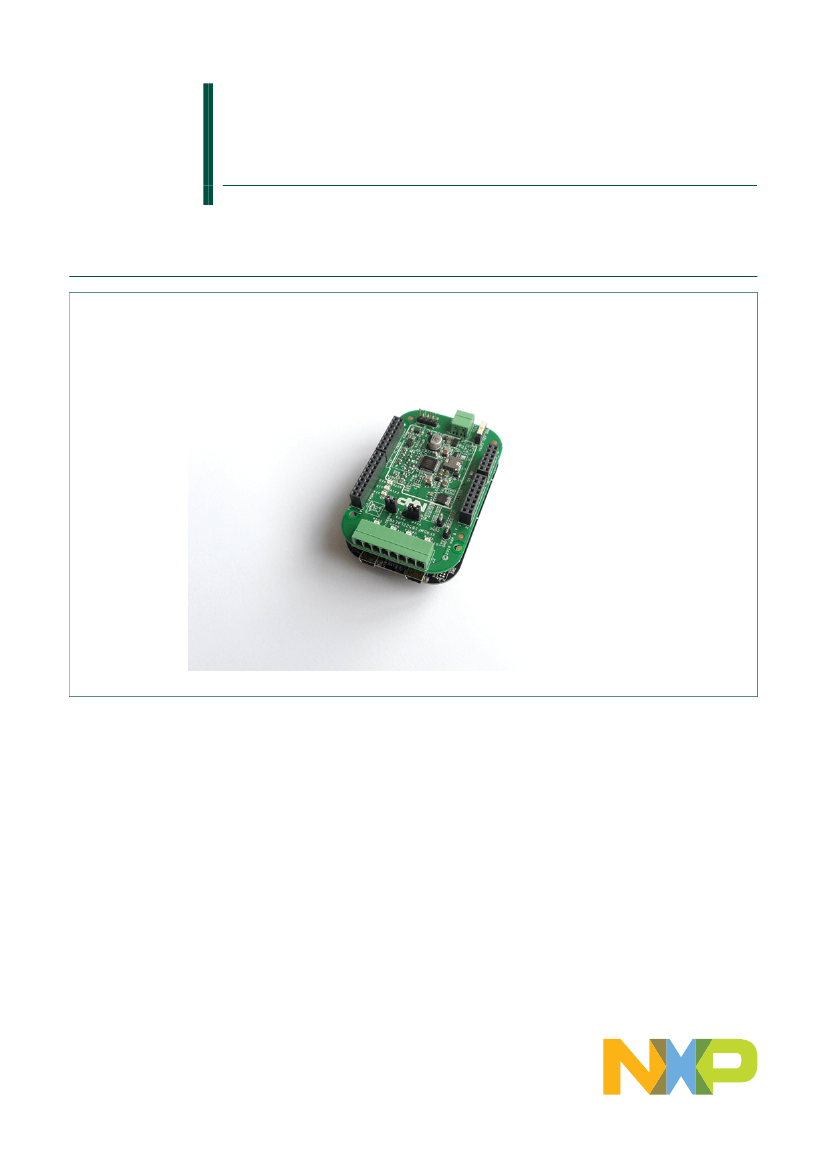

Figure 1. FRDMFS6523CAEVM
NXP Semiconductors
FS4500/FS6500 evaluation boards
KTFRDMFS4500-FS6500EVMUG
2
Important notice
NXP provides the enclosed product(s) under the following conditions:
This evaluation kit is intended for use of ENGINEERING DEVELOPMENT OR
EVALUATION PURPOSES ONLY. It is provided as a sample IC pre-soldered to a
printed circuit board to make it easier to access inputs, outputs, and supply terminals.
This evaluation board may be used with any development system or other source of
I/O signals by simply connecting it to the host MCU or computer board via off-the-
shelf cables. This evaluation board is not a Reference Design and is not intended to
represent a final design recommendation for any particular application. Final device in
an application will be heavily dependent on proper printed circuit board layout and heat
sinking design as well as attention to supply filtering, transient suppression, and I/O
signal quality.
The goods provided may not be complete in terms of required design, marketing, and
or manufacturing related protective considerations, including product safety measures
typically found in the end product incorporating the goods. Due to the open construction
of the product, it is the user's responsibility to take any and all appropriate precautions
with regard to electrostatic discharge. In order to minimize risks associated with the
customers applications, adequate design and operating safeguards must be provided
by the customer to minimize inherent or procedural hazards. For any safety concerns,
contact NXP sales and technical support services.
Should this evaluation kit not meet the specifications indicated in the kit, it may be
returned within 30 days from the date of delivery and will be replaced by a new kit.
NXP reserves the right to make changes without further notice to any products herein.
NXP makes no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does NXP assume any liability arising out of the
application or use of any product or circuit, and specifically disclaims any and all liability,
including without limitation consequential or incidental damages. “Typical” parameters
can and do vary in different applications and actual performance may vary over time.
All operating parameters, including “Typical”, must be validated for each customer
application by customer’s technical experts.
NXP does not convey any license under its patent rights nor the rights of others. NXP
products are not designed, intended, or authorized for use as components in systems
intended for surgical implant into the body, or other applications intended to support or
sustain life, or for any other application in which the failure of the NXP product could
create a situation where personal injury or death may occur.
Should the Buyer purchase or use NXP products for any such unintended or
unauthorized application, the Buyer shall indemnify and hold NXP and its officers,
employees, subsidiaries, affiliates, and distributors harmless against all claims, costs,
damages, and expenses, and reasonable attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or
unauthorized use, even if such claim alleges NXP was negligent regarding the design
or manufacture of the part. NXP and the NXP logo are trademarks of NXP B.V. All other
product or service names are the property of their respective owners. © 2017 NXP B.V.
FS4500/FS6500 evaluation boards
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2017. All rights reserved.
User guide
Rev. 4.0 — 12 June 2017
2 / 34
NXP Semiconductors
FS4500/FS6500 evaluation boards
KTFRDMFS4500-FS6500EVMUG
3
Getting started
3.1 Jump start
NXP’s analog product development boards provide an easy-to-use platform for
evaluating NXP products. The boards support a range of analog, mixed-signal and power
solutions. They incorporate monolithic ICs and system-in-package devices that use
proven high-volume SMARTMOS technology. NXP products offer longer battery life, a
smaller form factor, reduced component counts, lower cost and improved performance in
powering state of the art systems.
1. Go to the relevant Tool Summary Page:
http://www.nxp.com/FRDMFS6522LAEVM
http://www.nxp.com/FRDMFS6523CAEVM
http://www.nxp.com/FRDMFS4503CAEVM
2. Review your Tools Summary Page.
3. Locate and click:
4. Download the documents, software and other information.
Once the files are downloaded, review the user guide in the bundle. The user guide
includes setup instructions, BOM and schematics. Jump start bundles are available on
each tool summary page with the most relevant and current information. The information
includes everything needed for design.
3.2 Kit contents/packing list
The FRDMFS6522LAEVM, FRDMFS6523CAEVM and FRDMFS4503CAEVM contents
include:
•
•
•
•
•
Assembled and tested FRDMFS65xx board
Assembled and test FRDM-KL25Z board
3.0 ft. USB-STD A to USB-B-mini cable
Connector, terminal block plug, 2 pos., str. 3.81 mm
Connector, terminal block plug, 8 pos., str. 3.81 mm
3.3 Required equipment
The EVM requires the following items:
•
Power supply with a range of 8.0 V to 40 V and a current limit set initially to 1.0 A
Standard A plug to Mini-B plug USB cable M/M
FlexGUI graphical user interface
FlexGUI register definition XML file
FS4500/FS6500 evaluation boards
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2017. All rights reserved.
User guide
Rev. 4.0 — 12 June 2017
3 / 34
NXP Semiconductors
FS4500/FS6500 evaluation boards
KTFRDMFS4500-FS6500EVMUG
3.4 EVM overview
The EVM contains two boards:
• FRDMFS4503CAEVB or FRDMFS6523CAEVB or FRDMFS6522LAEVB:
These
are the evaluation boards available for the FS6500 / FS4500 SBC. The hardware is
described in
Section 4.5 "Getting to know the hardware".
This document refers to these
boards as EVBs.
• FRDM-KL25Z:
This board contains the KL25Z MCU. It is plugged into the EVB by
means of the Arduino
™
connectors on both boards. The FRDM-KL25Z manages
communication between the EVB and a host PC, allowing users to access the EVB's
on-board device features and registers. For more information on the FRDM-KL25Z see
Section 11 "References"
FS4500/FS6500 evaluation boards
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2017. All rights reserved.
User guide
Rev. 4.0 — 12 June 2017
4 / 34
NXP Semiconductors
FS4500/FS6500 evaluation boards
KTFRDMFS4500-FS6500EVMUG
4
Board description
4.1 Board overview
The FRDMFS4503CAEVB, FRDMFS6523CAEVB and FRDMFS6522LAEVB are
hardware evaluation tools supporting system designs based on NXP’s FS4500 and
FS6500 product families. The EVM allow testing the devices as an integral part of
the overall system being developed. They provide access to all FS45xx and FS65xx
functions (SPI, IOs) and support functional modes such as debug, normal, buck and
boost.
Table 1. EVMs supporting the FS45xx/FS65xx family
EVM name
FRDMFS6522LAEVM
FRDMFS6523CAEVM
FRDMFS4503CAEVM
[1]
The FRDM board is limited to 1.5 A
Supported silicon
MC33FS6522LAE
MC33FS6523CAE
MC33FS4503CAE
Options
CAN, LIN, No FS1b, V
CORE
DC/DC 2.2 A
CAN, FS1b, No LIN, V
CORE
DC/DC 2.2 A
[1]
[1]
CAN, FS1b, No LIN, V
CORE
LDO 500 mA
4.2 Board features
The main features of the FRDMFS6522LAEVB, FRDMFS6523CAEVB and
FRDMFS4503CAEVB evaluation boards are:
•
•
•
•
•
•
•
•
•
•
•
•
•
VBAT power supply connector
VCORE configuration:1.3 V
VCCA configuration: 3.3 V, using internal PMOS
VAUX configuration: 5.0 V
Buck or boost setting
DFS configuration
Ignition key switch
CAN bus
LIN bus (FRDMFS6522LAEVM only)
FS0B
FS1B (FRDMFS6523CAEVM or FRDMFS4503CAEVM only)
IO connector (IO_0 to IO_5)
Connectivity to KL25Z Freedom board (Access to SPI bus, IOs, LIN digital, RSTB,
FS0B, INTB, Debug, MUX_OUT, Regulators)
•
LEDs that indicate signal or regulator status
FS4500/FS6500 evaluation boards
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2017. All rights reserved.
User guide
Rev. 4.0 — 12 June 2017
5 / 34
