The ZT Series is a high performance thermoelectric module (TEM). The module is assembled with
premium Bismuth Telluride semiconductor material that achieves a higher temperature differential
than standard single stage TEMs.
This product line is available in multiple configurations and is ideal for applications that require to
reach cold temperatures. Assembled with top grade Bismuth Telluride semiconductor material and
thermally conductive Aluminum Oxide ceramics, the ZT Series is designed for higher current and
larger heat-pumping applications.
FeaTureS
• High temperature differential
• Precise temperature control
• Reliable solid state operation
• No sound or vibration
• DC operation
• RoHS compliant
applicaTionS
• Analytical instrumentation
• Clinical diagnostics
• Photonics laser systems
• Electronic enclosure cooling
• Food and beverage cooling
• Chillers (liquid cooling)
Performance SPecIfIcaTIonS
Hot side temperature (°C)
Qmax (watts)
Delta Tmax (°C)
Imax (amps)
Vmax (volts)
Module resistance (ohms)
25
62.3
74
5.0
20.0
3.33
SuffIx ThIckneSS
Ta
TB
0.146” +/- 0.001”
0.146” +/- 0.0005”
flaTneSS &
ParallelISm
0.001” / 0.001”
0.0005” / 0.0005”
hoT face cold face lead lengTh
lapped
lapped
lapped
lapped
14.0”
14.0”
Sealing opTion
SuffIx
rT
eP
SealanT
rTV
Epoxy
color
White
Black
TemP range
-60 to 204 °C
-55 to 150 °C
deScrIPTIon
Non-corrosive, silicone adhesive sealant
Low density syntactic foam epoxy encapsulant
global
solutions:
local
support
Americas: +1 888.246.9050
Europe: +46.31.704.67.57
Asia: +86.755.2714.1166
clv.customerpos@lairdtech.com
www.lairdtech.com
TM
ZT Series ZT5,16,F1,4040
Innovative
Technology
for a
Connected
World
Thermoelectric Module

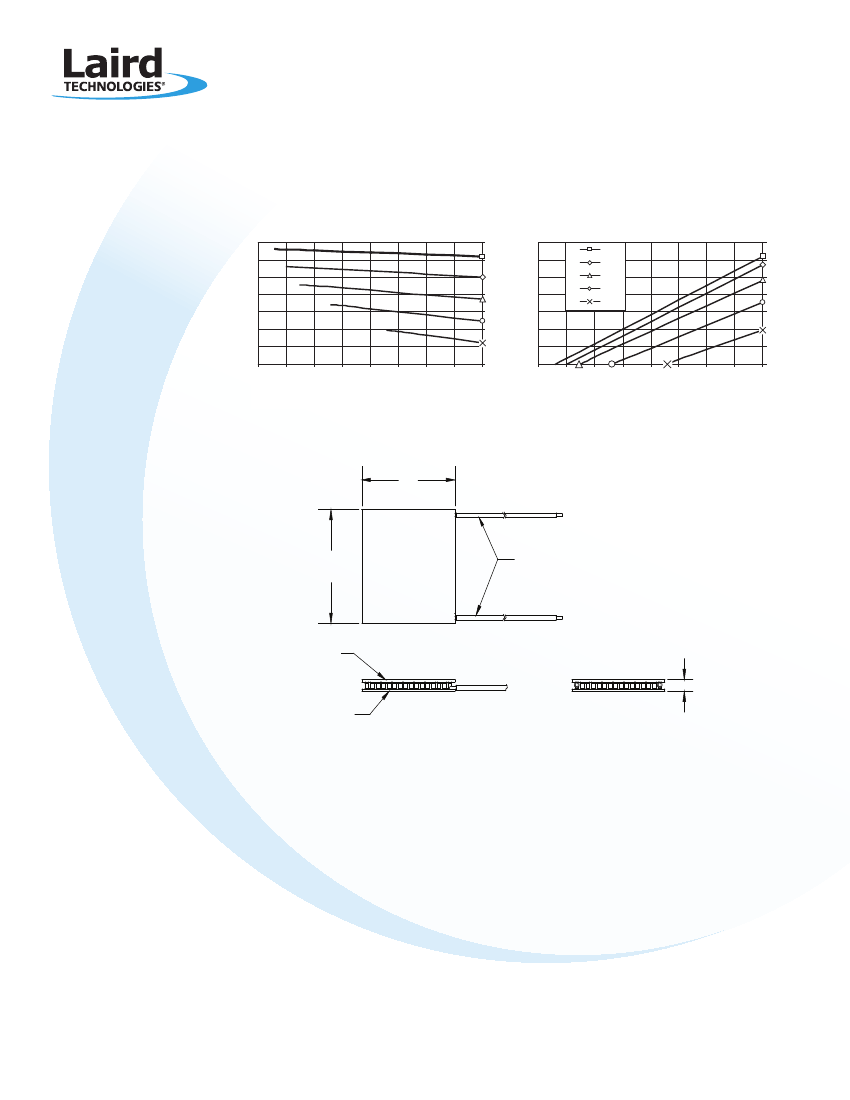

perFormance curveS
21.0
18.0
Voltage (V)
15.0
12.0
9.0
6.0
3.0
0.0
80
70
60
50
40
30
20
10
0
80
70
60
50
40
30
20
10
0
Delta T (C)
Delta T (C)
5.0
4.0
3.0
2.0
1.0
70.0
60.0
50.0
Qc (W)
40.0
30.0
20.0
10.0
0.0
mechanical Drawing
1.575
[40.0]
1.575
[40.0]
22 AWG STRANDED PVC
(SEE TABLE)
COLD FACE
(SEE OPTIONS)
THICKNESS
(SEE OPTIONS)
HOT FACE
(SEE OPTIONS)
Ceramic Material 96% Alumina Ceramics
Solder Construction: 138°C BiSn
operaTing TipS
• Max operating temperature: 80°C
• Do not exceed Imax or Vmax when
operating module
• Reference assembly guidelines for
recommended installation
THR-DS-ZT5,16,F1,4040 0909
