Ceramic Plate Series CP12,161,04
Innovative
Technology
for a
Connected
World
Thermoelectric Modules
The Ceramic Plate (CP) Series of Thermoelectric Modules (TEMs) is considered
‘the standard’ in the thermoelectric industry.
This broad product line of high-performance and highly reliable TEMs is available
in numerous heat pumping capacities, geometric shapes, and input power ranges.
Assembled with Bismuth Telluride semiconductor material and thermally conductive
Aluminum Oxide ceramics, the CP Series is designed for higher current and large
heat-pumping applications.
FEATURES
• Precise Temperature Control
• Compact Geometric Sizes
• Reliable Solid State Operation
• No Sound or Vibration
• Environmentally Friendly
• DC Operation
• RoHS Compliant
PERFORMANCE SPECIFICATIONS
Hot Side Temperature (°C)
Qmax (Watts)
Delta Tmax (°C)
Imax (Amps)
Vmax (Volts)
Module Resistance (Ohms)
SUFFIX THICKNESS
(PRIOR TO TINNING)
L1
L2
0.126”± 0.001”
0.126”± 0.0005”
25°C
79.2
67
7.3
18.4
2.33
FLATNESS &
PARALLELISM
APPLICATIONS
• Medical Lasers
• Lab Science Instrumentation
• Clinical Diagnostic Systems
• Photonics Laser Systems
• Electronic Enclosure Cooling
• Food & Beverage Cooling
• Chillers (Liquid Cooling)
50°C
87.0
75
7.3
20.8
2.63
HOT
FACE
Lapped
Lapped
COLD
FACE
Lapped
Lapped
Lead
Length
4.5”
4.5”
0.001” / 0.001”
0.0005”/ 0.0005”
SEALING OPTION
SUFFIX
RT
EP
SEALANT COLOR
RTV
Epoxy
White
Black
TEMP RANGE
-60 to 204 °C
-55 to 150 °C
DESCRIPTION
Non-corrosive, silicone adhesive sealant
Low density syntactic foam epoxy encapsulant
global
solutions:
local
support
Americas: +1 888.246.9050
Europe: +46.31.420530
Asia: +86.755.2714.1166
clv.customerpos@lairdtech.com
www.lairdtech.com
TM
Ceramic Plate Series CP12,161,04
Innovative
Technology
for a
Connected
World
Thermoelectric Modules

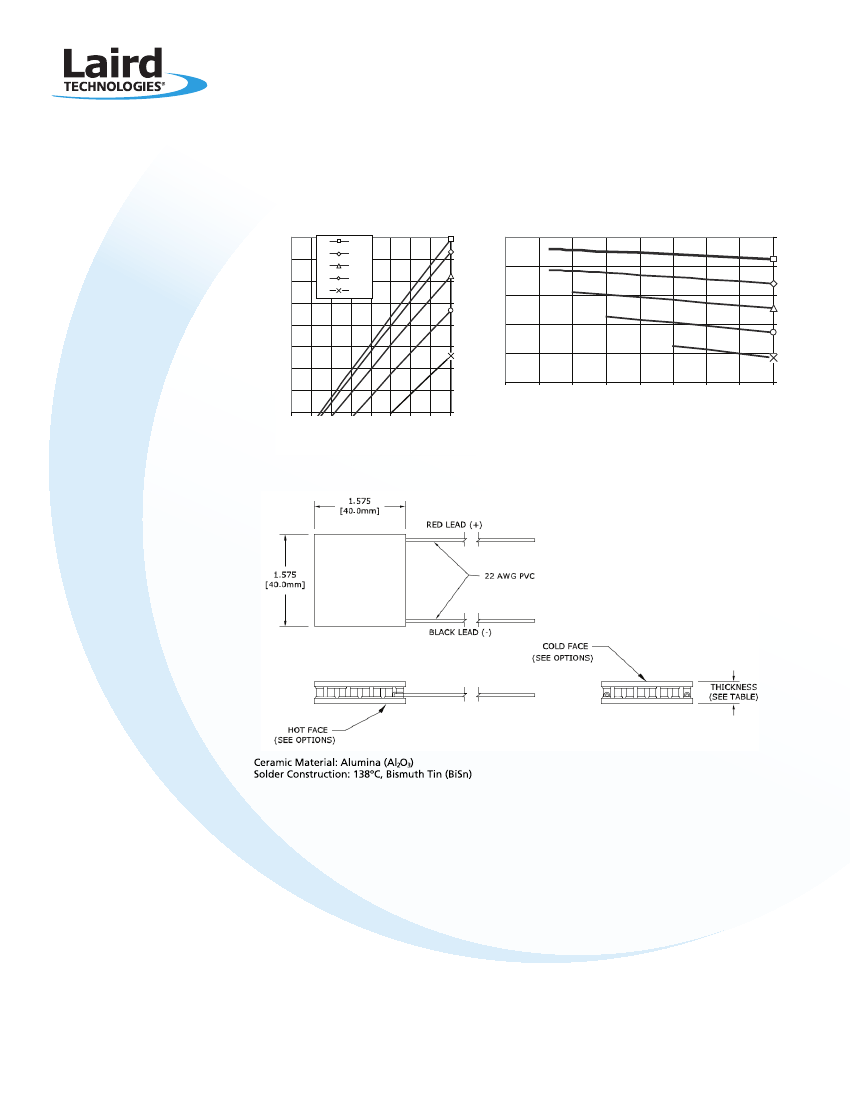

Performance Curves at Th = 25°C
THERMO
7.3
5.8
4.4
2.9
1.5
ELECTRIC
80.0
70.0
60.0
20.0
16.0
12.0
Qc
Qc (W)
(W)
50.0
40.0
30.0
20.0
10.0
0.0
80
70
60
50
40
30
20
10
0
8.0
4.0
0.0
80
70
60
50
40
30
20
10
0
Delta T (°C)
Delta T (C)
Delta T (C)
Delta T (°C)
OPERATING TIPS
• Max Operating Temperature: 80°C
• Do not exceed Imax or Vmax when
operating module
• Reference assembly guidelines for
recommended installation
• Solder tinning also available on
metallized ceramics
THR-DS-CP12,161,04 0312
Any information furnished by Laird Technologies, Inc. and its agents is believed to be accurate and reliable. Responsibility for the use and application of Laird Technologies
materials rests with the end user, since Laird Technologies and its agents cannot be aware of all potential uses. Laird Technologies makes no warranties as to the fitness,
merchantability or suitability of any Laird Technologies materials or products for any specific or general uses. Laird Technologies shall not be liable for incidental or consequential
damages of any kind. All Laird Technologies products are sold pursuant to the Laird Technologies’ Terms and Conditions of sale in effect from time to time, a copy of which will
be furnished upon request. © Copyright 2012 Laird Technologies, Inc. All Rights Reserved. Laird, Laird Technologies, the Laird Technologies Logo, and other marks are trade
marks or registered trade marks of Laird Technologies, Inc. or an affiliate company thereof. Other product or service names may be the property of third parties. Nothing herein
provides a license under any Laird Technologies or any third party intellectual property rights.
