A
Bx600 Breakout Boards and BL600 DVK
BLE Development Options for Any Hardware Budget
BLUETOOTH DESIGN THAT SCALES TO YOU.
Designing Laird’s BL600 into your system has never been easier. Laird now introduces
the Bx600 breakout board series, joining alongside the DVK-BL600 development kit.
All allow you to connect to and program the BL600 from Windows, OSX, or Linux via
UwTerminalX software. The Bx600 breakout boards provide a streamlined approach
for simplified BL600 prototyping in as little as a tenth of the cost. They come in three
packages: basic breakout board, board with coin cell attachment, and board with coin
cell attachment and USB-to-UART adapter. The DVK-BL600 contains a wider variety of hardware components
such as interfaces, sensors, LEDs, and power options.
THE RIGHT HARDWARE FOR
YOUR DESIGN REQUIREMENT
CROSS-PLATFORM SOFTWARE
LETS YOU DEVELOP YOUR WAY
PERSONAL SUPPORT FROM
DESIGN TO MANUFACTURE
Whether you need a simple prototype
option or lots of sensors and interfaces for
testing, Laird’s development options have
you in mind. The Bx600 breakout boards
are a cost-effective and direct: The
BB600
has through holes for breadboarding; The
BC600
includes a mounted coin cell power
adapter for designing low-power solutions
directly on the board; The
BA600
bundles
the coin cell adapter with a USB to UART
adapter for power flexibility and PC testing
with applications like vSP. The
DVK-BL600
offers extensive onboard equipment to
help you design for any application.
Laird’s new UwTerminalX software takes
UwTerminal to the next level, bringing
smartBASIC
to all desktop environments.
UwTerminalX (Windows / Linux / OSX) lets
you control the BL600 in command mode
and compile, load, and run
smartBASIC
scripts on the device. Companion apps for
UwTerminalX include
MultiDeviceLoader,
which lets you deploy a script to as many
as ten devices at once, and
TermNotify,
which enables connection alerts and status
info from the OS system tray. All of this is
hosted on GitHub, so you can modify the
project to meet your needs.
Laird’s support team is always standing by to
provide integration support, analysis, and
troubleshooting for all currently supported
hardware. Working in the same offices as
Laird engineering, Embedded Wireless
Support is your personal bridge to all of
Laird’s software, experience, and expertise.
Laird guarantees a fast response and is
dedicated to seeing your product through
design to manufacturing. And our online
support center serves as an archive of many
common questions, as well as hundreds of
support documents and software files.
Features at a Glance
BB600:
Basic breakout board and pin-based power supply. Access to I/O
via through-holes. Most cost-efficient access to the full BL600
BC600:
Breakout board with coin cell holder attached. Allows flexibility
of power and mobile deployment for prototyping low-power solutions.
BA600:
Breakout board with coin cell holder and USB-to-UART adapter.
More flexible development with a PC, especially applications like vSP.
DVK-BL600:
Full development board with array of sensors, LEDs,
through-holes, current measurement circuit, power connectors and
interfaces.
Use Cases
Prototyping, easily add
BL600 to existing design
Developing low-power
designs (i.e. Beacons)
Easy PC connection for
vSP / serial testing
Full access to module for
complete design / test
Embedded Wireless Solutions Support Center:
http://ews-support.lairdtech.com
www.lairdtech.com/wireless
1
Americas: +1-800-492-2320
Europe: +44-1628-858-940
Hong Kong: +852 2923 0610

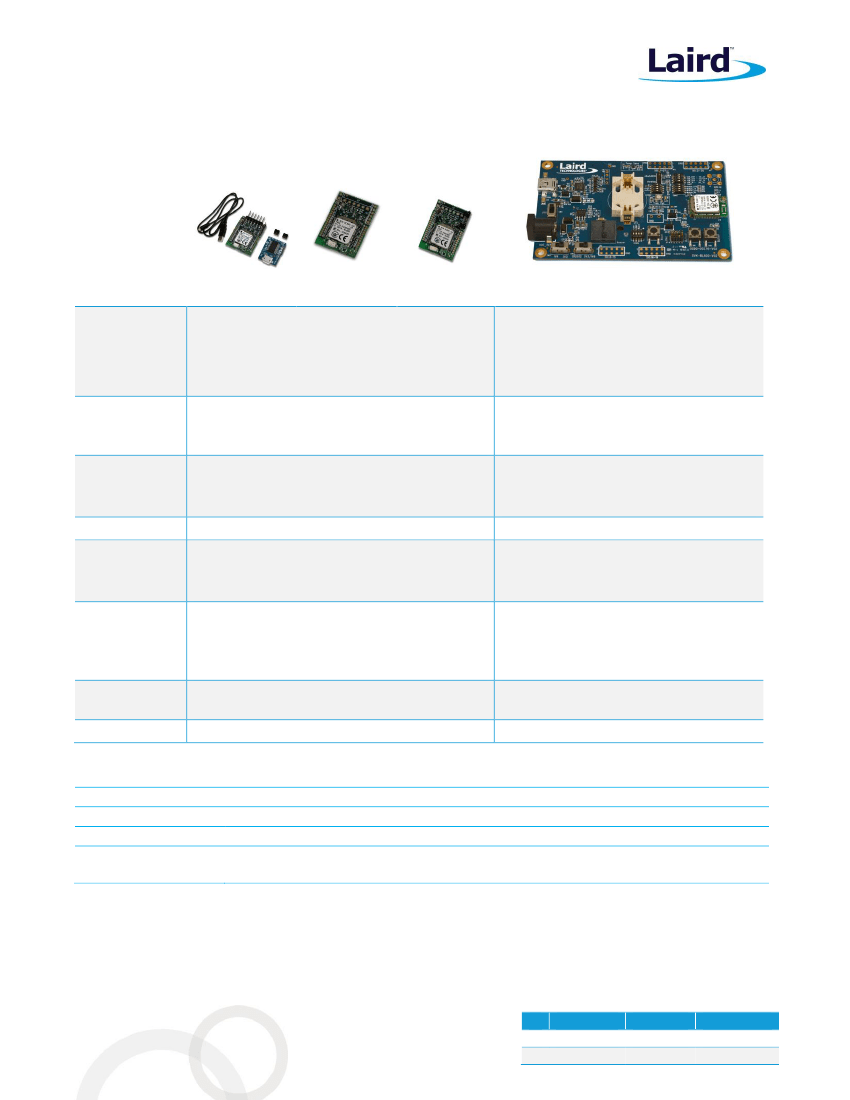

Bx600 Series Breakout Boards and DVK-BL600
Datasheet
E
XTENDED
F
EATURES
BA600
Designed For
BB600
BC600
DVK-BL600
Fully-featured board with sensors and
interfaces for a complete development
solution. Evaluate the BL600 outside of
your host system with a high degree of
measurability, testing, and insight.
BL600-SA, BL600-SC, BL600-ST
BL620-SA, BL620-SC, BL620-ST (via
firmware upgrade)
Integrated (-SA Modules)
IPEX MHF4 (-SC Modules)
Trace Pin (-ST Modules)
Central (BL620) or Peripheral (BL600)
DC Jack (4.5 – 5.5 V), 3xAAA batteries, or
USB B cable, CR2032 Coin Cell (powers
module only)
Temperature sensor, voltage
measurement circuit, programmable
LED array and push button switches
UART, JTAG, USB-to-UART Adapter,
Access to all I/O via through-hole plates
1-Year Warranty
Module
Options
Antenna
Options
BLE Role
Power Options
Smaller, streamlined access to the module and
easy connection into a breadboard or a header
on your host device. Convenient for simply
adding the BL600 into any design, enabling a
faster time to market.
BL600-SA
Integrated
Peripheral only (BL600)
BB600: Power Pin
BC600: Coin Cell Adapter
BA600: Coin Cell Adapter, USB
BB600: None
BC600: Configuration Jumpers
BA600: USB Cable, USB-to-UART Adapter,
Jumpers
Access to all I/O via through-hole plates, USB-
to-UART adapter (BA600)
1-Year Warranty
Additional
Hardware
Connection
Interfaces
Warranty
P
ART
N
UMBERS
BA600-0x
BB600-0x
BC600-0x
DVK-BL600-SA/ST/SC-0x
Breakout board with mounted BL600-SA module, coin cell attachment and UART-to-USB adapter
Breakout board with mounted BL600-SA module
Breakout board with mounted BL600-SA module and coin cell attachment
Development
ki
t for BL600 and BL620 modules
Note:
Update firmware on DVK-BL600 for BL620 operation.
Embedded Wireless Solutions Support Center:
http://ews-support.lairdtech.com
www.lairdtech.com/bluetooth
2
V.
1.0
Date
23 August 2015
Description
Initial Release
Approved By:
Jonathan Kaye
