MAX9959 Evaluation Kit
General Description
The MAX9959 evaluation kit (EV kit) provides a proven
design to evaluate the MAX9959 device power supply
(DPS). The EV kit also includes Windows
®
2000/XP
®
-
and Windows Vista
®
-compatible software that provides
a simple graphical user interface (GUI) for exercising
the features of the MAX9959. The MAX9959 EV kit PCB
comes with a MAX9959DCCQ+ installed.
♦
♦
♦
♦
♦
Features
♦
Windows 2000/XP- and Windows Vista (32-Bit)-
Compatible Software
USB-PC Connection (Cable Included)
SPI™ Interface Terminals
Uses the MAX5735 to Provide Analog Input Settings
Uses the MAX531 to Provide Ground-Sense Shifting
On-Board Reference (MAX6126)
Evaluates: MAX9959
Ordering Information
PART
MAX9959EVKIT+
TYPE
EV Kit
♦
On-Board Regulators Generate All Required
Voltages from ±12V
♦
External Load Sensing
♦
Proven PCB Layout
♦
Includes Heatsink and Fan
♦
Lead(Pb)-Free and RoHS Compliant
♦
Fully Assembled and Tested
♦
Two On-Board MAX9959s Allow Master/Slave
Capabilities
+Denotes
lead(Pb)-free and RoHS compliant.
Windows, Windows XP, and Windows Vista are registered
trademarks of Microsoft Corp.
SPI is a trademark of Motorola, Inc.
Component List
DESIGNATION
C1, C3–C10,
C17, C24, C26,
C32, C37,
C49–C53,
C55–C62
C2, C13, C15,
C23, C25, C31,
C36, C48
QTY
DESCRIPTION
0.1µF ±10%, 16V X7R ceramic
capacitors (0603)
TDK C1608X7R1C104K
DESIGNATION
C29, C34, C38,
C40, C42, C43
C54, C88–C91
C63
QTY
6
0
1
DESCRIPTION
10µF ±10%, 25V X5R ceramic
capacitors (1210)
TDK C3225X5R1E106K
Not installed, capacitors (0603)
33µF ±20%, 6.3V X5R ceramic
capacitor (1206)
TDK C3216X5R0J336M
270pF ±5%, 50V C0G ceramic
capacitors (0402)
Taiyo Yuden UMK105CG271JV-F
330pF ±10%, 50V X7R ceramic
capacitors (0603)
TDK C1608X7R1H331K
1500pF ±10%, 50V X7R ceramic
capacitors (0603)
TDK C1608X7R1H152K
0.01µF ±10%, 50V X7R ceramic
capacitors (0603)
TDK C1608X7R1H103K
0.022µF ±10%, 50V X7R ceramic
capacitors (0603)
Murata GRM188R71H223K
4700pF ±10%, 50V X7R ceramic
capacitors (0603)
Murata GRM188R71H472K
27
8
10µF ±20%, 6.3V X5R ceramic
capacitors (0805)
TDK C2012X5R0J106M
10pF ±5%, 50V C0G ceramic
capacitors (0603)
TDK C1608C0G1H100J
1µF ±20%, 6.3V X5R ceramic
capacitors (0603)
TDK C1608X5R0J105M
22pF ±5%, 50V C0G ceramic
capacitors (0603)
TDK C1608C0G1H220J
3300pF ±10%, 50V X7R ceramic
capacitor (0603)
TDK C1608X7R1H332K
0.1µF ±20%, 50V X7R ceramic
capacitors (0603)
TDK C1608X7R1H104M
C64, C65,
C81, C82
C66, C83,
C96–C99
C67, C74,
C92, C93
4
C11, C12
2
6
C14, C16, C27,
C30, C35
5
4
C18, C19
2
C68, C75
2
C20
C28, C33, C39,
C41, C44–C47,
C84–C87
1
C69, C76
2
12
C70, C71,
C77, C78
4
________________________________________________________________
Maxim Integrated Products
1
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642,
or visit Maxim’s website at www.maxim-ic.com.
MAX9959 Evaluation Kit
Evaluates: MAX9959
Component List (continued)
DESIGNATION
C72, C73,
C79, C80
QTY
4
DESCRIPTION
100pF ±5%, 50V C0G ceramic
capacitors (0603)
Murata GRM1885C1H101J
3300pF ±10%, 50V X7R ceramic
capacitors (0603)
Murata GRM188R71H332K
Green LED (0603)
Not installed, zener diodes
Red LEDs (0603)
Ferrite beads, 3A, 200Ω at
100MHz (0603)
TDK MPZ1608S221A
Not installed, dual-row (2 x 5)
10-pin header
Dual-row (2 x 8) 16-pin headers
3-pin headers
Dual-row (2 x 5) 10-pin headers
Not Installed, PCB shorted trace
3-pin headers
Triple-row (3 x 4) 12-pin headers
2-pin headers
Triple-row (3 x 10) 30-pin header
USB type-B right-angle female
receptacle
Binding posts
220Ω ±5% resistor (0603)
R17, R18, R21,
R23, R25, R27,
R29, R31
R33
R36, R38,
R61, R63
R37, R39,
R62, R64
R40, R41,
R65, R66
R44, R60,
R69, R70
R45, R46, R47,
R71, R72, R73,
R90–R99
R48, R50, R54,
R56, R58, R74,
R76, R80,
R82, R84
R52, R53, R78,
R79, R86–R89,
R100, R101
R102
13
10kΩ ±5% resistors (0603)
TP1, TP3, TP5,
TP7, TP8,
TP19, TP35
TP4, TP6, TP9
1
1
2
8
2.2kΩ ±5% resistor (0603)
1.5kΩ ±5% resistor (0603)
27Ω ±5% resistors (0603)
1kΩ ±1% resistors (0603)
TP2,
TP10–TP16,
TP20–TP24,
TP28,
TP31–TP34,
TP39, TP40
8
1
4
4
4
4
4.99kΩ ±1% resistors (0603)
0Ω ±5% resistor (0603)
10Ω ±1% range A resistors (2512)
3.3Ω ±1% range A resistors (2512)
100Ω ±1% resistors (1206)
10kΩ ±1% resistors (0603)
DESIGNATION
R8
R10, R12
R13, R14, R15
R16, R19, R20,
R22, R24, R26,
R28, R30
QTY
1
2
3
8
DESCRIPTION
1.4kΩ ±1% resistor (0603)
3.01kΩ ±1% resistors (0603)
0Ω ±5% resistors (0805)
6.98kΩ ±1% resistors (0603)
C94, C95
D1
D2, D3
D4–D13
FB1–FB4
2
1
0
10
4
J0
J2, J3
J8, J9
J10–J17
JUA–JUE
JU1–JU4
JU5, JU10
JU6, JU9,
JU14–JU19
JU11
P1
P2–P6, P8, P10,
P11, P12,
P14, P16
R1
R2, R34, R35,
R49, R51, R55,
R57, R59, R75,
R77, R81,
R83, R85
R3
R4
R5, R6
R7, R9, R11,
R32, R42, R43,
R67, R68
0
2
2
8
0
4
2
8
1
1
0
Not installed, resistors (2512)
10
1kΩ ±5% resistors (0603)
11
1
0
1
7
3
Not installed, resistors (0603)
200Ω ±1% resistor (0603)
Red test points
Black test points
0
Not installed, red miniature test
points
2
_______________________________________________________________________________________
MAX9959 Evaluation Kit
Component List (continued)
DESIGNATION
TP17, TP18,
TP25, TP26,
TP27, TP29,
TP30, TP36,
TP37, TP38
U1, U2
QTY
DESCRIPTION
DESIGNATION
U14
10
Red miniature test points
QTY
1
DESCRIPTION
Low-noise precision reference
(8 SO)
Maxim MAX6126AASA30+
32-channel, 16-bit DAC
(56 TQFN-EP*)
Maxim MAX5735BUTN+
12-bit serial DAC (14 SO)
Maxim MAX531ACSD+
Quad SPDT analog switches
(20 SSOP)
Maxim MAX4533EAP+
Not installed, external buffer
(7 TO220)
16MHz crystal (HCM49)
Hong Kong X’tals
SSM1600000E18FAF
6MHz crystal (HCM49)
Hong Kong X’tals
SSL6000000E18FAF
Fans, heatsink, 5V, 30mm x 30mm
x 20mm
Cofan 30-1779 Rev A
Shunts
PCB: MAX9959 EVALUATION KIT+
Evaluates: MAX9959
U15
2
Digital power supplies
(100 TQFP-EPR-IDP)
Maxim MAX9959DCCQ+
Low-cost microcontroller
(68 QFN-EP*)
Maxim MAXQ2000-RAX+
93C46 type (64k x 16) 3-wire
EEPROM (8 SO)
UART-to-USB converter (32 TQFP)
3.3V regulator (5 SC70)
Maxim MAX8511EXK33+T
(Top Mark: AEI)
2.5V regulator (5 SC70)
Maxim MAX8511EXK25+T
(Top Mark: ADV)
Adjustable positive-voltage
regulators (3 TO220)
Adjustable negative-voltage
regulator (3 TO220)
Quad op-amp ICs (14 TSSOP)
Y1
1
U16
1
U3
1
U17, U18
2
U4
U5
U6
1
1
1
U19
0
1
U7
1
Y2
1
U9, U10
U11
U12, U13
2
1
2
—
—
—
2
38
1
*EP
= Exposed pad.
Component Suppliers
SUPPLIER
Hong Kong X’tals Ltd
Murata Electronics North America, Inc.
Taiyo Yuden
TDK Corp.
PHONE
852-35112388
770-436-1300
800-348-2496
847-803-6100
WEBSITE
www.hongkongcrystal.com
www.murata-northamerica.com
www.t-yuden.com
www.component.tdk.com
Note:
Indicate that you are using the MAX9959 when contacting these component suppliers.
MAX9959 EV Kit Files
FILE
INSTALL.EXE
MAX9959.EXE
FTD2XX.INF
UNINST.INI
USB_Driver_Help.PDF
Application program
USB device driver file
Uninstalls the EV kit software
USB driver installation help file
DESCRIPTION
Installs the EV kit files on your computer
_______________________________________________________________________________________
3
MAX9959 Evaluation Kit
Evaluates: MAX9959
Quick Start
Required Equipment
• MAX9959 EV kit (USB cable included)
• User-supplied Windows 2000/XP or Windows Vista
PC with a spare USB port
• ±12V, 2A power supply
• Two digital voltmeters
Note:
In the following sections, software-related items
are identified by bolding. Text in
bold
refers to items
directly from the EV kit software. Text in
bold and
underlined
refers to items from the Windows operating
system.
an error condition and it is safe to proceed with
installation. Refer to the USB_Driver_Help.PDF doc-
ument included with the software for additional
information.
6) Apply +12V to VCC (P2) and -12V to VEE (P4).
7) Start the MAX9959 EV kit software by opening its
icon in the
Start | Programs
menu. The EV kit soft-
ware main window appears, as shown in Figure 1.
8) In the
MAX9959 Settings
group box, click on the
FV
radio button in the
Set Measurement Mode
group box.
9) In the
MAX5735 Settings
group box, change the
voltage for
VIN
to +1V.
10) Check that the output voltage at DUT_NODE_M
(P8) is close to +1V. Figure 2 shows the MAX9959
EV kit quick start settings.
Procedure
The MAX9959 EV kit is fully assembled and tested.
Follow the steps below to verify board operation:
1) Visit
www.maxim-ic.com/evkitsoftware
to down-
load the latest version of the EV kit software,
9959Rxx.ZIP. Save the EV kit software to a tempo-
rary folder and uncompress the ZIP file.
2) Install the EV kit software on your computer by run-
ning the INSTALL.EXE program inside the tempo-
rary folder. The program files are copied and icons
are created in the Windows
Start | Programs
menu.
3) Verify that all jumpers are in their default positions,
as shown in Table 1.
4) Connect the USB cable from the PC to the EV kit
board. A
New Hardware Found
window pops up
when installing the USB driver for the first time. If
you do not see a window that is similar to the one
described above after 30 seconds, remove the USB
cable from the board and reconnect it.
Administrator privileges are required to install the
USB device driver on Windows.
5) Follow the directions of the
Add New Hardware
Wizard
to install the USB device driver. Choose the
Search for the best driver for your device
option.
Specify the location of the device driver to be
C:\Program Files\MAX9959
(default installation
directory) using the
Browse
button. During device
driver installation, Windows may show a warning
message indicating that the device driver Maxim
uses does not contain a digital signature. This is not
Detailed Description of Software

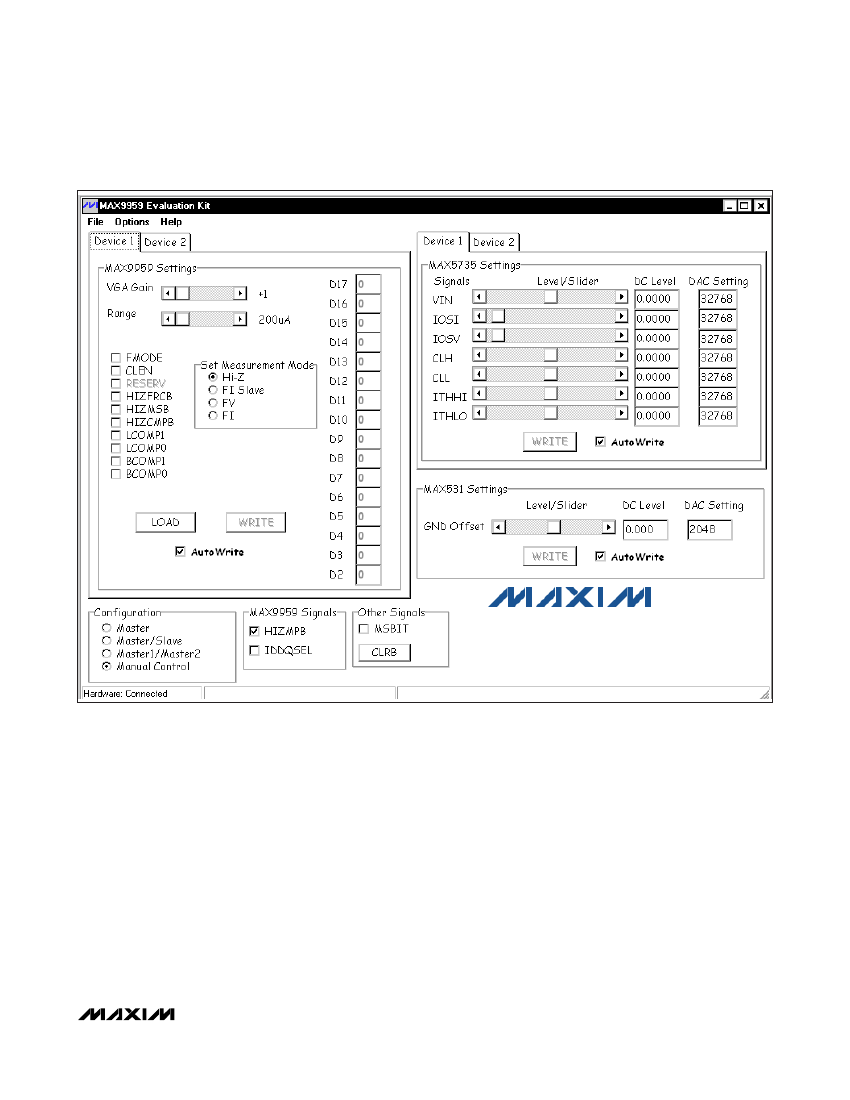

The main window of the evaluation kit software is
shown in Figure 1.
MAX9959 Settings
The MAX9959 supports an 18-bit word SPI interface. The
GUI provides a simple way to correlate setting changes
with bit settings. There are two on-board MAX9959
devices connected in a daisy-chain configuration. U1
can be considered the
Master
and is denoted with an
_M in the schematic, U2 can be considered the
Slave
and is denoted with an _S in the schematic, but both
devices can be programmed to operate independently.
Because of the daisy-chain configuration, the bit stream
for U2 goes through U1 first. To avoid accidental pro-
gramming of a device when communicating with another
device in the daisy chain, bit 0 masks writing to the
MAX9959 and bit 1 masks the loading of the settings.
Both bits are automatically updated when using
Master
and
Master1/Master2
modes. The default setting by the
GUI is
Manual Control
and allows the user to set all
settings independently. Selecting
Master, Master/
Slave,
or
Master1/Master2
forces certain bit settings
that are required for that mode.
The
Set Measurement Mode
group box is a quick way
to set the MAX9959 to force voltage (FV), force current
(FI), force current as a slave device (FI
Slave),
or place
into high impedance (Hi-Z). Bit settings are automati-
cally changed to match mode settings.
4
_______________________________________________________________________________________
MAX9959 Evaluation Kit
Evaluates: MAX9959
Figure 1. MAX9959 EV Kit Software Main Window at Startup
MAX5735 Settings
The MAX5735 outputs voltages for both MAX9959
devices. The output voltages are set by moving the
scrollbars located in the
MAX5735 Settings
group box
or by entering data in the corresponding edit boxes
and pressing
Enter
on the keyboard. The edit boxes
accept the value of the voltage or binary code.
Changes in the
DC Level
edit boxes automatically
change the values in the
DAC Setting
edit boxes and
vice versa. The min and max values allowed for each
analog voltage setting set their scrollbar ranges.
Analog voltages (VIN,
IOSI, IOSV, CLH, CLL, ITHHI,
and
ITHLO)
are set by the MAX5735 and appear as the
input levels for the MAX9959. The MAX5735 has two
tabs (Device
1
and
Device 2)
to change the analog
input voltages for both MAX9959 devices.
MAX531 Settings
The MAX531 can be used for calibration by shifting the
GND sense on the MAX5735. The GND shift on the
MAX5735 should not exceed ±0.5V and the
GND
Offset
scrollbar inside the
MAX531 Settings
group box
is limited to that range.
AutoWrite
The
AutoWrite
checkboxes can be checked to have
the software automatically perform write operations.
This feature allows the user to change settings and
have them updated without pressing the
WRITE
but-
tons. There is an
AutoWrite
checkbox for writing to the
MAX9959, MAX5735, and MAX531. Each device can
independently perform auto writing.
AutoWrite
is
enabled by default.
5
_______________________________________________________________________________________
京公网安备 11010802033920号
EEWORLD
