SOM-3569CN0C-S1A1 Overview

Modular System-SOM Intel Celeron N3350, 4GB DDR4

SOM-3569CN0C-S1A1 Parametric

Parameter Name	Attribute value
Maker	Advantech
Product Category	Modular System - SOM
Shipping restrictions	Mouser does not currently sell this product.
series	SOM-3569
physical dimension	Qseven
Processor brand	Intel
Processor type	Intel Celeron N3350
frequency	1.1 GHz
storage	4 GB
Working power voltage	5 V
Interface Type	Serial
Minimum operating temperature	0 C
Maximum operating temperature	+ 60 C
size	70 mm x 70 mm
storage type	LPDDR4
Power consumption	6 W
Factory packaging quantity	1

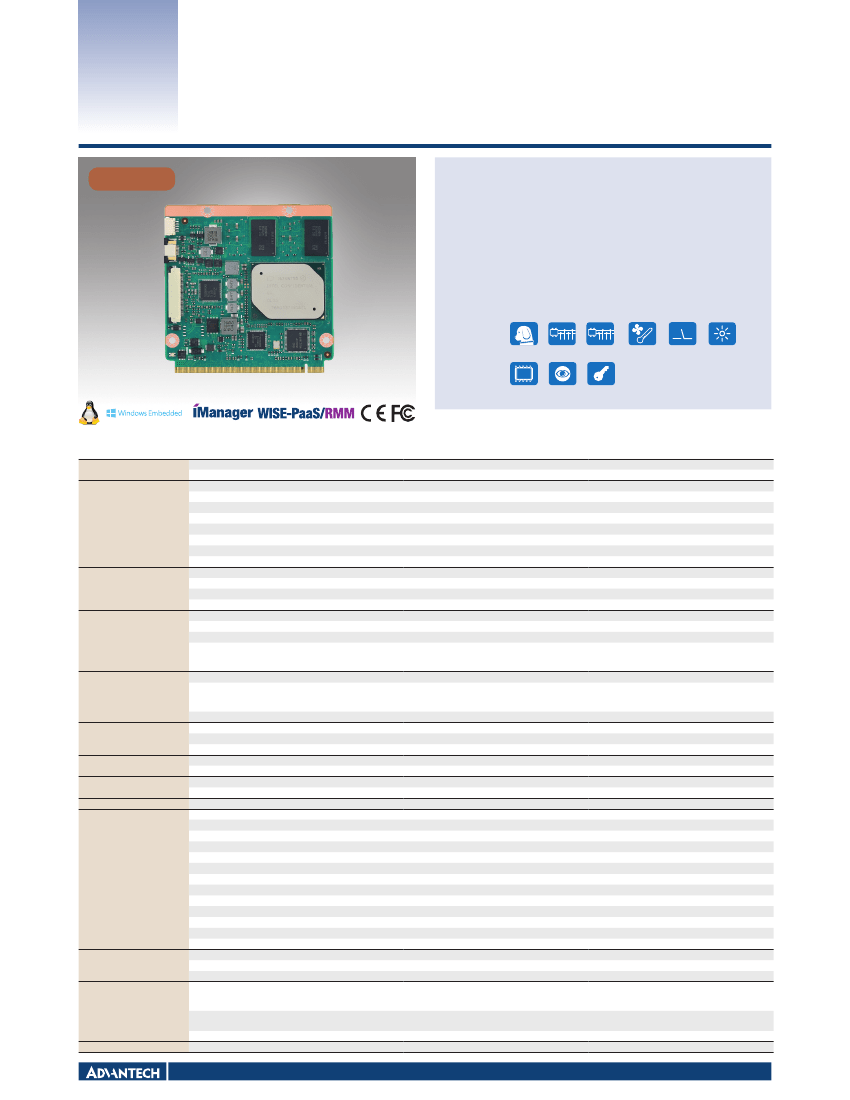

Preview

Download Datasheet

View All

SOM-3569

Preliminary

Intel

Atom™/Pentium

/Celeron

Series

QSeven CPU Module

Features

Intel

Atom™/Pentium

/Celeron

Series SoC

Qseven

2.1 Specification

Onboard LPDDR4 up to 8GB, onboard eMMC up to 64GB

Support HEVC/H.265, H.264 MPEG2 HW Decode

GbE, 4 PCIe x1, 1 USB3.0, 8 USB2.0

Supports iManager WISE-PaaS/RMM, and Embedded Software APIs

Software APIs:

Watchdog

SMBus

H/W Monitor

Brightness

Control

Utilities:

BIOS flash Monitoring Embedded

Security ID

Specifications

Compliance

Form-Factor

Pin-out Type

Processor

Base Frequency

Burst Frequency

Core/Tread

LLC

CPU TDP

Chipset

BIOS

Technology

ECC Support

Channel/Socket

Max. Capacity

Controller

Base/Turbo Freq.

Graphics Video Max. Memory

3D/HW Acceleration

LCD

Display

DDI

Multiple Display

PCI Express x1

Audio Interface

LPC

SMBus

C Bus

Controller

Speed

eMMC/SATA SSD

SATA

USB3.0

USB2.0

USB Client

SPI Bus

GPIO

SDIO/SDXC

Watchdog

COM Port

TPM

MIPI-CSI

CAN Bus

Smart Fan

Type

Supply Voltage

Power Consumption

Temperature

Environment

Humidity

Vibration Resistance

Dimensions

QSeven 70 x 70 mm

QSeven 2.1

Celeron N3350

Atom X7-E3950

Pentium

N4200

1.1GHz

1.6GHz

2.5GHz

2.4GHz

2.0GHz

4/4

2/2

4/4

2MB

12W

N/A

AMI UEFI BIOS @ 128 Mb

LPDDR4-2400

Not support

Dual Channel / Onboard Memory

Up to 8GB

Intel

HD Graphics

200/750MHz

200/650MHz

500/650MHz

8GB

2GB

DX (9.3, 10, 11.3, 12), OpenGL 4.3, OGL ES 3.0, OpenCL 2.0

HW Decode: HEVC/H.265, H.264, MVC, VP8, VP9, MPEG2, VC-1, WMV9, JPEG/MJPEG

HW Encode: HEVC/H.265, H.264, MVC, VP8, JPEG/MJPEG

Dual Channel 18/24-bit LVDS, up to 1920 x 1200

1 DDI port supports HDMI/DP

HDMI 1.4b: up to 3840 x 2160 @ 30Hz

DP 1.2: up to 4096 x 2160 @ 60Hz

Dual Display

4 PCIe x1 (or 1 PCIe x4)

HD Audio

Yes

Intel

i211AT

10/100/1000 Mbps

eMMC5.0, 4GB to 64GB

2 Ports, Support Gen3 (6Gb/s) and Gen2 (3 Gb/s) or Gen 1(1.5 Gb/s)

1 Port (up to 2 Ports by BOM option)

8 Ports

N/A (up to 1 Port by BOM option)

Support SPI BIOS EEPROM

N/A

Support SD 3.0

65536 level, 0 ~ 65535 sec

2 Ports (4-wire COM 1 port, 2-wire COM 1 port)

Yes

Optional

Yes

1 Ports

ATX: Vin, VSB, AT: Vin

Vin: 5V±5%, VSB: 5V±5%, RTC Battery: 2.0-3.3V

TBD

Operating Standard: 0 ~ 60 °C (32 ~ 140 °F)

Extend Temp. : -40 ~ 85 °C (-40 ~ 185 °F)

Storage: -40 ~ 85 °C (-40 ~ 185 °F)

Operating: 40 °C @ 95% relative humidity, non-condensing

Storage: 60 °C @ 95%relative humidity, non-condensing

3.5 Grms

70 x 70 mm (2.75" x 2.75")

Atom X5-E3940

1.6GHz

1.8GHz

4/4

2MB

Atom X5-E3930

1.3GHz

1.8GHz

2/2

2MB

Platform

Memory

Graphics

400/600MHz

2GB

400/550MHz

2GB

Expansion

Serial Bus

Ethernet

Onboard Storage

I/O

Power

Mechanical

Computer On Modules

All product specifications are subject to change without notice.

Last updated: 29-Dec-2017
