HIGH SPEED GRAPHICS

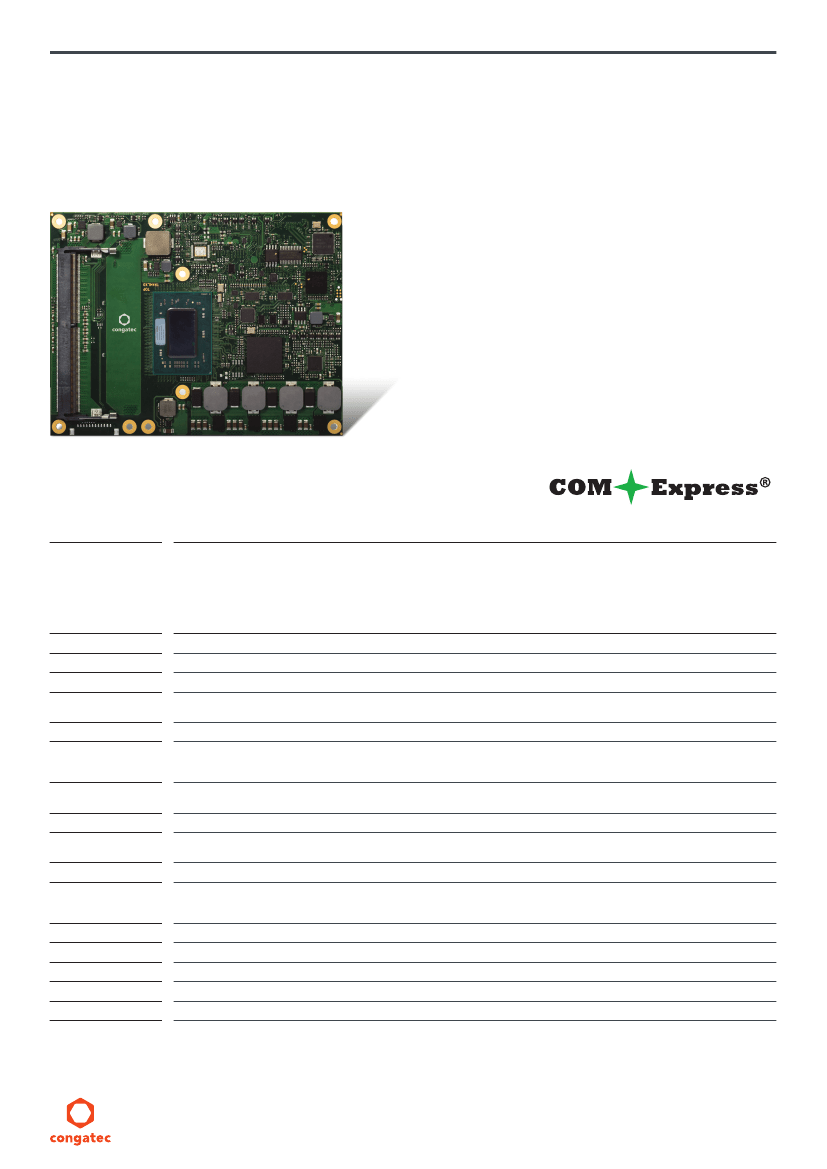

conga-TR4
-
AMD’s Next Gen V1000 processor Series
-
“Zen” core architecture with up to 4 cores
-
Improved graphic performance with “Vega” GPU
-
Up to 32GByte dual channel DDR4 3200MT/s
memory
-
TDP scalable down to 12W
-
up to 4 x 4K DP / eDP
Formfactor
CPU
COM Express
®
Basic | (95 x 125 mm) | Type 6 Connector Layout
AMD V1000 processor variants
AMD V1807B
AMD V1756B
AMD V1605B
AMD V1202B
AMD V1404I
4x 3.35 .. 3.75 GHzL2 cache 2MB shared AMD Radeon™ Vega with 11 CU conf. TDP range 35 W up to 54 W
4x 3.25 .. 3.6 GHz L2 cache 2MB shared AMD Radeon™ Vega with 8 CU
4x 2.0 .. 3.6 GHz
2x 2.5 .. 3.4 GHz
tbd
L2 cache 2MB shared AMD Radeon™ Vega with 8 CU
L2 cache 1MB shared AMD Radeon™ Vega with 3 CU
L2 cache 2MB shared AMD Radeon™ Vega with 6 CU
conf. TDP range 35 W up to 54 W
conf. TDP range 12 W up to 25 W
conf. TDP range 12 W up to 25 W
TDP 15 W
DRAM
Chipset
Ethernet
I/O Interfaces
Sound
Graphics
2 Sockets, SO-DIMM DDR4 up to 32 GByte with ECC
Integrated in SOC (single-chip)
Gigabit Ethernet
4x PCI Express
™
3.0 lanes | 4x PCI Express
™
2.0 lanes | 1x PEG 3.0 x8 | 3x USB 3.1 Gen2 | 1x USB 3.1 Gen1 | 8x USB 2.0
2x SATA
®
6 Gb/s | I²C bus (fast mode, 400 kHz, multi-master) |SD | LPC Bus | SPI | SM-Bus | 2x UART
High Definition Audio Interface
Integrated AMD Radeon™ Graphics supports DirectX 12 | OpenGL 4.6 and OpenCL™ 2.1 | up to 4 simultaneous Displays
Unified Video Decoder 6 (H.265, H.264, MVC, MPEG4, MPEG2, VC-1, WMV and MJPEG)
Video Compression Engine 3.1 (dual, H.264, SVC)
18/24-bit Single/Dual Channel LVDS Interface (default Resolutions up to 1920X1200@60Hz) or 1x opt. eDP (Resolutions up to 4K)
VESA standard or JEIDA data mapping | Automatic Panel Detection via EDID/EPI
3x DisplayPort 1.2/ HDMI 2.0 supporting 4K @60Hz
Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | BIOS Setup Data Backup
I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Backlight
AMI AptioV
®
UEFI 2.x firmware | 8 MByte serial SPI firmware flash
The conga-TR4 offers a discrete TPM 2.0 (Infineon SLB9665). This TPM includes coprocessors to calculate efficient hash and RSA algorithms
with key lengths up to 2048 bits as well as a real random number generator. Security sensitive applications like gaming and e-commerce will
benefit also with improved authentication, integrity and confidence levels. The conga-TR4 also offers AMD Secure Processor™.
ACPI 5.0 with battery support
Microsoft
®
Windows 10 | Microsoft
®
Windows 10 IoT Enterprise | Microsoft
®
Windows 10 Core Pro | Linux | Yocto | opt. Microsoft
®
Windows 7
Commercial : Operating: 0 to +60°C | Operating industrial: -40 .. +85°C | Storage: -20 to +80°C
Operating: 10 - 90% r. H. non cond. | Storage: 5 - 95% r. H. non cond.
95 x 125 mm (3.74” x 4.92”)
LVDS / eDP
Digital Display Interface
congatec Board Controller
Embedded BIOS Features
Security
Power Management
Operating Systems
Temperature
Humidity
Size
www.congatec.com

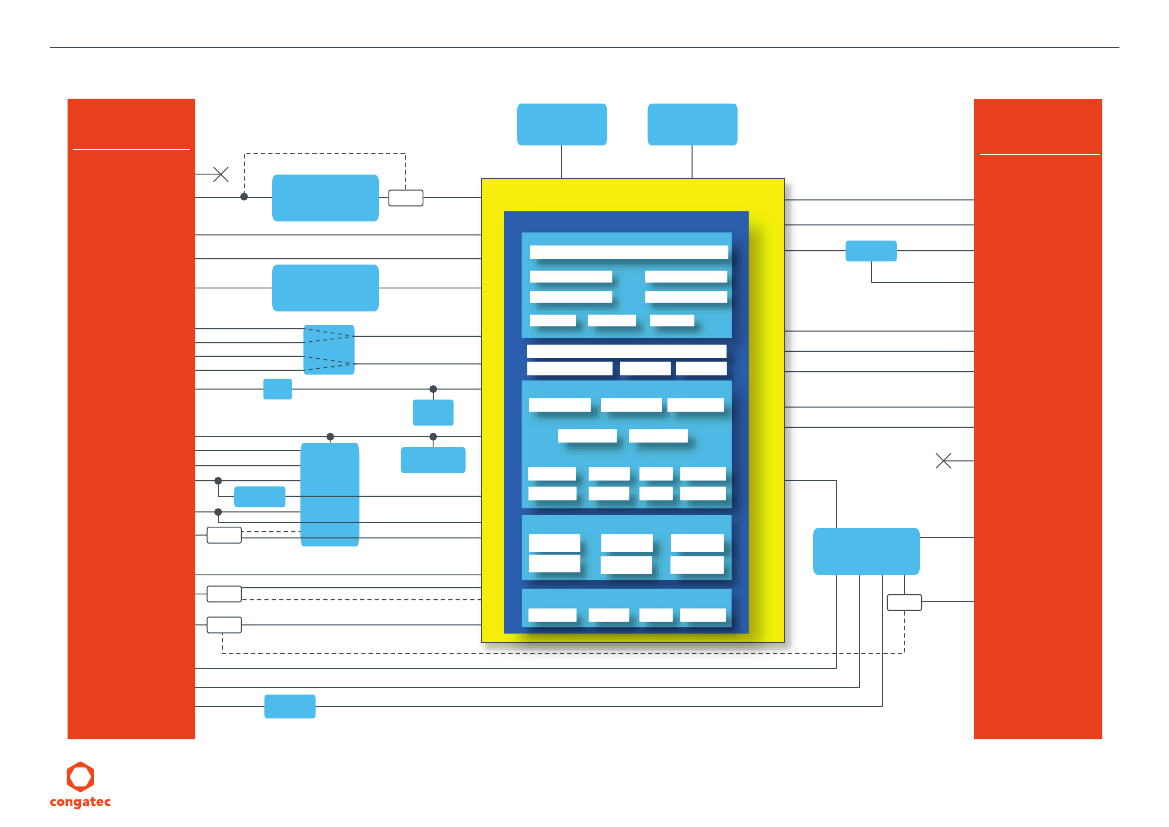

conga-TR4
| Order Information
Article
conga-TR4/V1807B
PN
041600
Description
COM Express Type 6 Basic module with AMD embedded V-Series V1807B (Great Horned Owl) quad core processor with 3.35 GHz
up to 3.75 GHz core frequency, 2MB L2 cache and 3200MT/s DDR4 SODIMM memory interface for up to 32GB. Features AMD
Radeon™ Vega integrated graphics core with 11 CU. TDP 35-54W.
COM Express Type 6 Basic module with AMD embedded V-Series V1756B (Great Horned Owl) quad core processor with 3.25
GHz up to 3.6 GHz core frequency, 2MB L2 cache and 3200MT/s DDR4 SODIMM memory interface for up to 32GB. Features AMD
Radeon™ Vega integrated graphics core with 8 CU. TDP 35-54W.
COM Express Type 6 Basic module with AMD embedded V-Series V1605B (Great Horned Owl) quad core processor with 2.0 GHz
up to 3.6 GHz core frequency, 2MB L2 cache and 2400MT/s DDR4 SODIMM memory interface for up to 32GB. Features AMD
Radeon™ Vega integrated graphics core with 8 CU. TDP 12-25W.
COM Express Type 6 Basic module with AMD embedded V-Series V1202B (Great Horned Owl) dual core processor with 2.5 GHz
up to 3.4 GHz core frequency, 1MB L2 cache and 2400MT/s DDR4 SODIMM memory interface for up to 32GB. Features AMD
Radeon™ Vega integrated graphics core with 3 CU. TDP 12-25W.
COM Express Type 6 Basic module with AMD embedded V-Series V1404I (Great Horned Owl) quad core processor with TBD GHz
up to TBD GHz core frequency, 2MB L2 cache and 2400MT/s DDR4 SODIMM memory interface for up to 32GB. Features AMD
Radeon™ Vega integrated graphics core with 6 CU. Industrial temperature range from -40°C to 85°C. TDP 15W.
conga-TR4/V1756B
041601
conga-TR4/V1605B
041602
conga-TR4/V1202B
041603
conga-TR4/i-V1404I
041610
Accessories
TR4/HSP-HP-B
TR4/HSP-HP-T
TR4/CSP-HP-B
TR4/CSP-HP-T
TR4/CSA-HP-B
TR4/CSA-HP-T
DDR4-SODIMM-2400 (4GB)
DDR4-SODIMM-2400 (8GB)
DDR4-SODIMM-2400 (16GB)
DDR4-SODIMM-2400 ECC (4GB)
DDR4-SODIMM-2400 ECC (8GB)
DDR4-SODIMM-2400 ECC (16GB)
conga-TEVAL
conga-LDVI/EPI
COM-Express-Carrier-Socket-5
COM-Express-Carrier-Socket-8
041651
041652
041653
041654
041655
041656
068790
068791
068792
068795
068796
068797
065800
011115
400007
400004
Standard heatspreader for high performance COM Express module conga-TR4 with integrated heat pipes.
All standoffs are with 2.7mm bore hole.
Standard heatspreader for high performance COM Express module conga-TR4 with integrated heat pipes.
All standoffs are M2.5mm thread.
Standard passive cooling solution for high performance COM Express module conga-TR4 with integrated heat pipes, 15mm fins
and 20mm overall heat sink height. All standoffs are with 2.7mm bore hole.
Standard passive cooling solution for high performance COM Express module conga-TR4 with integrated heat pipes, 15mm fins
and 20mm overall heat sink height. All standoffs are M2.5mm thread.
Standard active cooling solution for high performance COM Express module conga-TR4 with integrated heat pipes, 15mm fins,
20mm overall heat sink height and integrated 12V fan. All standoffs are with 2.7mm bore hole.
Standard active cooling solution for high performance COM Express module conga-TR4 with integrated heat pipes, 15mm fins,
20mm overall heat sink height and integrated 12V fan. All standoffs are M2.5mm thread.
4 GByte DDR4 SODIMM memory module | 2400 MT/s
8 GByte DDR4 SODIMM memory module | 2400 MT/s
16 GByte DDR4 SODIMM memory module | 2400 MT/s
4 GByte ECC DDR4 SODIMM memory module | 2400 MT/s (PC4-2400) | 260 pin | supply voltage 1,2V
8 GByte ECC DDR4 SODIMM memory module | 2400 MT/s (PC4-2400) | 260 pin | supply voltage 1,2V
16 GByte ECC DDR4 SODIMM memory module | 2400 MT/s (PC4-2400) | 260 pin | supply voltage 1,2V
Evaluation carrier board for Type 6 COM Express modules
LVDS to DVI converter board for digital flat panels with onboard EEPROM
Connector for COM Express carrier boards | height 5mm | packing unit 4 pieces
Connector for COM Express carrier boards | height 8mm | packing unit 4 pieces
© 2018 congatec AG. All rights reserved.
All data is for information purposes only. Although all the information contained within this document is carefully checked, no guarantee
of correctness is implied or expressed. Product names, logos, brands, and other trademarks featured or referred are the property of their
respective trademark holders. These trademark holders are not affiliated with congatec AG. Rev. April 16, 2018 MR
