EKI-2728MI-BE Overview

Ethernet Module 6G+2G MM Unmanaged Ethernet Switch w/ Wide Temp

EKI-2728MI-BE Parametric

Parameter Name	Attribute value
Maker	Advantech
Product Category	Ethernet module
Shipping restrictions	Mouser does not currently sell this product.
product	Ethernet Switches
Number of ports	6 RJ45, 2 Fiber
data rate	10 Mb/s, 100 Mb/s, 1000 Mb/s
Interface Type	Serial
Working power voltage	24 VAC, 12 VDC to 48 VDC
size	59.6 mm x 152 mm x 105 mm
Power consumption	7 W
series	EKI-2728
Factory packaging quantity	1

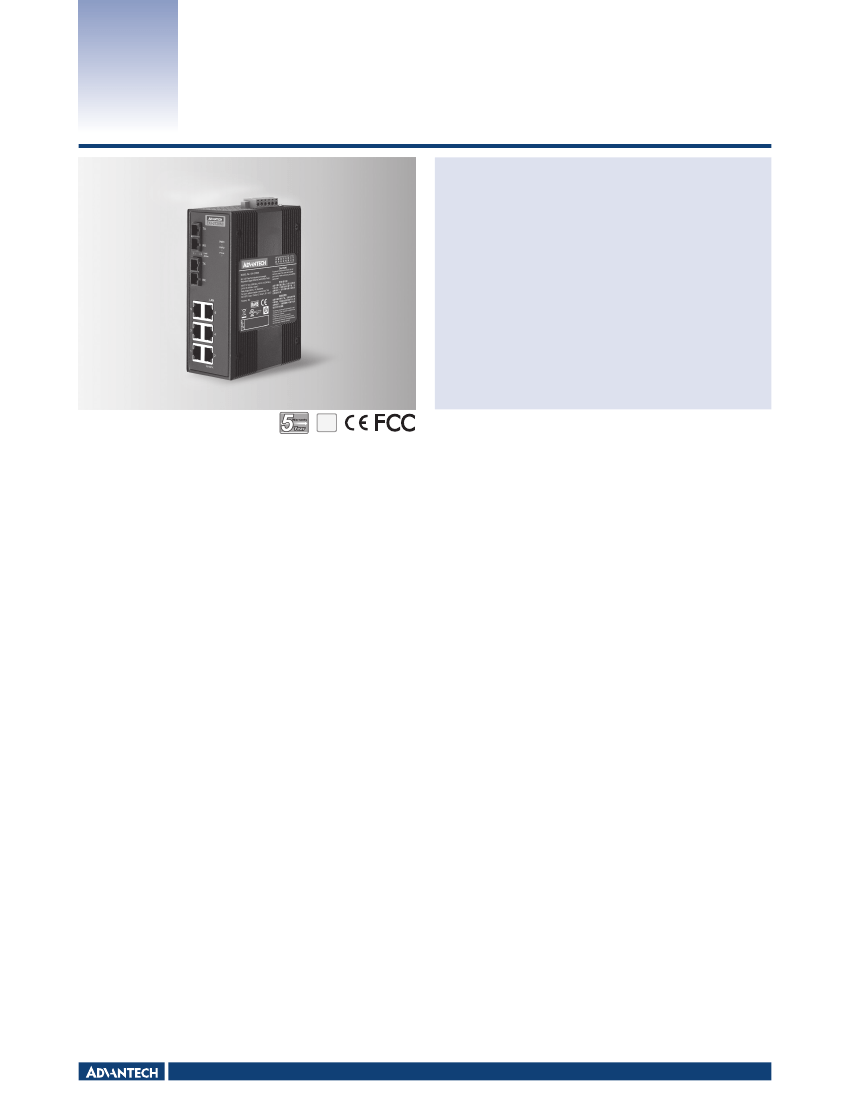

Preview

Download Datasheet

View All

EKI-2728M/MI

EKI-2728S/SI

6G+2G Multi-Mode SC Fiber Port

Unmanaged Ethernet Switch

6G+2G Single-Mode SC Fiber Port

Unmanaged Ethernet Switch

Features

Provides 6 x 10/100/1000 Mbps Ethernet port with RJ45 connector

Provides 2 x 1000 Mbps fiber port with SC type connector for 1000Base-SX/

LX device

Supports MDI/MDI-X auto crossover

Supports Auto-Negotiation

Supports redundant 12 ~ 48 V

and 24V

power input

Provides flexible mounting: DIN-rail and Wall mount

Provides Link Fault Pass-through (LFP)

Jumbo Frame: 9216 bytes

RoHS

COMPLIANT

2011/65/EU

Introduction

EKI-2728M/2728S are cost effective unmanaged industrial Ethernet switch which supports Giga Ethernet. It supports Green Power requirement, furthermore, EKI-2728M/2728S also

supports advanced network standards to optimize network performance, reduce maintenance cost, and secure network safety.

Specifications

Communications

Standard

LAN

Transmission Distance

IEEE 802.3, 802.3u, 802.3ab, 802.3x, IEEE 802.3z

10/100/1000Base-T (X), 1000Base-SX or 1000Base-LX

Ethernet: Up to 100 m

Fiber:

Multi-mode: Up to 550 m (EKI-2728M/MI)

Single-mode: Up to 10 km (EKI-2728S/SI)

Up to 1000 Mbps

Wavelength: 850 nm

Tx Power: -4/-9.5 dBm

Rx Sensitivity: -18 dBm

Parameters: 50/125 um, 62.5/125 um

Wavelength: 1310 nm

Tx Power: -3/-9.5 dBm

Rx Sensitivity: -20 dBm

Parameters: 9/125 um

6 x RJ45

2 x SC type fiber connector

6-pin removable screw terminal (power & relay)

P1, P2, P-Fail

Fiber: LNK/ACT

Ethernet: 1000M, LNK/ACT

Mechanism

Dimensions (W x H x D)

59.6 x 152 x 105 mm (2.35" x 5.98" x 4.13")

Enclosure

IP30, Metal shell with solid mounting kits

Mounting

DIN-rail, Wall

Protection

Power Reverse

Overload current

Present

Transmission Speed

Optical Fiber

Multi-mode

(EKI-2728M/MI)

Single-mode

(EKI-2728S/SI)

Environment

Operating Temperature

Wide Temp Model

Storage Temperature

Operating Humidity

Storage Humidity

MTBF

-10 ~ 60°C (14 ~ 140°F)

-40 ~ 75°C (-40 ~ 167°F) / (I model)

-40 ~ 85°C (-40 ~ 185°F)

10 ~ 95% (non-condensing)

TBD

Interface

Connectors

LED Indicators

Certification

EMI

EMS

CE, FCC Class A

EN 61000-4-2

EN 61000-4-3

EN 61000-4-4

EN 61000-4-5

EN 61000-4-6

EN 61000-4-8

IEC 60068-2-27

IEC 60068-2-32

IEC 60068-2-6

Power

Power Consumption

Power Input

12 ~ 48 V

, 24 V

(18 ~ 30 V

), redundant dual inputs

Shock

Freefall

Vibration

Industrial Ethernet Soultions

All product specifications are subject to change without notice.

Last updated: 21-Nov-2017
