InfoVision Optoelectronics ( Kunshan ) Co.,LTD.
Document Name
Document No.
M101NWWB R3 Customer Approval Specification
A-M101NWWB-R3-342-02
Made/Revised Date
2016/06/07
Page 4 of
23
Ver.
01
1.0
General Descriptions
1.1
Introduction
The M101NWWB R3 is a color active matrix thin film transistor (TFT) liquid crystal
display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed
of aTFT LCD panel, a driver circuit and a backlight system. This TFT LCD has a 10.1 inch
diagonally measured active display area with WXGA resolution (1280 horizontal by 800 vertical
All rights strictly reserved reproduction or issue to third parties in any form what ever is not permitted without written authority from the proprietor.
InfoVision Optoelectronics ( Kunshan ) Co.,LTD.
Document Name
Document No.
M101NWWB R3 Customer Approval Specification
A-M101NWWB-R3-342-02
Made/Revised Date
2016/06/07
Page 5 of
23
Ver.
01

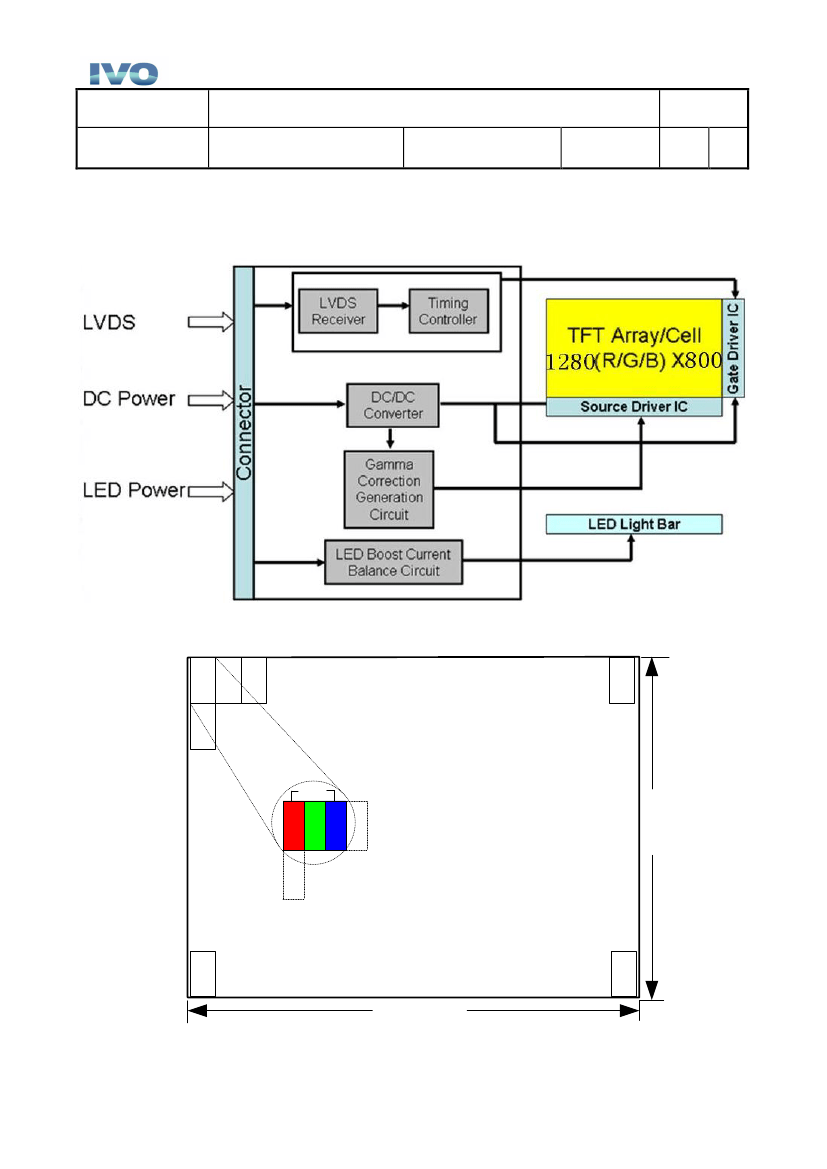

1.4 Functional Block Diagram
Figure 1 shows the functional block diagram of the LCD module.
