MS3,070,20,25,11,W8 Overview

Thermoelectric module MS3 070 20 25 11 W8 36x36x16mm

MS3,070,20,25,11,W8 Parametric

Parameter Name	Attribute value
Maker	Laird
Product Category	Thermoelectric module
type	Multi Stage
Qmax	3 W
ΔTmax	+ 118 C
Maximum current	6.5 A
maximum voltage	6.5 V
length	36 mm
width	36 mm
high	16 mm
series	MS Series
Factory packaging quantity	1

Preview

Download Datasheet

View All

Multistage Series MS2,192,14,20,11,18

Innovative

Technology

for a

Connected

World

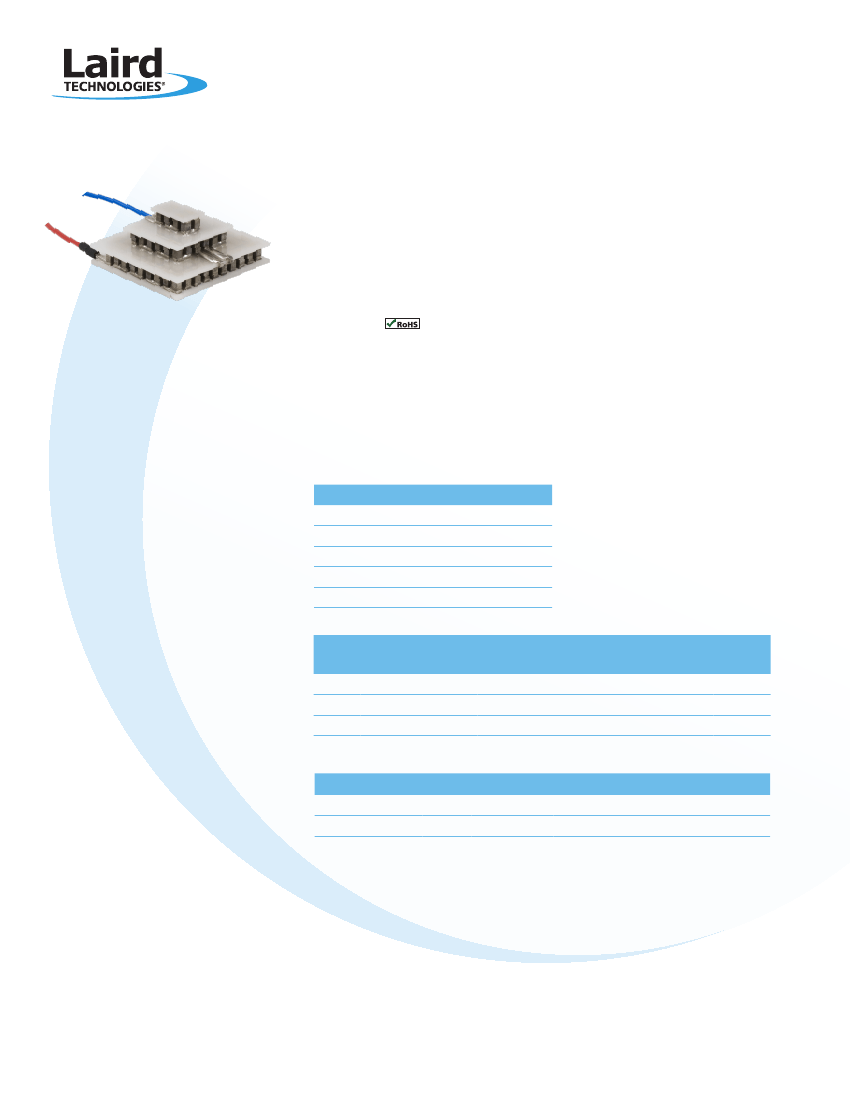

Thermoelectric Modules

The MS Series of thermoelectric modules (TEMs) are designed to reach cool down

temperatures that are not achievable with single stage TEMs.

This product line is available in numerous heat pumping capacities, geometric shapes

and temperature differentials. Assembled with Bismuth Telluride semiconductor material

and thermally conductive Aluminum Oxide ceramics, the MS Series is designed for higher

current and lower heat-pumping applications.

FeatureS

•

High temperature differential

Precise temperature control

Reliable solid state operation

Environmentally friendly

DC operation

RoHS compliant

applicationS

•

CCD cameras

Electron microscope

Calibration equipment

Photonics laser systems

Gas analyzers

infrared (IR) Sensors

Guidance Systems

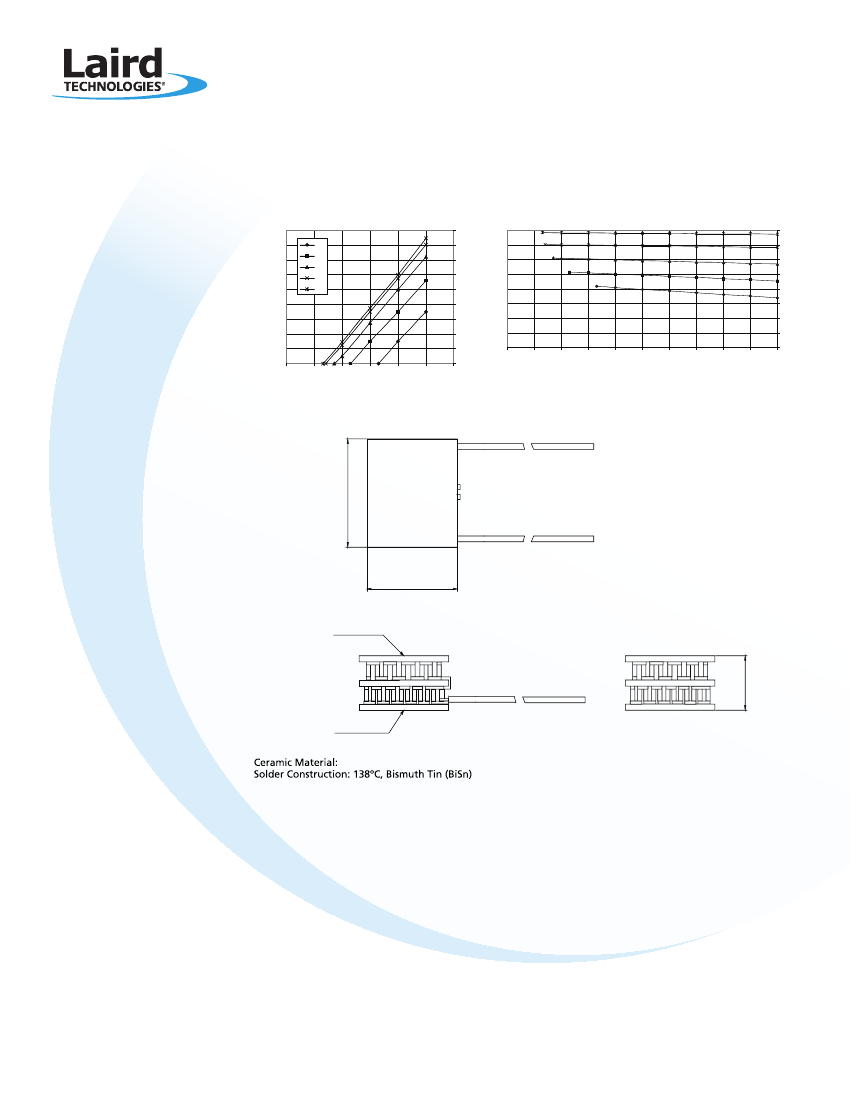

perforMance SpecificaTionS

hot Side Temperature (°c)

Qmax (Watts)

delta Tmax (°c)

imax (amps)

Vmax (Volts)

39.9

6.8

15.8

Suffix ThickneSS

(prior To Tinning)

0.326”± 0.008”

0.319”± 0.008”

0.326”± 0.008”

flaTneSS &

paralleliSM

0.001” / 0.004”

0.001” / 0.002”

0.001” / 0.004”

hoT

face

Metallized

Lapped

Pre-tinned

cold

face

Metallized

Lapped

Pre-tinned

lead

lengTh

7.87”

Sealing option

Suffix

SealanT color

RTV

Epoxy

White

Black

TeMp range

-60 to 204 °C

-55 to 150 °C

deScripTion

Non-corrosive, silicone adhesive sealant

Low density syntactic foam epoxy encapsulant

global

solutions:

local

support

Americas: +1 888.246.9050

Europe: +46.31.420530

Asia: +86.755.2714.1166

clv.customerpos@lairdtech.com

www.lairdtech.com
