ALTA Wireless IoT Sensors Kit
Pharmaceutical / Lab
Kit Data Sheet
“Things” are talking.
ALTA Remote Monitoring Systems
enable “things” to
speak. Wireless sensors, gateways and software give a
voice to the IoT (Internet of Things) and allow business-es
to leverage data, protect resources & save money.
The only
1000’ / 10-yr.
IoT Sensors Platform
in the World
1000’+ Wireless Range
/ 10-yr. Battery Life
For example, “things” can speak up when conditions
are met that indicate an asset is at risk. The Monnit
ecosystem (50+ sensor types) detects changes in
variables (such as a temperature, water presence,
door position, electrical current and voltages) to
employ an
autonomous wireless sensing
solution
that protects your bottom line.
Enterprise-grade Performance
♦♦
1,000+ ft. Wireless Range (through 12+ walls or
Kit Components
Sensors
Temperature
(QTY 2)
AA Battery, 3’ Leaded Probe, +/-
1% accuracy @25° C
Gateway (choose from the following types)
3G Cellular
AT&T (USA), Rogers (Canada), w/ Battery Backup
Ethernet
(pictured in the kit on top of page)
100% Comprehensive -
no PC or subscription req’d
iMonnit Premiere Software
(45 days free trial,
basic version always free)
Quick Start Guide, Mounting Hardware,
Power supplies, Antennas
ceilings, non line-of-sight)*
♦♦
Frequency Hopping Spread Spectrum (FHSS) /
Interference Immunity
♦♦
Improved power management for longer battery life.**
(10+ years on AA batteries or Industrial)
♦♦
Encrypt-RF™ Security (Diffie-Hellman Key Exchange
+ AES-128 CBC for sensor data messages).
♦♦
Onboard data memory - up to 512 readings / sensor
- 10 minute heartbeats = 3.5 days
- 2 hour heartbeats = 42 days
♦♦
Over-the-air updates (future proof)
♦♦
Free iMonnit basic online monitoring and notification
software (configure sensors, view data and set
alerts via SMS text, email and/or voice calls)
* Wireless range my vary according to environment.
** Battery life determined by sensor reporting & other variables
Monnit ALTA
Software
Monnit
Accessories
Other Wireless Platforms
Wifi
FAST System Setup
Build an IoT sensor network in 15 minutes or less!
Monnit IoT & RF experts are standing by to help you
quickly establish your monitoring system.
Email:
info@monnit.com,
Phone: 801-561-5555,
Web:
www.monnit.com
Bluetooth

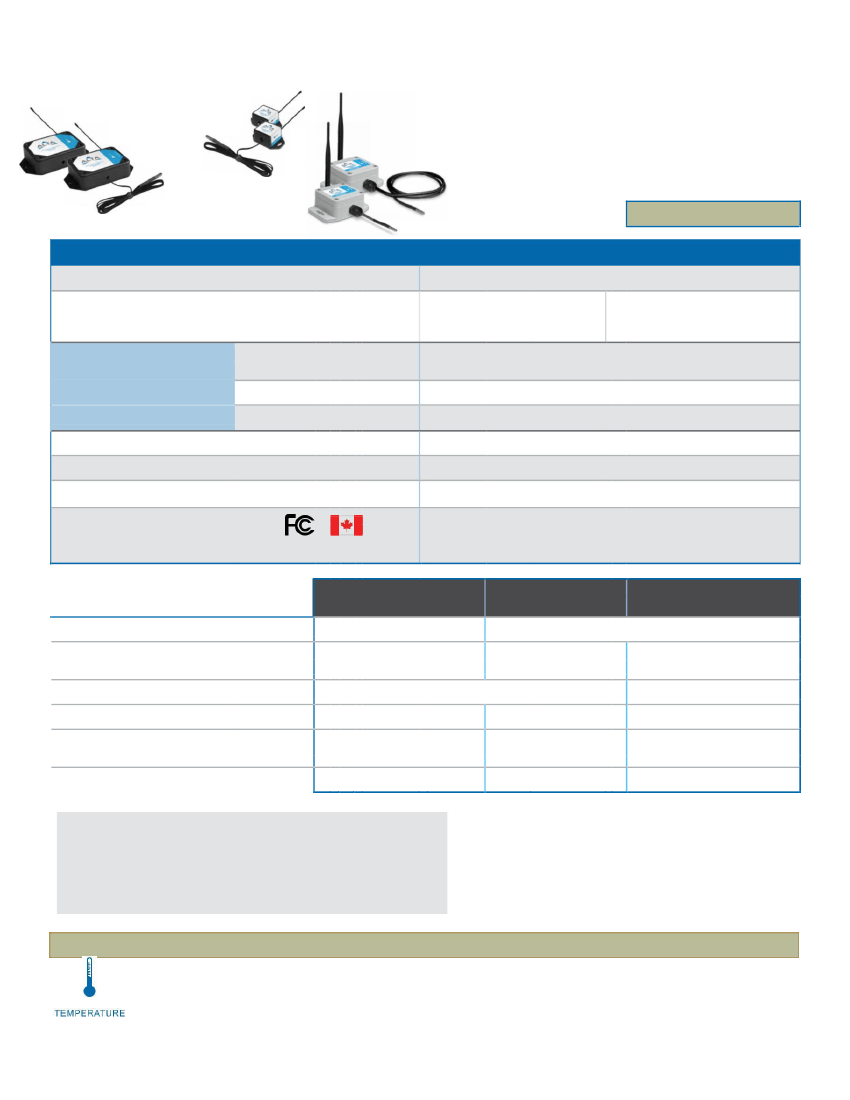

ALTA Wireless TEMPERATURE Sensors
Coin Cell
AA Battery (x2)
Industrial /
3.6V Lithium
The ALTA Wireless Temperature Sensor uses a type
NTC thermistor to measure temperature.
♦♦
Accurate to ± 1° C (± 1.8° F)
♦♦
Increased accuracy by user calibration to
± 0.25° C (± 0.45° F)
10-year
5-year
10-year
Sensors shown with & without
3’ Leaded Prope options
Data Sheet (short version)
click here for long version
Technical Specifications
Supply Voltage
Current Consumption
2.0 - 3.8 VDC (3.0 - 3.8 VDC Using Power Supply) *
0.2 µA (Sleep Mode)
0.7 µA (RTC Sleep)
570 µA (MCU Idle)
Temperature
Sensor
Thermistor Temperature Range
(Thermistor Only)
Accuracy @ 25°C
User Calibrated Accuracy
Wireless Range (900 MHz)
Security
Integrated Memory
Certifications
2.5 mA (MCU Active)
5.5 mA (Radio RX Mode)
22.6 mA (Radio TX Mode)
-40° to +125°C ( -40° to +257°F ) Limited to Main Unit Circuitry,
-7° to +60°C unless thermistor leads being used
+/- 1% (1° C or 1.8° F)
+/- 0.25° C (± 0.45° F)
1,000’+ (through 12+ walls or ceilings / non line-of-sight)
Encrypt-RF™ (256-bit key exchange and AES-128 CTR)
Up to 512 sensor messages
Industry
Canada
900 MHz product:
FCC ID: ZTL- G2SC1
IC: 9794A-G2SC1
UL Listed (Industrial): UL508-4x specifications (File E194432)
Industrial 3.6V Lithium
(1800 mAh capacity)
30 seconds
20° to +140°F,
(-7° - 60°C) **
-40° to +185°F
(-40° - 85°C)**
-40° to +85°C (-40° to +185°F)
4.7 oz.
IP65, NEMA 4X, CE, sealed,
weather & shock proof
3.701” x 2.316” x 1.378”
Power Options / Form Factors
Time Constant @ 25°C
AA Batteries
15 sec max
Coin Cell
Operating Temperature Range ** 0° to 130°F (-18°-55°C) alkaline,
(board circuitry + batteries) -40° to 185°F (-40° - 85°C) lithium
Optimal Operating Temperature Range (batteries) **
Weight
Enclosure
Dimensions (click
#s
to view dimensional drawings)
+10° to +50°C (+50° to +122°F)
3.7 oz.
High impact ABS Plastic
4.375” x 2.470” x 1.120”
0.7 oz.
High impact ABS Plastic
(w/ PinchPower enclosure)
2.000” x 1.125” x 0.875”
* Hardware cannot withstand negative voltage. Please take care
when connecting a power device.
** At temperatures above 100°C, it is possible for the board circuitry
to lose programmed memory.
Solar-Powered Option (available with “Industrial” version only)
Solar Panel:
5VDC / 30mA (53mm x 30mm)
Charging Temperature Range:
0° to 45°C (32° to 113°F)
Max. Temperature Range:
-20° to 60°C (-4° to 140°F)
Rechargeable Battery (Included):
600 mAh / >2000 Charge
Cycles (80% of initial capacity)
Principle of Operation
Sensor outputs ambient temperatures in degrees Fahrenheit. It is programmed to sleep for a
user-given time interval (heartbeat); then wakeup, send power to the NTC Thermistor, wait for it
to stabilize, convert the analog data, mathematically compute the temperature and transmit the
data to the gateway. To stay within the abilities of the processor, the temperature is computed
off a data table provided by the manufacturer.
Get IoT Started
801-561-5555
info@monnit.com
www.monnit.com

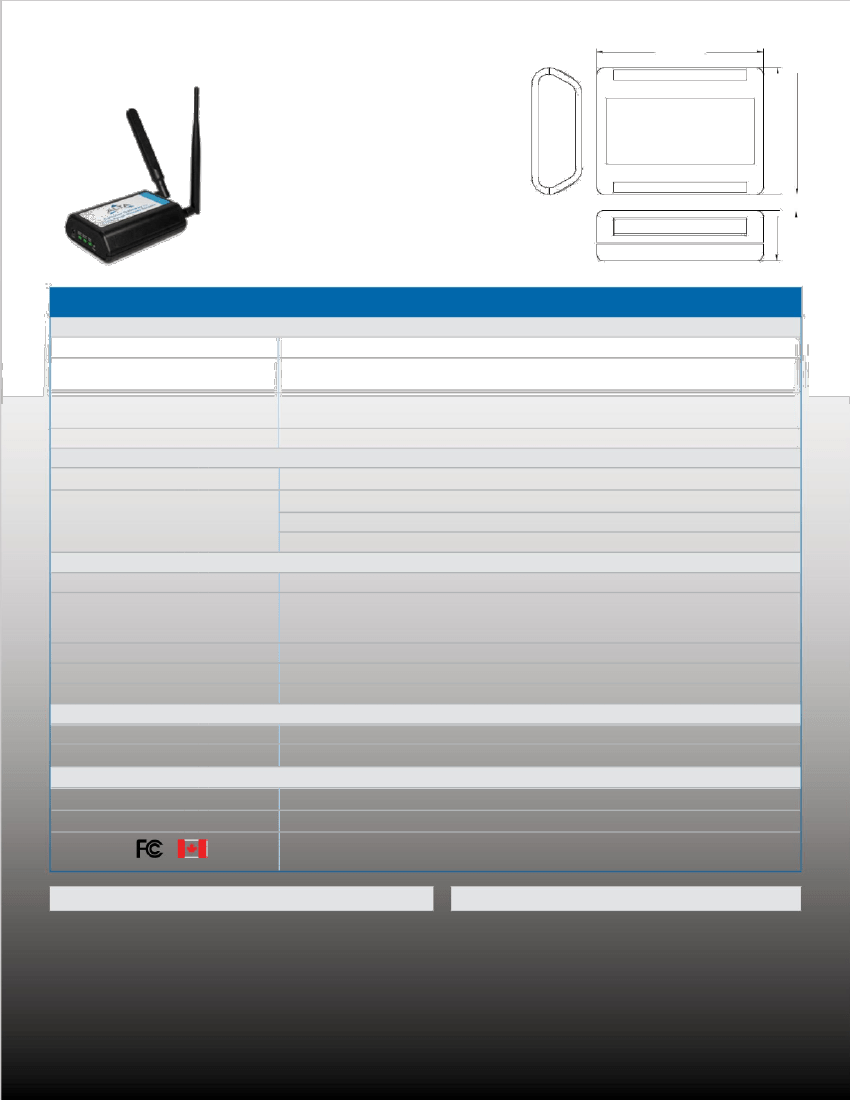

ALTA 3G Cellular Gateway
True plug & play, no hassles for Internet
configuration setup
No PC required for operation
Low-cost cellular service packages
Local status LEDs with transmission and
online status indicators
5.004”
3.80”
”
1.51
Technical Specifications
Cellular
Carriers Support
Cellular Technology
Antenna
SIM Card Compatibility
AT&T (USA), Rogers (Canada)
UMTS
Frequency Range: 850 / 1700 / 1900 MHz
Connector: SMA
Gain (dBi): 1.5
Mini-SIM (2FF)
25 mm x 15 mm x 0.76 mm
Power
Input Power
Optional Battery Backup
5.5 VDC @ 2.5 A
Battery Type: Rechargeable Lithium Polymer
Battery Duration: Up to 24 hours
Battery Cycle Life: 500 times
Mechanical
LEDs
Device Memory:
Cellular Status LED, Online Status LED, Sensor Network Status LED
50,000 sensor messages
(Sensor messages will be stored in the event of Internet outage and transferred when con-
nection is restored)
ABS
5.004 x 3.8 x 1.51 in.
7 ounces
-10 to +70 °C (14 to 158 °F)
-20 to +85 °C (-4 to 185 °F)
1,000+ ft. (through 12+ walls or ceilings / non-line-of-sight)
Industry
Canada
Enclosure
Dimensions
Weight
Environmental
Operating Temperature
Storage Temperature
Wireless
Wireless Range
Security
Certifications
Encrypt-RF™ (256-bit key exchange and AES-128 CTR)
FCC: ZTL- G2SC1, FCC: RI7HE910
IC: 9794A-G2SC1 and IC: 5131A-HE910
Principle of Operation
The ALTA Cellular Gateways are based on the latest Dual-
band CDMA and 3G wireless protocols and come integrated
with Monnit’s wireless access point network (WAN) for use with
all Monnit wireless sensors.
The ALTA Cellular Gateway is an advanced all wireless
M2M gateway that enables fast time-to-market solutions for
a wide range of M2M and partner applications as well.
Options & Add-ons
Carriers
♦♦
CDMA
◊◊ Sprint
◊◊ US Cellular
♦♦
3G
◊◊ AT&T (USA)
◊◊ Rogers (Canada)
Protocol
♦♦
Cellular
◊◊ CDMA
◊◊ 3G
♦♦
Ethernet
♦♦
USB
Operating Frequency
♦♦
900 MHz

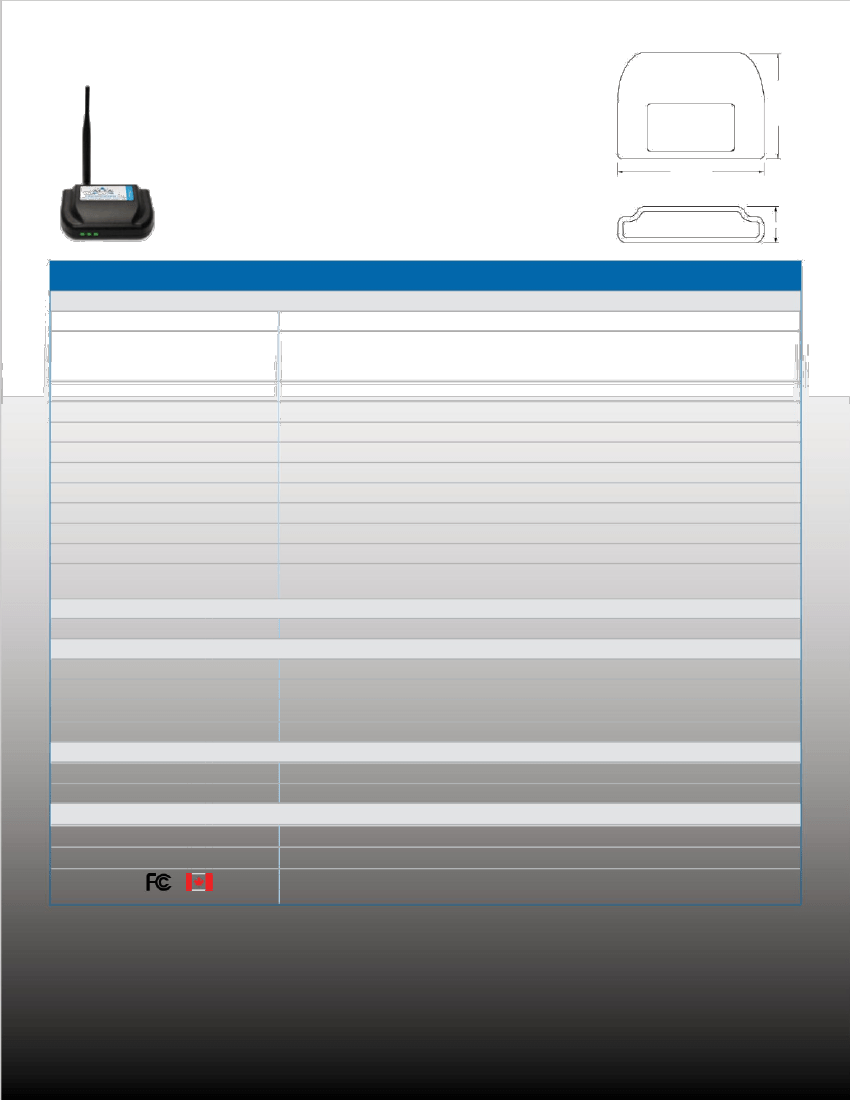

ALTA Ethernet Gateway
The ALTA Ethernet gateway allows your ALTA Wireless
Sensors to communicate with the iMonnit™ Online Wireless
Sensor Monitoring and Notification System without requiring
a PC. Simply plug this device into any open network port
with internet connection and it will automatically connect
with online servers. With the graphical iMonnit software, you
can easily configure your network, view collected sensor
data and set alarms through SMS or e-mail.
727(101.
005”4.
5.505”
(139.827 mm)
mm)
Technical Specifications
Ethernet
Ethernet Types
Antenna
Standard, POE
Connector: SMA
Gain:
5.0 dBi (900 MHz Product)
3.0 dBi (868 and 433 MHz Product)
10/100 Ethernet Controller
802.3-2002
Full- and Half-Duplex
Automatic MDI/MDI-X
Pre-programmed MAC Address
t1.sensorsgateway.com
3000
UDP, DHCP, TCP, SNMP, MODBUS
Cat 5
16,000 sensor messages (Sensor messages will be stored in the event of Internet
outage and transferred when connection is restored)
5.5 V AC adapter or 5.5 V Power-Over-Ethernet adapter *
H/W status, iMonnit connection status, sensor data activity
ABS plastic
4.0 in x 5.5 in x 1.375 in (139.85 mm x 101.75 mm x 34.95 mm)
12.6 ounces
-10 to +70 °C (14 to 158 °F) **
-20 to +85 °C (-4 to 185 °F)
1,000+ ft. (through 12+ walls or ceilings, non line-of-sight)***
Industry
Canada
Hardware
IEEE Standard Compliance
Operation:
Cross-Over Correction
Addressing
Host Address
Default Port
Protocols Supported
Cable Connector
Device Memory
Power
Power Supply
Mechanical
LEDs
Enclosure
Dimensions
Weight
Environmental
Operating Temperature
Storage Temperature
Wireless
Wireless Range
Security
Certifications
Encrypt-RF™ (256-bit key exchange and AES-128 CTR)
900 MHz product - FCC ID: ZTL- G2SC1 and
IC: 9794A-G2SC1.
*
Hardware cannot withstand negative voltage. Please take care when connecting a power device.
** At temperatures above 100°C, it is possible for the board circuitry to lose programmed memory.
*** Actual range may vary depending on environment.
Data Capturing Options - Data collected by the Ethernet Gateway from the sensors in the network can be accessed when these
interfac-es are turned on. Multiple interfaces can be active at the same time. All interfaces require that the Ethernet gateway be set to a
Static IP address. (By default, the unit uses DHCP). The following data capturing options are supported:
SNMP Poll and Trap Interface • MODBUS TCP Interface • Real Time TCP Interface
925(34.
1.375”
mm)
Durability Grades
Commercial Grade
If not specified as “Industrial Grade”, all ALTA sensors
are commercial grade and are designed for applications
in ordinary environments (normal room temperature,
humidity and atmospheric pressure). Do not use these
sensors under the following conditions as these factors
can deteriorate the product characteristics or cause
failures.
♦♦
Corrosive gas / De-oxidizing gas
(chlorine, hydrogen sulfide, ammonia, sulfuric
acid, nitric oxides, etc.)
♦♦
Volatile or flammable gas
♦♦
Dusty conditions
♦♦
Under low or high pressure
♦♦
Wet or excessively humid locations
♦♦
Places with salt water, oils chemical liquids or
Options & Add-ons
Sensor Power Sources
AA Battery
AA battery powered sensors are commercial grade
and are ideal for indoor sensor networks. AA sen-
sors are able to achieve up to a 10-year battery life.
Line Power (w/ AA Battery Backup)
AA battery powered sensors can be upgraded to
support line-powered operations.
Coin Cell Battery
Coin cell battery powered sensors offer the smallest
form factor of all power options. Coin cell sensors
are able to achieve up to a 5-year battery life.
Industrial Lithium Battery
Industrial sensors are powered by a replaceable
lithium battery. Industrial sensors are ideal for indoor
sensor networks. Industrial sensors are able to
achieve up to a 10-year battery life.
organic solvents
♦♦
Where there are excessively strong vibrations
♦♦
Other places where hazardous conditions exist
Use these product within the specified temperature
range. Higher temperature may cause deterioration of
the characteristics or the material quality.
Solar
Industrial Grade Sensors can be upgraded to sup-
port solar powered operations.
Industrial Grade
Type 1, 2, 4, 4X, 12 and 13 NEMA
Rated Enclosure
ALTA Industrial sensors are enclosed in reliable, weath-
erproof NEMA rated enclosures. Our NEMA rated enclo-
sures are constructed for both indoor or outdoor use and
protect the sensor circuitry against the ingress of solid
foreign objects like dust as well as the damaging effects
of water (rain, sleet, snow, splashing water, and hose
directed water).
♦♦
Safe from falling dirt
♦♦
Protects against wind blown dust
♦♦
Protects against rain, sleet, snow, splashing water,
RF Operating Frequency
In North America, ALTA wireless products operate
using the license-free 900 MHz ISM band. Contact
Monnit regarding products requiring 868 MHz, 433
MHz or 920 MHz operating frequencies.
and hose directed water
♦♦
Increased level of corrosion resistance
♦♦
Will remain undamaged by ice formation on the
enclosure
Monnit Corporation
3400 South West Temple
Salt Lake City, UT 84115
801-561-5555
www.monnit.com
For more information about our products or to place an order, please contact our sales department
at
info@monnit.com
or 801-561-5555.
Visit us on the web at
www.monnit.com.
Monnit, iMonnit, ALTA, PinchPower, Encrypt-RF and all other trademarks are property of Monnit, Corp.
© 2018 Monnit Corp. All Rights Reserved.
ADK-005-1B (04/17)
京公网安备 11010802033920号
EEWORLD
