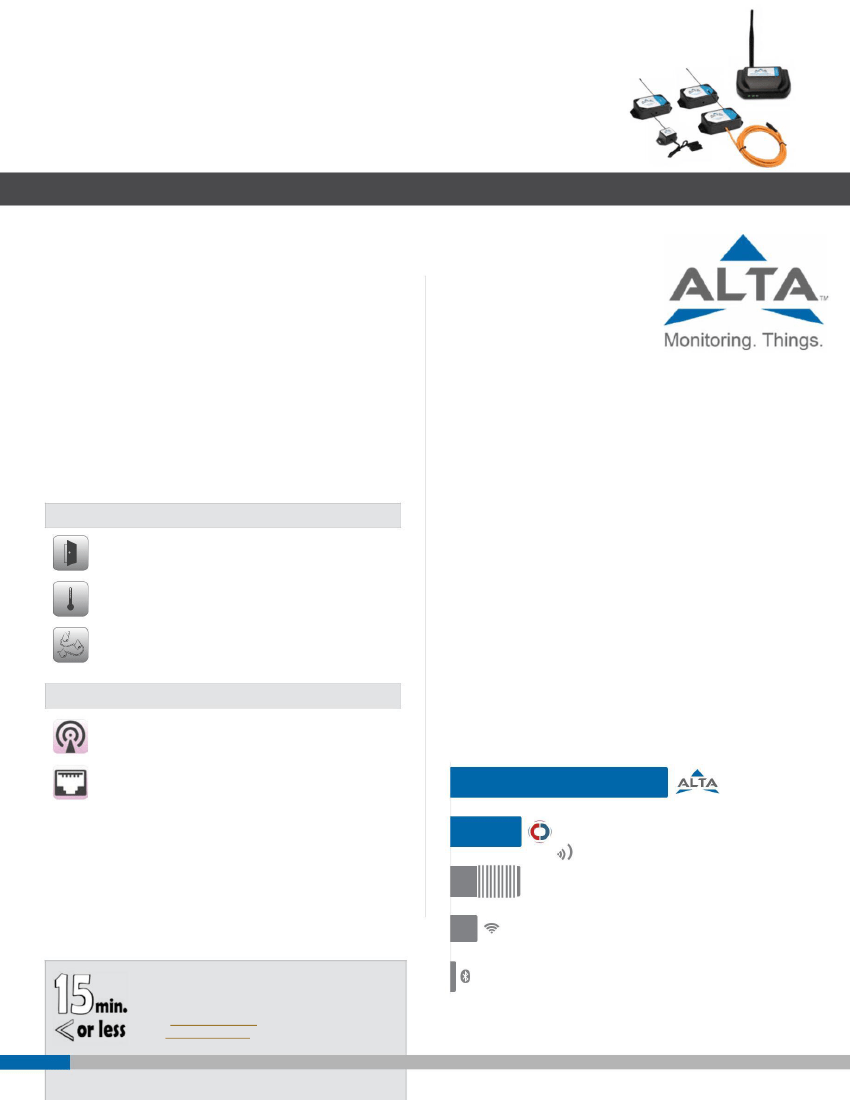

ALTA Wireless IoT Sensors Kit
IT Server Room
Kit Data Sheet
“Things” are talking.
ALTA Remote Monitoring Systems
enable “things” to
speak. Wireless sensors, gateways and software give a
voice to the IoT (Internet of Things) and allow business-es
to leverage data, protect resources & save money.
The only
1000’ / 10-yr.
IoT Sensors Platform
in the World
1000’+ Wireless Range
/ 10-yr. Battery Life
For example, “things” can speak up when conditions
are met that indicate an asset is at risk. The Monnit
ecosystem (50+ sensor types) detects changes in
variables (such as a temperature, water presence,
door position, electrical current and voltages) to
employ an
autonomous wireless sensing
solution
that protects your bottom line.
Enterprise-grade Performance
♦♦
1,000+ ft. Wireless Range (through 12+ walls or
Kit Components
Sensors
Open / Closed
Coin Cell Battery, 0.75” operational gap
Temperature
(QTY 2)
AA Battery, +/- 1% accuracy @25° C
Water Rope
AA Battery, 10’ water rope (expandable)
ceilings, non line-of-sight)*
♦♦
Frequency Hopping Spread Spectrum (FHSS) /
Interference Immunity
♦♦
Improved power management for longer battery life.**
(10+ years on AA batteries or Industrial)
♦♦
Encrypt-RF™ Security (Diffie-Hellman Key Exchange
+ AES-128 CBC for sensor data messages).
♦♦
Onboard data memory - up to 512 readings / sensor
- 10 minute heartbeats = 3.5 days
- 2 hour heartbeats = 42 days
♦♦
Over-the-air updates (future proof)
♦♦
Free iMonnit basic online monitoring and notification
software (configure sensors, view data and set
alerts via SMS text, email and/or voice calls)
* Wireless range my vary according to environment.
** Battery life determined by sensor reporting & other variables
Gateway
3G Cellular
AT&T (USA), Rogers (Canada), w/ Battery Backup
Ethernet
(pictured in the kit above)
100% Comprehensive -
no PC or subscription req’d
Monnit
Monnit ALTA
Other Wireless Platforms
Wifi
FAST System Setup
Build an IoT sensor network in 15 minutes or less!
Monnit IoT & RF experts are standing by to help you
quickly establish your monitoring system.
Email:
info@monnit.com,
Phone: 801-561-5555,
Web:
www.monnit.com
Bluetooth

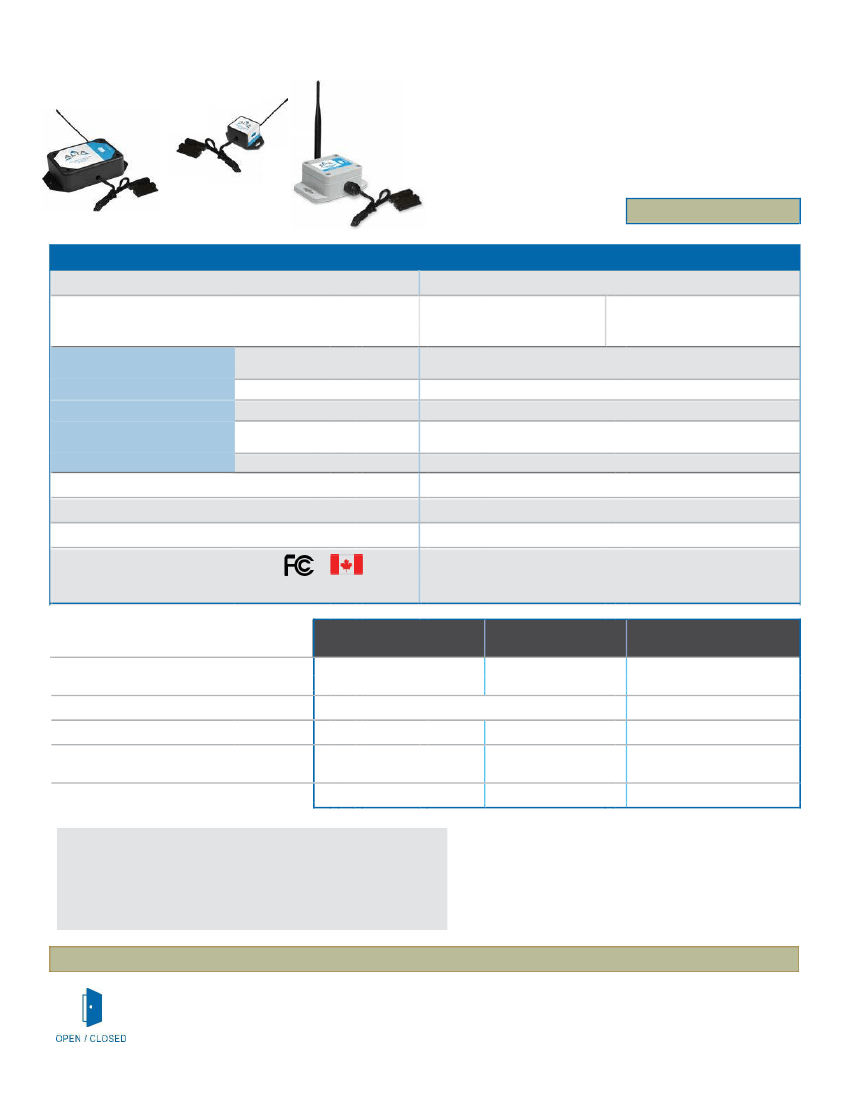

ALTA Wireless OPEN / CLOSED Sensors
Coin Cell
AA Battery (x2)
Industrial /
3.6V Lithium
10-year
5-year
10-year
The ALTA Wireless Open / Closed Sensor uses a
magenetic switch to detect when a door or window is
opened or closed. The position of the contact
provides the system data that can be purposed for
applications such as access control, occupancy
monitoring, energy management, etc.
Data Sheet (short version)
click here for long version
Technical Specifications
Supply Voltage
Current Consumption
2.0 - 3.8 VDC (3.0 - 3.8 VDC Using Power Supply) *
0.2 µA (Sleep Mode)
0.7 µA (RTC Sleep)
570 µA (MCU Idle)
Magnetic Switch
Operational Gap
Wire Leads
Magnet
Temperature Range (Magnet)
Wireless Range (900 MHz)
Security
Integrated Memory
Certifications
2.5 mA (MCU Active)
5.5 mA (Radio RX Mode)
22.6 mA (Radio TX Mode)
Magnet Contact
SPST, gold under -plating with Deactivated Rhodium outer-plating
(capable of 50 million activations)
Up to 0.75”
22 gauge / 15 inch length
Alnico magnet / Weatherproof,
high-impact ABS plastic covering with self-adhesive backing
-15° to 160°F (-25° to 70°C)
1,000’+ (through 12+ walls or ceilings / non line-of-sight)
Encrypt-RF™ (256-bit key exchange and AES-128 CTR)
Up to 512 sensor messages
Industry
Canada
900 MHz product - FCC ID: ZTL- G2SC1
IC: 9794A-G2SC1
UL Listed (Industrial): UL508-4x specifications (File E194432)
Industrial 3.6V Lithium
(1800 mAh capacity)
-40° to +185°F
(-40° - 85°C)**
-40° to +85°C (-40° to +185°F)
4.7 oz.
IP65, NEMA 4X, CE, sealed,
weather & shock proof
3.701” x 2.316” x 1.378”
Power Options / Form Factors
AA Batteries
Coin Cell
20° to +140°F,
(-7° - 60°C) **
Operating Temperature Range 0° to 130°F (-18°-55°C) alkaline,
(board circuitry + batteries) ** -40° to 185°F (-40° - 85°C) lithium
Optimal Operating Temperature Range (batteries) **
Weight
Enclosure
Dimensions (click
#s
to view dimensional drawings)
+10° to +50°C (+50° to +122°F)
3.7 oz.
High impact ABS Plastic
4.375” x 2.470” x 1.120”
0.7 oz.
High impact ABS Plastic
(w/ PinchPower enclosure)
2.000” x 1.125” x 0.875”
* Hardware cannot withstand negative voltage. Please take care
when connecting a power device.
** At temperatures above 100°C, it is possible for the board circuitry
to lose programmed memory.
Solar-Powered Option (available with “Industrial” version only)
Solar Panel:
5VDC / 30mA (53mm x 30mm)
Charging Temperature Range:
0° to 45°C (32° to 113°F)
Max. Temperature Range:
-20° to 60°C (-4° to 140°F)
Rechargeable Battery (Included):
600 mAh / >2000 Charge
Cycles (80% of initial capacity)
Principle of Operation
The ALTA Open / Closed Sensor uses an external magnetic switch to detect the presence or
removal of a trigger magnet. When the sensor detects that the magnet is removed or returned, it
sends the information to the iMonnit Online Sensor Monitoring and Notification System. The data
is stored in the online system and can be reviewed and exported. Notifi - cations can be setup
through the online system to alert the user when a magnetic source is present or not present -
with the ability to specify notifications within time-of-day parameters.
Get IoT Started
801-561-5555
info@monnit.com
www.monnit.com

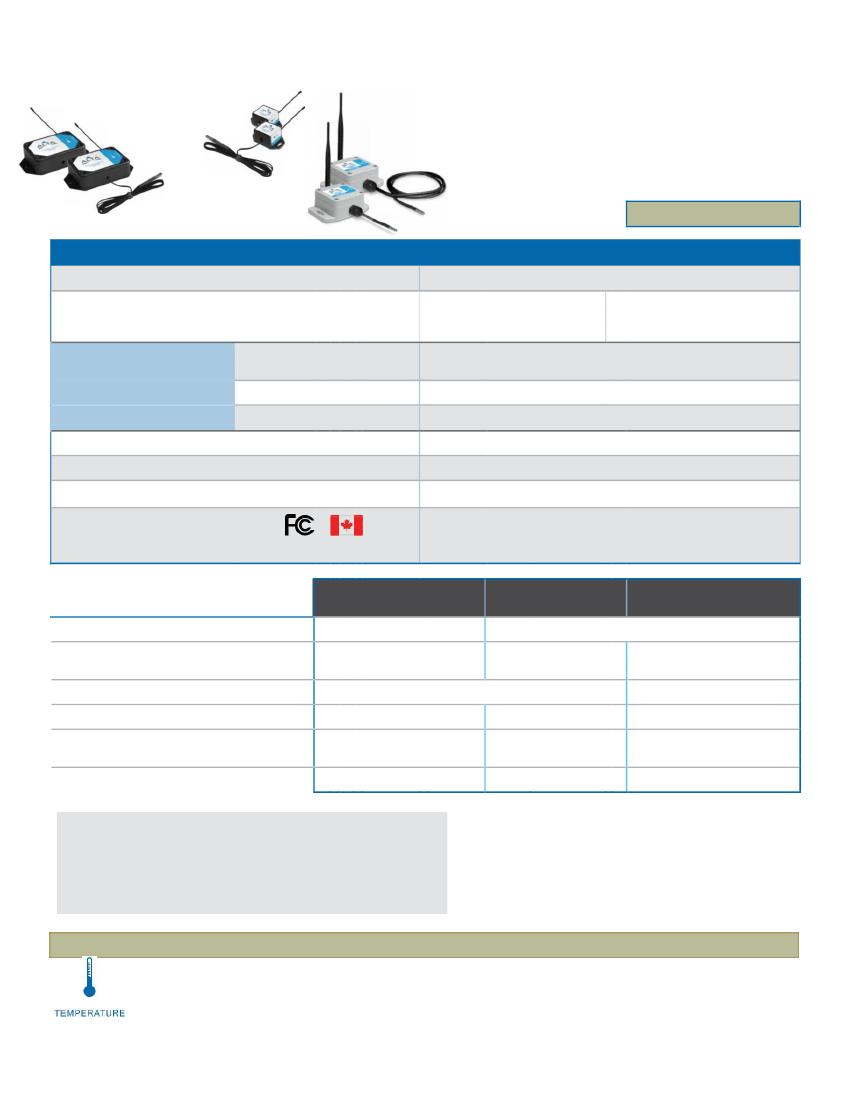

ALTA Wireless TEMPERATURE Sensors
Coin Cell
AA Battery (x2)
Industrial /
3.6V Lithium
The ALTA Wireless Temperature Sensor uses a type
NTC thermistor to measure temperature.
♦♦
Accurate to ± 1° C (± 1.8° F)
♦♦
Increased accuracy by user calibration to
± 0.25° C (± 0.45° F)
10-year
5-year
10-year
Sensors shown with & without
3’ Leaded Prope options
Data Sheet (short version)
click here for long version
Technical Specifications
Supply Voltage
Current Consumption
2.0 - 3.8 VDC (3.0 - 3.8 VDC Using Power Supply) *
0.2 µA (Sleep Mode)
0.7 µA (RTC Sleep)
570 µA (MCU Idle)
Temperature
Sensor
Thermistor Temperature Range
(Thermistor Only)
Accuracy @ 25°C
User Calibrated Accuracy
Wireless Range (900 MHz)
Security
Integrated Memory
Certifications
2.5 mA (MCU Active)
5.5 mA (Radio RX Mode)
22.6 mA (Radio TX Mode)
-40° to +125°C ( -40° to +257°F ) Limited to Main Unit Circuitry,
-7° to +60°C unless thermistor leads being used
+/- 1% (1° C or 1.8° F)
+/- 0.25° C (± 0.45° F)
1,000’+ (through 12+ walls or ceilings / non line-of-sight)
Encrypt-RF™ (256-bit key exchange and AES-128 CTR)
Up to 512 sensor messages
Industry
Canada
900 MHz product:
FCC ID: ZTL- G2SC1
IC: 9794A-G2SC1
UL Listed (Industrial): UL508-4x specifications (File E194432)
Industrial 3.6V Lithium
(1800 mAh capacity)
30 seconds
20° to +140°F,
(-7° - 60°C) **
-40° to +185°F
(-40° - 85°C)**
-40° to +85°C (-40° to +185°F)
4.7 oz.
IP65, NEMA 4X, CE, sealed,
weather & shock proof
3.701” x 2.316” x 1.378”
Power Options / Form Factors
Time Constant @ 25°C
AA Batteries
15 sec max
Coin Cell
Operating Temperature Range ** 0° to 130°F (-18°-55°C) alkaline,
(board circuitry + batteries) -40° to 185°F (-40° - 85°C) lithium
Optimal Operating Temperature Range (batteries) **
Weight
Enclosure
Dimensions (click
#s
to view dimensional drawings)
+10° to +50°C (+50° to +122°F)
3.7 oz.
High impact ABS Plastic
4.375” x 2.470” x 1.120”
0.7 oz.
High impact ABS Plastic
(w/ PinchPower enclosure)
2.000” x 1.125” x 0.875”
* Hardware cannot withstand negative voltage. Please take care
when connecting a power device.
** At temperatures above 100°C, it is possible for the board circuitry
to lose programmed memory.
Solar-Powered Option (available with “Industrial” version only)
Solar Panel:
5VDC / 30mA (53mm x 30mm)
Charging Temperature Range:
0° to 45°C (32° to 113°F)
Max. Temperature Range:
-20° to 60°C (-4° to 140°F)
Rechargeable Battery (Included):
600 mAh / >2000 Charge
Cycles (80% of initial capacity)
Principle of Operation
Sensor outputs ambient temperatures in degrees Fahrenheit. It is programmed to sleep for a
user-given time interval (heartbeat); then wakeup, send power to the NTC Thermistor, wait for it
to stabilize, convert the analog data, mathematically compute the temperature and transmit the
data to the gateway. To stay within the abilities of the processor, the temperature is computed
off a data table provided by the manufacturer.
Get IoT Started
801-561-5555
info@monnit.com
www.monnit.com

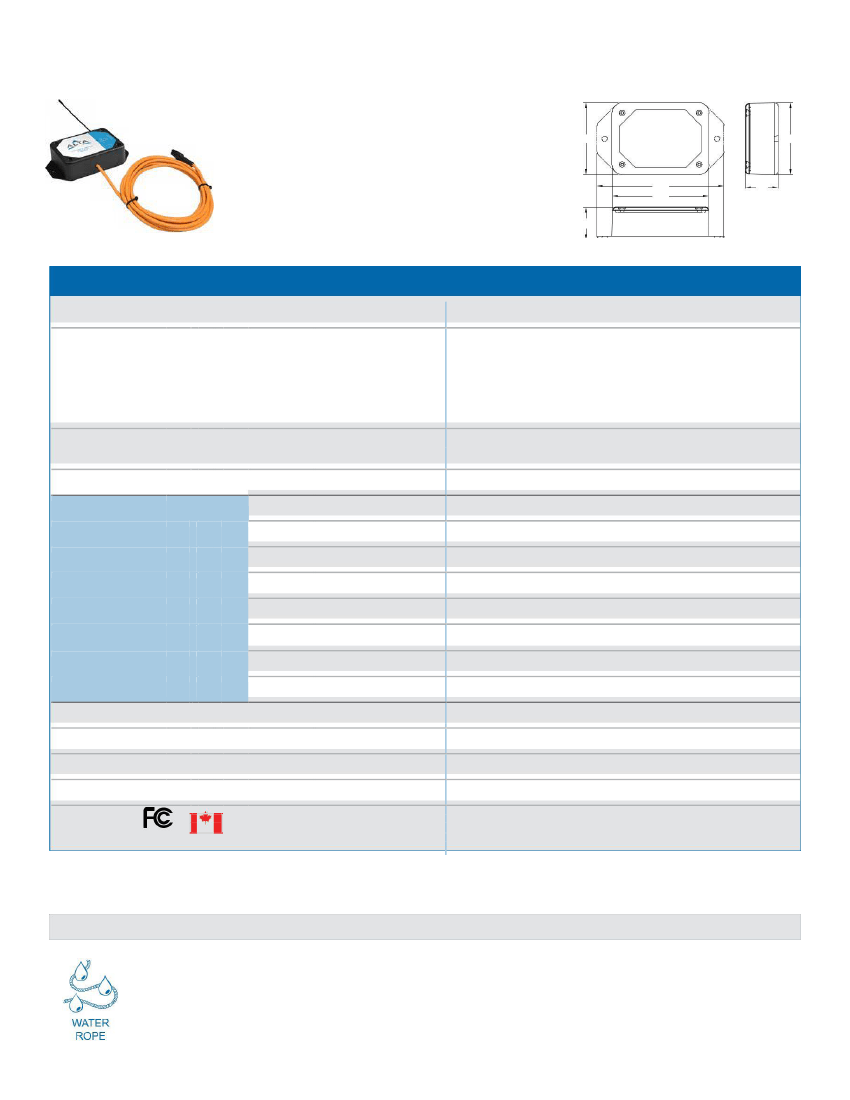

ALTA Wireless Water Rope Sensor
(AA)
The ALTA Wireless Water Rope Sensor detects the
presence of water anywhere along the surface of the
rope. Sensor comes with 10’ of water rope.
Additional 10 ft. sections are available and can be
connected up to 100 feet.
♦♦
10 ft. lead and 10 ft. water detection rope.
♦♦
Immediately detects water anywhere along rope.
♦♦
Expandable up to 100 ft. of detection rope.
2.470
2.470
4.375
3.295
1.111
1.111
Technical Specifications
Supply Voltage
Current Consumption
2.0 - 3.8 VDC (3.0 - 3.8 VDC Using Power Supply) *
0.2 µA (Sleep Mode)
0.7 µA (RTC Sleep)
570 µA (MCU Idle)
2.5 mA (MCU Active)
5.5 mA (Radio RX Mode)
22.6 mA (Radio TX Mode)
Operating Temperature Range (Board Circuitry and Batteries)
-18°C to 55°C (0°F to 130°F) using alkaline
-40°C to 85°C (-40°F to 185°F) using lithium **
Optimal Battery Temperature Range (AA)
Water Rope
Material
Maximum Exposed Temperature
Weight
Pull Force Limit
Core Resistance
Cable Diameter
Cable Length
Fire Resistance
Wireless Range
Security
Integrated Memory
Weight
Certifications
+10°C to +50°C ( +50°F to +122°F )
PE + alloy lead
75°C (167°F)
30g/meter
60kg
3ohm/100 meters
5.5mm
10 ft. (included, 120”, expandable to 100’)
Second pressure plenum cable
1,000+ ft. (through 12+ walls or ceilings / non line-of-sight)
Encrypt-RF™ (256-bit key exchange and AES-128 CTR)
Up to 512 sensor messages
3.7 Ounces
900 MHz product: FCC ID: ZTL- G2SC1,
IC: 9794A-G2SC1
Industry
Canada
*
Hardware cannot withstand negative voltage. Please take care when connecting a power device.
** At temperatures above 100°C, it is possible for the board circuitry to lose programmed memory.
Principle of Operation
The ALTA Wireless Water Rope Sensor detects conductive liquids anywhere along the length of the detection
rope by using two wires covered with conducting polymer. When water or conductive liquid contacts the rope,
the sensor will immediately turn on the RF radio and transmit the data to the wireless gateway and iMonnit
Online Sensor Monitoring and Notification System, allowing the user to immediately receive an alert by SMS
text, email or voice call. The sensor rope dries quickly allowing the sensor to reset for next use. Detection rope
can be expanded up to 100 feet by simply clicking additional 10 foot sections of detection rope together.
Additional sections of water detection rope are available on the Monnit website

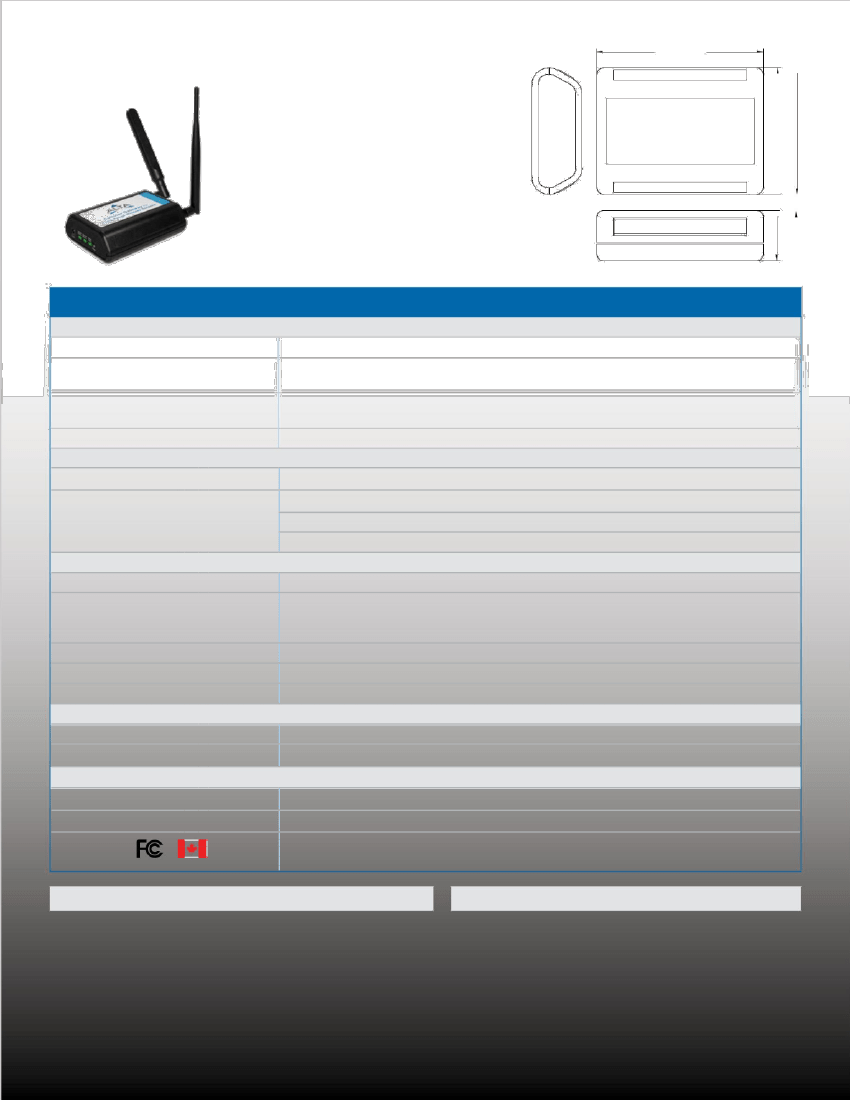

ALTA 3G Cellular Gateway
True plug & play, no hassles for Internet
configuration setup
No PC required for operation
Low-cost cellular service packages
Local status LEDs with transmission and
online status indicators
5.004”
3.80”
”
1.51
Technical Specifications
Cellular
Carriers Support
Cellular Technology
Antenna
SIM Card Compatibility
AT&T (USA), Rogers (Canada)
UMTS
Frequency Range: 850 / 1700 / 1900 MHz
Connector: SMA
Gain (dBi): 1.5
Mini-SIM (2FF)
25 mm x 15 mm x 0.76 mm
Power
Input Power
Optional Battery Backup
5.5 VDC @ 2.5 A
Battery Type: Rechargeable Lithium Polymer
Battery Duration: Up to 24 hours
Battery Cycle Life: 500 times
Mechanical
LEDs
Device Memory:
Cellular Status LED, Online Status LED, Sensor Network Status LED
50,000 sensor messages
(Sensor messages will be stored in the event of Internet outage and transferred when con-
nection is restored)
ABS
5.004 x 3.8 x 1.51 in.
7 ounces
-10 to +70 °C (14 to 158 °F)
-20 to +85 °C (-4 to 185 °F)
1,000+ ft. (through 12+ walls or ceilings / non-line-of-sight)
Industry
Canada
Enclosure
Dimensions
Weight
Environmental
Operating Temperature
Storage Temperature
Wireless
Wireless Range
Security
Certifications
Encrypt-RF™ (256-bit key exchange and AES-128 CTR)
FCC: ZTL- G2SC1, FCC: RI7HE910
IC: 9794A-G2SC1 and IC: 5131A-HE910
Principle of Operation
The ALTA Cellular Gateways are based on the latest Dual-
band CDMA and 3G wireless protocols and come integrated
with Monnit’s wireless access point network (WAN) for use with
all Monnit wireless sensors.
The ALTA Cellular Gateway is an advanced all wireless
M2M gateway that enables fast time-to-market solutions for
a wide range of M2M and partner applications as well.
Options & Add-ons
Carriers
♦♦
CDMA
◊◊ Sprint
◊◊ US Cellular
♦♦
3G
◊◊ AT&T (USA)
◊◊ Rogers (Canada)
Protocol
♦♦
Cellular
◊◊ CDMA
◊◊ 3G
♦♦
Ethernet
♦♦
USB
Operating Frequency
♦♦
900 MHz
京公网安备 11010802033920号
EEWORLD
