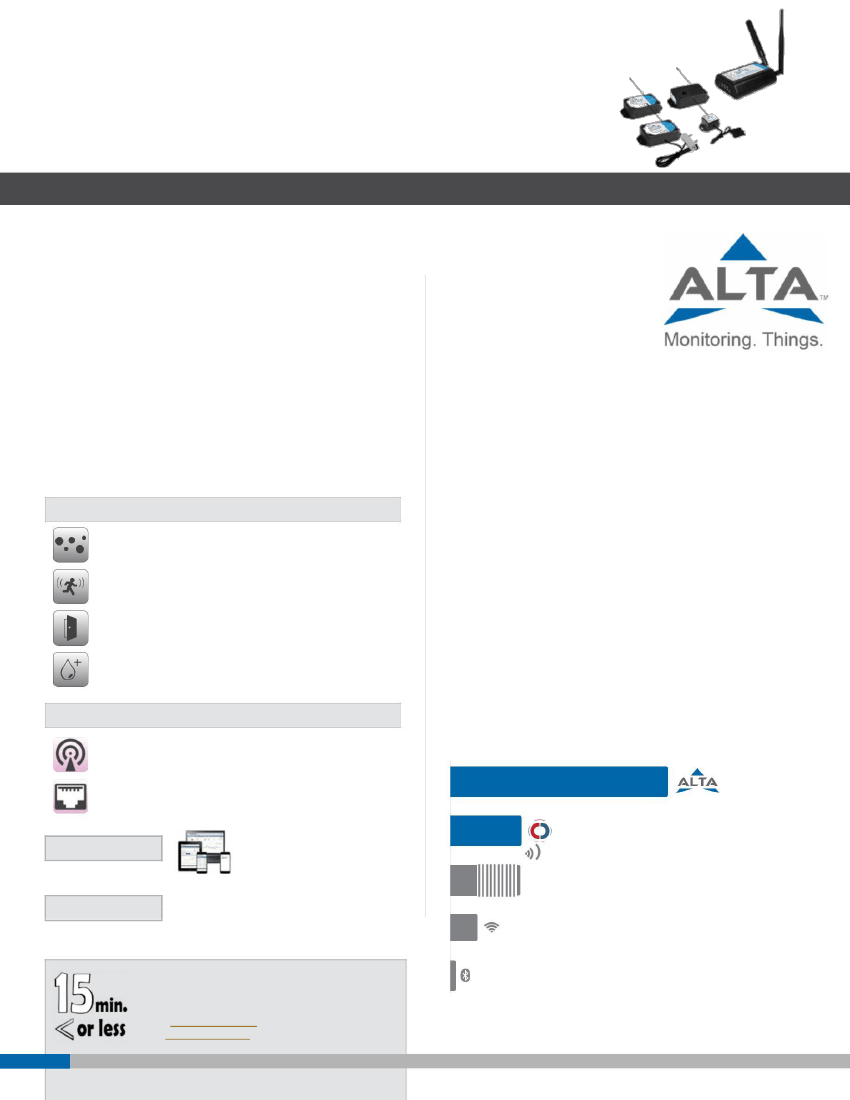

ALTA Wireless IoT Sensors Kit
Remote Real Estate
Kit Data Sheet
“Things” are talking.
ALTA Remote Monitoring Systems
enable “things” to
speak. Wireless sensors, gateways and software give a
voice to the IoT (Internet of Things) and allow business-es
to leverage data, protect resources & save money.
The only
1000’ / 10-yr.
IoT Sensors Platform
in the World
1000’+ Wireless Range
/ 10-yr. Battery Life
For example, “things” can speak up when conditions
are met that indicate an asset is at risk. The Monnit
ecosystem (50+ sensor types) detects changes in
variables (such as a temperature, water presence,
door position, electrical current and voltages) to
employ an
autonomous wireless sensing
solution
that protects your bottom line.
Enterprise-grade Performance
♦♦
1,000+ ft. Wireless Range (through 12+ walls or
Kit Components
Sensors
Humidity
AA Battery, Scientific-grade (± 3% accuracy)
Motion
AA Battery, PIR, 16.4’
sensor detection range
Open / Closed
Coin Cell Battery, 0.75” operational gap
Water Detect Plus
AA Battery, 3’ lead wire / water detection probe
ceilings, non line-of-sight)*
♦♦
Frequency Hopping Spread Spectrum (FHSS) /
Interference Immunity
♦♦
Improved power management for longer battery life.**
(10+ years on AA batteries or Industrial)
♦♦
Encrypt-RF™ Security (Diffie-Hellman Key Exchange
+ AES-128 CBC for sensor data messages).
♦♦
Onboard data memory - up to 512 readings / sensor
- 10 minute heartbeats = 3.5 days
- 2 hour heartbeats = 42 days
♦♦
Over-the-air updates (future proof)
♦♦
Free iMonnit basic online monitoring and notification
software (configure sensors, view data and set
alerts via SMS text, email and/or voice calls)
* Wireless range my vary according to environment.
** Battery life determined by sensor reporting & other variables
Gateway (choose from the following types)
3G Cellular
(pictured in the kit above)
AT&T (USA), Rogers (Canada), w/ Battery Backup
Ethernet
100% Comprehensive -
no PC or subscription req’d
Monnit
Monnit ALTA
Software
iMonnit Premiere Software
(45 days free trial,
basic version always free)
Quick Start Guide, Mounting Hardware,
Power supplies, Antennas
Wifi
Other Wireless Platforms
Accessories
FAST System Setup
Build an IoT sensor network in 15 minutes or less!
Monnit IoT & RF experts are standing by to help you
quickly establish your monitoring system.
Email:
info@monnit.com,
Phone: 801-561-5555,
Web:
www.monnit.com
Bluetooth

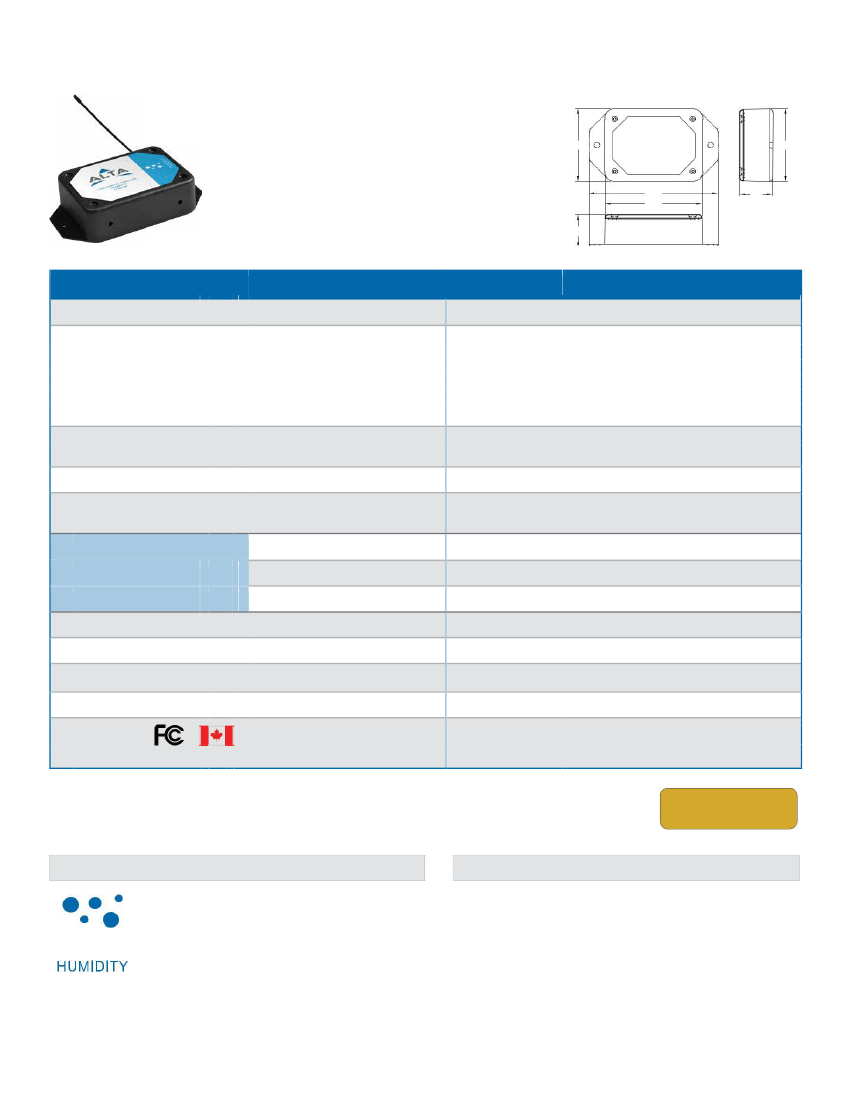

ALTA Wireless Humidity Sensor
(AA)
The ALTA Wireless Humidity (RH) Sensor
allows you to accurately monitor the relative
humidity of the air within a room or enclosure.
♦♦
Measures relative humidity, temperature
and dew point with high accuracy.
Up to 10-Year Battery Life
♦♦
AA Battery Powered
1.111
2.470
2.470
4.375
3.295
1.111
Technical Specifications
Supply Voltage
Current Consumption
2.0 - 3.8 VDC (3.0 - 3.8 VDC Using Power Supply) *
0.2 µA (Sleep Mode)
0.7 µA (RTC Sleep)
570 µA (MCU Idle)
2.5 mA (MCU Active)
5.5 mA (Radio RX Mode)
22.6 mA (Radio TX Mode)
Operating Temperature Range (Board Circuitry and Batteries)
-18°C to 55°C (0°F to 130°F) using alkaline
-40°C to 85°C (-40°F to 185°F) using lithium **
Optimal Battery Temperature Range (AA)
Power Options
+10°C to +50°C ( +50°F to +122°F )
1.5V AA batteries (included)
Line-power w/ AA battery backup option available
Humidity Sensor
Accuracy
± 3% under normal conditions ( 10% - 90% RH ) ***
RH Operating Range
RH Response Time
Wireless Range
Security
Integrated Memory
Weight
Certifications
0 – 100% RH ***
8 sec ( tau 63% ) ***
1,000+ ft. (through 12+ walls or ceilings / non line-of-sight)
Encrypt-RF™ (256-bit key exchange and AES-128 CTR)
Up to 512 sensor messages
3.7 Ounces
900 MHz product
Industry
Canada
FCC ID: ZTL- G2SC1
IC: 9794A-G2SC1
*
Hardware cannot withstand negative voltage. Please take care when connecting a power device.
**
At temperatures above 100°C, it is possible for the board circuitry to lose programmed memory.
*** View charts contained in the verbose version of the product’s datasheet at Monnit.com.
Click here for
complete data sheet
Principle of Operation
The ALTA Wireless Humidity (RH)
Sen-sor allows you to accurately
monitor the relative humidity of the air
within a room or enclosure.
Measures relative humidity, tempera-
ture and dew point with high accuracy.
Options & Add-ons
Power Options
Durability Grades
♦♦
AA Battery
♦♦
Industrial
◊◊ Line Power (optional,
(Outdoors, weather &
w/ AA backup)
shock proof casing)
♦♦
Coin Cell Battery
♦♦
Commercial
(smaller form factor)
(Indoors, AA and
Coin Cell)
♦♦
Industrial
Operating Frequencies
(replaceable lithium)
♦♦
900 MHz
◊◊ Solar (optional, w/
Lithium battery backup)

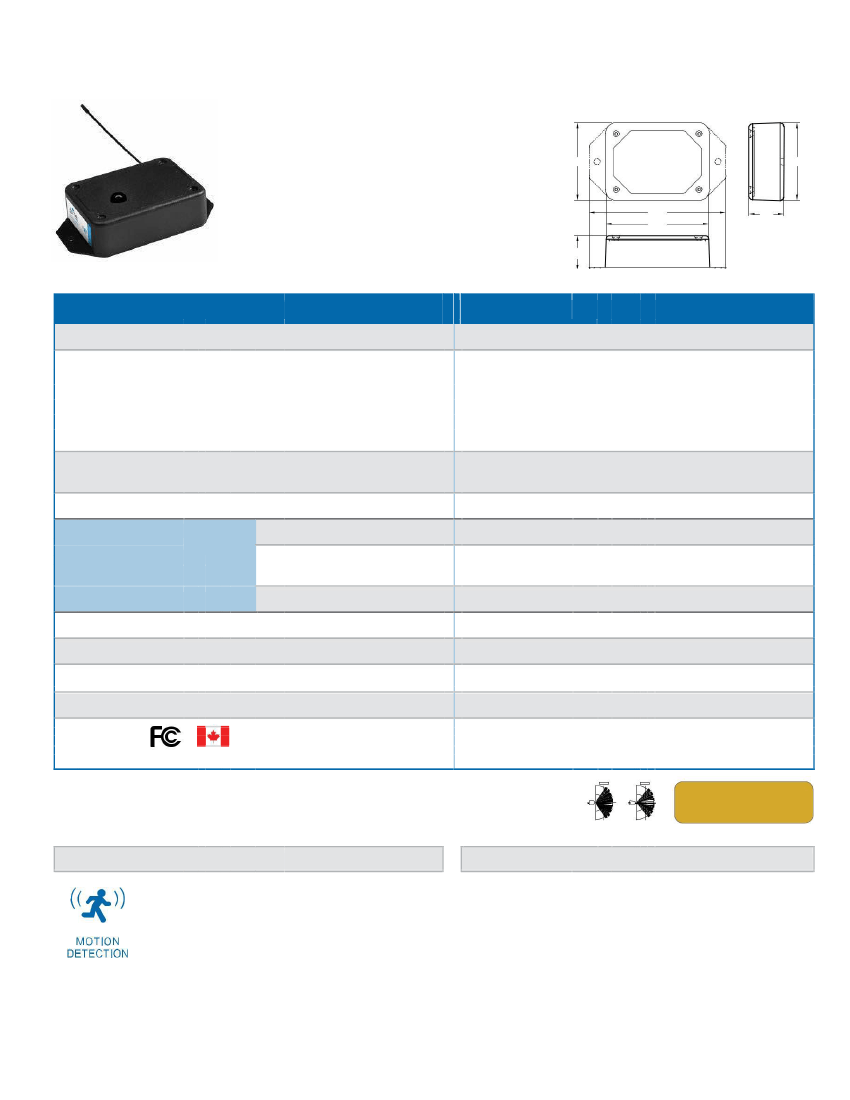

ALTA Wireless Motion Sensor
(AA)
The wireless motion detection sensor uses an
infrared sensor to accurately detect movements
made by people, animals or other things within
16.4 ft (5 m) range.
Up to 10-Year Battery Life
♦
2.470
2.470
AA Battery Powered
1.111
4.375
3.295
1.111
Technical Specifications
Supply Voltage
Current Consumption
2.0 - 3.8 VDC (3.0 - 3.8 VDC Using Power Supply) *
0.2 µA (Sleep Mode)
0.7 µA (RTC Sleep)
570 µA (MCU Idle)
2.5 mA (MCU Active)
5.5 mA (Radio RX Mode)
22.6 mA (Radio TX Mode)
Operating Temperature Range (Board Circuitry and Batteries)
-18°C to 55°C (0°F to 130°F) using alkaline
-40°C to 85°C (-40°F to 185°F) using lithium **
Optimal Battery Temperature Range (AA)
PIR Motion
Sensor
Detection Range
Reted Consumption Current
(Standby)
Warmup Time
Wireless Range
Security
Integrated Memory
Weight
Certifications
+10°C to +50°C ( +50°F to +122°F )
16.4 ft (5 m)
Typical: 170 μA,
Max: 300 μA
30 Seconds
1,000+ feet (through 12+ walls or ceilings / non line-of-sight)
Encrypt-RF™ (256-bit key exchange and AES-128 CTR)
Up to 512 sensor messages
3.7 Ounces
900 MHz product
Industry
Canada
FCC ID: ZTL- G2SC1,
IC: 9794A-G2SC1
*
**
Hardware cannot withstand negative voltage. Please take care when connecting a power device.
At temperatures above 100°C, it is possible for the board circuitry to lose programmed memory.
Click here for
complete data sheet
Principle of Operation
The wireless motion detection sensor uses an
infrared sensor to accurately detect movements
made by people/animals within 16.4 ft (5 m) range.
The Wireless Motion Detection Sensor detects
motion and movement using infrared technology.
When the sensor detects movement it communi-
cates with the iMonnit Online Sensor Monitoring
and Notification System. Notifications can be set
up through the online system to alert the user
when motion has been detected.
Options & Add-ons
Power Options
Durability Grades
♦
AA Battery
♦
Industrial
◊ Line Power (optional,
(Outdoors, weather &
w/ AA backup)
shock proof casing)
♦
Coin Cell Battery
♦
Commercial
(smaller form factor)
(Indoors, AA and
Coin Cell)
♦
Industrial
(replaceable lithium)
◊
Operating Frequencies
♦
900 MHz
Solar (optional, w/
Lithium battery backup)

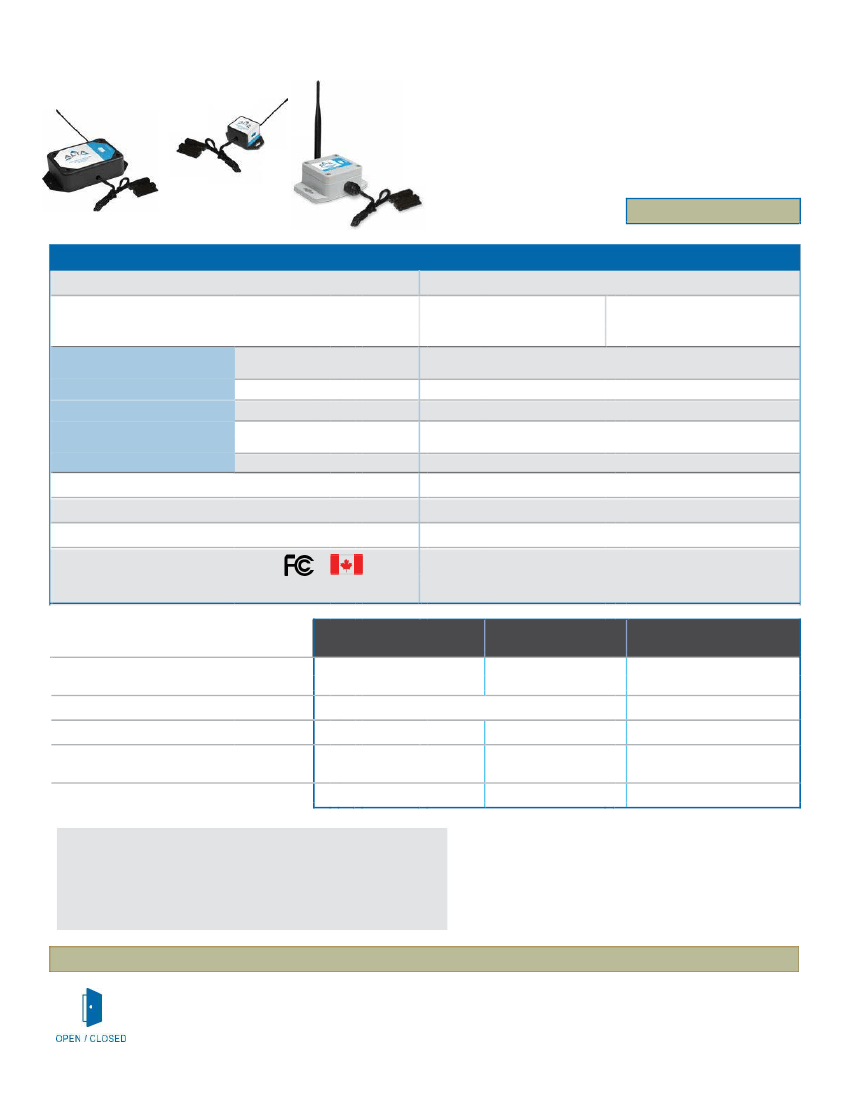

ALTA Wireless OPEN / CLOSED Sensors
Coin Cell
AA Battery (x2)
Industrial /
3.6V Lithium
10-year
5-year
10-year
The ALTA Wireless Open / Closed Sensor uses a
magenetic switch to detect when a door or window is
opened or closed. The position of the contact
provides the system data that can be purposed for
applications such as access control, occupancy
monitoring, energy management, etc.
Data Sheet (short version)
click here for long version
Technical Specifications
Supply Voltage
Current Consumption
2.0 - 3.8 VDC (3.0 - 3.8 VDC Using Power Supply) *
0.2 µA (Sleep Mode)
0.7 µA (RTC Sleep)
570 µA (MCU Idle)
Magnetic Switch
Operational Gap
Wire Leads
Magnet
Temperature Range (Magnet)
Wireless Range (900 MHz)
Security
Integrated Memory
Certifications
2.5 mA (MCU Active)
5.5 mA (Radio RX Mode)
22.6 mA (Radio TX Mode)
Magnet Contact
SPST, gold under -plating with Deactivated Rhodium outer-plating
(capable of 50 million activations)
Up to 0.75”
22 gauge / 15 inch length
Alnico magnet / Weatherproof,
high-impact ABS plastic covering with self-adhesive backing
-15° to 160°F (-25° to 70°C)
1,000’+ (through 12+ walls or ceilings / non line-of-sight)
Encrypt-RF™ (256-bit key exchange and AES-128 CTR)
Up to 512 sensor messages
Industry
Canada
900 MHz product - FCC ID: ZTL- G2SC1
IC: 9794A-G2SC1
UL Listed (Industrial): UL508-4x specifications (File E194432)
Industrial 3.6V Lithium
(1800 mAh capacity)
-40° to +185°F
(-40° - 85°C)**
-40° to +85°C (-40° to +185°F)
4.7 oz.
IP65, NEMA 4X, CE, sealed,
weather & shock proof
3.701” x 2.316” x 1.378”
Power Options / Form Factors
AA Batteries
Coin Cell
20° to +140°F,
(-7° - 60°C) **
Operating Temperature Range 0° to 130°F (-18°-55°C) alkaline,
(board circuitry + batteries) ** -40° to 185°F (-40° - 85°C) lithium
Optimal Operating Temperature Range (batteries) **
Weight
Enclosure
Dimensions (click
#s
to view dimensional drawings)
+10° to +50°C (+50° to +122°F)
3.7 oz.
High impact ABS Plastic
4.375” x 2.470” x 1.120”
0.7 oz.
High impact ABS Plastic
(w/ PinchPower enclosure)
2.000” x 1.125” x 0.875”
* Hardware cannot withstand negative voltage. Please take care
when connecting a power device.
** At temperatures above 100°C, it is possible for the board circuitry
to lose programmed memory.
Solar-Powered Option (available with “Industrial” version only)
Solar Panel:
5VDC / 30mA (53mm x 30mm)
Charging Temperature Range:
0° to 45°C (32° to 113°F)
Max. Temperature Range:
-20° to 60°C (-4° to 140°F)
Rechargeable Battery (Included):
600 mAh / >2000 Charge
Cycles (80% of initial capacity)
Principle of Operation
The ALTA Open / Closed Sensor uses an external magnetic switch to detect the presence or
removal of a trigger magnet. When the sensor detects that the magnet is removed or returned, it
sends the information to the iMonnit Online Sensor Monitoring and Notification System. The data
is stored in the online system and can be reviewed and exported. Notifi - cations can be setup
through the online system to alert the user when a magnetic source is present or not present -
with the ability to specify notifications within time-of-day parameters.
Get IoT Started
801-561-5555
info@monnit.com
www.monnit.com

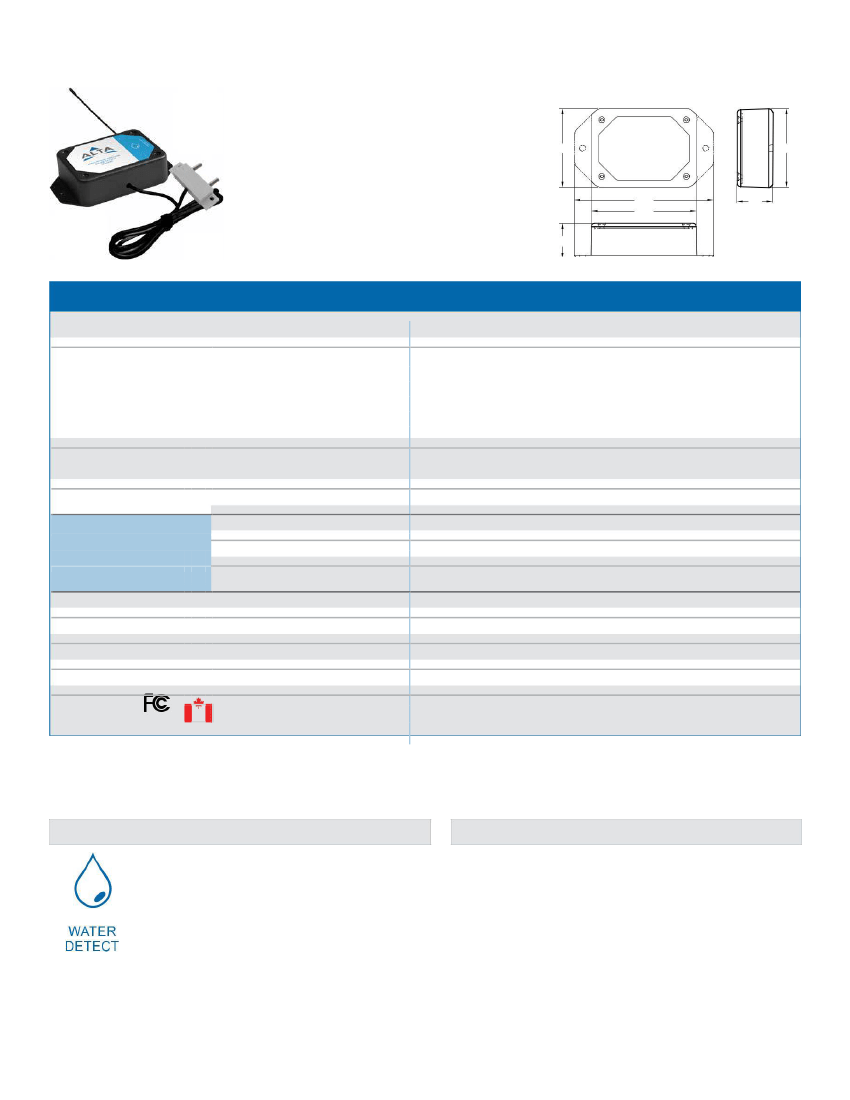

ALTA Wireless Water Detect Plus Sensor
(AA)
Sensor immediately detects presence
or non-presence of water.
♦♦
3 ft. lead wire / water detection probe
♦♦
Mounting tabs for positioning at set
level above floor to prevent false positives
AA Battery Powered
♦♦
Up to 10-Year Battery Life
2.470
2.470
4.375
3.295
1.111
1.111
Technical Specifications
Supply Voltage
Current Consumption
2.0 - 3.8 VDC (3.0 - 3.8 VDC Using Power Supply) *
0.2 µA (Sleep Mode)
0.7 µA (RTC Sleep)
570 µA (MCU Idle)
2.5 mA (MCU Active)
5.5 mA (Radio RX Mode)
22.6 mA (Radio TX Mode)
Operating Temperature Range (Board Circuitry and Batteries)
-18°C to 55°C (0°F to 130°F) using alkaline
-40°C to 85°C (-40°F to 185°F) using lithium **
Optimal Battery Temperature Range (AA)
Water Detect Plus
Sensor
Probe Wire Length
Probe End
Detection Wires
Wireless Range
Security
Integrated Memory
Weight
Certifications
+10°C to +50°C ( +50°F to +122°F )
3 ft. ( 36 in.)
2 prong conductive detector
High Impedance
1,000+ ft. (through 12+ walls or ceilings / non line-of-sight)
Encrypt-RF™ (256-bit key exchange and AES-128 CTR)
Up to 512 sensor messages
3.7 Ounces
900 MHz product FCC ID: ZTL- G2SC1,
IC: 9794A-G2SC1
Industry
Canada
*
Hardware cannot withstand negative voltage. Please take care when connecting a power device.
** At temperatures above 100°C, it is possible for the board circuitry to lose programmed memory.
Principle of Operation
The ALTA Wireless Water Detection Plus Sensor
detects when water is present by completing the
circuit between the two prongs at the end of the
water probe. When water is present the sensor
will immediately turn on the RF radio and trans-mit
the data to the wireless gateway and iMonnit
Online Sensor Monitoring and Notification
System, allowing the user to immediately receive
an SMS text or email alert. The sensor can be
configured to detect both the presence and non-
presence of water.
Options & Add-ons
Power Options
Durability Grades
♦♦
AA Battery
♦♦
Industrial
◊◊ Line Power (optional,
(Outdoors, weather &
w/ AA backup)
shock proof casing)
♦♦
Coin Cell Battery
♦♦
Commercial
(smaller form factor)
(Indoors, AA and
Coin Cell)
♦♦
Industrial
(replaceable lithium)
Operating Frequencies
♦♦
900 MHz
◊◊ Solar (optional, w/
Lithium battery backup)
京公网安备 11010802033920号
EEWORLD
