MAX5258 Evaluation Kit
General Description
The MAX5258 evaluation kit (EV kit) provides a proven
design to evaluate the MAX5258 low-power, 8-bit octal,
digital-to-analog converter (DAC). The EV kit also
includes Windows
®
2000/XP- and Windows Vista
®
-com-
patible software that provides a simple graphical user
interface (GUI) for exercising the features of the
MAX5258.
The MAX5258 EV kit PCB comes with a MAX5258EEE+
installed. This EV kit can also be used to evaluate the
MAX5259EEE+ low-power 8-bit octal DAC (2.7V to 3.6V).
Contact the factory for free samples of the
MAX5259EEE+.
Features
o
Windows 2000/XP- and Windows Vista
(32-Bit)-Compatible Software
o
Supports Standard SPI™ Interface
o
USB-PC Connection (Cable Included)
o
USB Powered
o
16-Pin DAC Output Signal Header
o
Proven PCB Layout
o
Lead-Free and RoHS Compliant
o
Fully Assembled and Tested
Evaluates: MAX5258/MAX5259
Ordering Information
PART
MAX5258EVKIT+
TYPE
EV Kit
+Denotes
lead-free and RoHS compliant.
Component List
DESIGNATION
C1, C3–C10,
C17, C25, C27,
C28, C29, C31,
C32, C34, C35,
C36, C37
C2, C13, C15,
C26, C33
QTY
DESCRIPTION
0.1µF
±10%,
16V X7R ceramic
capacitors (0603)
TDK C1608X7R1C104K
10µF
±20%,
6.3V X5R ceramic
capacitors (0805)
TDK C2012X5R0J106M
10pF ±5%, 50V C0G ceramic
capacitors (0603)
TDK C1608C0G1H100J
1µF ±20%, 6.3V X5R ceramic
capacitors (0603)
TDK C1608X5R0J105K
TDK C1608X5R0J105M
22pF ±5%, 50V C0G ceramic
capacitors (0603)
TDK C1608C0G1H220J
3300pF ±10%, 50V X7R ceramic
capacitor (0603)
TDK C1608X7R1H332K
4.7µF ±20%, 16V X7R ceramic
capacitor (1206)
TDK C3216X7R1C475M
Green LED (0603)
0Ω ±5% resistor (0603)
DESIGNATION
H1
H2
H3
JUA–JUE
JU1–JU5
JU6, JU7
P1
R1
R2
R3
R4
R5
R6, R7
R8–R15
R16
U1
U2
U3
5
20
QTY
0
1
1
0
5
2
1
1
1
1
1
1
2
8
0
1
1
1
DESCRIPTION
Not installed, 10-pin JTAG header
Dual-row (2 x 8) 16-pin header
Dual-row (2 x 5) 10-pin header
Not installed
3-pin headers
4-pin headers
USB type-B right-angle female
receptacle
0Ω ±5% resistor (0603)
220Ω ±5% resistor (0603)
10kΩ ±5% resistor (0603)
2.2kΩ ±5% resistor (0603)
1.5kΩ ±5% resistor (0603)
27Ω ±5% resistors (0603)
100kΩ ±5% resistors (0603)
Not installed, resistor (0402)
Octal low-power DAC (16 QSOP)
Maxim MAX5258EEE+
Microcontroller (68 QFN-EP*)
Maxim MAXQ2000-RAX+
93C46 type 3-wire EEPROM (8 SO)
16-bit architecture
C11, C12
2
C14, C16
2
C18, C19
2
C20
1
C30
D1
FB1
1
1
1
*EP
= Exposed pad.
Windows and Windows Vista are registered trademarks of
Microsoft Corp.
SPI is a trademark of Motorola, Inc.
________________________________________________________________
Maxim Integrated Products
1
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642,
or visit Maxim’s website at www.maxim-ic.com.
MAX5258 Evaluation Kit
Evaluates: MAX5258/MAX5259
Component List (continued)
DESIGNATION
U4
U5
QTY
1
1
DESCRIPTION
UART-to-USB converter (32 TQFP)
3.3V regulator (5 SC70)
Maxim MAX8511EXK33+T
(Top Mark: AEI)
2.5V regulator (5 SC70)
Maxim MAX8511EXK25+T
(Top Mark: ADV)
+4.096V voltage reference (8 SO)
Maxim MAX6126AASA41+
Dual 1.8V to 5V level translators
(8 SSOP)
(Top Mark: CT2_)
16MHz crystal (HCM49)
Hong Kong X’tals
SSM1600000E18FAF
6MHz crystal (HCM49)
Hong Kong X’tals
SSL6000000E18FAF
Shunts
USB high-speed A-to-B cable, 6ft
PCB: MAX5258 Evaluation Kit+
Quick Start
Required Equipment
Before beginning, the following equipment is needed:
• MAX5258 EV kit (USB cable included)
•
•
•
A user-supplied Windows 2000/XP- or Windows
Vista-compatible PC with a spare USB port
Two digital voltmeters (DVMs)
USB powered. Use optional external power supply
for enhanced performance.
U6
1
U7
1
U8, U9, U10
3
Note:
In the following sections, software-related items
are identified by bolding. Text in
bold
refers to items
directly from the EV kit software. Text in
bold and under-
lined
refers to items from the Windows operating system.
Procedure
The MAX5258 EV kit is fully assembled and tested.
Follow the steps below to verify board operation:
1) Visit
www.maxim-ic.com/evkitsoftware
to down-
load the latest version of the EV kit software,
5258Rxx.ZIP. Save the EV kit software to a tempo-
rary folder and uncompress the ZIP file.
2) Install the EV kit software on your computer by run-
ning the INSTALL.EXE program inside the tempo-
rary folder. The program files are copied and icons
are created in the Windows
Start | Programs
menu.
3) Verify that all jumpers (JU1–JU7) are in their default
positions, as shown in Table 1.
4) Connect the USB cable from the PC to the EV kit
board. A
New Hardware Found
window pops up
when installing the USB driver for the first time. If
you do not see a window that is similar to the one
described above after 30 seconds, remove the USB
cable from the board and reconnect it.
Administrator privileges are required to install the
USB device driver on Windows.
5) Follow the directions of the
Add New Hardware
Wizard
to install the USB device driver. Choose the
Search for the best driver for your device
option.
Specify the location of the device driver to be
C:\Program Files\MAX5258
(default installation
directory) using the
Browse
button. During device
driver installation, Windows may show a warning
message indicating that the device driver Maxim
uses does not contain a digital signature. This is not
an error condition and it is safe to proceed with
installation. Refer to the USB_Driver_Help.PDF doc-
ument included with the software for additional
information.
Y1
1
Y2
—
—
—
1
7
1
1
*EP
= Exposed pad.
Component Suppliers
SUPPLIER
Hong Kong
X’tals Ltd.
TDK Corp.
PHONE
WEBSITE
852-35112388 www.hongkongcrystal.com
847-803-6100
www.component.tdk.com
Note:
Indicate that you are using the MAX5258 or MAX5259
when contacting these component suppliers.
MAX5258 EV Kit Files
FILE
INSTALL.EXE
MAX5258.EXE
FTD2XX.INF
UNINST.INI
DESCRIPTION
Installs the EV kit files on your
computer
Application program
USB device driver file
Uninstalls the EV kit software
USB_Driver_Help.PDF USB driver installation help file
2
_______________________________________________________________________________________
MAX5258 Evaluation Kit
6) Start the MAX5258 EV kit software by opening its
icon in the
Start | Programs
menu. When the
Part
Selection
window appears, click on the
MAX5258
radio button and then press the
Next
button. The
EV kit software main window appears, as shown in
Figure 1.
7) To measure the OUTA voltage, connect the first
DVM between H2-1 (OUTA) and H2-2 (GND).
8) To measure the OUTB voltage, connect the second
DVM between H2-3 (OUTB) and H2-4 (GND).
9) Verify that the voltage on both DVMs is approxi-
mately 0V.
10) Enter
0x3F
into the
D7 - D0 (Shift Register Data
Bits)
edit box.
11) Press the
Load All DACs
button.
12) Verify that the voltage shown on both DVMs is
approximately 1V.
Evaluates: MAX5258/MAX5259
Detailed Description of Software
The main window of the evaluation software (shown in
Figure 1) displays the voltages and codes for all DAC
input and output registers. In addition, the main window
has two tabs. The
Load DACs
tab sheet controls all of
the DAC loading features of the MAX5258. The

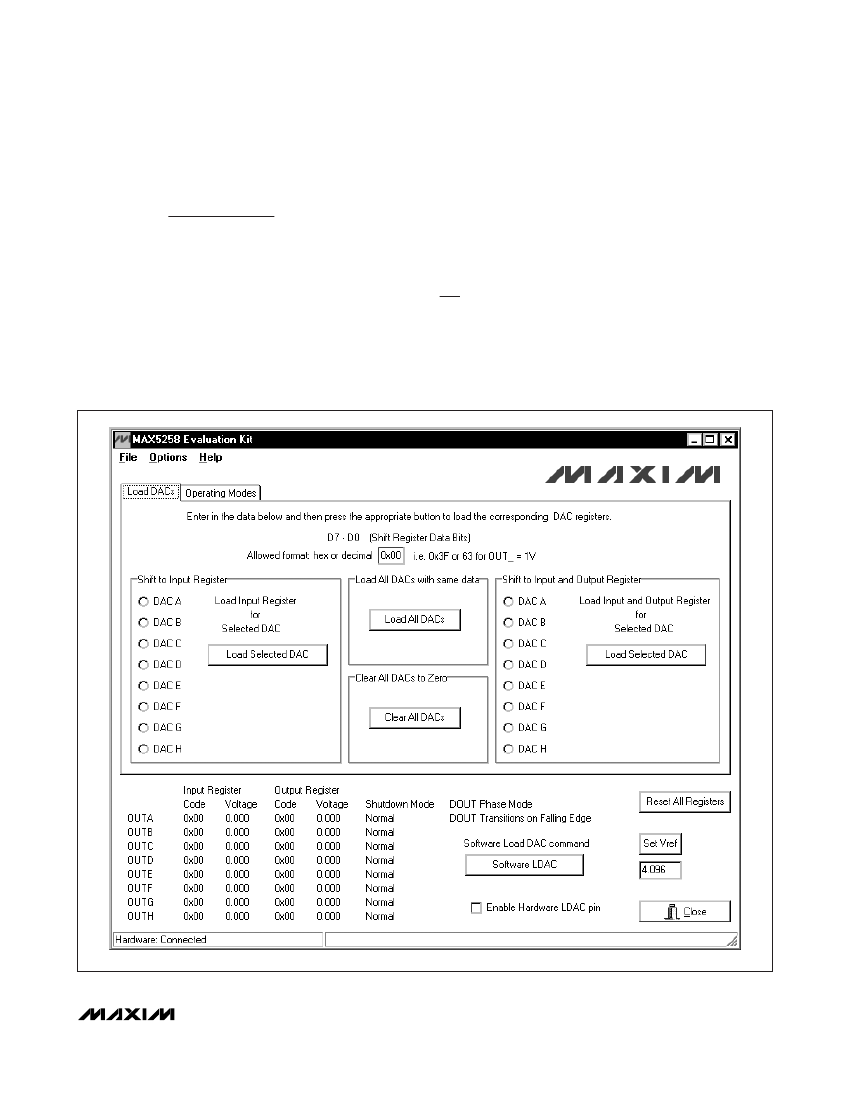

Figure 1. MAX5258 EV Kit Software Main Window (Load DACs Tab)
_______________________________________________________________________________________
3
MAX5258 Evaluation Kit
Evaluates: MAX5258/MAX5259
Operating Modes
tab sheet (shown in Figure 2) con-
trols all of the DAC modes of the MAX5258. The
Load
Setting(s)
buttons must be pressed to write the corre-
sponding mode settings to the DAC(s).
Software Reset
Press the
Reset All Registers
button to reset the
MAX5258’s registers and GUI to the power-on-reset
(POR) state. This can be done at any time and is highly
recommended after using the
Advanced User
Interface
window (Figure 3).

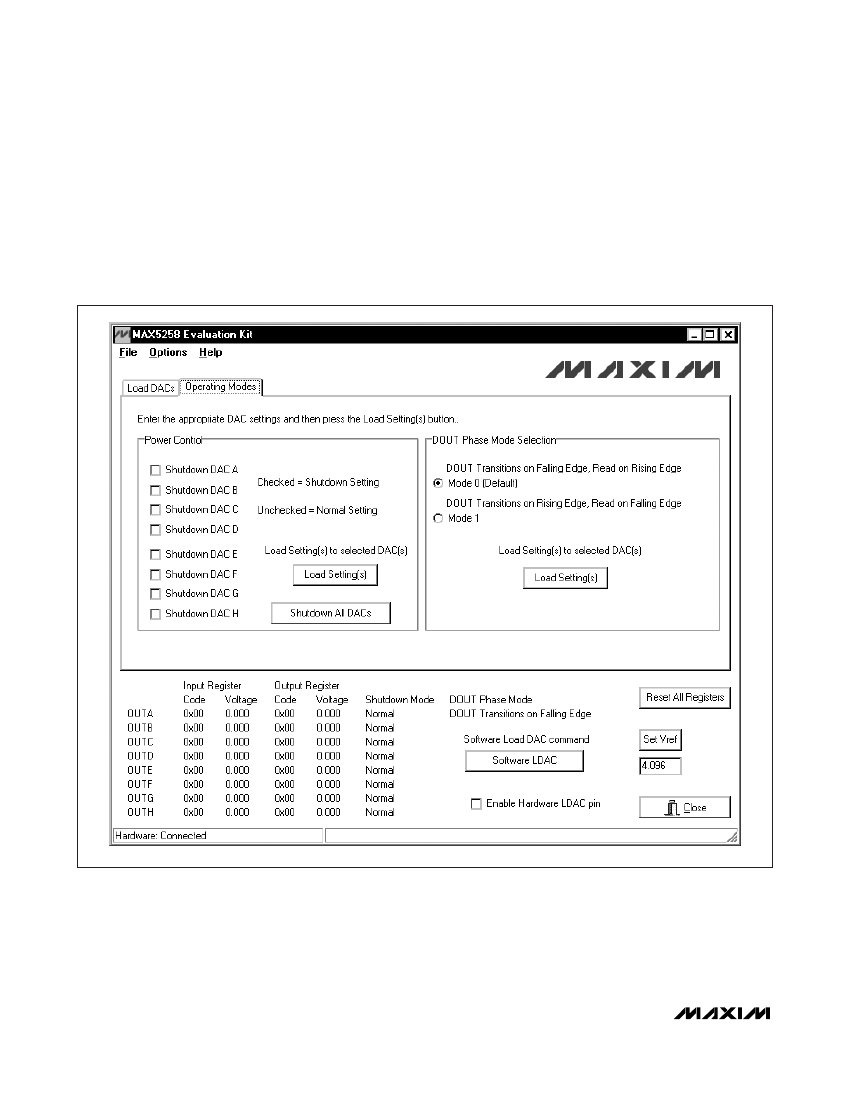

Figure 2. MAX5258 EV Kit Software Main Window (Operating Modes Tab)
4
_______________________________________________________________________________________
MAX5258 Evaluation Kit
Advanced User Interface
A manual serial interface can be established by advanced
users by selecting
Options | Interface (Advanced Users)
from the menu bar.
For SPI, click on the
3-wire interface
tab (shown in
Figure 3). Enter data into the
Data bytes to be written:
edit box and press the
Send Now
button.
Detailed Description of Hardware
The MAX5258 EV kit provides a proven layout for the
MAX5258. An on-board analog output signal header
(H2), an on-board digital input/output signal header
(H3), and jumpers to disconnect the on-board micro-
controller are all included on the EV kit.
Evaluates: MAX5258/MAX5259

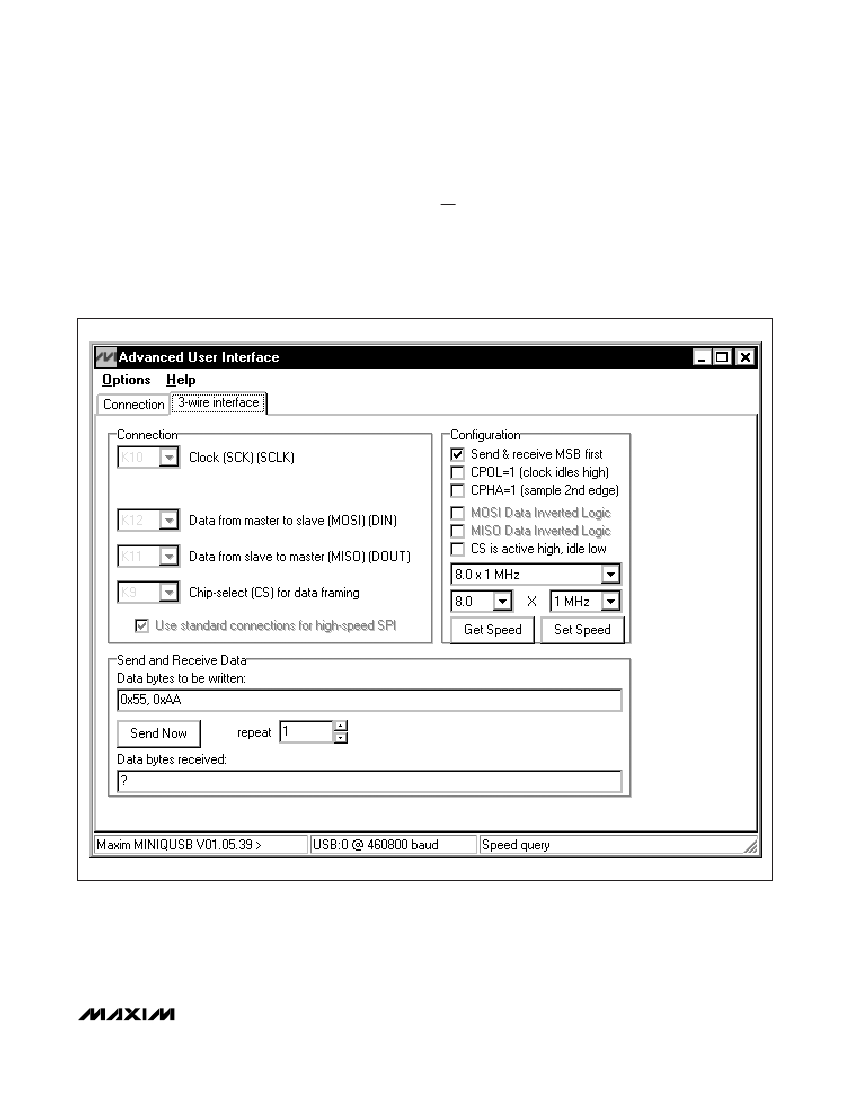

Figure 3. Advanced User Interface Window (3-Wire Interface Tab)
_______________________________________________________________________________________
5
