Gigabit PCIe Fiber Network
Interface Card
956-22600 Series
•
•
•
•
•
TAA compliant
Plug-and-Play support
Preboot execution environment (PXE) 2.1
Supports IPv4 and IPv6
VLAN Filtering and Quality of Service
(QoS)
• Checksum offload (IP, TCP, UDP) and Large Send
Offload
• Supports Single-Mode and Multi-Mode Fiber
PRODUCT FEATURES
ORDERING INFORMATION
MODEL NUMBER
DESCRIPTION
956-22600
956-22601
1000 BASE-SX/LX SFP
1000BASE-SX (SC) 850 MULTI-MODE FIBER GIGABIT
ETHERNET ADAPTER
1000BASE-SX (SC) 1310 SINGLE-MODE FIBER GIGABIT
956-22603
ADAPTER (10KM)
INCLUDED IN THE PACKAGE

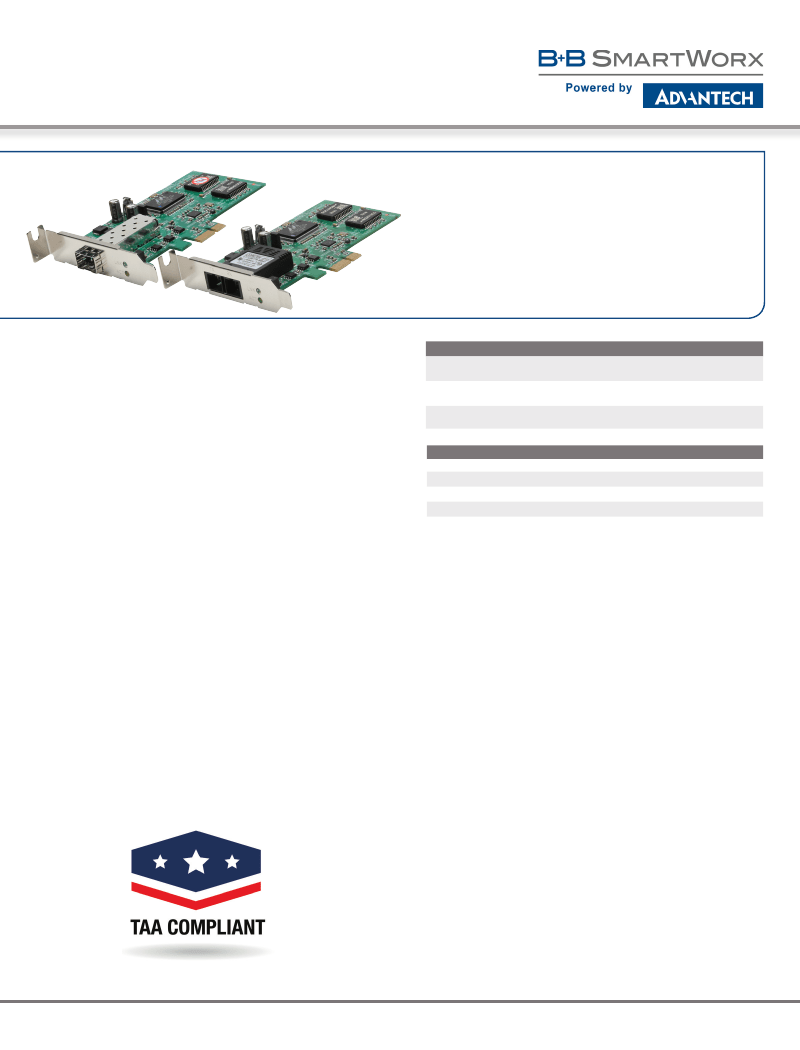

PCIe Gigabit Fiber NIC
Low Profile Bracket
Standard Profile Bracket
CD with Drivers
Introduction
Advantech B+B SmartWorx Gigabit PCIe Fiber Network Interface
Cards (NIC) provide high-speed, and reliable network performance to
the desktop and servers, making them perfect for government and
education networks. The Gigabit PCIe Fiber Network Interface Cards
fully comply with IEEE 802.3z and 1000Base SX/LX standards for Fiber.
The Gigabit PCIe Fiber Network Interface Card cards provide advanced
features to that meet the growing demand of IT Engineers and fit into
virtually any network architecture.
Advanced Capabilities
With integrated state-of-the-art DSP technology, these cards provide
high-speed robust transmission and large-sends offloading host CPU
from processing checksums and Large Sends, while supporting Ethernet
VLAN tagging, and L2 priority encoding IEEE 802.1P Layer 2 Priority,
and Quality of Service (QoS). Preboot Execution Environment (PXE)
support on Fiber NIC gives the NIC the ability to execute PXE protocol on
the client machines. In addition, the NIC supports ASF (Alert Standard
Format) 2.0 used in remote system management standards.
Secure Connectivity
Placing a fiber NIC card in a computer and giving it a direct fiber link to
the network’s fiber backbone makes the physical connection far more
secure. That’s why institutions with enhanced security needs take fiber
all the way to the desktop. You can’t tap into a beam of light.
www.advantech-bb.com
/
Enabling an Intelligent Planet
All product specifications are subject to change without notice.
Fiber_NIC_3216ds.
Gigabit PCIe Fiber Network Interface
Card
956-22600 Series
SPECIFICATIONS
TECHNICAL STANDARDS
IEEE802.3z, 1000BASE-SX/LX
IEEE 802.3ab
IEEE802.1Q, VLAN tagging
IEEE802.1p, Priority Encoding, QoS
IEEE802.3x, Full duplex flow control
IPv4, IPv6
Jumbo Frame
9K bytes
PCIe1.1
DRIVER SUPPORT
Windows Vista, Windows 2003, Windows XP, Windows 7/8
Linux 2.4/2.6/3.x, UNIX 5.0.6 and 5.0.7
MacOS 10.4, 10.5, 10.6, and 10.7 (Intel-based)
2000Mbps full-duplex
REMOTE MONITORING
SNMP v1
Supports ASF (Alert Standard)
HARDWARE ACCELERATION
Checksum OffLoad (IP, TCP,UDP)
Large Send OffLoad (V1, V2)
INTERFACE
Fiber Port Gigabit fiber, SM or MM
PERFORMANCE
1,488,100pps for 1000Mbps
LED INDICATORS
LED Connector: Link/Activity, SPD
ENVIRONMENTAL
Operating Temperature
Storage Temperature
Ambient Relative Humidity
POWER
3.3VDC, 970mA, 3.2W Max.
MECHANICAL
Low Profile Dimensions
Standard Profile Dimensions
EMISSIONS
FCC Part 15, Class B
CE, VCCI Class B
80W x 117.6D mm
(3.2W x 4.7D inches)
117.5W x 117.6D mm
(4.7W x 4.7D inches)
0°C to 45°C (32°C to 113°C)
-20°C to 70°C (-4°C to 158°C)
5%-95% non-condensing

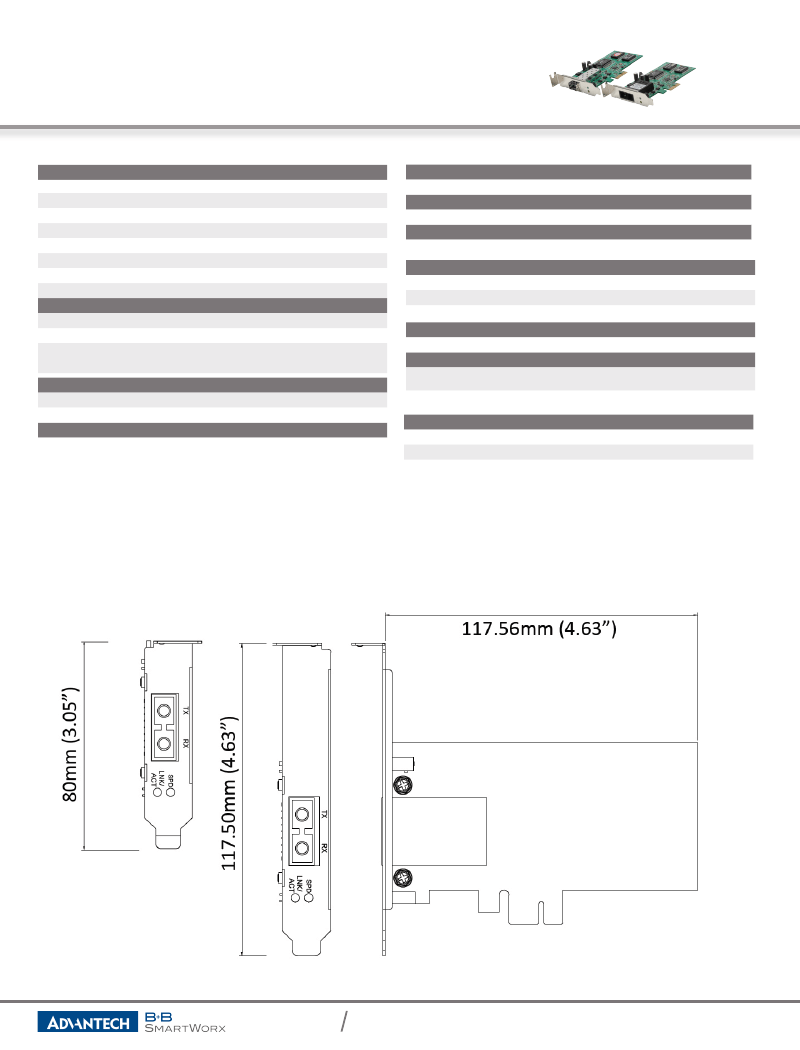

MECHANICAL DIAGRAM
Low Profile Version
