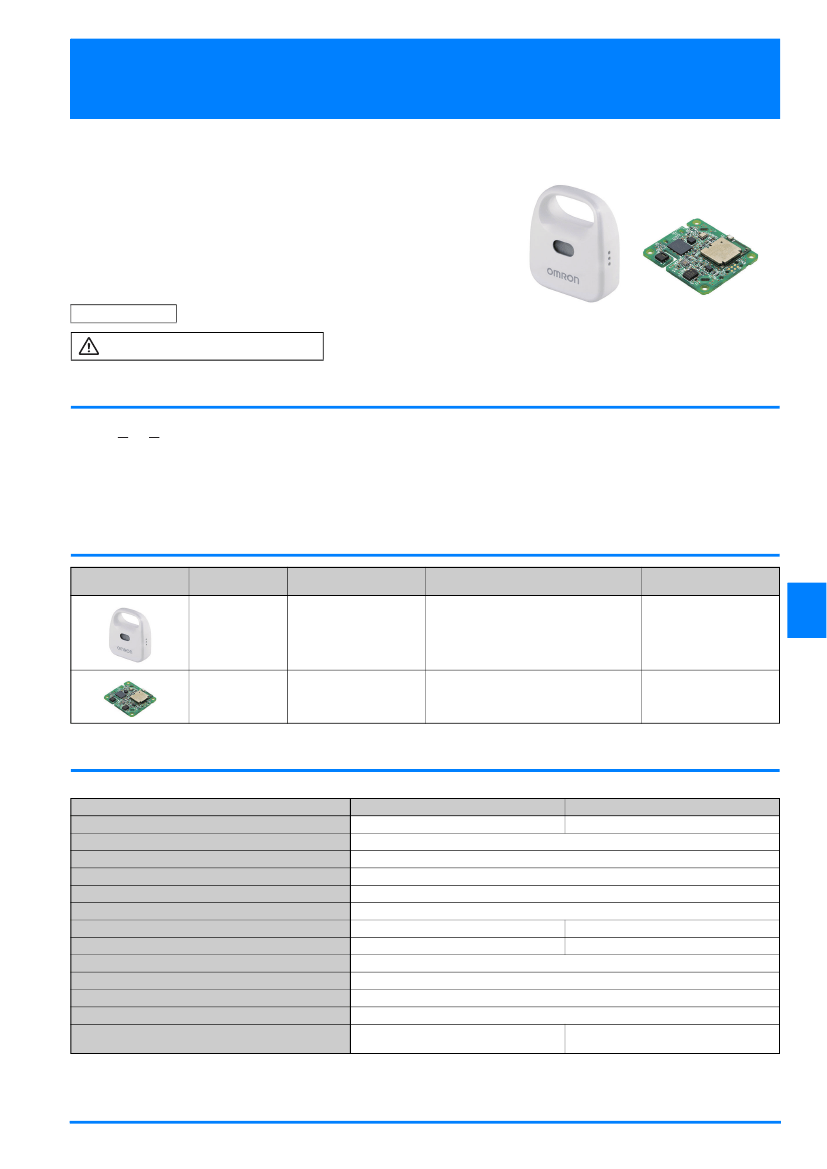

2JCIE-BL
Environment Sensor
Sense a variety of environmental
information
• Includes six sensors, wireless functionality, and built-in battery
• Adopts Bluetooth low energy beacon technology
for simple construction of a 1:n sensor network
• Embedded memory for data loss prevention
• Lineup including PCB models
RoHS compliant
Refer to
Safety Precautions
on page 4.
Model Number Structure
2JCIE-@01-@
(1)
(2)
(1) Communication interface
BL: BLE
(2) Appearance
None : Bag model
P1
: PCB model
Ordering Information
Appearance
Model
Communication interface
Output data
Minimum packing unit
(Unit: pcs)
2JCIE-BL01
Bluetooth
*1
low energy
2JCIE-BL01-P1
Bluetooth
*1
low energy
Temperature, Humidity, Light, UV index
*2
,
Barometric pressure, Sound noise, Discomfort
index
*3
, Heat stroke warning level
*3
1
Specifications
Ratings
Item
Power Supply
Sensors
Interface
Communication Range
Operating Temperature
Operating Humidity
Dimensions
Weight
Absolute maximum ratings
Absolute maximum ratings
Absolute maximum ratings
Recommended operating condition
Battery Life
Power supply
Output current
Temperature
Power supply
Model
2JCIE-BL01
3 VDC (Lithium battery CR2032 × 1)
3 VDC
2JCIE-BL01-P1
Temperature, Humidity, Light, UV index
*2
, Barometric pressure, Sound noise
Bluetooth
®
low energy
*1
: GAP advertisement/Custom GATT profile
Approx. 10 m
*4
−10
to 60°C
30 to 85%RH
Approx. 46.0 × 39.0 × 15.0 mm
Approx. 16 g (incl. battery)
−0.3
to 3.6 V
±20 mA
−20
to 70°C
2.7 to 3.3 V
Approx. 6 months
*4
(5 min. measurement
interval/one time per day connection)
-
Approx. 27.2 × 24.0 × 1.0 mm
Approx. 2.5 g
1

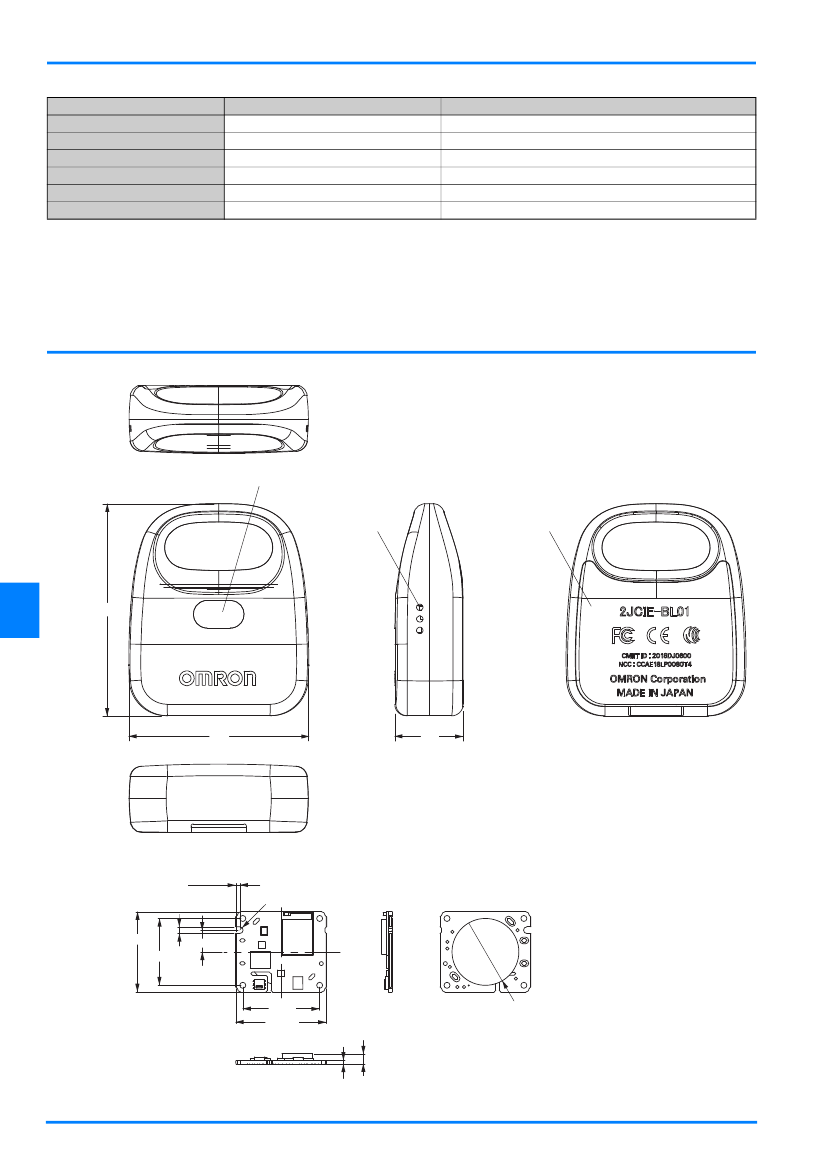

2JCIE-BL
Temperature, Humidity, Light, UV index
*2
,
Barometric pressure, Sound noise, Discomfort
index
*3
, Heat stroke warning level
*3
1
2JCIE-BL
Safety Precautions
To assure the correct use of the product basic safety measures
should always be followed including the warnings and cautions
listed in this document.
Environment Sensor
Precautions for Correct Use
<2JCIE-BL01>
• Batteries are not a part of your regular household waste.
You must return batteries to your municipality
’
s public collec-
tion or wherever batteries of the respective type are being
sold.
• Dispose of the unit, battery, and components according to
applicable local regulations.
Unlawful disposal may cause environmental pollution.
<Common>
• Do not disassemble or modify the unit.
• Do not subject the unit to strong shocks or vibrations, drop it,
step on it.
• Do not apply a strong force, twist, deflection and mechanical
stress on the ring portion.
• Do not immerse the unit or any of the components in water.
The unit is not waterproof. Do not wash it or touch it with wet
hands. Be careful that water does not get into the unit.
• Depending on the surrounding environment and the mounting
position, the measured characteristic may vary. The measured
values must be treated as a reference.
1. Do not subject the unit to extreme temperatures, humidity,
moisture, or direct sunlight.
2. Do not subject the unit to water, oil or chemical materials.
3. Do not use the unit where it will be exposed to dew conden-
sation.
4. Do not use the unit where it will be exposed to flammable
gas or corrosive vapors.
5. Do not use the unit where it will be exposed to dust, saline
matter or iron powder.
• This Product operates in the unlicensed ISM band at 2.4 GHz.
In case this Product is used around the other wireless devices
including microwave and wireless LAN, which operate same
frequency band of this Product, there is a possibility that inter-
ference occurs between this Product and such other devices.
• If such interference occurs, please stop the operation of other
devices or relocate this Product before using this Product or
do not use this Product around the other wireless devices.
• Due to the use of radio waves, third parties may intercept
transmissions either deliberately or accidentally. Do not use
this Product for matters related to vital secrets or human lives.
• Application examples provided in this document are just for
reference. In actual applications, confirm its functions, limita-
tions and safety before using this Product.
Acknowledgement
This work was funded by ImPACT Program of Council for Sci-
ence, Technology and Innovation (Cabinet Office, Govern-
ment of Japan).
Program: "Innovative Cybernic System for a ZERO Intensive
Nursing-care Society" (Program Manager: Yoshiyuki Sankai)
Warning
Warning: Improper use may result in death or serious injury.
<2JCIE-BL01>
• Keep the battery out of the reach of young children.
If young children swallow the battery, immediately consult a
doctor.
• Do not throw the battery into fire.
The battery may explode.
<Common>
• In places where radio communications are prohibited, remove
the battery to turn off the Bluetooth
.
• Do not place the unit closer than 22 cm (9 inches) from implant-
able medical devices such as pacemakers.
• Keep the unit out of the reach of young children.
If young children swallow any small piece, immediately consult
a doctor.
• Please stop using the unit immediately, if there is strange
smell or smoke from the unit.
• Do not subject the unit to extreme temperatures, humidity,
moisture, or direct sunlight. Internal condensation due to severe
change in temperature may cause malfunction.
• In high temperature or low temperature environment, battery
life may be extremely short due to the characteristics of the
battery used.
• Please do not leave in the car.
Prolonged exposure to the high temperature causes explo-
sion, fire or malfunction of the internal battery.
Caution
2JCIE-BL
Caution: Improper use may result in minor or moderate injury to
the user or damage to the equipment.
* Property damage refers to damage related to houses and household belong-
ings, as well as domestic animals and pets.
<2JCIE-BL01>
• Do not insert the battery with the polarities in the wrong direc-
tion.
• Always use the type of battery indicated.
• Remove the battery from this unit when you are not going to
use it for a long period of time (approximately 3 months or
more).
• Please read the instruction manual of your smartphone or tab-
let for the wireless communication.
• Do not replace the battery during the wireless communication.
• Do not swing the unit by the strap.
Swinging the unit while holding the strap may cause an injury.
<Common>
• Do not use the unit in the field of strong electromagnetic waves
and static electricity.
• This unit is not a measurement instrument.
The measured values must be treated as a reference, and do
not use it for the purpose of verification or diagnosis.
4
2JCIE-BL
• This product is designed and manufactured as a general-pur-
pose item for general industrial products. Usage for the follow-
ing applications is not intended and OMRON shall not provide
any warranty for this product if customers in fact use this prod-
uct for such applications.
(a) Applications requiring high levels of safety (Ex. Nuclear
control equipment, combustion equipment, aviation/space
equipment, railroad equipment, lift equipment, amusement
park machinery, medical instruments, safety devices, and
other applications that may cause the loss of life or injury)
(b) Applications requiring high reliability (Ex. Gas/water/elec-
tricity supply systems, systems that operate continuously
for 24 hours, applications regarding rights and assets
such as payment systems, etc.)
(c) Applications in severe conditions or environments (Ex.
Equipment installed outdoors, equipment subjected to
chemical contamination, equipment subjected to electro-
magnetic interference, equipment subjected to vibration
and shock, equipment operated continuously for long
period of time, etc.)
(d) Applications in conditions or environments not listed in
these specifications
• In addition to the contents of (a) through (d) above, this product
is also not designed for use with automobiles (including two-
wheel vehicles, the same applies hereinafter). Do not use for
applications where mounted on automobiles. Ask your OMRON
representative for details regarding products for mounting on
automobiles.
Environment Sensor
5
2JCIE-BL
