conga-SA5/N3350-4G eMMC32 datasheet, PDF

Datasheet> All Categories > Embedded solution> To calculate> Modular computer - COM> conga-SA5/N3350-4G eMMC32

conga-SA5/N3350-4G eMMC32: Description模块化计算机 - COM SMARC 2.0 module with Intel Celeron N3350 dual core processor with 1.1GHz core frequency up to 2.3GHz, 2MB L2 cache, 4GB 1600MT/s DDR3L onboard memory and 16GB eMMC onboard flash.; CategoryEmbedded solution To calculate Modular computer - COM; File Size946KB，4 Pages; Manufacturercongatec; Environmental Compliance

Download Datasheet Parametric Compare View All

conga-SA5/N3350-4G eMMC32 Overview

模块化计算机 - COM SMARC 2.0 module with Intel Celeron N3350 dual core processor with 1.1GHz core frequency up to 2.3GHz, 2MB L2 cache, 4GB 1600MT/s DDR3L onboard memory and 16GB eMMC onboard flash.

conga-SA5/N3350-4G eMMC32 Parametric

Parameter Name	Attribute value
Maker	congatec
Product Category	Modular Computer - COM
Shipping restrictions	Mouser does not currently sell this product in your area.
physical dimension	SMARC
Processor brand	Intel
Processor type	Intel Celeron N3350
chipset	Integrated in SoC
frequency	1.1 GHz
storage	4 GB
Interface Type	Audio, CAN, CSI, GPIO, HDMI, I2C, PCIe, SATA, SDIO, SPI, USB
Minimum operating temperature	0 C
Maximum operating temperature	+ 60 C
size	82 mm x 50 mm
flash	16 GB
storage type	LPDDR4
Power consumption	6 W
series	conga-SA5
cache memory	1 MB
Factory packaging quantity	1

Preview

Download Datasheet

View All

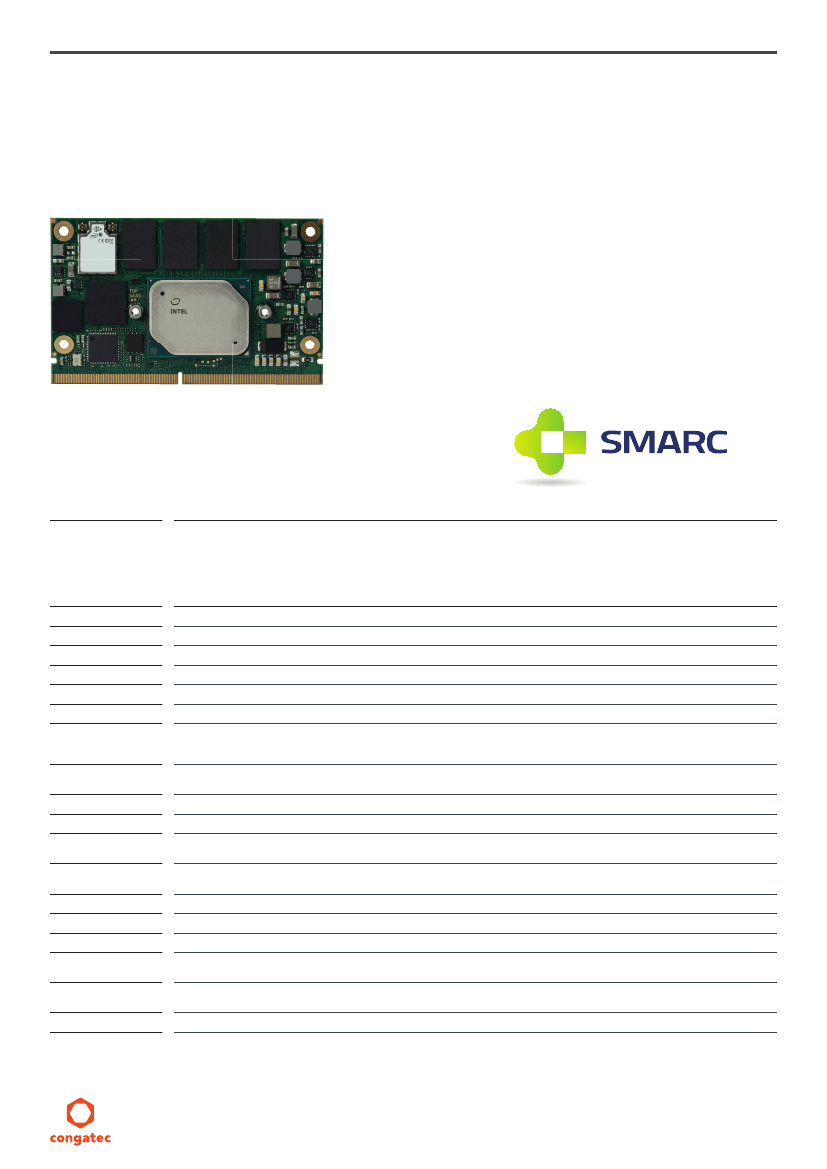

EMBEDDED SMARC .

conga-SA5

Low Power Intel

Atom

, Intel

Celeron

and

Intel

Pentium

processor

High performance Intel

Gen. 9 graphics

Industrial Temperature

Time Coordinated Computing

Enhanced Security Execution

Formfactor

CPU

SMARC Speciﬁcation 2.0 | 82x50 mm

Intel

Atom™ x7-E3950

Intel

Atom™ x5-E3940

Intel

Atom™ x5-E3930

Intel

Pentium

N4200

Intel

Celeron

N3350

Intel

Celeron

J3455

2.00 GHz (Burst)

1.6 GHz Clock

1.80 GHz (Burst)

1.6 GHz Clock

1.80 GHz (Burst)

1.3 GHz Clock

2.50 GHz (Burst)

1.1 GHz Clock

2.40 GHz (Burst)

1.1 GHz Clock

2.30 GHz (Burst) | 1.5 GHz Clock

Quad Core

Dual Core

Quad Core

Dual Core

Quad Core

L2 cache 2MB

12W TDP

9W TDP

6.5W TDP

6W TDP

10W TDP

DRAM

Chipset

Ethernet

I/O Interfaces

Mass Storage

Sound

Graphics

up to 8GB onboard LPDDR4 with 2400MT/s

Integrated in SoC

2x Intel

I210 (Industrial) /I211 (Commercial) Gigabit Ethernet Controller with SDP support | 2x Real Time Trigger

eMMC 5.0 onboard ﬂash up to 64 GByte

Intel

High Deﬁnition Audio (Intel

HD Audio) Integrated Audio DSP with Intel

Smart Sound Technology

(wireless) | Video decode hardware acceleration including support for 4kp60 HEVC (H.265), H.264, MVC, VP8, VP9, VC-1, WMV9, JPEG/MJPEG | Video

encode hardware acceleration including support for 4kp30 HEVC (H.265), H.264, MVC, VP8, JPEG/MJPEG.

Dual channel LVDS transmitter | support for ﬂat panels with 2x24 bit data mapping up to a resolution of 1920x1200 @60Hz | shared with eDP or 2x

MIPI-DSI x4 (option)

DisplayPort 1.2 up to 4096x2160px or HDMI 1.4b up to 3840x2160px

1x MIPI-CSI x4 and 1x MIPI-CSI x2

Multistage watchdog | non-volatile user data storage | manufacturing and board Information | board statistics

I²C bus (fast mode | 400 kHz | multi master) | power loss control

AMI Aptio

UEFI 2.x ﬁrmware | 8 MByte serial SPI with congatec Embedded BIOS features OEM Logo | OEM CMOS Defaults | LCD Control

Display Auto Detection | Backlight Control | Flash Update

ACPI 5 .0 compliant | Smart Battery Management

Microsoft

Windows 10 |Microsoft

Windows 10 IoT Enterprise | Microsoft

Windows IoT 10 Core | Linux | Yocto

Typ. application: tbd. | see manual for full details

Commercial :

Industrial:

Operating:

Storage:

Operating: 0 to +60°C

Operating: -40 to +85°C

10 to 90% r. H. non cond.

50 to 95% r. H. non cond.

Storage: -20 to +80°C

Storage: -40 to +85°C

LVDS

DisplayPort Interface (DDI)

MIPI-CSI

congatec Board controller

Embedded BIOS Features

Power Management

Operating Systems

Power Consumption

Temperature

Humidity

Size

82 x 50 mm (3,23” x 1,97”)

www.congatec.com

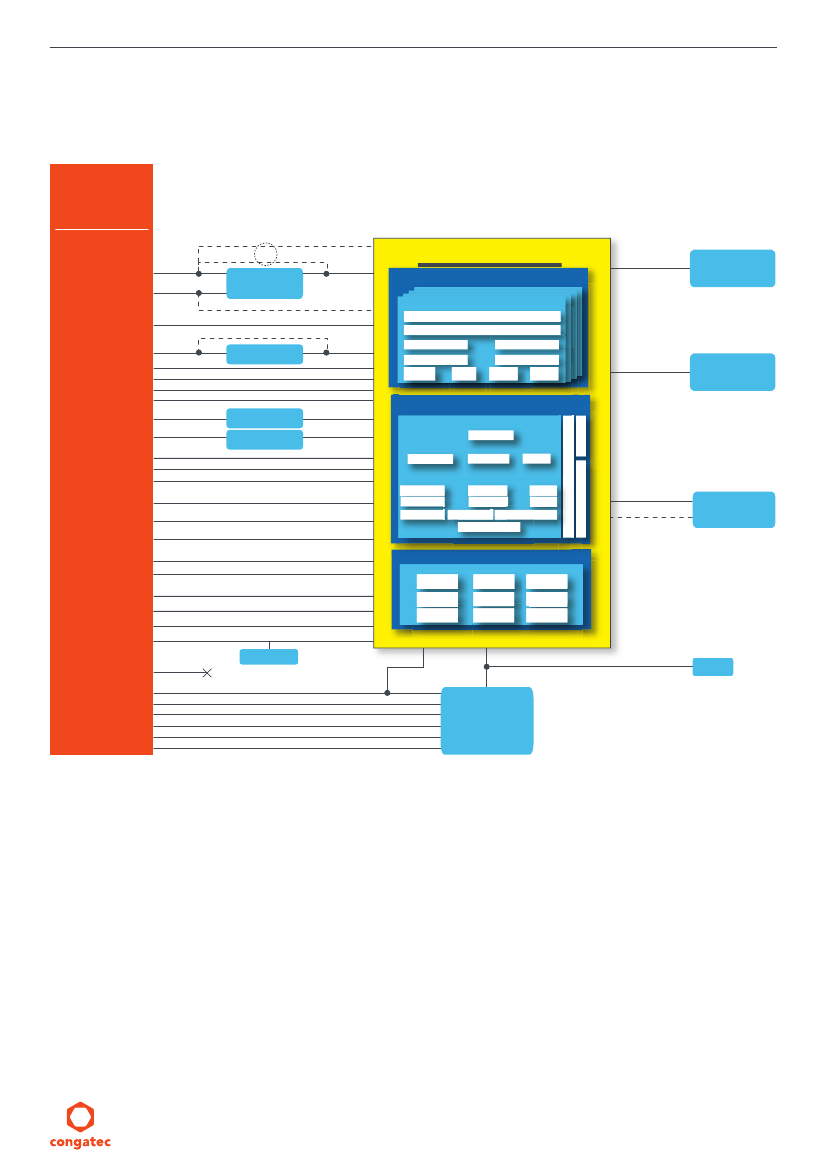

conga-SA5

| Order Information

Article

conga-SA5/E3950-8G

eMMC32

conga-SA5/E3940-4G

eMMC32

conga-SA5/E3930-2G

eMMC16

conga-SA5/E3930-2G

eMMC16 1xGBE

conga-SA5/i-E3950-4G

eMMC32

conga-SA5/i-E3940-4G

eMMC16

conga-SA5/i-E3930-2G

eMMC16

conga-SA5/i-E3950-8G

eMMC32

conga-SA5/N3350-4G

eMMC32

conga-SA5/N4200-8G

eMMC32

conga-SA5/J3455-4G

eMMC16

conga-SA5/E3950-8G

eMMC32 SPKL-AC

conga-SA5/i-CSP-B

conga-SA5/i-HSP-B

conga-SA5/CSP-B

conga-SA5/HSP-B

050000

050001

050002

050003

050010

050011

050012

050013

050022

050023

050024

050031

050051

050053

050055

050057

SMARC 2.0 module with Intel® Celeron™ N3350 dual core processor with 1.1GHz core frequency up to 2.3GHz, 1MB L2 cache, 4GB

2400MT/s LPDDR4 onboard memory and 32GB eMMC onboard ﬂash.

SMARC 2.0 module with Intel

Pentium

N4200 quad core processor with 1.1GHz core frequency up to 2.50GHz, 2MB L2 cache, 8GB

2400MT/s LPDDR4 onboard memory and 32GB eMMC onboard ﬂash

SMARC 2.0 module with Intel® Celeron® J3455 quad core processor with 1.5GHz core frequency up to 2.30GHz, 2MB L2 cache, 4GB

2400MT/s LPDDR4 onboard memory and 16GB eMMC onboard ﬂash.

SMARC 2.0 module with Intel® Atom™ x7-E3950 quad core processor with 1.6GHz core frequency up to 2.0GHz, 2MB L2 cache, 8GB

2400MT/s LPDDR4 onboard memory, 32GB eMMC onboard ﬂash and onboard Sparklan WNSQ-261ACN(BT) Wiﬁ/BT module.

Passive cooling solution for SMARC 2.0 module conga-SA5 with lidded Intel Atom processor. All standoffs are with 2.7mm bore hole.

Standard heatspreader for SMARC 2.0 module conga-SA5 with lidded Intel Atom processor. All standoffs are with 2.7mm bore hole.

Passive cooling solution for SMARC 2.0 module conga-SA5 with open silicon Intel Pentium and Celeron processor. All standoffs are with

2.7mm bore hole.

Standard heatspreader for SMARC 2.0 module conga-SA5 with open silicon Intel Pentium and Celeron processor. All standoffs are with

2.7mm bore hole.

Description

SMARC 2.0 module with Intel

Atom

™

x7-E3950 quad core processor with 1.6GHz core frequency up to 2.0GHz, 2MB L2 cache, 8GB

2400MT/s LPDDR4 onboard memory and 32GB eMMC onboard ﬂash.

SMARC 2.0 module with Intel® Atom™ x5-E3940 quad core processor with 1.6GHz core frequency up to 1.8GHz, 2MB L2 cache, 4GB

2133MT/s LPDDR4 onboard memory and 32GB eMMC onboard ﬂash.

SMARC 2.0 module with Intel® Atom™ x5-E3930 dual core processor with 1.3GHz core frequency up to 1.8GHz, 1MB L2 cache, 2GB

2133MT/s LPDDR4 onboard memory and 16GB eMMC onboard ﬂash.

SMARC 2.0 module with Intel® Atom™ x5-E3930 dual core processor with 1.3GHz core frequency up to 1.8GHz, 2MB L2 cache, 2GB

2133MT/s LPDDR4 onboard memory and 16GB eMMC onboard ﬂash. Only one GBE.

SMARC 2.0 module with Intel® Atom™ x7-E3950 quad core processor with 1.6GHz core frequency up to 2.0GHz, 2MB L2 cache, 4GB

2400MT/s LPDDR4 onboard memory and 32GB eMMC onboard ﬂash. Industrial grade temperature range from -40°C to 85°C.

SMARC 2.0 module with Intel

Atom

™

x5-E3940 quad core processor with 1.6GHz core frequency up to 1.8GHz, 2MB L2 cache, 4GB

2133MT/s LPDDR4 onboard memory and 16GB eMMC onboard ﬂash. Industrial grade temperature range from -40°C to 85°C.

SMARC 2.0 module with Intel® Atom™ x5-E3930 dual core processor with 1.3GHz core frequency up to 1.8GHz, 1MB L2 cache, 2GB

2133MT/s LPDDR4 onboard memory and 16GB eMMC onboard ﬂash. Industrial grade temperature range from -40°C to 85°C.

Accessories

conga-SEVAL

conga-ACA2

conga-MITX/eDP to DP

Adapter

cab-MITX-eDP 1-1

007010

016154

052231

14000129

Evaluation Carrier Board for SMARC 2.0 modules.

MIPI CSI 2.0 dual camera module for evaluation with SGET standard ﬂat foil interface.

eDP to standard DisplayPort evaluation adapter for congatec Mini-ITX and SMARC 2.0.

eDP 1-1 cable for congatec Mini-ITX and SMARC 2.0. Both sides are with 40pin ACES eDP connector plug.

This Datasheet should be read in conjunction with "Errata

sheet - congatec xA5 designs",

available in the document section of congatec’s webportal.

All data is for information purposes only. Although all the information contained within this document is carefully checked, no guarantee

of correctness is implied or expressed. Product names, logos, brands, and other trademarks featured or referred are the property of their

respective trademark holders. Qseven is a registered trademark of SGET. These trademark holders are not afﬁliated with congatec AG.

Rev. Dez 10, 2018 KF

www.congatec.com
