designed for Wi-Fi 802.11ax systems. The compact form factor
and integrated matching minimizes layout area in the
application.
Performance is focused on optimizing the PA for a 5V supply
voltage that conserves power consumption while maintaining
the highest linear output power and leading edge throughput.
Receive path matches the optimal technologies to maximize Rx
sensitivity through noise figure performance that is consistent
over a wider variety of conditions.
Integrated die level filtering for 2nd and 3rd harmonics as well
as 5 GHz rejection for DBDC operation are included.
The QPF4200 integrates a 2.4 GHz power amplifier (PA),
regulator, single pole two throw switch (SP2T), bypassable low
noise amplifier (LNA) and DC power detector into a single device
16 Pin 3x3 mm Laminate Package
Key Features
•
•
•
•
•
•
•
•
•
•
•
•
2412-2484 MHz
P
OUT
= +19dBm MCS11 HE40 -43dB Dynamic EVM
P
OUT
= +21dBm MCS9 VHT40 -35dB Dynamic EVM
P
OUT
= +22.5dBm MCS7 VHT40 -30dB Dynamic EVM
P
OUT
= +25dBm HT20 MCS0 Spectral Mask Compliance
P
OUT
= +26dBm 11b Spectral Mask Compliance
Optimized for +5 V Operation
33 dB Tx Gain
2.1 dB Noise Figure
15.5 dB Rx Gain & 6 dB Bypass Loss
25 dB 5 GHz Rejection on Rx Path
Integrated DC Power Detector

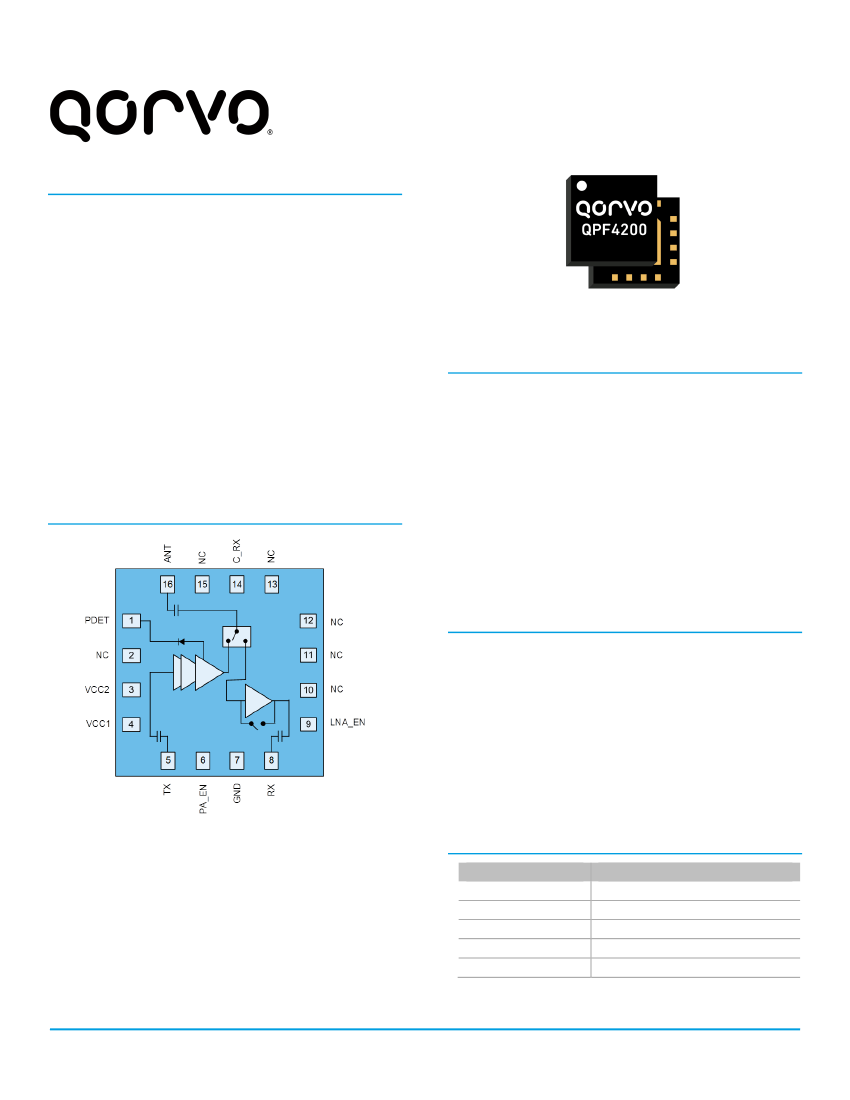

Functional Block Diagram
Applications
•
•
•
•
•
Access Points
Wireless Routers
Residential Gateways
Customer Premise Equipment
Internet of Things
Top View
Ordering Information
Part Number
QPF4200SB
QPF4200SQ
QPF4200SR
QPF4200TR13
QPF4200EVB-01
Description
Sample bag with 5 pieces
Sample bag with 25 pieces
7” reel with 100 pieces
13” reel with 5,000 pieces
Assembled Evaluation Board
QPF4200 Data Sheet 082018 | Subject to change without notice
1 of 8
www.qorvo.com
QPF4200
Wi-Fi Front End Module
Absolute Maximum Ratings
Parameter
DC Supply Voltage
Control Voltage
Storage Temperature
Junction Temperature
RF Input Power at TX_IN
RF Input Power at ANT
RF Input Power at ANT
Into 50 Ω Load for 802.11b-ax (No
Damage), Transmit Mode
(No Damage), Receive LNA On Mode, CW
(No Damage), Receive Bypass Mode, CW
Conditions
Rating
-0.5 to +5.5 V
-0.5 to <+5.5V
-40 to 150 °C
150 °C
+10 dBm
+10 dBm
+28 dBm
Exceeding any one or a combination of the Absolute Maximum Rating conditions may cause permanent damage to the device. Extended application of Absolute Maximum
Rating conditions to the device may reduce device reliability.
Recommended Operating Conditions
Parameter
Operating Frequency
Extended Operating Frequency
Device Voltage (V
CC
)
Control Voltage – High
(PA_EN, LNA_EN & C_RX)
Control Voltage – Low
(PA_EN, LNA_EN & C_RX)
T
OPERATING
*
Min.
2412
2400
+4.75
+1.4
0
-40
+5
+3
Typ.
Max.
2484
2500
+5.25
+3.6
+0.6
+85
Units
MHz
MHz
V
V
V
°C
Electrical specifications are measured at specified test conditions. Specifications are not guaranteed over all recommended operating conditions. * T
OPERATING
is temperature
at the package ground.
Electrical Specifications
Parameter
TRANSMIT (TX-ANT) MODE
11ax HE40 Output Power
Dynamic EVM
11ac VHT40 Output Power
Dynamic EVM
11n HT20/40 Output Power
Dynamic EVM
Margin to 11n Spectral Mask
Margin to 11b Spectral Mask
Gain
Gain Flatness
TX Port Return Loss
ANT Port Return Loss
Quiescent Current
RF Off
Conditions
Min.
Typ.
Max.
Units
Unless otherwise noted: V
CC
=5V, T=+25ºC, PA_EN=High, LNA_EN=Low, C_RX=Low
MCS11 1024QAM
MCS9 256QAM
MCS7 64 QAM
P
OUT
= +25 dBm, 11n MCS0 HT20
P
OUT
= +26 dBm, 11b DSSS 1MBps
Across any 40 MHz Channel
20
21.5
0
0
31
-0.25
10
12
12
15
195
19
-43
21
-35
22.5
-30
3
3
33
+0.25
dBm
dB
dBm
dB
dBm
dB
dBc
dBc
dB
dB
dB
dB
mA
QPF4200 Data Sheet 032718 | Subject to change without notice
2 of 8
www.qorvo.com
QPF4200
Wi-Fi Front End Module
Parameter
Operating Current
2
nd
Harmonics
3
rd
Harmonics
ANT-RX Isolation
Conditions
P
OUT
= +19 dBm
P
OUT
= +25 dBm
P
OUT
= +26 dBm 802.11b 1 MBps
P
OUT
= +26 dBm 802.11b 1 MBps
RF Off
DC Power Detect Voltage
P
OUT
= +19 dBm
P
OUT
= +22.5 dBm
P
OUT
= +26 dBm
RECEIVE (ANT-RX) LNA ON MODE
Gain
Gain Flatness Across any 40 MHz
Channel
Out of Band Gain
Noise Figure
RX Port Return Loss
ANT Port Return Loss
Input P
1dB
Input IP3
Rx Operating Current
RECEIVE (ANT-RX) BYPASS MODE
Bypass Loss
Loss Flatness Across any 80 MHz
Channel
Out of Band Gain
RX Port Return Loss
ANT Port Return Loss
Input P
1dB
Input IP3
GENERAL SPECIFICATIONS
Control Current - High
Control Current - Low
TX Output P
1dB
CW
Transmit to LNA On or Bypass Mode
LNA On to Bypass Mode
Bypass to LNA On Mode
LNA On or Bypass to Transmit Mode
CW No Spurious above -41.25dBm/MHz
0
Junction to case
37
6:1
26
dBm
°C/W
+29
400
f
= 5000-6000 MHz
20
15
f
= 5000-6000 MHz
7
6
Min.
Typ.
230
320
-30
-35
50
0.30
0.66
0.78
0.92
Max.
250
350
-25
-30
Units
mA
mA
dBm/MHz
dBm/MHz
dB
V
V
V
V
Unless otherwise noted: V
CC
=5V, T=+25ºC, PA_EN=Low, LNA_EN=High, C_RX=High
15.5
-0.25
-25
2.1
10
7
0
+10
22
+0.25
dB
dB
dB
dB
dB
dB
dBm
dBm
mA
Unless otherwise noted: V
CC
=5V, T=+25ºC, PA_EN=Low, LNA_EN=Low, C_RX=High
6
-0.1
-15
25
17
+28
+44
+0.1
dB
dB
dB
dB
dB
dBm
dBm
Unless otherwise noted: V
CC
=5V, T=+25ºC, Switching Time Power Accuracy +/-1dB
0.1
0.1
500
200
300
400
µA
µA
dBm
nS
nS
nS
nS
Switching Time
PA Stability - Output VSWR
Output Power Range
Thermal Resistance, θ
jc
QPF4200 Data Sheet 082018 | Subject to change without notice
3 of 8
www.qorvo.com
QPF4200
Wi-Fi Front End Module
Logic Truth Table
Mode
Transmit
LNA On
Bypass
All Off
Not Supported
PA_EN
High
Low
Low
Low
LNA_EN
Low
High
Low
Low
All Other States
C_RX
Low
High
High
Low
QPF4200 Data Sheet 082018 | Subject to change without notice
4 of 8
www.qorvo.com
QPF4200
Wi-Fi Front End Module

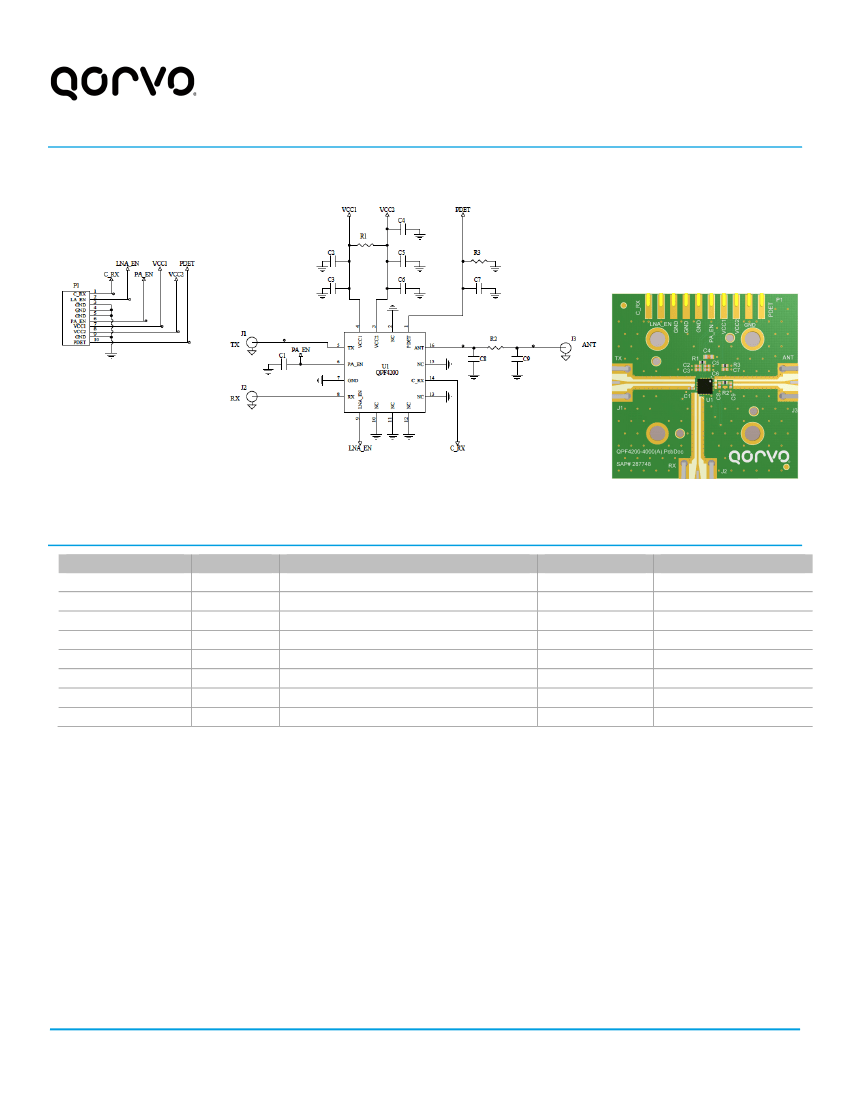

Evaluation Board Schematic
Bill of Material
Ref. Des.
-
U1
C3, C6
C2, C5
C4
R3
R1, R2
C1, C7, C8, C9
Value
-
-
0.1 µF
2.2 µF
10 µF
27.4 kΩ
0Ω
-
Description
Printed Circuit Board
2.4GHz Wi-Fi Front End Module
Capacitor, Chip, 10%, 10V, X5R, 0402
Capacitor, Chip, 20%, 6.3V, X5R, 0402
Capacitor, Chip, 20%, 25V, STD, 0603
Resistor, Chip, 1%, 1/10W, 0402
Resistor, Chip, 5%, 1/10W, 0402
Do Not Install
Manuf.
Qorvo
Taiyo Yuden
Murata
TDK
Panasonic
Kamaya
Part number
QPF4200
RM LMK105 BJ104KV-F
GRM155R60J225ME15D
C1608X5R1E106MT000E
ERJ-2RKF2742X
RMC1/16SJPTH
QPF4200 Data Sheet 082018 | Subject to change without notice
