Version
1.0
1.1
Date
06 Apr 2018
15 Jun 2018
Notes
Initial version
Updated block diagram. Changed pin type and
description to NC on pin 54
Contributor(s)
Andrew Chen
Kai Wei
Approver
Jay White
Jay White
Embedded Wireless Solutions Support Center:
http://ews-support.lairdtech.com
www.lairdtech.com/wi-fi
2
© Copyright 2018 Laird. All Rights Reserved
Americas: +1-800-492-2320
Europe: +44-1628-858-940
Hong Kong: +852 2923 0610
1
2
Scope ................................................................................................................................................................................... 4
Introduction ........................................................................................................................................................................ 4
General Description ................................................................................................................................................... 4
3
4
5
6
7
8
Features Summary .............................................................................................................................................................. 5
Specifications ...................................................................................................................................................................... 6
WLAN Functional Description ........................................................................................................................................... 11
Bluetooth Functional Description ..................................................................................................................................... 14
Block Diagram ................................................................................................................................................................... 15
Electrical Characteristics ................................................................................................................................................... 16
Absolute Maximum Ratings ..................................................................................................................................... 16
Recommended Operating Conditions ..................................................................................................................... 16
DC Electrical Characteristics .................................................................................................................................... 16
WLAN Radio Receiver Characteristics ...................................................................................................................... 17
WLAN Transmitter Characteristics........................................................................................................................... 18
9
10
11
12
2.
13
14
15
16
Bluetooth Radio Characteristics ........................................................................................................................................ 20
PCIE Specifications ............................................................................................................................................................ 22
USB Specifications ............................................................................................................................................................. 25
PCM interface specifications ............................................................................................................................................. 28
Pin Definitions ................................................................................................................................................................... 29
Mechanical Specifications ................................................................................................................................................. 32
Mounting .......................................................................................................................................................................... 33
RF Layout Design Guidelines / Precautions....................................................................................................................... 33
Regulatory ......................................................................................................................................................................... 34
Regulatory IDs Summary ......................................................................................................................................... 34
Certified Antennas ................................................................................................................................................... 34
17
FCC and IC Regulatory ....................................................................................................................................................... 35
FCC ........................................................................................................................................................................... 35
Industry Canada ....................................................................................................................................................... 36
18
19
European Union Regulatory .............................................................................................................................................. 39
Ordering Information ........................................................................................................................................................ 40
Embedded Wireless Solutions Support Center:
http://ews-support.lairdtech.com
www.lairdtech.com/wi-fi
3
© Copyright 2018 Laird. All Rights Reserved
Americas: +1-800-492-2320
Europe: +44-1628-858-940
Hong Kong: +852 2923 0610

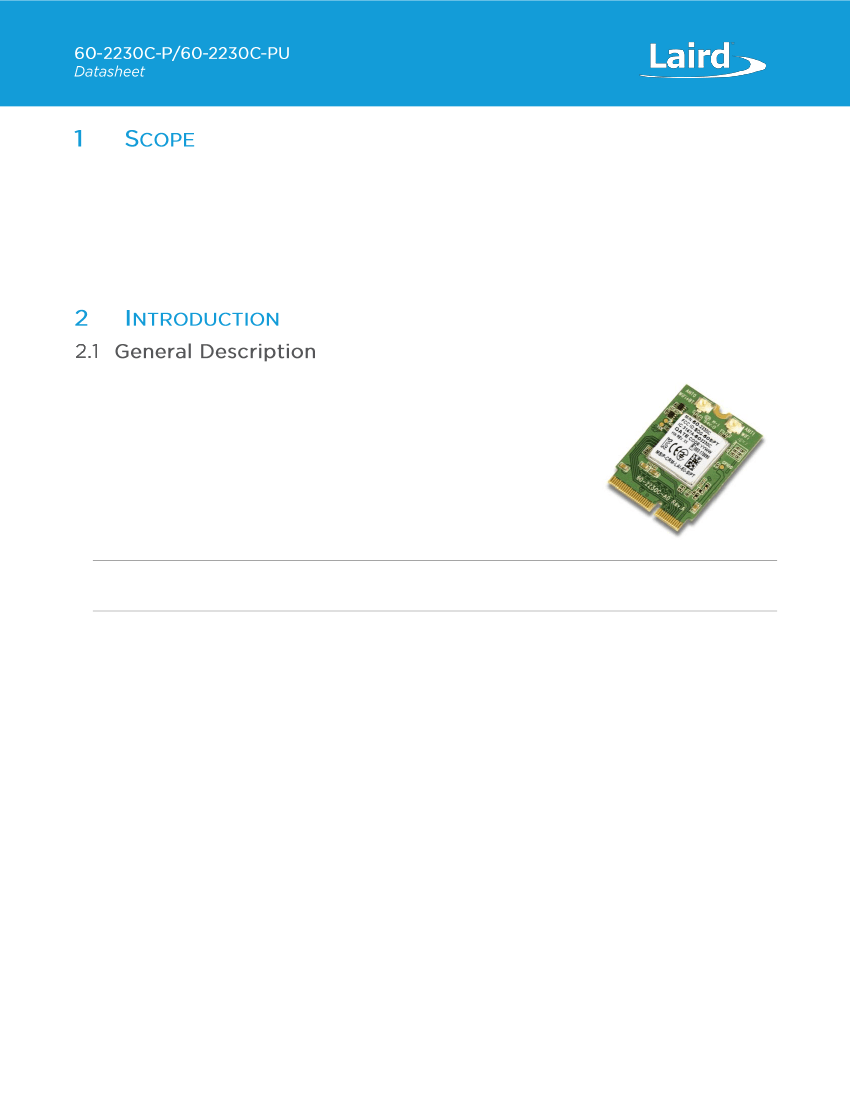

This document describes key hardware aspects of the Laird 60-2230C-P/ 60-2230C-PU M.2 module providing either PCIe
bus interface for WLAN connection and UART(60-2230C-P)/USB (60-2230C-PU) for Bluetooth
®
(including Low Energy or LE)
connection. This document is intended to assist device manufacturers and related parties with the integration of this
module into their host devices. Data in this document is drawn from the Marvell 88W8997 datasheet issued in April 25,
2016.
Note that the information in this document is subject to change.
Please contact Laird to obtain the most recent version of
this document.
The 60-2230C-P/60-2230C-PU module is a dual band 2x2 802.11ac WLAN plus Bluetooth
4.2 dual mode adapter; it complies with M.2 2230 E-Key standard. The module provides
both simultaneous and independent operation of the following:
▪
▪
▪
▪
▪
▪
IEEE 802.11ac (Wave 2), 2x2 receive Multi-User MIMO spatial stream multiplexing
with data rates up to MCS9 (866.7 Mbps)
Bluetooth (Class 1 and Class 2)
Bluetooth 4.2 (with Low Energy or LE)
Bluetooth 5 Ready
Bluetooth
Smart Ready
operation
Three-way coexistence for WLAN and Bluetooth
Note:
The
Bluetooth
®
word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such
marks by Laird is under license. Other trademarks and trade names are those of their respective owners.
Internal coexistence arbitration and a Mobile Wireless System (MWS) serial transport interface provide the functionality for
connecting an external Long Term Evolution (LTE).
The module integrates all WLAN and Bluetooth functionality into a single package which supports low-cost and simple
implementation along with flexibility for platform-specific customization. In addition, it has low power consumption radio
architecture and proprietary power save technologies to extended battery life.
On the DFS engine, the module supports 802.11h Dynamic Frequency Selection (DFS) to detect the presence of radar
signals; support is extended to 80 MHz mode under the 802.11ac channelization modes. In addition, the E-DFS (Enhanced
DFS) scheme is designed to increase pulse detection rates for shorter (0.5 us, 0.8 us, 1 us), in-band DFS pulses. The scheme
is designed to minimize the false-alarm rate for out-of-band DFS pulse.
WLAN interface:
▪
▪
▪
PCIe
–
Supports PCIe V3.0 Gen 1/Gen 2 rate (2.5/5 Gbps) interface
USB 2.0
–
60-2230C-PU only
High-Speed UART
–
60-2230C-P only
Bluetooth Interfaces:
The 60-2230C-P/60-2230C-PU modules also provide a PCM interface for master or slave mode
–
with the option of an 8-bit
or 16-bit width size. Pins CON[0], CON[1], and CON[2] are used to configure the operation interface.
▪
▪
60-2230C-P
–
The interfaces are PCIe/UART (WLAN/Bluetooth) with configuration setting to
011.
60-2230C-PU
–
The interfaces are PCIe/USB (WLAN/Bluetooth) with configuration setting to
010.
Americas: +1-800-492-2320
4
© Copyright 2018 Laird. All Rights Reserved
Europe: +44-1628-858-940
Hong Kong: +852 2923 0610
Embedded Wireless Solutions Support Center:
http://ews-support.lairdtech.com
www.lairdtech.com/wi-fi
The Laird 60-2230C-P/60-2230C-PU device features are described in
Table 1.
Table 1:
60-2230C-P/60-2230C-PU
features
Feature
Description
▪
Integrates the complete transmit/receive RF paths including band pass filter, diplexer, switches,
reference crystal oscillator, and power manage unit (PMU)
Radio Front End
▪
Supports 20/40/80 MHz channel bandwidth
▪
WLAN/Bluetooth share one antenna
Coexistence
Coexistence arbitration for WLAN, Bluetooth, and LTE operation
Power Management
Pre-Calibration
Sleep Clock
Dynamic Voltage Scaling (DVS) and Adaptive Voltage Scaling (AVS) feature supports the latest
Marvell SoC and processor power control scheme.
RF system-tested and calibrated in production.
An external sleep clock of 32.768 KHz is required during power save mode.
▪
PCIe V3.0 Gen 1/Gen 2 for WLAN
▪
USB 2.0, HS-UART for Bluetooth HCI (compatible with any upper layer Bluetooth stack)
▪
PCM digital audio interface for Bluetooth audio application.
Strap Value CONFIG_HOST[2-0]
WLAN
Bluetooth/BLE
ROM Notes
010
PCIe
USB 2.0
-
011
PCIe
UART
-
Incorporates a 40 MHz reference frequency source in package
An external sleep clock is recommended for minimal current consumption. If no sleep clock
input is provided, an internal sleep clock (derived from the reference clock) is used. An
approximate 50 uA current increase on the 3.3V rail.
A-MPDU RX (de-aggregation) and TX (aggregation) supports 802.11ac single-MPDU A-MPDU
Multi-BSS/Station
Transmit rate adaption, transmit power control
Modulation and coding scheme (MCS):
–
802.11ac—MCS0-9 Nsts=1 and 2
–
802.11n—MCS0-15
Dynamic frequency selection (DFS)
–
Radar detection
20/40/80 MHz channel bandwidths support
On-chip gain selectable LNA with optimized noise figure and power consumption
Internal PA with optimized gain distribution for linearity and noise performance
Support Wild variety of WLAN encryption: TKIP/WEP/AES
Bluetooth 4.2 (BDR/EDR/LE), Bluetooth Class 1
Bluetooth 5 ready
Supports the following data rates: 1 Mbps (GFSK), 2 Mbps (π/4-DQPSK), 3 Mbps (8-DPSK)
Digital audio interface with PCM/TDM interface for voice application
Adaptive Frequency Hopping (AFH) using Package Error Rate (PER)
Standard SDIO or UART HCI transport layer
WLAN/Bluetooth coexistence protocol support
Shared LNA with WLAN/Bluetooth
Encryption (AES) support
Host Interface
Reference Frequency
▪
▪
▪
▪
▪
▪
Advanced WLAN
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
Advanced Bluetooth
Embedded Wireless Solutions Support Center:
http://ews-support.lairdtech.com
www.lairdtech.com/wi-fi
5
© Copyright 2018 Laird. All Rights Reserved
Americas: +1-800-492-2320
Europe: +44-1628-858-940
Hong Kong: +852 2923 0610
