Preliminary
GRF2106
High Gain, Low Current LNA
Tuning Range: 0.1 to 4.2 GHz
Product Description
GRF2106 is a low cost, high gain LNA designed for a
wide range of applications up to 4.2 GHz.
The device is operated from a supply voltage (Vdd) range
of 2.7 to 5.0 V with Iddq set from 10 mA to 40 mA for
optimal efficiency and linearity.
The device is housed in a 1.5 x 1.5 x 0.5 mm 6-pin plas-
tic DFN package. Consult with the GRF applications engi-
neering team for custom tuning/evaluation board data
and device s-parameters.
Features
Reference: 4.0V/15mA/1.9 GHz
•
•
•
•
•
Gain: 21.0 dB
Evaluation Board NF: 0.80 dB
OP1dB: 11.5 dBm
OIP3: 24.0 dBm
Flexible bias voltage and Current
•
•
Minimal External Components
Process: GaAs pHEMT
Applications
•
•
•
•
•
ISM
GPS
Cellular Booster
Compenser
VHF/UHF
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc. All rights reserved.
Revision Date: 06/06/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
1
Preliminary
GRF2106
High Gain, Low Current LNA
Tuning Range: 0.1 to 4.2 GHz
Absolute Ratings:
Parameter
Supply Voltage
RF Input Power CW: (Load VSWR < 2:1; V
D
: 5.0
volts)
Operating Temperature (Package Heat Sink)
Maximum Channel Temperature
(MTTF > 10^6 Hours)
Maximum Dissipated Power
Electrostatic Discharge:
Charged Device Model:
Human Body Model:
Storage:
Storage Temperature
Moisture Sensitivity Level
T
STG
MSL
-65
150
1
°C
--
CDM
HBM
1500
250
V
V
Symbol
V
DD
P
IN MAX
T
AMB
T
MAX
P
DISS MAX
Min.
0
Max.
6.0
17
Unit
V
dBm
°C
°C
mW
-40
105
170
150
Caution!
ESD Sensitive Device
Exceeding Absolute Maximum Rating conditions may cause permanent damage to the device.
Note: For package dimensions and manufacturing information, see the Guerrilla-RF.com website
for the following document located on the GRF2106 landing page (coming soon): Manufacturing
Note—MN-001 Product Tape and Reel, Solderability and Package Outline Specification.
Link to manufacturing note
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc. All rights reserved.
Revision Date: 06/06/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
2
Preliminary
GRF2106
High Gain, Low Current LNA
Tuning Range: 0.1 to 4.2 GHz

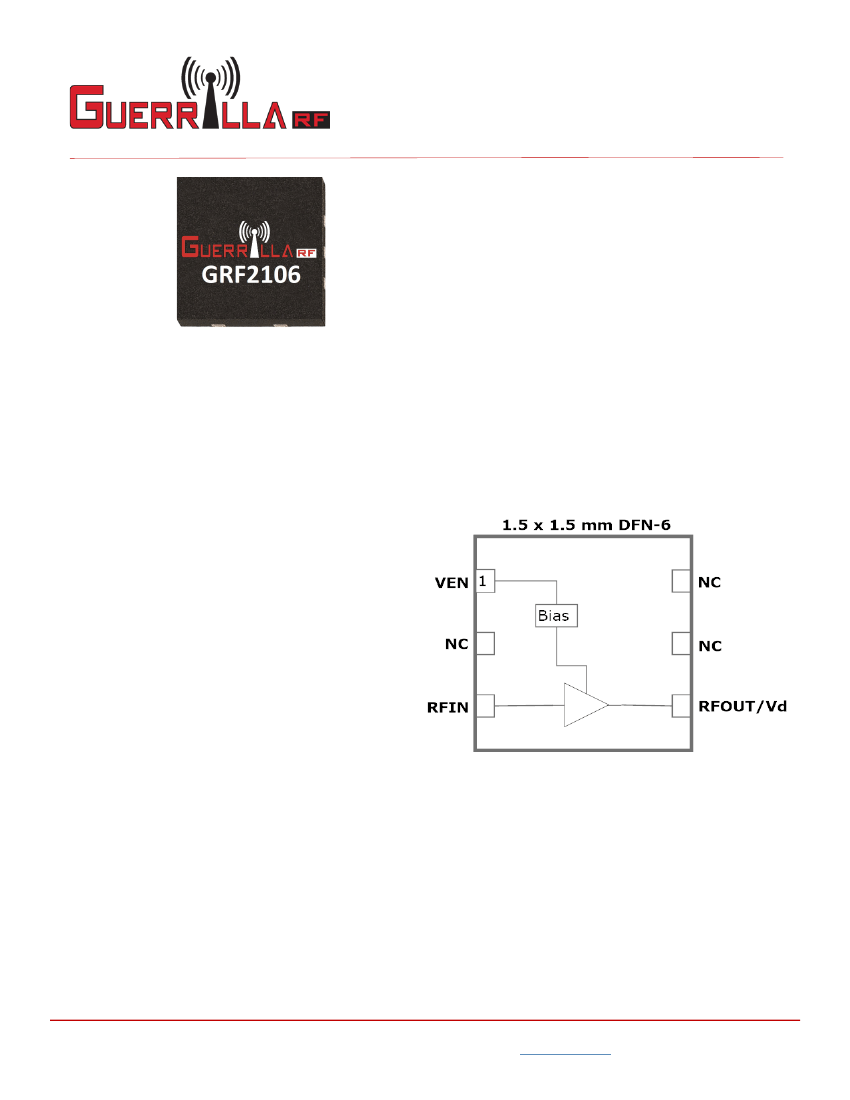

Pin Out (Top View)
Pin Assignments:
Pin
1
2
3
4
5
6
PKG
BASE
Name
V
ENABLE
NC
RF_In
RF_Out
NC
NC
GND
Description
Enable Voltage Input
No Connect or Ground
LNA RF input
LNA RF output/Vdd
No Connect or Ground
No Connect or Ground
Ground
Note
V
ENABLE
and series resistor set I
DDQ
. V
ENABLE
< 0.2 volts disables device. On-
die pull-down resistor will turn the part off if this node is allowed to float.
No internal connection to die
An external DC blocking cap must be used.
V
DD
must be applied through a choke to this pin
No internal connection to die
No internal connection to die
Provides DC and RF ground for LNA, as well as thermal heat sink. Recom-
mend multiple 8 mil vias beneath the package for optimal RF and thermal
performance. Refer to evaluation board top layer graphic on schematic
page.
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc. All rights reserved.
Revision Date: 06/06/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
3
Preliminary
Nominal Operating Parameters:
Parameter
Test Frequency
Gain
Noise Figure (Evaluation Board)
Output 1dB Compression Power
Output 3rd Order Intercept
Switching Rise Time
Switching Fall Time
Supply Current
GRF2106
High Gain, Low Current LNA
Tuning Range: 0.1 to 4.2 GHz
Symbol
F
TEST
S21
NF
OP1dB
OIP3
T
RISE
T
FALL
I
DD
Specification
Min.
Typ.
1.9
21.0
0.80
11.5
24.0
500
500
15
Max.
Unit
GHz
dB
dB
dBm
dBm
ns
ns
mA
Condition
V
DD
= 4.0V, T
A
= 25°C
-3.0 dBm P
OUT
per tone (1899 and
1901 MHz)
Fast switching requires V
ENABLE
controlled separately from V
DD
Enable Current
Disabled Mode
Leakage Current
Thermal Data
Thermal Resistance: (Infra-Red Scan)
Channel Temperature @ +85 C Reference
(Package heat sink)
I
ENABLE
0.5
mA
I
LEAKAGE
100
TBD
TBD
uA
ᵒC/W
ᵒC
V
DD
: 4.0V; V
ENABLE
: 0.0V
On standard Evaluation Board
V
DD
: 4.0 V; I
DDQ
: 15 mA; No RF;
P
DISS
: 60 mW
Q
jc
T
CHANNEL
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc. All rights reserved.
Revision Date: 06/06/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
4
Preliminary
GRF2106
High Gain, Low Current LNA
Tuning Range: 0.1 to 4.2 GHz

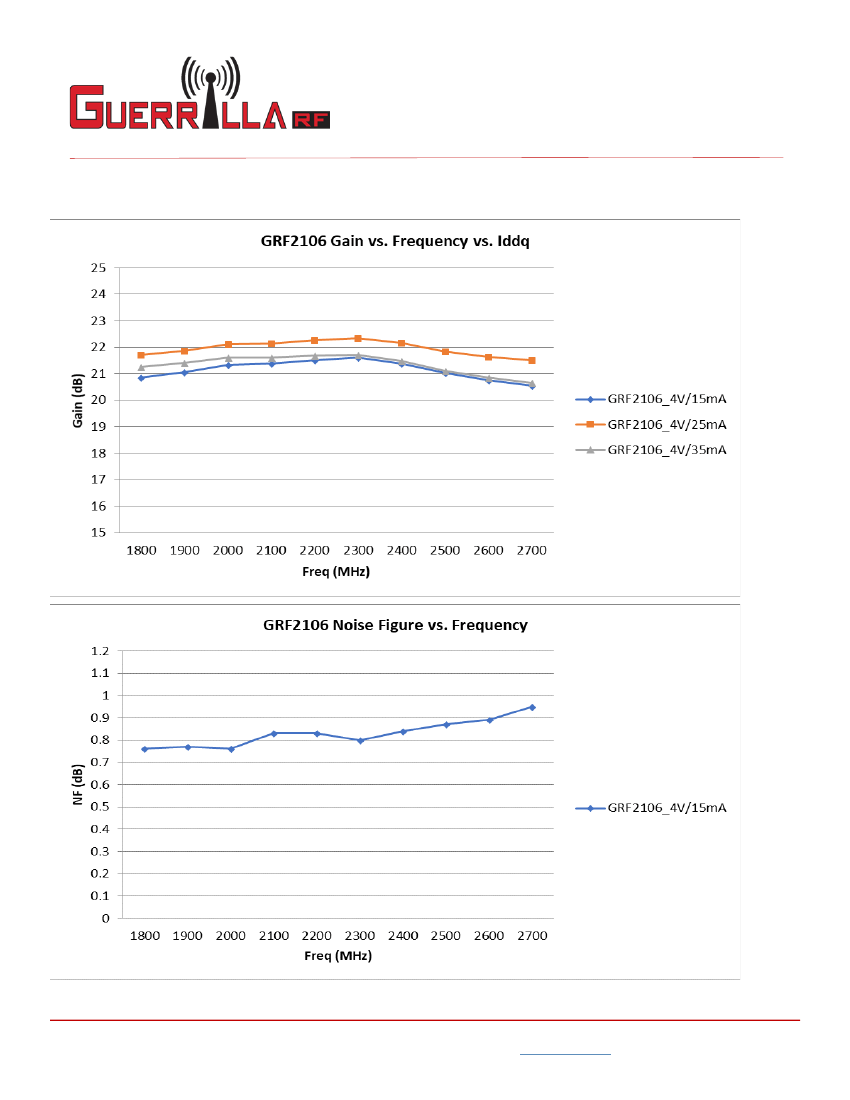

GRF2106 Evaluation Board Data:
