GRF2505
Broadband LNA/Linear Driver
4.0 to 6.0 GHz
Product Description
GRF2505 is a broadband, ultra-low noise, linear amplifi-
er offering the highest levels of performance for de-
manding 802.11ac and wireless backhaul LNA and PA
driver applications.
This amplifier exhibits outstanding broadband NF, linear-
ity and return losses over 4.0 to 6.0 GHz with a single
match. It is operated from a single positive supply of
1.8V to 5.0 V with a selectable Iddq range of 20 to 60
mA for optimal efficiency and linearity.
GRF2505 is internally matched to 50Ω at the input and
output ports, requiring only 7 external RLC components.
Consult with the GRF applications engineering team for
custom tuning/evaluation board data and device s-
parameters
Features
Reference: 5V/40mA/5.5 GHz
•
•
•
•
EVB NF: 1.2 dB
Gain: 12.5 dB
OIP3: 30.0 dBm
OP1dB: 19.0 dBm
•
•
Flexible Bias Voltage and Current
Internally Matched to
50 Ω
•
Process: GaAs pHEMT
Applications
•
•
•
•
PA Driver / Low Noise Amplifier for Wire-
less Backhaul and 802.11A/n/ac
Vehicle Information Systems
Automated Toll Reader
C-band Amplifier
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc. All rights reserved.
Revision Date: 02/21/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
1
Released
GRF2505
Broadband LNA/Linear Driver
4.0 to 6.0 GHz
Absolute Ratings:
Parameter
Supply Voltage
RF Input Power: (Load VSWR < 2:1; V
D
: 5.0 volts)
Operating Temperature (Package Heat Sink)
Maximum Channel Temperature
(MTTF > 10^6 Hours)
Maximum Dissipated Power
Electrostatic Discharge:
Charged Device Model:
Human Body Model:
Storage:
Storage Temperature
Moisture Sensitivity Level
T
STG
MSL
-65
150
1
°C
--
CDM
HBM
1500
250
V
V
Symbol
V
DD
P
IN MAX
T
AMB
T
MAX
P
DISS MAX
Min.
0
Max.
6.0
17
Unit
V
dBm
°C
°C
mW
-40
105
170
300
Caution!
ESD Sensitive Device
Exceeding Absolute Maximum Rating conditions may cause permanent damage to the device.
Note: For package dimensions and manufacturing information, see the Guerrilla-RF.com website
for the following document located on the GRF2505 landing page: Manufacturing Note—MN-
001 Product Tape and Reel, Solderability and Package Outline Specification.
Link to manufacturing note
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc. All rights reserved.
Revision Date: 02/21/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
2
Released
GRF2505
Broadband LNA/Linear Driver
4.0 to 6.0 GHz

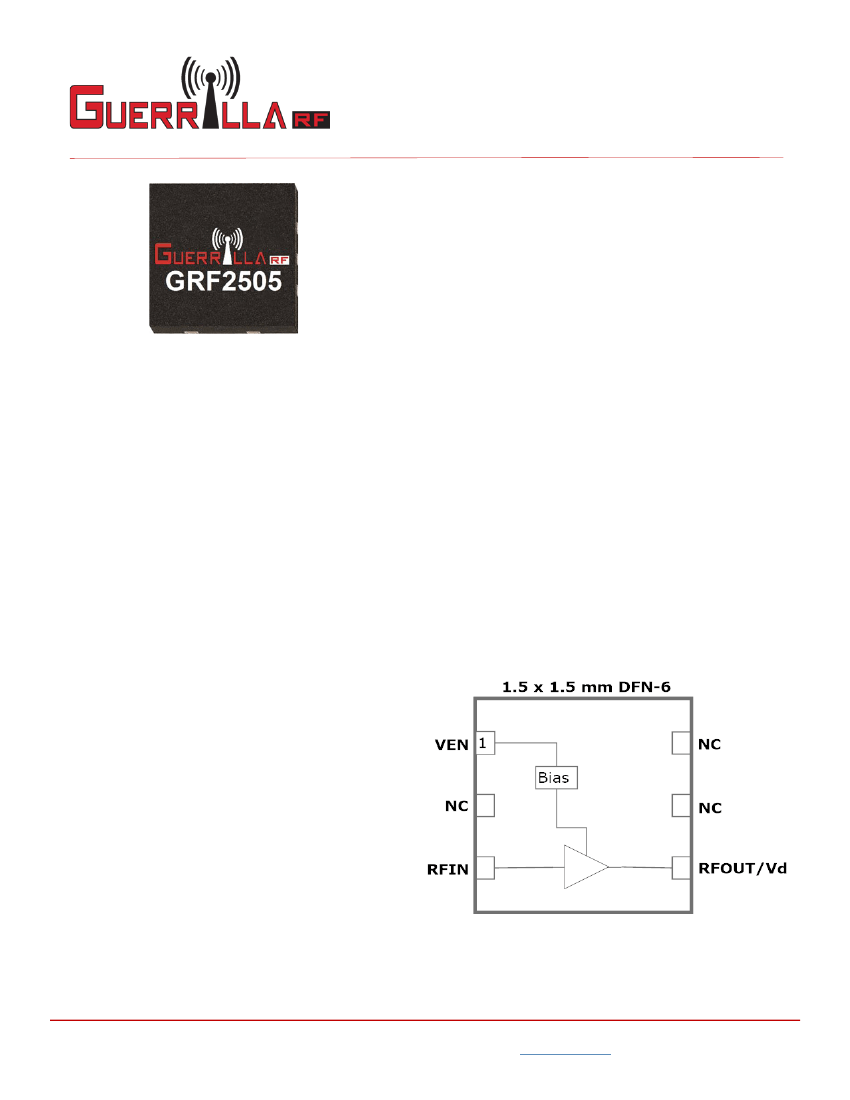

Pin Out (Top View)
Pin Assignments:
Pin
1
2
Name
V
ENABLE
NC
Description
Enable Voltage Input
No Connect or Ground
LNA RF input
LNA RF output
No Connect or Ground
No Connect or Ground
Ground
No internal connection to die
Note
V
ENABLE
and series resistor set I
DDQ
. V
ENABLE
< 0.2 volts disables device. On-
die pull-down resistor will turn the part off if this node is allowed to float.
3
4
5
6
PKG
BASE
RF_In
RF_Out
NC
NC
GND
An external DC blocking cap must be used.
V
DD
must be applied through a choke to this pin
No internal connection to die
No internal connection to die
Provides DC and RF ground for LNA, as well as thermal heat sink. Recom-
mend multiple 8 mil vias beneath the package for optimal RF and thermal
performance. Refer to evaluation board top layer graphic on schematic
page.
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc. All rights reserved.
Revision Date: 02/21/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
3
Released
GRF2505
Broadband LNA/Linear Driver
4.0 to 6.0 GHz
Nominal Operating Parameters:
Parameter
Gain Mode (Venable high)
Test Frequency
Gain
Evaluation Board Noise Figure
Output 1dB Compression Power
Output 3rd Order Intercept
Switching Rise Time
Switching Fall Time
Supply Current
Enable Current
Disabled Mode
Leakage Current
Thermal Data
Thermal Resistance: (Infra-Red Scan)
I
LEAKAGE
1
10
uA
V
DD
: 5.0V; V
ENABLE
: 0.0V
F
TEST
S21
NF
OP1dB
OIP3
T
RISE
T
FALL
I
DD
I
ENABLE
17.0
11.3
5.5
12.5
1.2
19.0
30.0
500
500
40.0
1.5
1.4
GHz
dB
dB
dBm
dBm
ns
ns
mA
mA
0.0 dBm P
OUT
per tone (5499 and
5501 MHz)
Sym-
bol
Specification
Min.
Typ.
Max.
Unit
Condition
V
DD
= 5.0 V, T
A
= 25°C
jc
T
CHANNEL
225
141
ᵒC/W
ᵒC
On standard Evaluation Board
V
DD
: 5.0 V; I
DDQ
: 40 mA; No RF;
P
DISS
: 200 mW
Channel Temperature @ +85 C Reference
(Package heat sink)
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc. All rights reserved.
Revision Date: 02/21/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
4
Released
GRF2505
Broadband LNA/Linear Driver
4.0 to 6.0 GHz

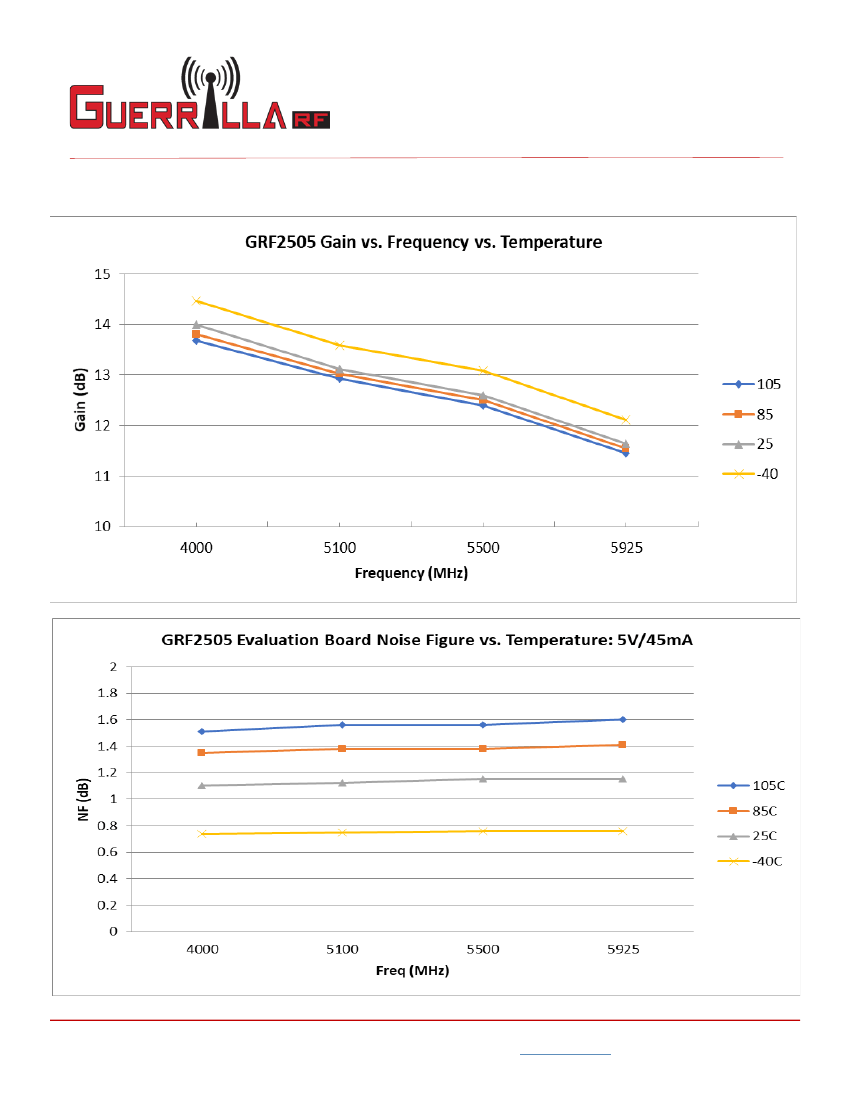

GRF2505 Evaluation Board Measured Data:
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc. All rights reserved.
Revision Date: 02/21/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
5
