SX-PCEAC2-SMT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Embedded solution> Wireless rf module with> WiFi module (802.11)> SX-PCEAC2-SMT

SX-PCEAC2-SMT: DescriptionWiFi module (802.11) 2x2 Dual Band 802.11 ac WLAN+BT SMT; CategoryEmbedded solution Wireless rf module with WiFi module (802.11); File Size783KB，2 Pages; ManufacturerSilex Technology; Environmental Compliance

Download Datasheet Parametric Compare View All

SX-PCEAC2-SMT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SX-PCEAC2-SMT	-	-	View	Buy Now

SX-PCEAC2-SMT Overview

WiFi module (802.11) 2x2 Dual Band 802.11 ac WLAN+BT SMT

SX-PCEAC2-SMT Parametric

Parameter Name	Attribute value
Maker	Silex Technology
Product Category	WiFi module(802.11)
supporting agreement	802.11 a/b/g/n/ac
frequency	2.4 GHz, 5 GHz
data rate	876 Mb/s
Interface Type	Serial
Working power voltage	3.3 V
Transmit supply current	610 mA
Receive supply current	285 mA
Minimum operating temperature	0 C
Maximum operating temperature	+ 70 C
size	12 mm x 16 mm x 1.5 mm
Encapsulation	Reel
series	SX-PCEAC2
Factory packaging quantity	1500

Preview

Download Datasheet

View All

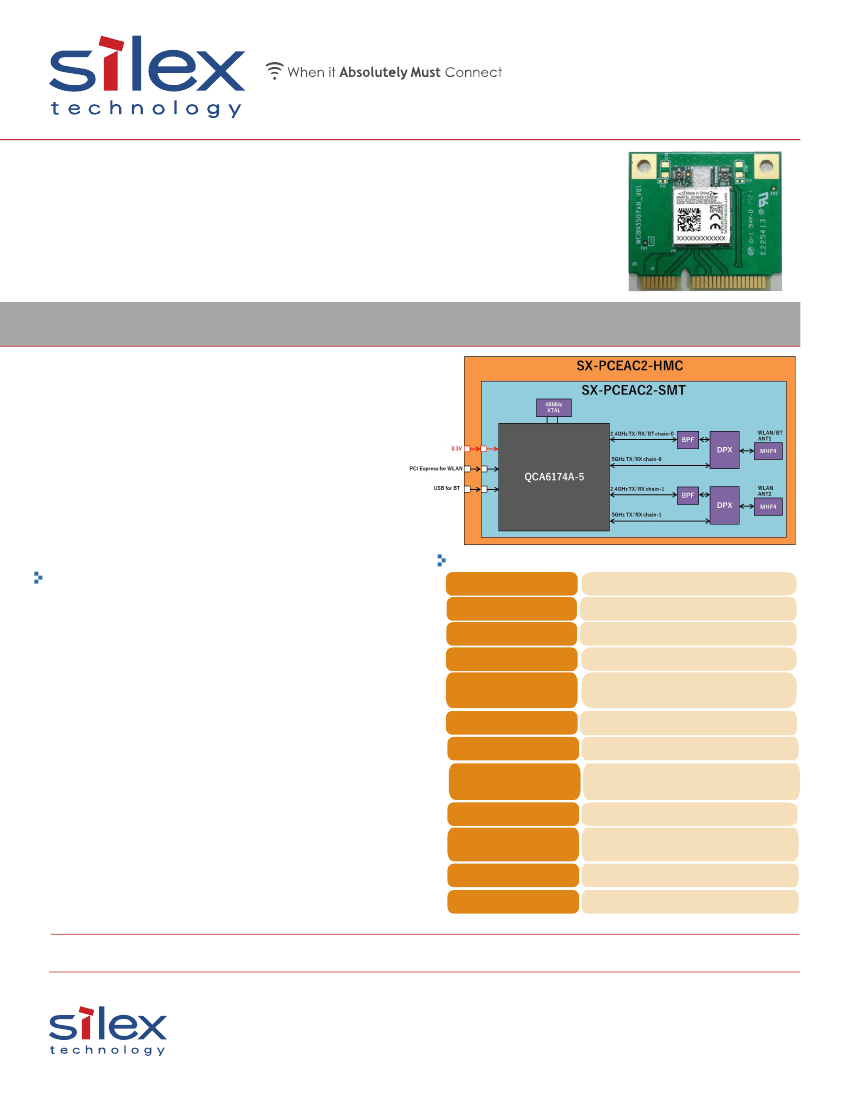

SX-PCEAC2

2x2 Dual Band 802.11ac WLAN Plus BT

Combo Module

Form Factors includes M.2 LGA and Half Mini Card Options

The SX-PCEAC2 is a dual-band 802.11 a/b/g/n/ac module with

bluetooth support which is designed for devices that require wireless

connectivity in a small form factor combined with high performance

with throughouts reaching upto 867Mbps.

The SX-PCEAC2 is powered by Qualcomm Atheros radio chip, the

QCA6174A-5 which features 2x2 wave 2 MU-MIMO technology. There

are a couple of form factors available . The surface mount option, the

M.2 LGA type 1216, offers the lowest footprint. Where as the half mini

card form factor is suitable who are looking to migrate from their legacy

PCIe radios to an 802.11ac solution. The half mini card option also

allows flexibility to customers to evaluate the radio using any platform

that has a PCIe slot.

Speci cations*:

Product Name

Chipset

Host Interface

Radio Speci cations

Bluetooth Speci cations

Security

Operating Voltage

Current Consumption

Operating Temperature

Dimensions

Driver Options

Modular Certi cations

*Subject to change.

Key Features:

•

Dual-Band 802.11ac Wave2 with MU-MIMO

SX-PCEAC2 is a 802.11ac WLAN plus Bluetooth combo solution

that supports 2x2 MU-MIMO with two spatial streams for

designed to deliver superior WLAN and BT performance.

•

Multiple Form Factors for Diverse Needs

SX-PCEAC2 s available in both surface mount (M.2 LGA Type) and

half mini PCIe form factors.

•

Enterprise Security Support

The SX-PCEAC2 supports WPA and WPA2 including 802.1x

Extensible Authentication Protocol (EAP) types. It provides robust

security for enterprise demands.

•

Support from Design to Manufacture

As Qualcomm’s Authorized Deisgn Center, we have direct access

to their design information that enables us to provide premium

hardware and software support from design through

deployment.

•

Modular Certifications

Modular certifications and approvals available for FCC (USA), IC

(Canada), ETSI (Europe), MIC (Japan).

SX-PCEAC2-SMT / SX-PCEAC2-HMC

QCA6174A-5

WLAN: PCIe BT: USB

802.11a/b/g/n/ac (2x2)

BT4.1 + HS “Smart Ready” BLE

Compatible with BT1.x, 2.x, & EDR

WPA/WPA2

802.11x (LEAP, PEAP, TLS, TTLS, FAST)

3.3V +/-5%

Tx: 610mA ; Rx: 285mA

Idle: 10mA ; Radio O : 3mA

0°C to +70 °C

SX-PCEAC2-SMT: 12.0 x 16.0 x 1.5 (mm)

SX-PCEAC2-HMC: 30.0 x 26.8 x 3.4 (mm)

Linux, ath10k, Windows

FCC / IC / CE / MIC

silex technology is a registered trademark of silex technology, Inc. Other product or brand names may be registered trademarks or trademarks of their respective owners.

silex global sales & support locations

US O ce

silex technology america, Inc.

+1-801-748-1199

US toll free 866-765-8761

www.silexamerica.com

sales@silexamerica.com

Europe O ce

silex technology europe, GmbH

+49-2151-65009-10

Germany toll free 0800-7453938

www.silexeurope.com

contact@silexeurope.com

India O ce

silex technology india, Pvt. Ltd.,.

+91-44-43033234

www.silex-india.com

support@silex-india.com

Corporate Headquarters

silex technology, Inc.

+81-774-98-3781

www.silex.jp

support@silex.jp

PN: 141-xxxxx-xxx

REV A. 20180104
