4778AG: DescriptionThermal Interface ProductsHard Anodized Aluminum for TO-126, TO-220, Cases 77, 90 and 199; CategoryThermal management products Thermal interface products; File Size120KB，2 Pages; ManufacturerAavid Thermalloy; Environmental Compliance

Download Datasheet Parametric View All

4778AG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	4778AG	-	-	View	Buy Now

4778AG Overview

Thermal Interface ProductsHard Anodized Aluminum for TO-126, TO-220, Cases 77, 90 and 199

4778AG Parametric

Parameter Name	Attribute value
Maker	Aavid Thermalloy
Product Category	Thermal interface products
type	Thermally Conductive Insulator
Material	Aluminum
length	19.05 mm
width	12.7 mm
thickness	0.51 mm
series	4778
Breakdown voltage	400 V
Package/box	TO-126, TO-220
Factory packaging quantity	1

Preview

Download Datasheet

View All

Home | Contact Us

| About Aavid

| Sales Rep Log In

---Useful Links---

Search by part #

Hard Anodized Aluminum

RoHS Compliant

A unique hardcoating process is employed which is optimized for diaelectric

capabilities. This process yields a uniform .025mm (.001") minimum coating, which is

an integral part of the base aluminum insulation. The .51mm (.020") thick aluminum

provides adequate support for the anodized coating for maximum heat transfer and

superior performance.

These durable hard anodized insulators have a high thermal conductance and a

minimum breakdown voltage of 400 volts DC through two layers of hard anodized

coating (per ASTM B110 test procedures).

Notes:

Dimensional tolerances and hole diameters are

± 25mm (.010"), angularity is

flatness is .10mm (.004"). Total Indicator Reading unless otherwise specified. All

washers are .51mm (.020") thick unless otherwise specified. The asterisk symbol

(*) on the dimension drawing denotes racking location.

Check distributor

part inventory

Browse Heat sinks

- By Device -

- By Product Line -

-Attachment Methods -

- Interface Materials -

± 1", and

For TO - 3

- Accessories -

Part No.

4726A

45.54

(1.793)

27.00

(1.063)

10.24

(.403)

5.59

(.220)

4.83

(.190)

Useful Links

•

Building a part #

•

Catalog Request

•

Directions

•

Find Distributor

•

Find Sales Rep

•

How to order?

•

MSDS Safety Sheets

•

Part # Cross Ref

•

Quote Request

•

RoHS Initiative

•

Sample Request

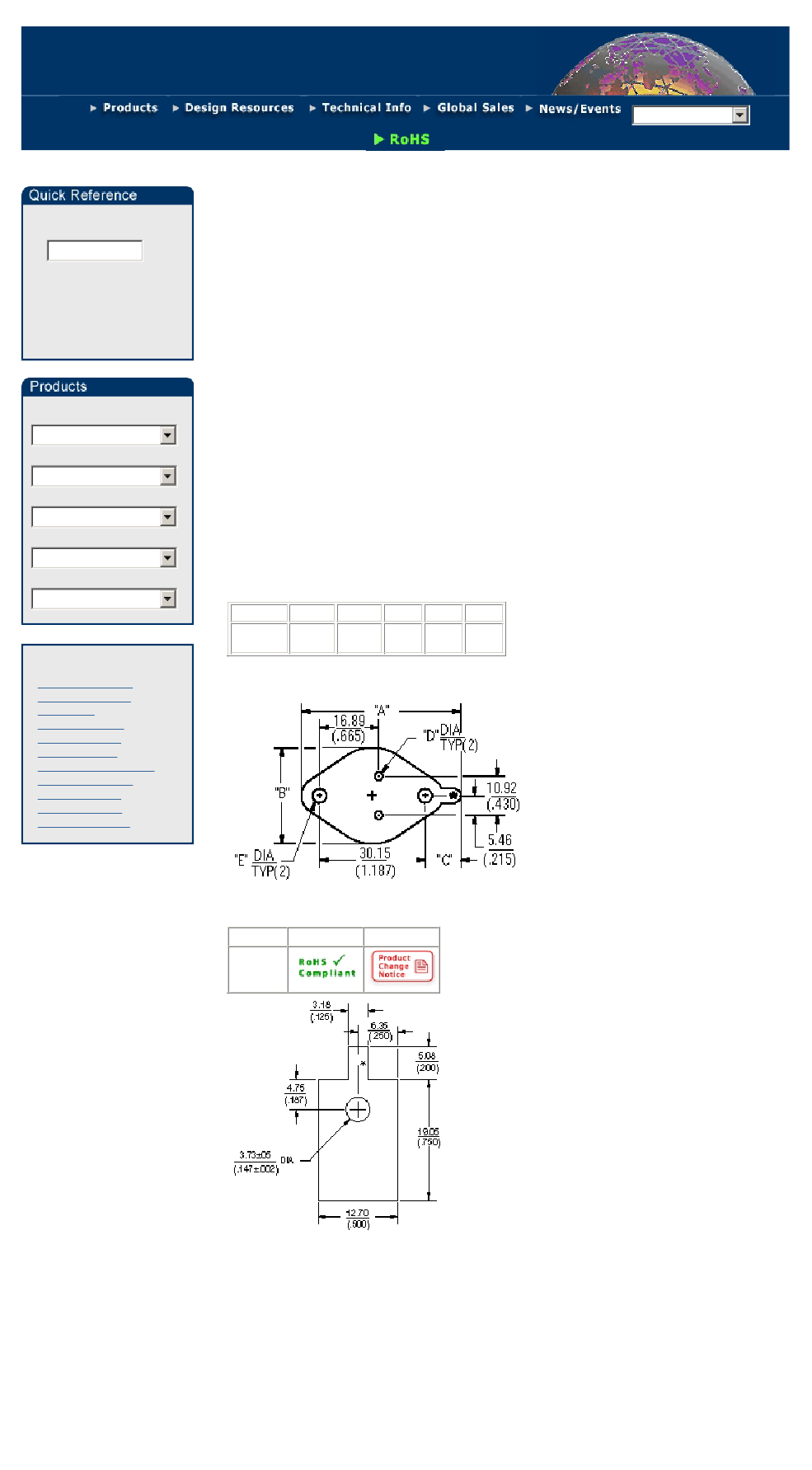

For TO - 126, TO - 220 Cases 77, 90 and 199

Part No.

4778AG

RoHS

PCN

Home

•

Sitemap

•

Disclaimer Statement

• ©

2008 Aavid Thermalloy, LLC
