172708-0108: DescriptionHeader and wire housing Mini-Fit TPA2 DR RECP HSG V-2 GW 8CKT; CategoryThe connector Header and line shell; File Size53KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

172708-0108 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	172708-0108	-	-	View	Buy Now

172708-0108 Overview

Header and wire housing Mini-Fit TPA2 DR RECP HSG V-2 GW 8CKT

172708-0108 Parametric

Parameter Name	Attribute value
Maker	Molex
Product Category	Headers and wire housings
product	Wire Housings
type	Receptacle Housing
Number of locations	8 Position
Pitch	4.2 mm
Number of rows	2 Row
Installation style	Free Hanging
Termination type	-
Installation angle	Straight
Contact type	-
Contact plating	-
series	172708
Contact type	Socket (Female)
Current rating	-
Shell material	Nylon
Voltage rating	-
Contact material	-
Flammability rating	UL 94 V-0
line spacing	4.2 mm
Plastic shell interface type	Female
Maximum operating temperature	+ 105 C
Minimum operating temperature	- 40 C
Factory packaging quantity	2400

Preview

Download Datasheet

View All

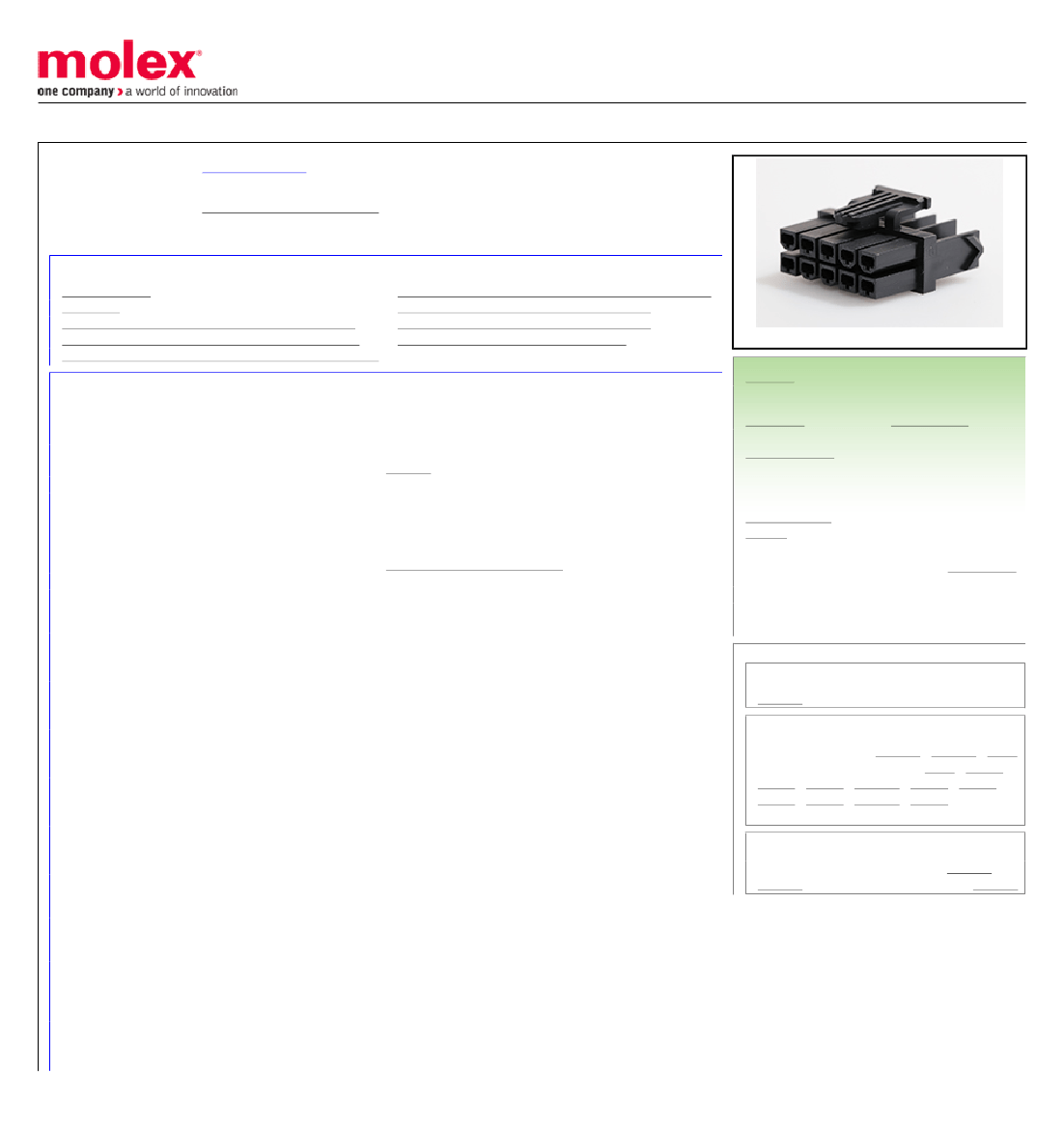

This document was generated on 06/06/2019

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

1727080010

Active

Mini-Fit Jr. Power Connectors

Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen,

10 Circuits

Documents:

Drawing (PDF)

3D Model

Product Specification 2029880001-PS-000 (PDF)

Product Specification PS-172718-0000-001 (PDF)

Application Specification AS-172718-0000-001 (PDF)

Agency Certification

General

Product Family

Series

3D Viewer

Application

Comments

Packaging Specification PK-172708-0000-000 (PDF)

Test Summary 1727180001-TS-000 (PDF)

Test Summary 1727180002-TS-000 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU-01109

Crimp Housings

172708

Yes

Power, Wire-to-Board, Wire-to-Wire

See product specification for current derating

information., See product specification for current

derating information.

Mini-Fit Jr. Power Connectors

Mini-Fit TPA2

889056178082

Black

94V-0

Receptacle

Yes

Nylon

2.560/g

Bag

4.20mm

Yes

-40° to +105°C

N/A

Overview

Product Name

UPC

Physical

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Capable

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

Solder Process Data

Lead-freeProcess Capability

Material Info

Reference - Drawing Numbers

Application Specification

Packaging Specification

Product Specification

Sales Drawing

Test Summary

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/88/2018 (15

January 2019)

Halogen-Free

Status

Low-Halogen

For more information, please visit Contact US

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

172708 Series

Mates With

Plug Housings 172762 , 172767 , 5559

Headers link:5566, 5569 , 35318 ,

44130 , 87427 , 172448 , 46991 , 35317 ,

43460 , 87427 , 172447 , 46207 Test

Plug link:44281

Use With

Mini-Fit TPA2 Female Terminal 172718 ,

202988 Mini-Fit TPA2 Retainer 172709

AS-172718-0000-001

PK-172708-0000-000

2029880001-PS-000, PS-172718-0000-001

SD-172708-0000-000

1727180001-TS-000, 1727180002-TS-000
