Preview

5-794635-0: DescriptionPin and socket connector 20P MICRO MNL ASSY VRT,SMT,LF; CategoryThe connector The connector; File Size234KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5-794635-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-794635-0	-	-	View	Buy Now

5-794635-0 Overview

Pin and socket connector 20P MICRO MNL ASSY VRT,SMT,LF

5-794635-0 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	MATE-N-LOK
Board mount options	SPLIT BOARD LOCK
subject depth	0.364 inch
body length	1.339 inch
Body/casing type	PLUG
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	150 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.118 inch
Match contact row spacing	0.118 inch
Plug information	2-794617-0
Mixed contacts	NO
Installation option 1	FRICTION RAMP
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	9.7028 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	POLYAMIDE
Terminal pitch	2.9972 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
UL Flammability Code	94V-0
Evacuation force-minimum value	.6672 N
Base Number Matches	1

Preview

Download Datasheet

View All

8

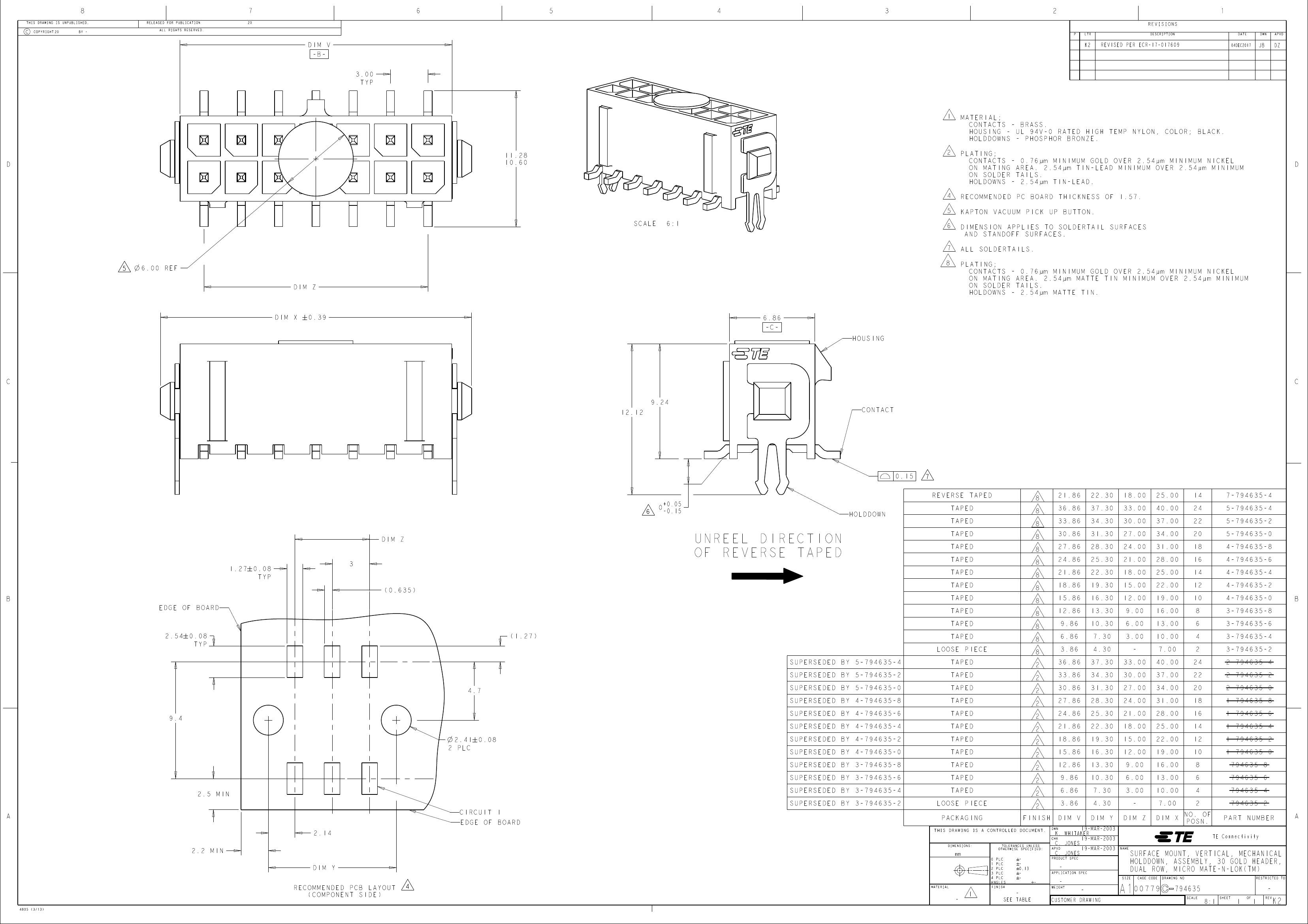

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

7

20

6

5

4

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

20

DIM V

-B-

K2

REVISED PER ECR-17-017609

04DEC2017

JB

DZ

3.00

TYP

1

MATERIAL;

CONTACTS - BRASS.

HOUSING - UL 94V-0 RATED HIGH TEMP NYLON, COLOR; BLACK.

HOLDDOWNS - PHOSPHOR BRONZE.

PLATING;

CONTACTS - 0.76µm MINIMUM GOLD OVER 2.54µm MINIMUM NICKEL

ON MATING AREA. 2.54µm TIN-LEAD MINIMUM OVER 2.54µm MINIMUM

ON SOLDER TAILS.

HOLDOWNS - 2.54µm TIN-LEAD.

RECOMMENDED PC BOARD THICKNESS OF 1.57.

KAPTON VACUUM PICK UP BUTTON.

DIMENSION APPLIES TO SOLDERTAIL SURFACES

AND STANDOFF SURFACES.

ALL SOLDERTAILS.

PLATING;

CONTACTS - 0.76µm MINIMUM GOLD OVER 2.54µm MINIMUM NICKEL

ON MATING AREA. 2.54µm MATTE TIN MINIMUM OVER 2.54µm MINIMUM

ON SOLDER TAILS.

HOLDOWNS - 2.54µm MATTE TIN.

D

11.28

10.60

2

D

4

5

SCALE

6:1

6

7

5

6.00

REF

DIM Z

8

DIM X

# 0.39

6.86

-C-

HOUSING

C

9.24

C

12.12

CONTACT

7

REVERSE TAPED

HOLDDOWN

TAPED

( 0.635 )

EDGE OF BOARD

TAPED

2.54

0.08

TYP

( 1.27 )

TAPED

LOOSE PIECE

SUPERSEDED BY 5-794635-4

SUPERSEDED BY 5-794635-2

4.7

SUPERSEDED BY 5-794635-0

SUPERSEDED BY 4-794635-8

SUPERSEDED BY 4-794635-6

SUPERSEDED BY 4-794635-4

2.41

2 PLC

0.08

SUPERSEDED BY 4-794635-2

SUPERSEDED BY 4-794635-0

SUPERSEDED BY 3-794635-8

SUPERSEDED BY 3-794635-6

2.5

MIN

CIRCUIT 1

2.14

2.2

MIN

DIM Y

RECOMMENDED PCB LAYOUT

(COMPONENT SIDE)

4805 (3/13)

6

0

+0.05

-0.15

8

2

FINISH

DWN

21.86

36.86

33.86

30.86

27.86

24.86

21.86

18.86

15.86

12.86

9.86

6.86

3.86

36.86

33.86

30.86

27.86

24.86

21.86

18.86

15.86

12.86

9.86

6.86

3.86

DIM V

22.30

37.30

34.30

31.30

28.30

25.30

22.30

19.30

16.30

13.30

10.30

7.30

4.30

37.30

34.30

31.30

28.30

25.30

22.30

19.30

16.30

13.30

10.30

7.30

4.30

DIM Y

18.00

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

-

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

-

DIM Z

25.00

40.00

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

7.00

40.00

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

7.00

DIM X

14

24

22

20

18

16

14

12

10

8

6

4

2

24

22

20

18

16

14

12

10

8

6

4

2

NO. OF

POSN.

7-794635-4

5- 794635 -4

5- 794635 -2

5- 794635 -0

4- 794635 -8

4- 794635 -6

4- 794635 -4

4- 794635 -2

4- 794635 -0

3- 794635 -8

3- 794635 -6

3- 794635 -4

3- 794635 -2

2- 794635 -4

2- 794635 -2

2- 794635 -0

1- 794635 -8

1- 794635 -6

1- 794635 -4

1- 794635 -2

1- 794635 -0

794635 -8

794635 -6

794635 -4

794635 -2

PART NUMBER

TE Connectivity

DIM Z

3

1.27

0.08

TYP

UNREEL DIRECTION

OF REVERSE TAPED

B

TAPED

LOOSE PIECE

PACKAGING

9.4

SUPERSEDED BY 3-794635-4

SUPERSEDED BY 3-794635-2

A

EDGE OF BOARD

A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

mm

4

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

-

0.13

-

19-MAR-2003

K. WHITAKER

CHK

19-MAR-2003

C. JONES

APVD

19-MAR-2003

C. JONES

PRODUCT SPEC

APPLICATION SPEC

NAME

-

1

FINISH

-

SEE TABLE

WEIGHT

-

CUSTOMER DRAWING

A1

00779

SIZE

SURFACE MOUNT, VERTICAL, MECHANICAL

HOLDDOWN, ASSEMBLY, 30 GOLD HEADER,

DUAL ROW, MICRO MATE-N-LOK(TM)

CAGE CODE

DRAWING NO

RESTRICTED TO

794635

SCALE

8:1

SHEET

1

OF

1

REV

-

K2
