3-1445097-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-1445097-1

3-1445097-1: DescriptionPin and socket connectorMICRO MNL HDR ASSY S/ROW AU LF; CategoryThe connector The connector; File Size180KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-1445097-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1445097-1	-	-	View	Buy Now

3-1445097-1 Overview

Pin and socket connectorMICRO MNL HDR ASSY S/ROW AU LF

3-1445097-1 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	MATE-N-LOK, POLARIZED
Board mount options	SPLIT BOARD LOCK
body width	0.223 inch
subject depth	0.351 inch
body length	1.462 inch
Body/casing type	PLUG
Connector type	POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.118 inch
Plug information	1-1445022-1
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	CSA,UL,VDE
reliability	COMMERCIAL
Shell material	NYLON
Terminal length	0.113 inch
Terminal pitch	2.9972 mm
Termination type	SOLDER
Total number of contacts	11
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

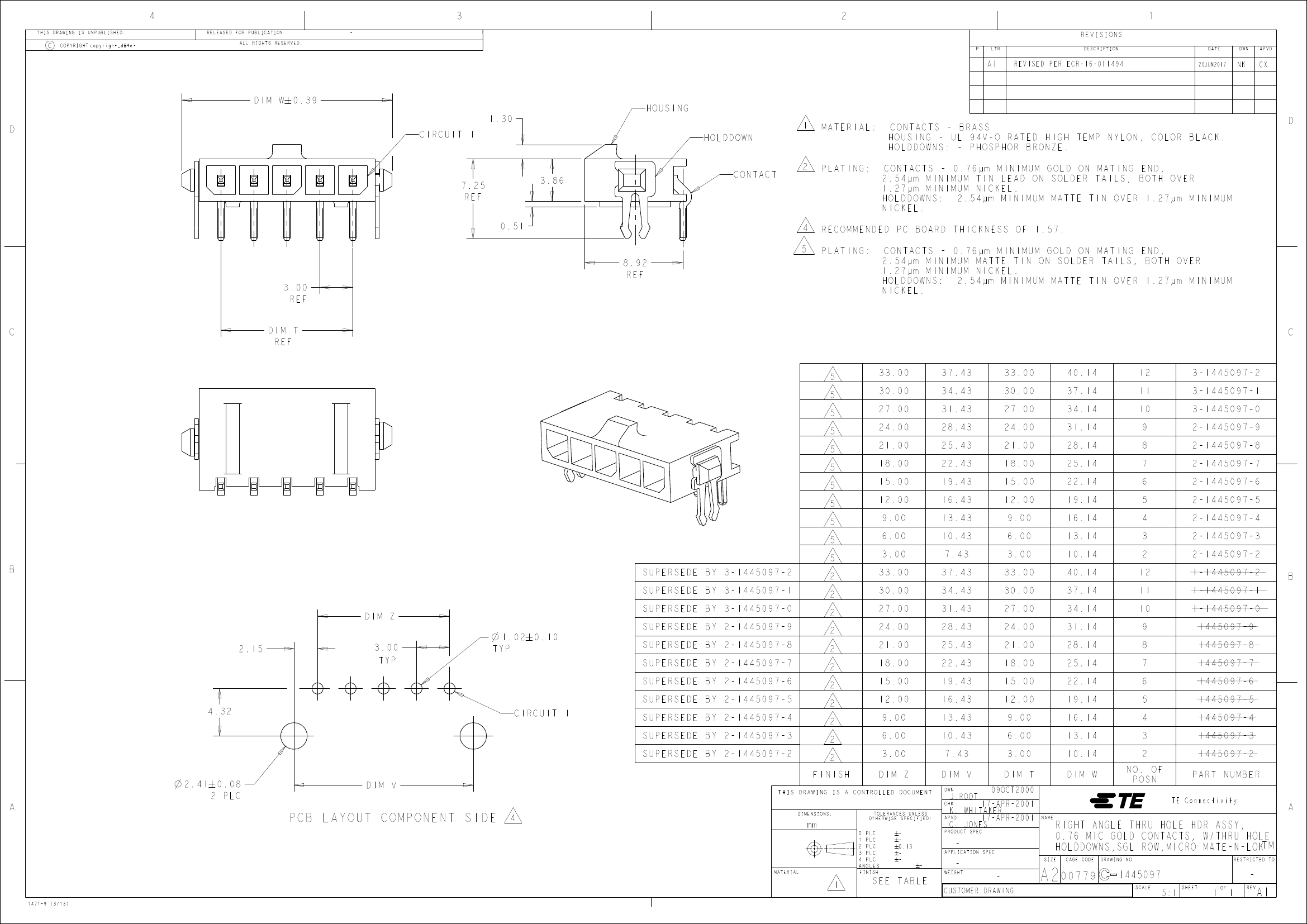

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

copyright_date -

REVISED PER ECR-16-011494

20JUN2017

DIM W # 0.39

1.30

CIRCUIT 1

HOUSING

HOLDDOWN

MATERIAL:

CONTACTS - BRASS

HOUSING - UL 94V-O RATED HIGH TEMP NYLON, COLOR BLACK.

HOLDDOWNS: - PHOSPHOR BRONZE.

7.25

REF

0.51

3.86

CONTACT

PLATING:

CONTACTS - 0.76µm MINIMUM GOLD ON MATING END,

2.54µm MINIMUM TIN LEAD ON SOLDER TAILS, BOTH OVER

1.27µm MINIMUM NICKEL.

HOLDDOWNS: 2.54µm MINIMUM MATTE TIN OVER 1.27µm MINIMUM

NICKEL.

8.92

REF

RECOMMENDED PC BOARD THICKNESS OF 1.57.

PLATING:

CONTACTS - 0.76µm MINIMUM GOLD ON MATING END,

2.54µm MINIMUM MATTE TIN ON SOLDER TAILS, BOTH OVER

1.27µm MINIMUM NICKEL.

HOLDDOWNS: 2.54µm MINIMUM MATTE TIN OVER 1.27µm MINIMUM

NICKEL.

3.00

REF

DIM T

REF

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

DIM Z

37.43

34.43

31.43

28.43

25.43

22.43

19.43

16.43

13.43

10.43

7.43

37.43

34.43

31.43

28.43

25.43

22.43

19.43

16.43

13.43

10.43

7.43

DIM V

DWN

CHK

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

DIM T

09OCT2000

NAME

40.14

37.14

34.14

31.14

28.14

25.14

22.14

19.14

16.14

13.14

10.14

40.14

37.14

34.14

31.14

28.14

25.14

22.14

19.14

16.14

13.14

10.14

DIM W

NO. OF

POSN

3-1445097-2

3-1445097-1

3-1445097-0

2-1445097-9

2-1445097-8

2-1445097-7

2-1445097-6

2-1445097-5

2-1445097-4

2-1445097-3

2-1445097-2

1-1445097-2

1-1445097-1

1-1445097-0

1445097-9

1445097-8

1445097-7

1445097-6

1445097-5

1445097-4

1445097-3

1445097-2

PART NUMBER

TE Connectivity

SUPERSEDE BY 3-1445097-2

SUPERSEDE BY 3-1445097-1

DIM Z

2.15

3.00

1.02

TYP

0.10

SUPERSEDE BY 3-1445097-0

SUPERSEDE BY 2-1445097-9

SUPERSEDE BY 2-1445097-8

SUPERSEDE BY 2-1445097-7

SUPERSEDE BY 2-1445097-6

4.32

CIRCUIT 1

SUPERSEDE BY 2-1445097-5

SUPERSEDE BY 2-1445097-4

SUPERSEDE BY 2-1445097-3

SUPERSEDE BY 2-1445097-2

2.41

0.08

2 PLC

DIM V

FINISH

TYP

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

PCB LAYOUT COMPONENT SIDE

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.13

17-APR-2001

K. WHITAKER

APVD

17-APR-2001

C. JONES

PRODUCT SPEC

APPLICATION SPEC

J.ROOT

1471-9 (3/13)

SEE TABLE

WEIGHT

CUSTOMER DRAWING

00779

SIZE

RIGHT ANGLE THRU HOLE HDR ASSY,

0.76 MIC GOLD CONTACTS, W/THRU HOLE

HOLDDOWNS,SGL ROW,MICRO MATE-N-LOK

CAGE CODE

DRAWING NO

RESTRICTED TO

1445097

SCALE

5:1

SHEET

REV
