3-1445100-2 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 3-1445100-2

Preview

3-1445100-2: DescriptionPin and socket connectorMICRO MNL HDR ASSY S/ROW LF; CategoryThe connector The connector; File Size181KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-1445100-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1445100-2	-	-	View	Buy Now

3-1445100-2 Overview

Pin and socket connectorMICRO MNL HDR ASSY S/ROW LF

3-1445100-2 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Is Samacsys	N
Other features	MATE-N-LOK, POLARIZED
Board mount options	SOLDER HOLDING POSTS
body width	0.223 inch
subject depth	0.439 inch
body length	1.575 inch
Body/casing type	PLUG
Connector type	POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.118 inch
Plug information	1-1445022-2
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	CSA,UL,VDE
reliability	COMMERCIAL
Shell material	NYLON
Terminal pitch	2.9972 mm
Termination type	SURFACE MOUNT
Total number of contacts	12
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

4

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

2009

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

2009

C2

DIM W # 0.39

REVISED PER ECR-16-011494

20JUN2017

NK

CX

1.30

HOUSING

HOLDDOWN

1

MATERIAL:

CONTACTS - BRASS

HOUSING - UL 94V-O RATED HIGH TEMP NYLON, COLOR BLACK.

HOLDDOWNS: - PHOSPHOR BRONZE.

D

CIRCUIT 1

3.86

D

CONTACT

2

PLATING:

CONTACTS - 0.76µm MINIMUM GOLD ON MATING END,

2.54µm MINIMUM TIN LEAD ON SOLDER TAILS, BOTH OVER

1.27µm MINIMUM NICKEL.

HOLDDOWNS: 2.54µm MINIMUM MATTE TIN OVER 1.27µm MINIMUM

NICKEL.

0.51

INCLUDES CONTACT TAILS,

HOUSING STANDOFFS, AND

BOARDLOCKS

4

11.16

REF

5

RECOMMENDED PC BOARD THICKNESS OF 1.57.

PLATING:

CONTACTS - 0.76µm MINIMUM GOLD ON MATING END,

2.54µm MINIMUM MATTE TIN ON SOLDER TAILS, BOTH OVER

1.27µm MINIMUM NICKEL.

HOLDDOWNS: 2.54µm MINIMUM MATTE TIN OVER 1.27µm MINIMUM

NICKEL.

UNREEL DIRECTION

OF REVERSE TAPED

C

REVERSE TAPED

TAPED

3.00

REF

TAPED

5

2

FINISH

9.00

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

DIM Z

DWN

CHK

DIMENSIONS:

C

16.41

40.41

37.41

34.41

31.41

28.41

25.41

22.41

19.41

16.41

13.41

10.41

40.41

37.41

34.41

31.27

28.41

25.41

22.41

19.41

16.41

13.41

10.41

DIM V

09OCT2000

NAME

16.00

40.00

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

40.00

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

DIM W

4

12

11

10

9

8

7

6

5

4

3

2

12

11

10

9

8

7

6

5

4

3

2

NO. OF

POSN

6-1445100-4

3-1445100-2

3-1445100-1

3-1445100-0

2-1445100-9

2-1445100-8

2-1445100-7

2-1445100-6

2-1445100-5

2-1445100-4

2-1445100-3

2-1445100-2

1-1445100-2

1-1445100-1

1-1445100-0

1445100-9

1445100-8

1445100-7

1445100-6

1445100-5

1445100-4

1445100-3

1445100-2

PART NUMBER

TE Connectivity

B

DIM Z

TAPED

SUPERSEDED BY 3-1445055-2

SUPERSEDED BY 3-1445055-1

SUPERSEDED BY 3-1445055-0

CIRCUIT 1

2.92

0.08

SUPERSEDED BY 2-1445055-9

SUPERSEDED BY 2-1445055-8

SUPERSEDED BY 2-1445055-7

SUPERSEDED BY 2-1445055-6

TAPED

PACKAGING

B

3.00

TYP

1.27

0.08

TYP

5.48

SUPERSEDED BY 2-1445055-5

1.65

0.08

SUPERSEDED BY 2-1445055-4

SUPERSEDED BY 2-1445055-3

SUPERSEDED BY 2-1445055-2

A

3.635

3.43 0.08

2 PLC

THIS DRAWING IS A CONTROLLED DOCUMENT.

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

mm

DIM V

PCB LAYOUT COMPONENT SIDE

1471-9 (3/13)

4

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.13

-

17-APR-2001

K. WHITAKER

APVD

17-APR-2001

C. JONES

PRODUCT SPEC

APPLICATION SPEC

J.ROOT

A

TM

-

1

SEE TABLE

WEIGHT

-

CUSTOMER DRAWING

A2

00779

SIZE

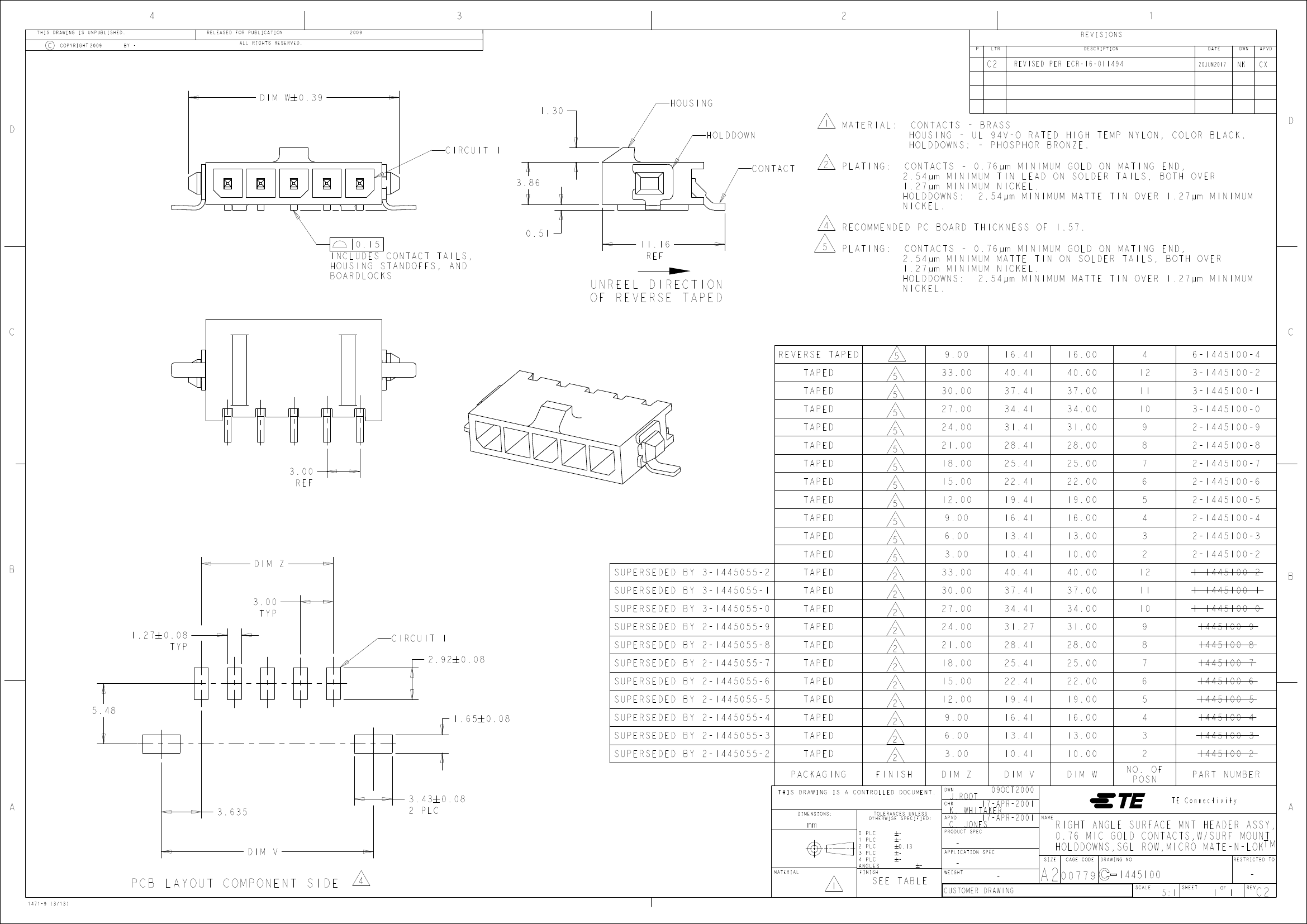

RIGHT ANGLE SURFACE MNT HEADER ASSY,

0.76 MIC GOLD CONTACTS,W/SURF MOUNT

HOLDDOWNS,SGL ROW,MICRO MATE-N-LOK

CAGE CODE

DRAWING NO

RESTRICTED TO

1445100

SCALE

5:1

SHEET

1

OF

1

REV

-

C2
