NX304GB1B-61 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> Push button switch> NX304GB1B-61

Preview

NX304GB1B-61: DescriptionButton switchSwitch with terminal lgs, wshrs, scws, nt; CategoryMechanical and electronic products switch Push button switch; File Size61KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

NX304GB1B-61 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NX304GB1B-61	-	-	View	Buy Now

NX304GB1B-61 Overview

Button switchSwitch with terminal lgs, wshrs, scws, nt

NX304GB1B-61 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Product Category	power switch button
Shipping restrictions	Mouser does not currently sell this product.
illumination	Non-Illuminated
Lamp type	-
Factory packaging quantity	1

Preview

Download Datasheet

View All

D

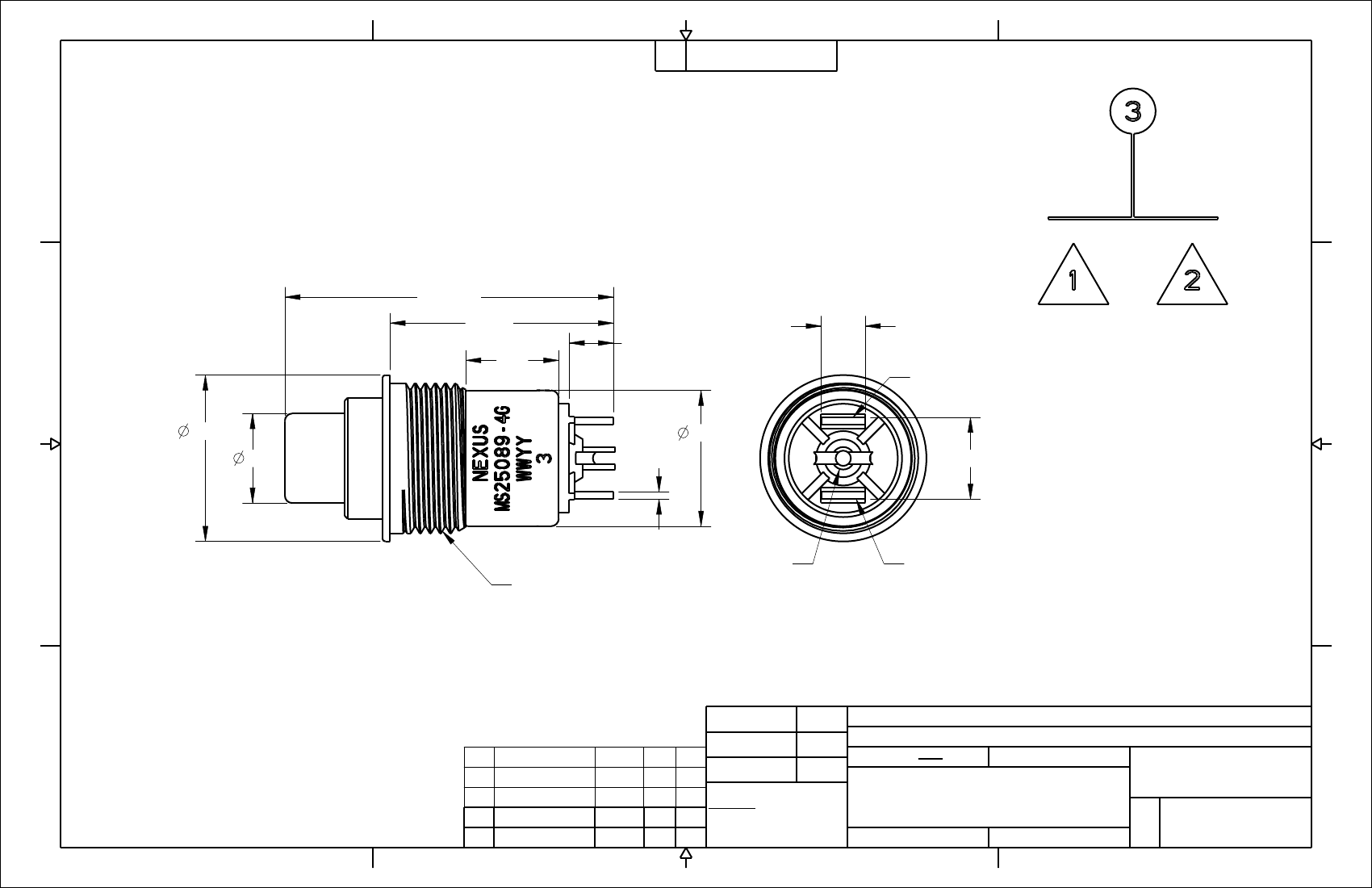

NOTES:

1) DUSTPROOF SERIES 300 MOMENTARY SWITCH

CONTACT 3-TNO - THREE TERMINAL NORMALLY OPEN

ADAPTER TYPE "G" COLOR BLACK

BUTTON #1 COLOR BLACK

2) ORDER PART # NX304GB1B

3) WWYY IS THE DATE CODE

4

3

B

2

NX304GB1B

1

D

1-11/32

C

15/16

3/8

3/16

CONTACT

ARRANGMENT

(3-TNO)

C

TERMINAL #2

11/16

3/8

1/32

9/16

11/32

B

5/8-24 UNEF-2A

TERMINAL #3

TERMINAL #1

B

THIS DOCUMENT CONTAINS PROPRIETARY INFOR-

MATION OF NEXUS,INCORPORATED AND SUCH

INFORMATION MAY NOT BE DISCLOSED TO OTHERS

FOR ANY PURPOSE OR USED FOR ANY PURPOSE

WITHOUT THE WRITTEN CONSENT OF NEXUS.

DWN.BY

HR

DATE

2/1/16

MATERIAL

FINISH

WEIGHT

TITLE

SCALE = 1.00 :1

A

2/1

2016

CN #

DATE

CHECKED BY

DATE

APPR.BY

DATE

A

LET.

NEW RELEASE

REVISION

HR

CHK.

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCHES &/OR [mm]

TOLERANCES:

DECIMAL: .XX[X.X] .XXX[X.XX]

±

.0X[0.X] ±

.00X[0.0X]

FRACTION: X/X

±

X/XX

ANGLES: .X

± .X °

SWITCH MOMENTARY

(3-TNO)

SHEET 1 OF 1

STAMFORD,CONN

NEXUS

DWG. NO.

A

DO NOT SCALE DWG.

B

SIZE

NX304GB1B

NX304GB1B-61 Related Products

	NX304GB1B-61	NX304GB1B
Description	Button switchSwitch with terminal lgs, wshrs, scws, nt	Button switchSwitch only Black
Maker	Amphenol	Amphenol
Product Category	power switch button	power switch button
Shipping restrictions	Mouser does not currently sell this product.	Mouser does not currently sell this product.
illumination	Non-Illuminated	Non-Illuminated
Factory packaging quantity	1	1

Recommended Resources

SCA (background music) decoder circuit diagram

JG series photoelectric relay circuit a

Simple water pump automatic controller circuit

KTY87 type temperature sensing transmission circuit

temperature control circuit

Audio signal amplification circuit
