3-1445054-0: DescriptionPin and socket connectorMICRO MNL HDR ASSY SNGL ROW LF; CategoryThe connector The connector; File Size173KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-1445054-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1445054-0	-	-	View	Buy Now

3-1445054-0 Overview

Pin and socket connectorMICRO MNL HDR ASSY SNGL ROW LF

3-1445054-0 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	MATE-N-LOK
Board mount options	SPLIT BOARD LOCK
body width	0.223 inch
subject depth	0.351 inch
body length	1.344 inch
Body/casing type	PLUG
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.118 inch
Plug information	1-1445022-0
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	100u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	POLYAMIDE
Terminal length	0.113 inch
Terminal pitch	2.9972 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

4

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

20

3

2

LOC

DIST

1

C

COPYRIGHT

20

CM

00

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

A2

REVISED PER ECR-16-011506

04JUL2017

BW

CX

DIM W # 0.39

D

1.30

HOUSING

HOLDDOWN

1

MATERIAL:

CONTACTS - BRASS

HOUSING - UL 94V-O RATED HIGH TEMP NYLON, COLOR BLACK.

HOLDDOWNS: - PHOSPHOR BRONZE.

D

7.25

REF

CIRCUIT 1

0.51

3.86

CONTACT

2

PLATING:

CONTACTS - 2.54µm MINIMUM TIN-LEAD OVER 1.27µm MINIMUM

NICKEL.

HOLDDOWNS: 2.54µm MINIMUM TIN-LEAD OVER 1.27µm MINIMUM

NICKEL.

3.00

REF

8.92

REF

4

5

RECOMMENDED PC BOARD THICKNESS OF 1.57.

PLATING:

CONTACTS - 2.54µm MINIMUM MATTE TIN OVER 1.27µm MINIMUM

NICKEL.

HOLDDOWNS: 2.54µm MINIMUM MATTE TIN OVER 1.27µm MINIMUM

NICKEL.

C

DIM T

REF

5

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

DIM Z

37.43

34.43

31.43

28.43

25.43

22.43

19.43

16.43

13.43

10.43

7.43

37.43

34.43

31.43

28.43

25.43

22.43

19.43

16.43

13.43

10.43

7.43

DIM V

DWN

CHK

DIMENSIONS:

C

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

DIM T

06OCT2000

NAME

40.14

37.14

34.14

31.14

28.14

25.14

22.14

19.14

16.14

13.14

10.14

40.14

37.14

34.14

31.14

28.14

25.14

22.14

19.14

16.14

13.14

10.14

DIM W

12

11

10

9

8

7

6

5

4

3

2

12

11

10

9

8

7

6

5

4

3

2

NO. OF

POSN

3-1445054-2

3-1445054-1

3-1445054-0

2-1445054-9

2-1445054-8

2-1445054-7

2-1445054-6

2-1445054-5

2-1445054-4

2-1445054-3

2-1445054-2

1-1445054-2

1-1445054-1

1-1445054-0

1445054-9

1445054-8

1445054-7

1445054-6

1445054-5

1445054-4

1445054-3

1445054-2

PART NUMBER

TE Connectivity

B

DIM Z

3.00

1.02

TYP

0.10

SUPERSEDED BY 3-1445054-2

SUPERSEDED BY 3-1445054-1

SUPERSEDED BY 3-1445054-0

SUPERSEDED BY 2-1445054-9

SUPERSEDED BY 2-1445054-8

SUPERSEDED BY 2-1445054-7

CIRCUIT 1

SUPERSEDED BY 2-1445054-6

SUPERSEDED BY 2-1445054-5

SUPERSEDED BY 2-1445054-4

SUPERSEDED BY 2-1445054-3

2.41

0.08

2 PLC

DIM V

SUPERSEDED BY 2-1445054-2

5

2

FINISH

B

2.15

TYP

4.32

THIS DRAWING IS A CONTROLLED DOCUMENT.

A

PCB LAYOUT COMPONENT SIDE

4

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.13

-

13-MAR-2001

K. WHITAKER

APVD

13-MAR-2001

K. WHITAKER

PRODUCT SPEC

APPLICATION SPEC

J.ROOT

A

TM

RESTRICTED TO

-

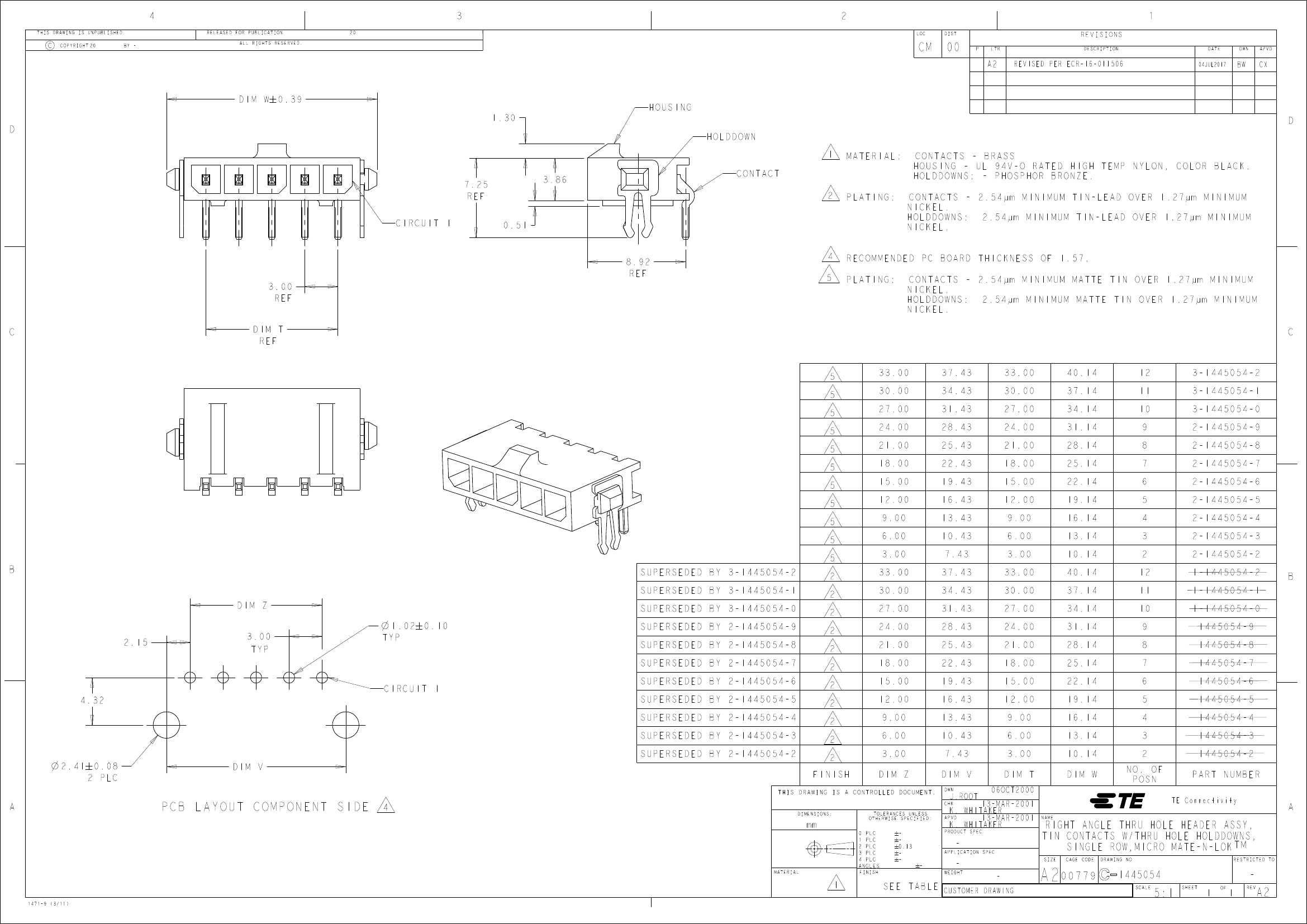

RIGHT ANGLE THRU HOLE HEADER ASSY,

TIN CONTACTS W/THRU HOLE HOLDDOWNS,

SINGLE ROW,MICRO MATE-N-LOK

SIZE

CAGE CODE

DRAWING NO

-

WEIGHT

-

1

1471-9 (3/11)

SEE TABLE

-

CUSTOMER DRAWING

A2

00779

1445054

SCALE

5:1

SHEET

1

OF

1

REV

-

A2
