3-1445055-0: DescriptionPin and socket connectorMICRO MNL HDR ASSY S/ROW LF; CategoryThe connector The connector; File Size212KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-1445055-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1445055-0	-	-	View	Buy Now

3-1445055-0 Overview

Pin and socket connectorMICRO MNL HDR ASSY S/ROW LF

3-1445055-0 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	MATE-N-LOK, POLARIZED
Board mount options	SPLIT BOARD LOCK
body width	0.223 inch
subject depth	0.351 inch
body length	1.344 inch
Body/casing type	PLUG
Connector type	POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.118 inch
Plug information	1-1445022-0
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	100u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	NYLON
Terminal length	0.113 inch
Terminal pitch	2.9972 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

4

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

20

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

20

B1

REVISED PER ECR-16-011494

20JUN2017

NK

CX

D

DIM W # 0.39

D

1

2

MATERIAL:

PLATING:

CONTACTS - BRASS

HOUSING - UL 94V-O RATED HIGH TEMP NYLON, COLOR BLACK.

1.30

CIRCUIT 1

HOUSING

CONTACTS - 2.54µm MINIMUM TIN-LEAD OVER 1.27µm MINIMUM

NICKEL.

4

CONTACT

5

RECOMMENDED PC BOARD THICKNESS OF 1.57.

PLATING:

CONTACTS - 2.54µm MINIMUM MATTE TIN OVER 1.27µm MINIMUM

NICKEL.

3.86

7.88

REF

0.51

C

3.00

REF

C

8.92

REF

5

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

-

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

-

DIM Z

28.70

25.70

22.70

19.70

16.70

13.70

10.70

7.70

4.70

-

28.70

25.70

22.70

19.70

16.70

13.70

10.70

7.70

4.70

-

DIM V

DWN

CHK

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

DIM T

06OCT2000

NAME

40.14

37.14

34.14

31.14

28.14

25.14

22.14

19.14

16.14

13.14

10.14

40.14

37.14

34.14

31.14

28.14

25.14

22.14

19.14

16.14

13.14

10.14

DIM W

12

11

10

9

8

7

6

5

4

3

2

12

11

10

9

8

7

6

5

4

3

2

NO. OF

POSN

3-1445055-2

3-1445055-1

3-1445055-0

2-1445055-9

2-1445055-8

2-1445055-7

2-1445055-6

2-1445055-5

2-1445055-4

2-1445055-3

2-1445055-2

1-1445055-2

1-1445055-1

1-1445055-0

1445055-9

1445055-8

1445055-7

1445055-6

1445055-5

1445055-4

1445055-3

1445055-2

PART NUMBER

TE Connectivity

DIM T

REF

B

SUPERSEDED BY 3-1445055-2

SUPERSEDED BY 3-1445055-1

SUPERSEDED BY 3-1445055-0

SUPERSEDED BY 2-1445055-9

SUPERSEDED BY 2-1445055-8

SUPERSEDED BY 2-1445055-7

SUPERSEDED BY 2-1445055-6

SUPERSEDED BY 2-1445055-5

SUPERSEDED BY 2-1445055-4

SUPERSEDED BY 2-1445055-3

SUPERSEDED BY 2-1445055-2

5

2

FINISH

B

THIS DRAWING IS A CONTROLLED DOCUMENT.

A

DIMENSIONS:

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.13

-

13-MAR-2001

K.WHITAKER

APVD

13-MAR-2001

K.WHITAKER

PRODUCT SPEC

APPLICATION SPEC

J.ROOT

A

-

1

1471-9 (3/13)

SEE TABLE

WEIGHT

-

CUSTOMER DRAWING

A2

00779

SIZE

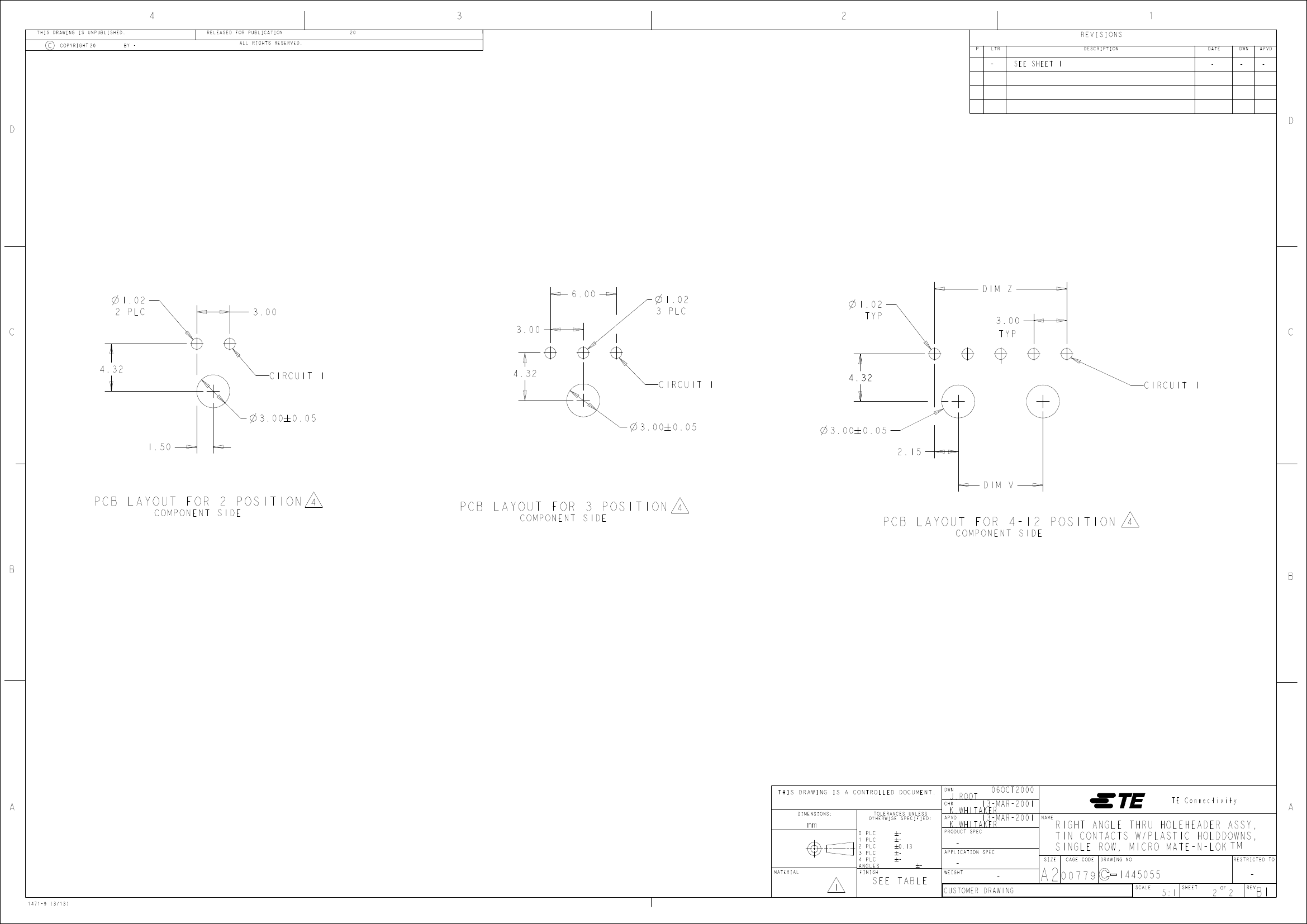

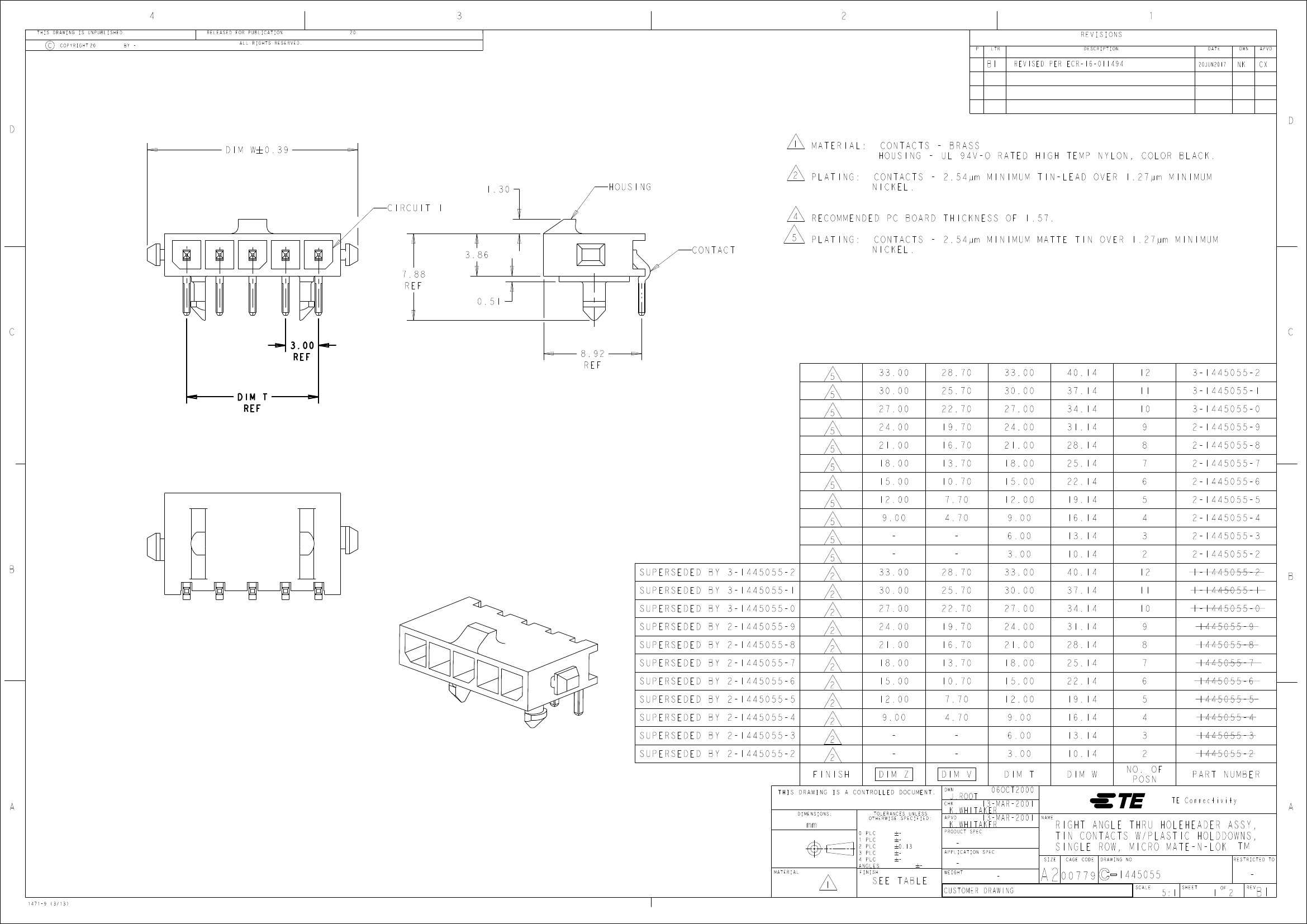

RIGHT ANGLE THRU HOLEHEADER ASSY,

TIN CONTACTS W/PLASTIC HOLDDOWNS,

SINGLE ROW, MICRO MATE-N-LOK

CAGE CODE

DRAWING NO

TM

RESTRICTED TO

1445055

SCALE

5:1

SHEET

1

OF

2

REV

-

B1
