3-1445089-2: DescriptionPin and socket connectorMICRO MNL HDR ASSY S/ROW AU LF; CategoryThe connector The connector; File Size220KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-1445089-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1445089-2	-	-	View	Buy Now

3-1445089-2 Overview

Pin and socket connectorMICRO MNL HDR ASSY S/ROW AU LF

3-1445089-2 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Is Samacsys	N
Other features	MATE-N-LOK
Board mount options	HOLE .112-.124
body width	0.223 inch
subject depth	0.351 inch
body length	1.58 inch
Body/casing type	PLUG
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.118 inch
Plug information	1-1445022-2
Mixed contacts	NO
Installation option 1	FRICTION RAMP
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell material	POLYAMIDE
Terminal pitch	2.9972 mm
Termination type	SOLDER
Total number of contacts	12
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

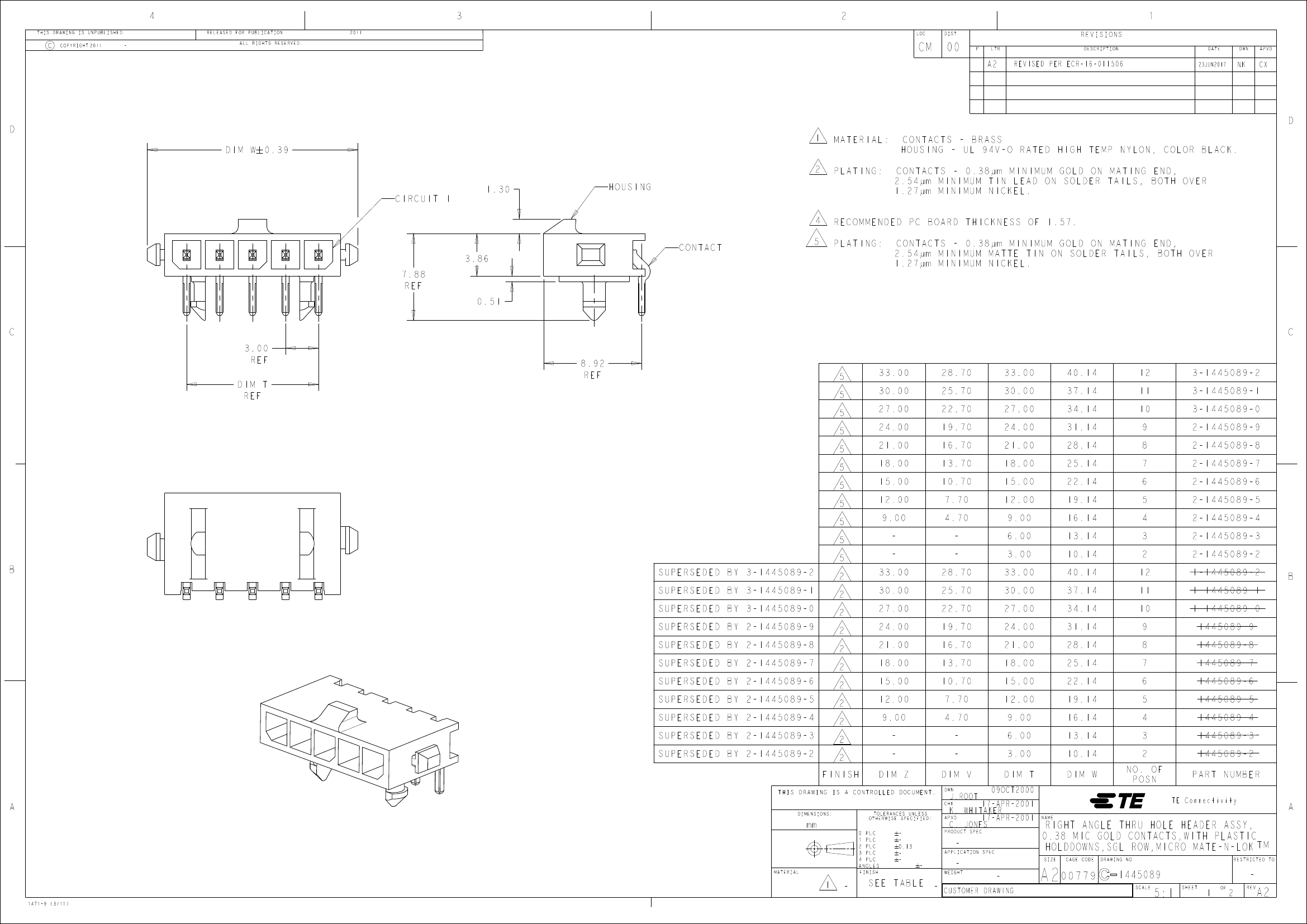

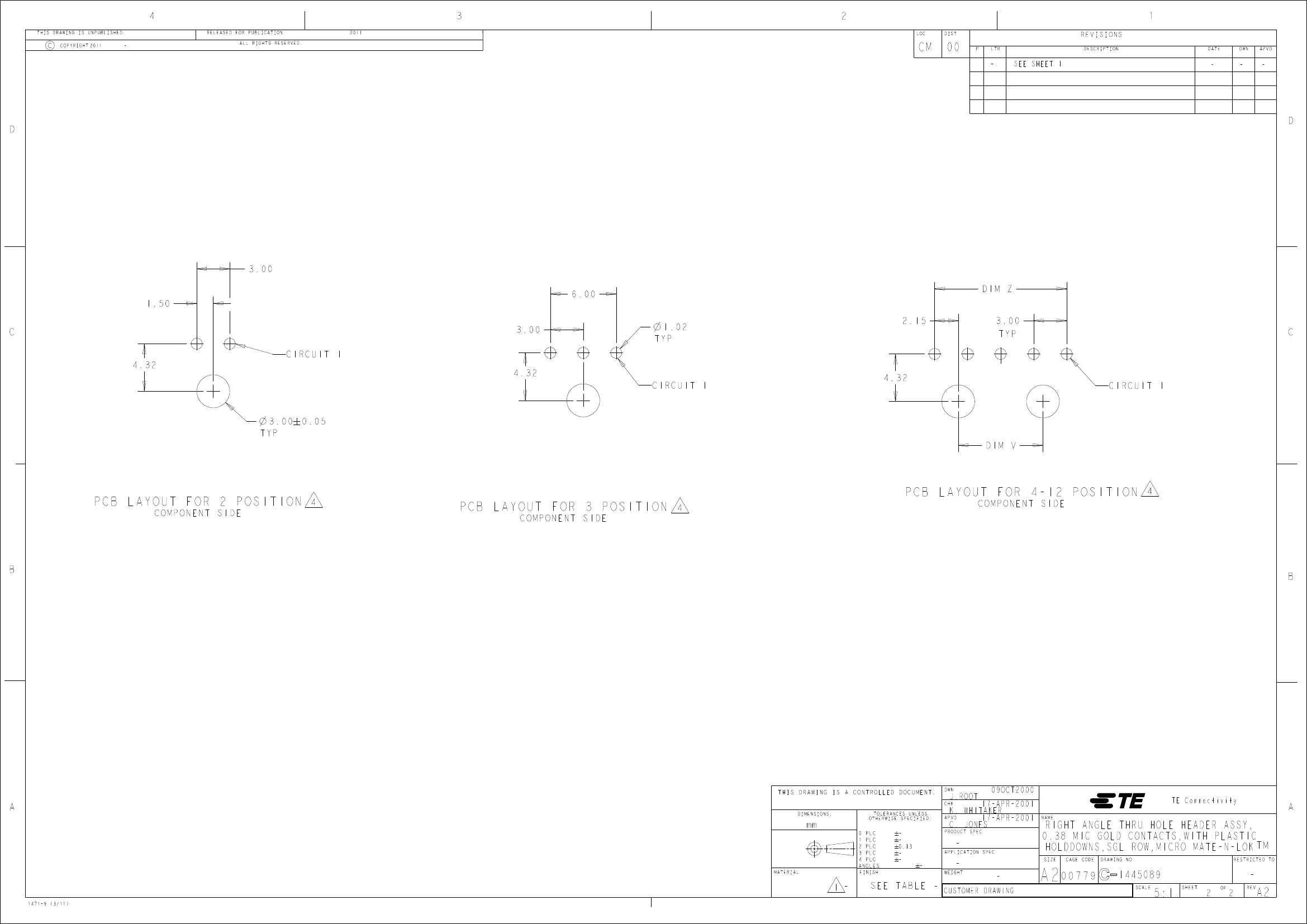

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

2011

LOC

DIST

2011

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED PER ECR-16-011506

23JUN2017

DIM W # 0.39

CIRCUIT 1

1.30

HOUSING

CONTACT

MATERIAL:

PLATING:

CONTACTS - BRASS

HOUSING - UL 94V-O RATED HIGH TEMP NYLON, COLOR BLACK.

CONTACTS - 0.38µm MINIMUM GOLD ON MATING END,

2.54µm MINIMUM TIN LEAD ON SOLDER TAILS, BOTH OVER

1.27µm MINIMUM NICKEL.

RECOMMENDED PC BOARD THICKNESS OF 1.57.

PLATING:

CONTACTS - 0.38µm MINIMUM GOLD ON MATING END,

2.54µm MINIMUM MATTE TIN ON SOLDER TAILS, BOTH OVER

1.27µm MINIMUM NICKEL.

3.86

7.88

REF

0.51

3.00

REF

DIM T

REF

8.92

REF

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

DIM Z

28.70

25.70

22.70

19.70

16.70

13.70

10.70

7.70

4.70

28.70

25.70

22.70

19.70

16.70

13.70

10.70

7.70

4.70

DIM V

DWN

CHK

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

DIM T

09OCT2000

NAME

40.14

37.14

34.14

31.14

28.14

25.14

22.14

19.14

16.14

13.14

10.14

40.14

37.14

34.14

31.14

28.14

25.14

22.14

19.14

16.14

13.14

10.14

DIM W

NO. OF

POSN

3-1445089-2

3-1445089-1

3-1445089-0

2-1445089-9

2-1445089-8

2-1445089-7

2-1445089-6

2-1445089-5

2-1445089-4

2-1445089-3

2-1445089-2

1-1445089-2

1-1445089-1

1-1445089-0

1445089-9

1445089-8

1445089-7

1445089-6

1445089-5

1445089-4

1445089-3

1445089-2

PART NUMBER

TE Connectivity

SUPERSEDED BY 3-1445089-2

SUPERSEDED BY 3-1445089-1

SUPERSEDED BY 3-1445089-0

SUPERSEDED BY 2-1445089-9

SUPERSEDED BY 2-1445089-8

SUPERSEDED BY 2-1445089-7

SUPERSEDED BY 2-1445089-6

SUPERSEDED BY 2-1445089-5

SUPERSEDED BY 2-1445089-4

SUPERSEDED BY 2-1445089-3

SUPERSEDED BY 2-1445089-2

FINISH

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.13

17-APR-2001

K. WHITAKER

APVD

17-APR-2001

C. JONES

PRODUCT SPEC

APPLICATION SPEC

J.ROOT

RESTRICTED TO

RIGHT ANGLE THRU HOLE HEADER ASSY,

0.38 MIC GOLD CONTACTS,WITH PLASTIC

HOLDDOWNS,SGL ROW,MICRO MATE-N-LOK

SIZE

CAGE CODE

DRAWING NO

WEIGHT

1471-9 (3/11)

SEE TABLE

CUSTOMER DRAWING

00779

1445089

SCALE

5:1

SHEET

REV
