BUCHANAN Terminal Blocks
Table of Contents—Interface Module Systems
Overview (Catalog Numbering Code) ………………………………………………………196
Interface Modules
………………………………………………………………………197-204
DIN 41612 Connector ………………………………………………………………………198
Telco Connector ……………………………………………………………………………199
D-Sub Connector ……………………………………………………………………………200
Flat Cable Connector ………………………………………………………………………201
DIP and ZIF Sockets ………………………………………………………………………202
Card Edge Modules …………………………………………………………………203, 204
Sockets
8 Pin Octal Socket Assemblies ……………………………………………………………205
11 Pin Socket Assemblies …………………………………………………………………206
16 Pin Miniature Socket Assemblies………………………………………………………207
14 Pin Miniature Socket Assemblies………………………………………………………208
11 Pin Square Socket Assemblies ………………………………………………………209
Individual Sockets …………………………………………………………………………210
SNAPTRACK Channel …………………………………………………………………………211
Accessories ……………………………………………………………………………………212
4
195
Catalog 1308389
Revised 6-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 8706-080-208
Interface Module
Systems
Note:
All part numbers
are RoHS Compliant.
BUCHANAN Terminal Blocks
Catalog Numbering Code
2M
64
No. of
Circuits
DIN
L
Directive 2002/95/EC (RoHS) Compliant
Terminal
Block Series
2M
= 2M Series
Connector Series
= DIN 41612 Type R Connector
DIN
TELS
= Telco Socket
TELP
= Telco Plug
DSM
= D-Sub Connector
FC
= Flat Cable Header
DP
= Dip Socket
DPZ
= ZIF Socket
PCB
= Single-Sided Notch Card
PC
= Double-Sided Notch Card
NOTE:
Some catalog number combinations are not valid. Check appropriate catalog pages before ordering.
196
Catalog 1308389
Revised 6-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 8706-080-208
Note:
All part numbers
are RoHS Compliant.
BUCHANAN Terminal Blocks
Interface Modules

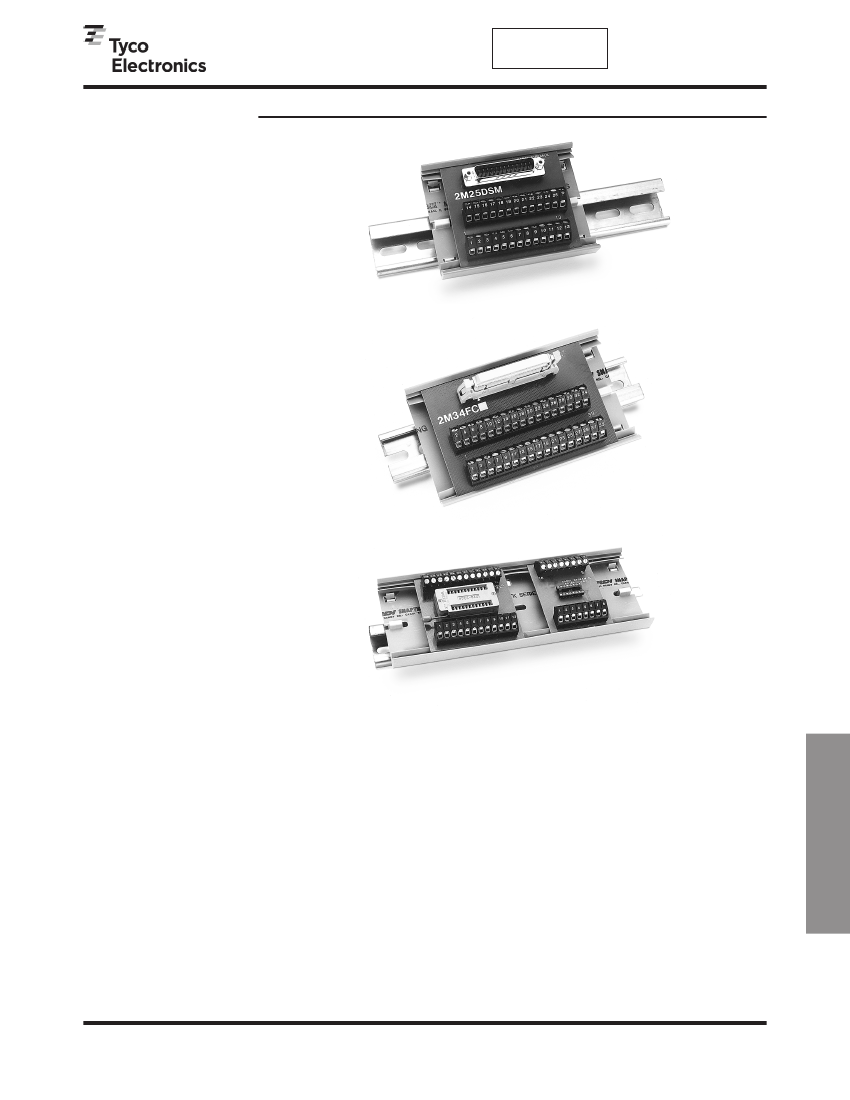

Product Facts
n
Catalog
designs for many
industry connectors:
n
DIN 41612 Connector
n
Telco Connector
n
D-Sub Connector
n
Flat Cable Connector
(daisy chain possible)
n
DIP & ZIF Sockets
n
Card Edge Modules
n
Mounts on SNAPTRACK
Channel which can be panel
mounted or snapped to a DIN
rail.
n
Terminal Block screws
supplied in ready-to-wire
position to save installation
time.
These Modules convert
industry specific
connectors to field wiring
and are designed to supply
custom solutions.
4
197
Catalog 1308389
Revised 6-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 8706-080-208
Interface Module
Systems
Note:
All part numbers
are RoHS Compliant.
BUCHANAN Terminal Blocks

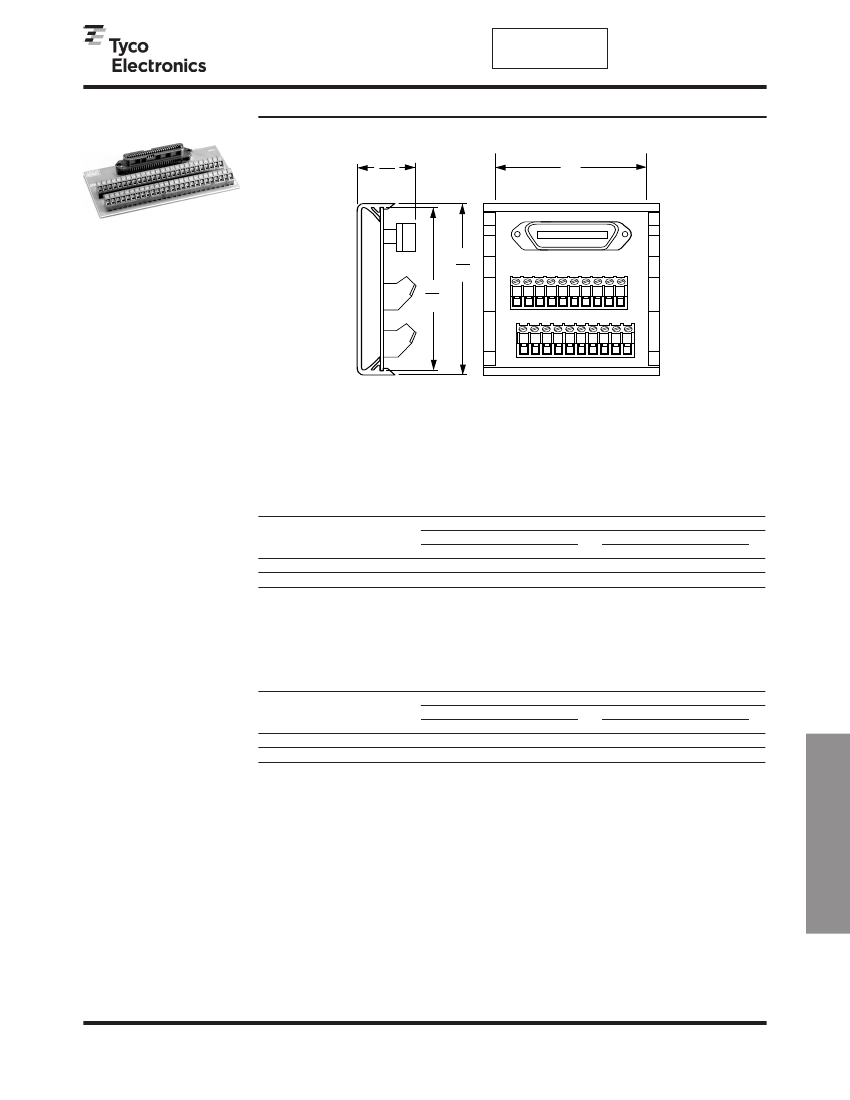

DIN 41612 Connector
26.67
B
(1.05)
170.18
C
(6.7)
2,54
(.100)
5,08
(.200)
Material & Finish
Connector:
Housing Material—Thermoplastic
polyester.
Flammability—UL94V-0
Terminals—Copper
alloy, selective
gold over nickel
71,1
(2.8)
76,2
(3.0)
32
A
31
A
30
A
. . . . . .
A
1
A
32
C
31
C
30
C
. . . . . .
C
1
C
Terminal Block:
Housing Material—Thermoplastic
polyester
Flammability—UL94V-0
Color—Black
Max. Operating Temperature—
120°C [248°]
Terminals—Bright
acid-tin over
copper alloy
Screws—#3-48,
steel zinc plated
Wire Range—12-22
AWG
Mounting—2TK2
and 2TK2D Series
SNAPTRACK Channel
2M64DIN-C
2M64DIN
32
C
31
C
30
C
3
C
2
C
1
C
32
A
31
A
3
A
2
A
1
A
32
A
31
A
30
A
3
A
2
A
1
A
32
C
31
C
3
C
2
C
1
C
Description
64 Position reverse
male DIN (Type R),
A and C filled
64 Position male
DIN (Type C),
A and C filled
DIN Connector
Mates With
Type Q
Non RoHS Compliant
Part Number
Catalog Number
3-1437684-4
2M64DIN
Type B
3-1437684-5
2M64DIN-C
Description
64 Position reverse
male DIN (Type R),
A and C filled
64 Position male
DIN (Type C),
A and C filled
DIN Connector
Mates With
Type Q
RoHS Compliant
Part Number
Catalog Number
1776645-1
2M64DINL
Type B
1776646-1
2M64DIN-CL
198
Catalog 1308389
Revised 6-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 8706-080-208
Note:
All part numbers
are RoHS Compliant.
BUCHANAN Terminal Blocks

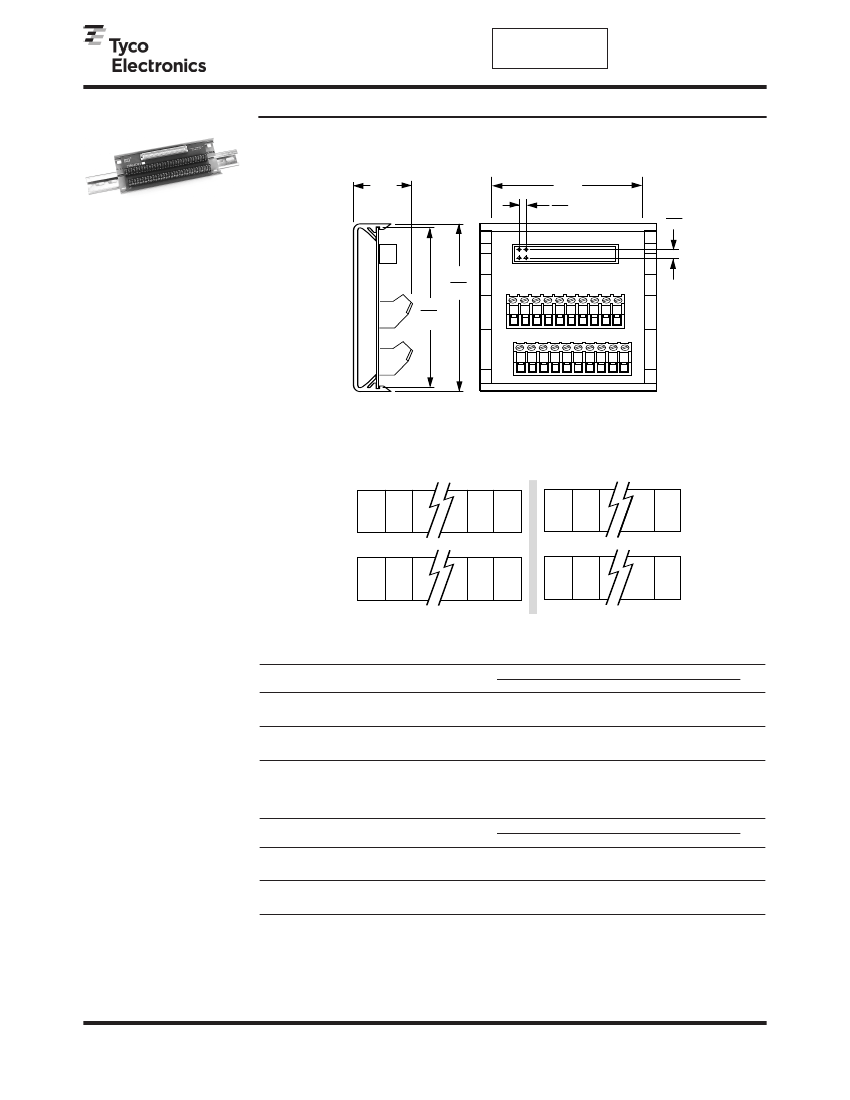

Telco Connector
29,9
(1.18)
C
Material & Finish
Connector:
Housing Material—Thermoplastic
polyester
Flammability—UL94V-0
Terminals—Copper
alloy, selective
gold over nickel
Application Data—2M50TELS(P)
Complies with SCSI Connections
71,1
(2.8)
76,2
(3.0)
Terminal Block:
Housing Material—Thermoplastic
polyester
Flammability—UL94V-0
Color—Black
Max. Operating Temperature—
120°C [248°]
Terminals—Bright
acid-tin over
copper alloy
Screws—#3-48,
steel zinc plated
Wire Range—12-22
AWG
Mounting—2TK2
and 2TK2D Series
SNAPTRACK Channel
Non RoHS Compliant
No. of
Positions
36
50
Dim.
C
4.30
(109.2)
5.70
(144.8)
Socket
Part Number Catalog Number
2-1437684-1
2M36TELS
3-1437684-2
2M50TELS
Plug
Part Number Catalog Number
—
2M36TELP
3-1437684-1
2M50TELP
No. of
Positions
36
50
Dim.
C
4.30
(109.2)
5.70
(144.8)
RoHS Compliant
Socket
Plug
Part Number Catalog Number
Part Number Catalog Number
1776826-1
2M36TELSL
—
2M36TELPL
1776604-1
2M50TELSL
1776643-1
2M50TELPL
4
199
Catalog 1308389
Revised 6-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 8706-080-208
Interface Module
Systems
