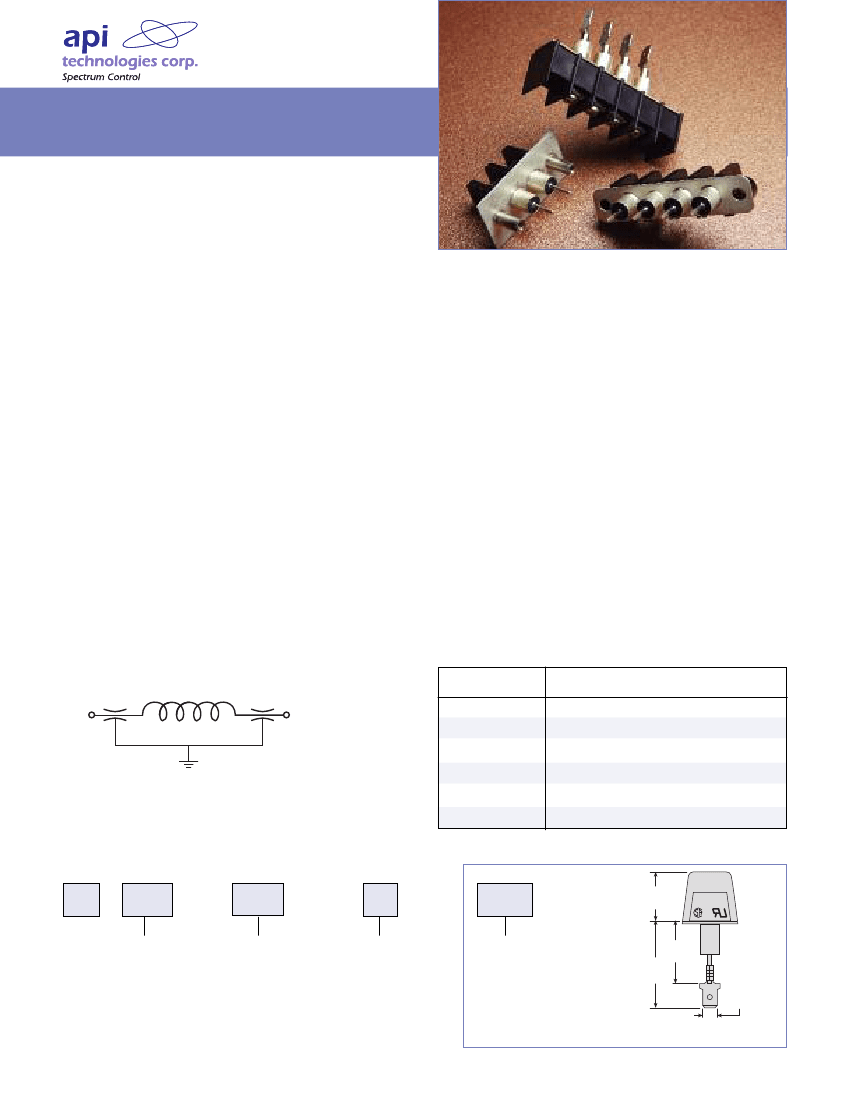

Barrier Strip
Filtered Terminal Blocks
The barrier strip filtered terminal block is designed to
provide excellent EMI/RFI filtering of AC and DC power
lines and control lines. This terminal block is available in
various sizes, with terminals for soldering or spade lugs.
Application examples include filtering power supplies
in telecommunications equipment, metering, industrial
controls, instrumentation and EDP equipment.
Mechanical Specifications
Center Spacing.
. . . . . . . .438" (11.1 mm)
Wire Size
. . . . . . . . . . . . AWG #12 max for 20A
Screw Size
. . . . . . . . . . . 20A - #6-32, zinc-plated
. . . . . . . . . . . . . . . . . . .
philslot screws
Molded Material.
. . . . . . Black, UL rated 94VO thermoplastic
Tightening Torque
. . . . . 9 in.-lbs. max.
Terminal
. . . . . . . . . . . . Brass, tin-plated
Features
s
s
s
s
UL recognized and CSA approved for DC voltages
E133076, UL 1059
LR92537, CSA STD 22.2 N°158-1987 and ECN584B
Filter element provides high insertion loss for EMI/RFI
filtering of AC and DC power and control lines
Rugged construction provides protection to filtering
element; especially useful for repeated changes in
wiring or field connections
2 to 6 terminals available (combine if larger number
of terminals needed)
Cost-effective solution for industrial interconnection
EMI filtering problems
Termination options available: straight lead, male or
female disconnects, pigtail (12 AWG = 0.081" (2.05mm);
22 AWG = 0.025" (0.64mm)
Available in RoHS compliant versions
s
Electrical Specifications
Operating Temperature
. . -55° C to 105° C
Working Voltage.
. . . . . . 100VDC
Capacitance
. . . . . . . . . . 2,500 pF to 5,200 pF
Dielectric
Withstanding Voltage
. . . 1700VDC
Current Rating.
. . . . . . . 20A
D.C. Resistance
. . . . . . . .01 ohms max.
s
s
s
s
Circuit Schematic
Pi Filter
Typical Loss (dB) In 50 Ohm Circuit
Frequency
30 MHz
50 MHz
100 MHz
300 MHz
Insertion Loss (dB)
22
32
48
70
75
75
The part number shown represents a barrier strip terminal block with
six terminals and rated for 20 Amps. Male disconnects (.250") are the
method of termination.
Ordering Information
Example:
52-160-006-A AOO
500 MHz
1000 MHz
*
52 – 160
–
006
–
A
AOO

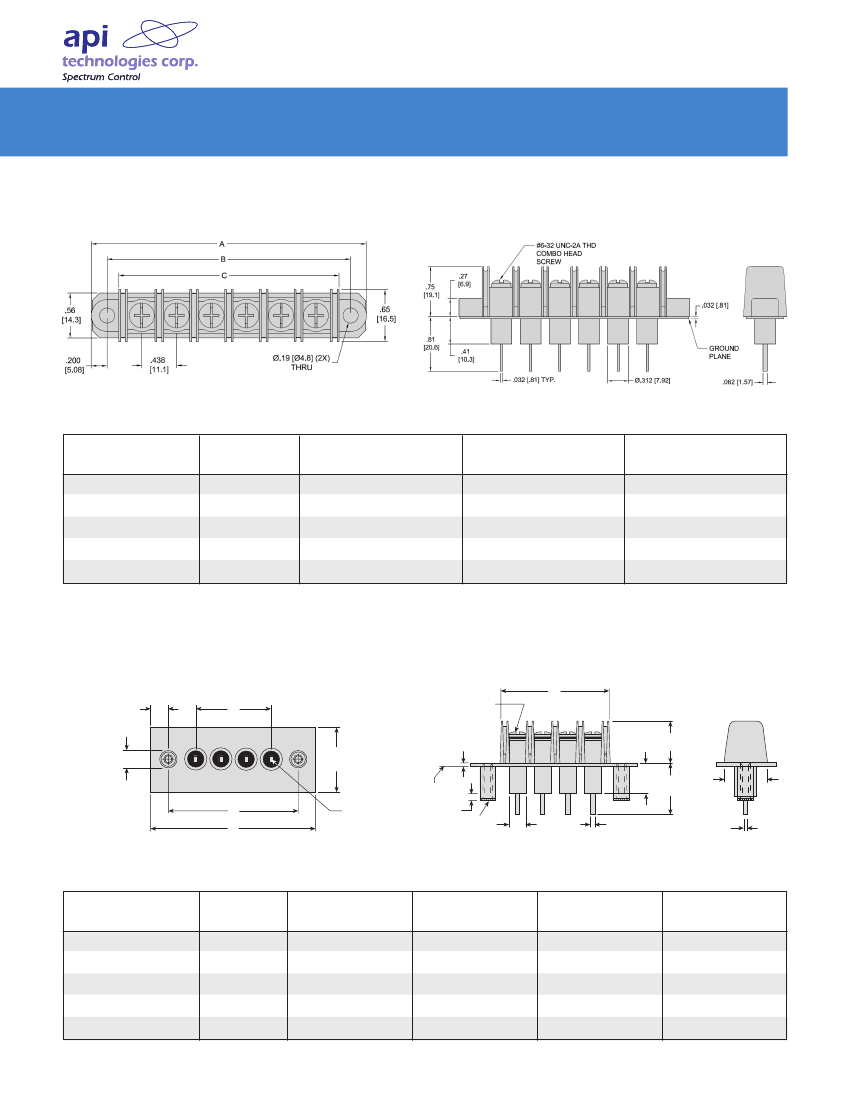

Dimensions
in inches
(mm)
.758
(19.3)
®
Barrier Strip
Terminal Block
160
- Front panel mount
188
- Rear panel mount
Number
Current
of Terminals
Rating
002
- 2 terminals through
A
- 20 Amps
006
- 6 terminals
For instructions on soldering to filter terminals, please refer to
page FA4 in filter plate section.
*
Replace “–” with “F” for RoHS complaint version
.820
Special Terminations Code
(20.9)
Note: Leave blank if ordering
1.30
TYPICAL
(33.1)
standard product.
MAX.
.187
(4.8)-AO1
.250
(6.4)-AOO
Male quick disconnects
.032
(.8)
THK.
directly on terminal block.
FOR BOTH
AO1
. . . . . . .187 (4.8)
For custom designs see page FA18
AOO
. . . . . . .250 (6.4)
and consult with factory.
API TECHNOLOGIES
• 8061 Avonia Rd. • Fairview, PA 16415 • Ph: 814-474-1571 • Fax: 814-474-3110 • eis.apitech.com
API TECHNOLOGIES’ SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
FA19

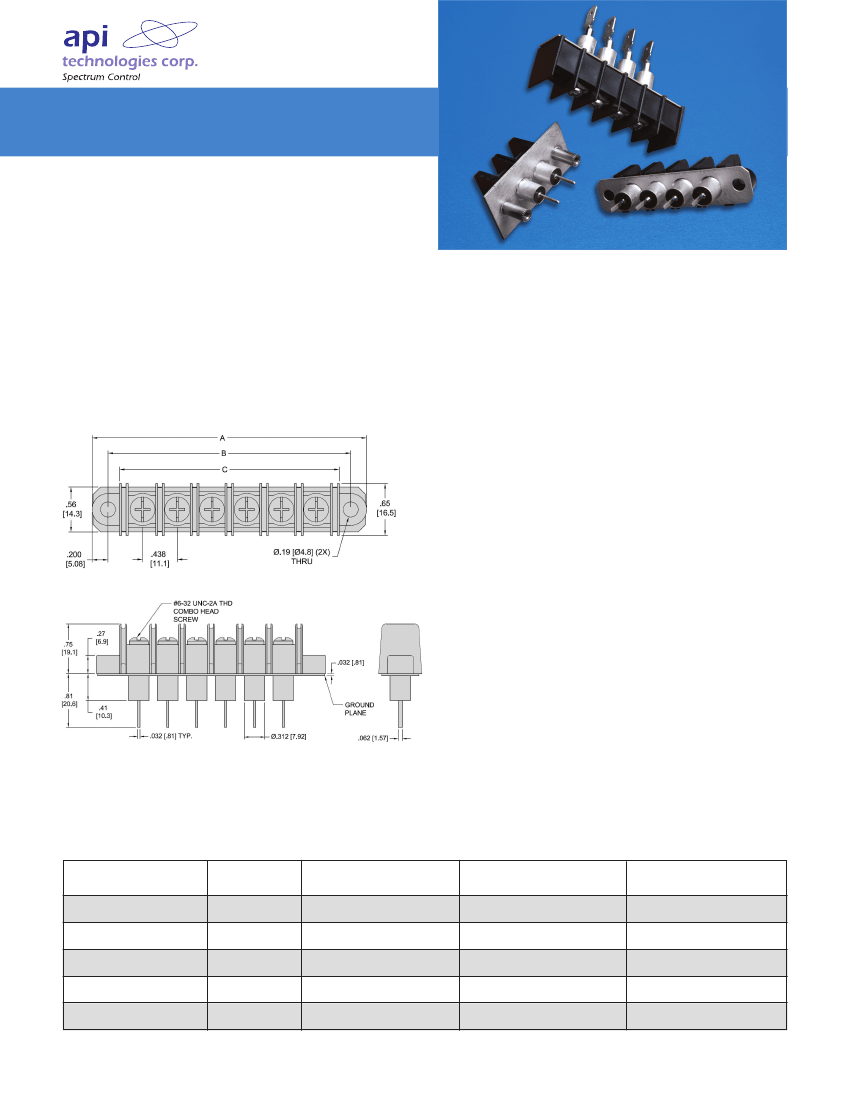

250 Volt AC Rated
Filtered Terminal Blocks
API Technologies’ Spectrum Control line of filtered terminal
block provides superior EMI/RFI filtering of AC power and
control lines. This terminal block is available in various sizes,
with terminals for soldering, spade lugs, or wire pigtails.
Termination options available: straight lead male or female
disconnects, or wire pigtails in lengths to your specification.
Applications
n
n
n
n
n
n
n
n
n
n
Features
n
n
n
n
UL recognized and CSA approved for AC voltages.
E133076, UL 1059.
LR92537, CSA STD 22.2 N°158-1987 and ECN584B.
Termination options available: straight lead, male
or female disconnects, pigtail (12 AWG-22 AWG).
Metering equipment
Programmable controllers
Industrial process control
Heavy equipment controls
Power supplies
Regulators
Surge sensing equipment
Power factor correction
Telecommunications power management,
ATM, Sonet, etc.
Medical equipment
Specifications
ELECTRICAL
Operating Temperature:
Voltage Rating:
Current Rating:
Wire Range:
Torque:
Capacitance:
Dielectric
Withstanding Voltage:
MECHANICAL
Center Spacing:
Wire Size:
Screw Size:
Molded Material:
Tightening Torque:
Terminal Options:
-55° C to +105° C
250VAC
20 Amps
12-22AWG
9 lb-in.
2000pF to 5200pF
1500VAC @ 25° C
.438” (11.1 mm)
AWG #12 max. for 20 Amp
20A - #6-32, zinc plated philslot
UL rated 94VO polyamide
9 in.-lbs. max.
straight lead, male or female
disconnects, pigtail
C
Part Number
52-257-002
52-257-003
52-257-004
52-257-005
52-257-006
Number of
Circuits
2
3
4
5
6
in.
1.71
2.15
2.59
3.02
3.46
A
(mm)
(43.4)
(54.6)
(65.8)
(76.7)
(87.9)
in.
1.31
1.75
2.19
2.62
3.06
B
(mm)
(33.3)
(44.5)
(55.6)
(66.5)
(77.7)
in.
1.02
1.46
1.90
2.32
2.77
(mm)
(25.9)
(37.1)
(48.3)
(58.9)
(70.4)
Dimensions in inches
(mm)
API TECHNOLOGIES
• 8061 Avonia Rd. • Fairview, PA 16415 • Ph: 814-474-1571 • Fax: 814-474-3110 • eis.apitech.com
API TECHNOLOGIES’ SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
