34_N-50-0-1/133_NE datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 34_N-50-0-1/133_NE

Preview

34_N-50-0-1/133_NE: DescriptionRF Adapters - Within Series; CategoryThe connector The connector; File Size105KB，1 Pages; ManufacturerHUBER+SUHNER; Environmental Compliance

Download Datasheet Parametric View All

34_N-50-0-1/133_NE Overview

RF Adapters - Within Series

34_N-50-0-1/133_NE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	HUBER+SUHNER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Adapter type	N-N
Other features	STANDARDS: IEC 61169-16; MIL-STD-348A/304
Body/casing type	JACK-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE-FEMALE
Contact material	NOT SPECIFIED
Contact style	COAX
Coupling type	THREADED
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	YES
insulator material	PFA/PTFE
MIL compliance	YES
Installation method	STRAIGHT
Maximum operating frequency	12.4 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	YES
reliability	COMMERCIAL
voltage standing wave ratio	3.17

Preview

Download Datasheet

View All

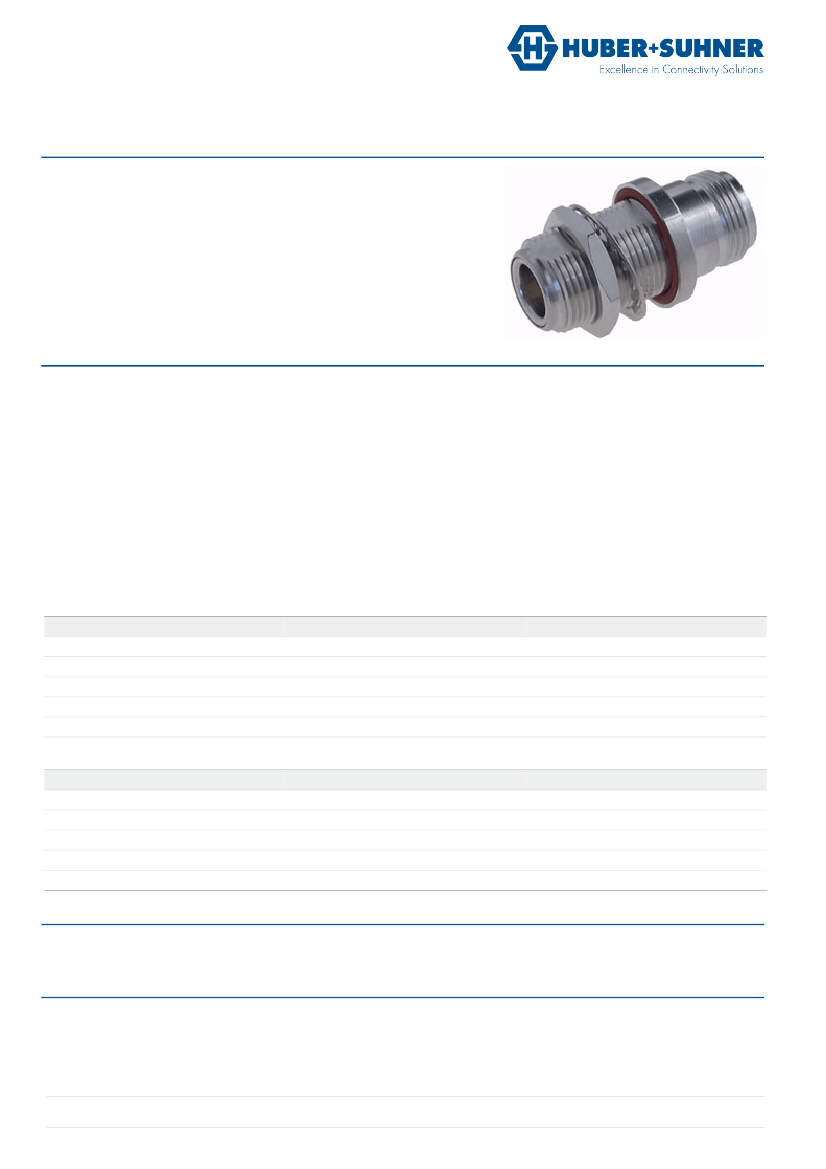

Data Sheet

Within Series Adaptor

34_N-50-0-1/133_N

Description

Bulkhead adaptor jack/jack

N jack (female) / N jack (female)

Interface standard

Series N - IEC 61169-16_MIL-STD-348A/304_CECC 22210

Technical Data

Electrical Data

Impedance

Interface frequency max.

VSWR

50 Ω

18 GHz

DC - 12.4 GHz

≤ 1.06 + 0.17 f (GHz)

Mechanical Data

Number of matings

Weight

500

0.0486 kg

Environmental Data

Operating temperature

2011/65/EU (RoHS)

-65 °C to 165 °C

compliant

Material Data

Interface - N jack (female)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Gasket

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

VMQ (Silicone rubber)

Surface Plating

SUCOPRO Plating

SUCOPLATE (R) Plating

Interface - N jack (female)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Gasket

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

VMQ (Silicone rubber)

Surface Plating

SUCOPRO Plating

SUCOPLATE (R) Plating
