34_N-SMA-50-1/193_UE

Description
RF Adapters - Between Series
CategoryThe connector    The connector
File Size132KB,2 Pages
ManufacturerHUBER+SUHNER
Environmental Compliance
Download Datasheet Parametric View All

34_N-SMA-50-1/193_UE Overview

RF Adapters - Between Series

34_N-SMA-50-1/193_UE Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Adapter typeN-SMA
Other featuresVSWR MAX AT 12.4 GHZ
Body/casing typeJACK-JACK
Characteristic impedance50 Ω
Connector typeRF CONNECTOR ADAPTER
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE-FEMALE
Contact materialNOT SPECIFIED
Contact styleCOAX
Coupling typeTHREADED
DIN complianceNO
Durability500 Cycles
Filter functionNO
IEC complianceNO
insulator materialPFA/PTFE
MIL complianceNO
Installation methodSTRAIGHT
Maximum operating frequency18 GHz
Maximum operating temperature90 °C
Minimum operating temperature-20 °C
OptionsGENERAL PURPOSE
Panel mountingYES
reliabilityCOMMERCIAL
voltage standing wave ratio1.26
Base Number Matches1

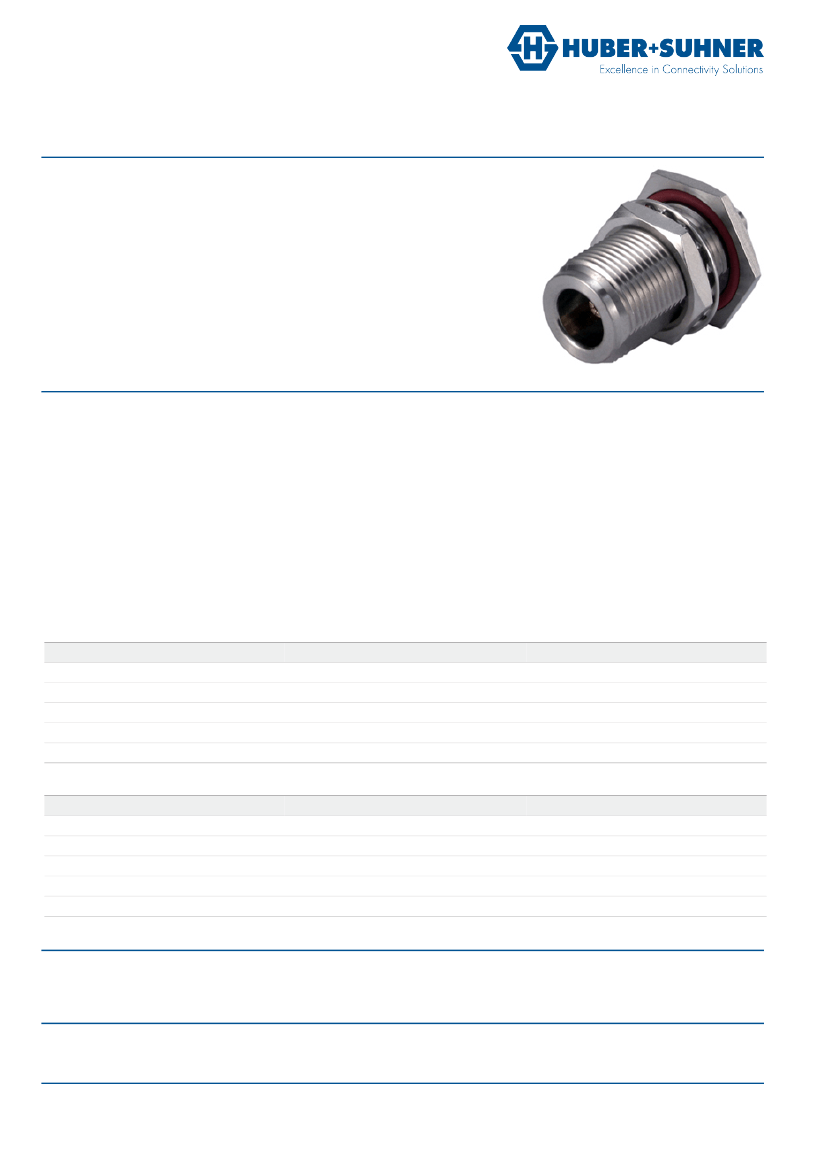

Data Sheet
Between Series Adaptor
34_N-SMA-50-1/193_U
Description
Bulkhead adaptor jack/jack
N jack (female) / SMA jack (female)
With panel seal
Interface standards
Series N - IEC 61169-16_MIL-STD-348A/304_CECC 22210
Series SMA - IEC 60169-15_MIL-STD-348A/310_CECC 22110
Technical Data
Electrical Data
Impedance
Interface frequency max.
VSWR
50 Ω
18 GHz
DC - 12.4 GHz
≤ 1.05 + 0.017 f (GHz)
Mechanical Data
Number of matings
Weight
500
0.0369 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-20 °C to 90 °C
compliant
Material Data
Interface - N jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Gasket
Material
Copper Beryllium Alloy
Stainless Steel
Stainless Steel
PFA / PTFE
VMQ (Silicone rubber)
Surface Plating
Gold Plating (without Nickel underplating)
Interface - SMA jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Gasket
Material
Copper Beryllium Alloy
Stainless Steel
Stainless Steel
PFA / PTFE
VMQ (Silicone rubber)
Surface Plating
Gold Plating (without Nickel underplating)
Related Documents
Outline drawing
Mounting hole
DOU-00014142
DOU-00072449
Ordering Information
Single package
34_N-SMA-50-1/193_UE
Remarks
IP67 rating in mated condition
Document: DOC-0000195158 O / PDO G / date of publication: 15.09.2015 11:01:37 / uncontrolled copy
